Introduction:
Delivering reliable networking performance, the single-port RJ45 Connector with Magnetics operates seamlessly at 10/100 Base-T speeds. A fully shielded copper alloy housing effectively mitigates electromagnetic interference during Ethernet data transmission. Right-angle through-hole mounting incorporates a board lock to anchor the component securely onto the PCB. Manufactured with glass-filled polyester insulation, the module withstands standard operating environments while maintaining structural integrity. Visual connectivity feedback is provided by integrated yellow and green LEDs located within the tab-up design. Gold-plated phosphor bronze contacts keep contact resistance below 30mΩ for consistent signal quality.
Key Features
- 10/100 Base-T Speed: Supports standard Fast Ethernet connections efficiently.
- Copper Alloy Shield: Full metal housing blocks electromagnetic interference.
- Built-in LEDs: Yellow and green lights show network status.
- Polyester Insulation: Glass-filled material ensures robust structural support.
- Phosphor Bronze Contacts: Gold plating maintains under 30mΩ resistance.

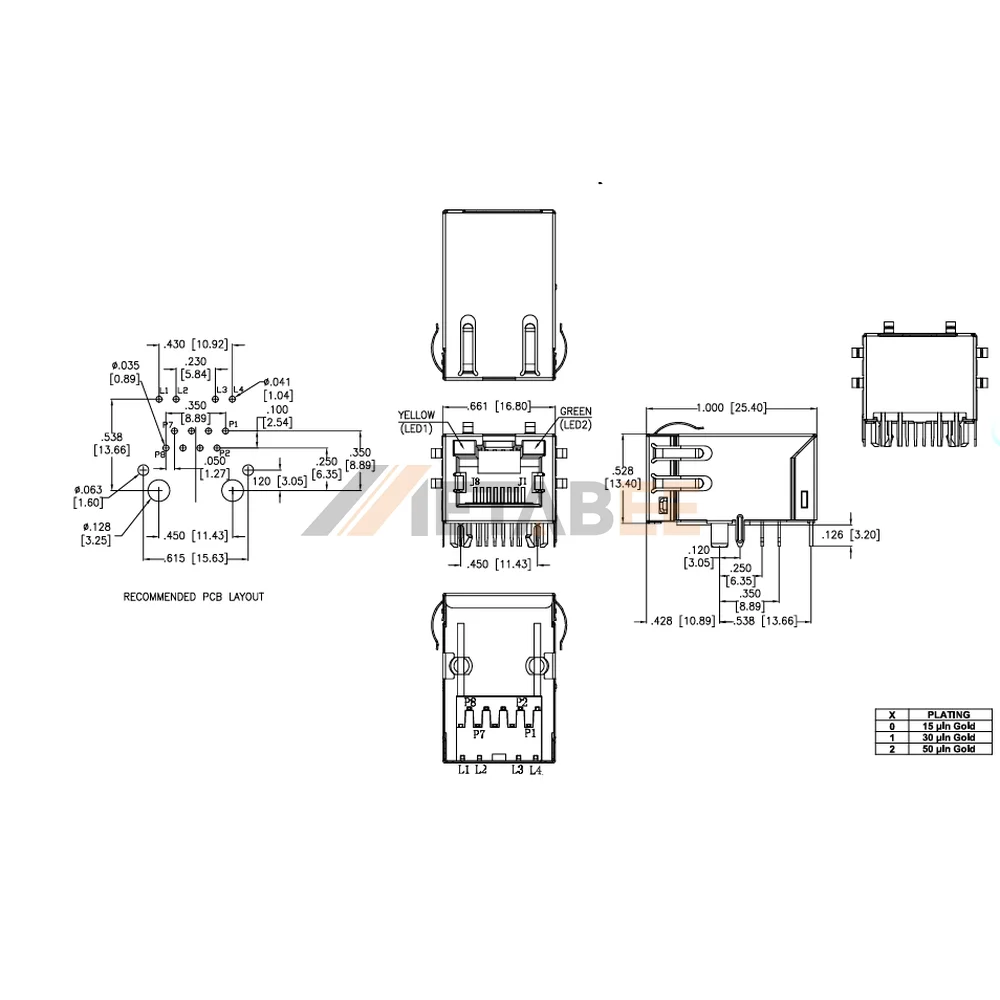

Main Specifications:
General Information:
| Product No.: | MTJ-88SX1-FSD-PG-LG-M5-A | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Glass-filled polyester | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
