Introduction:

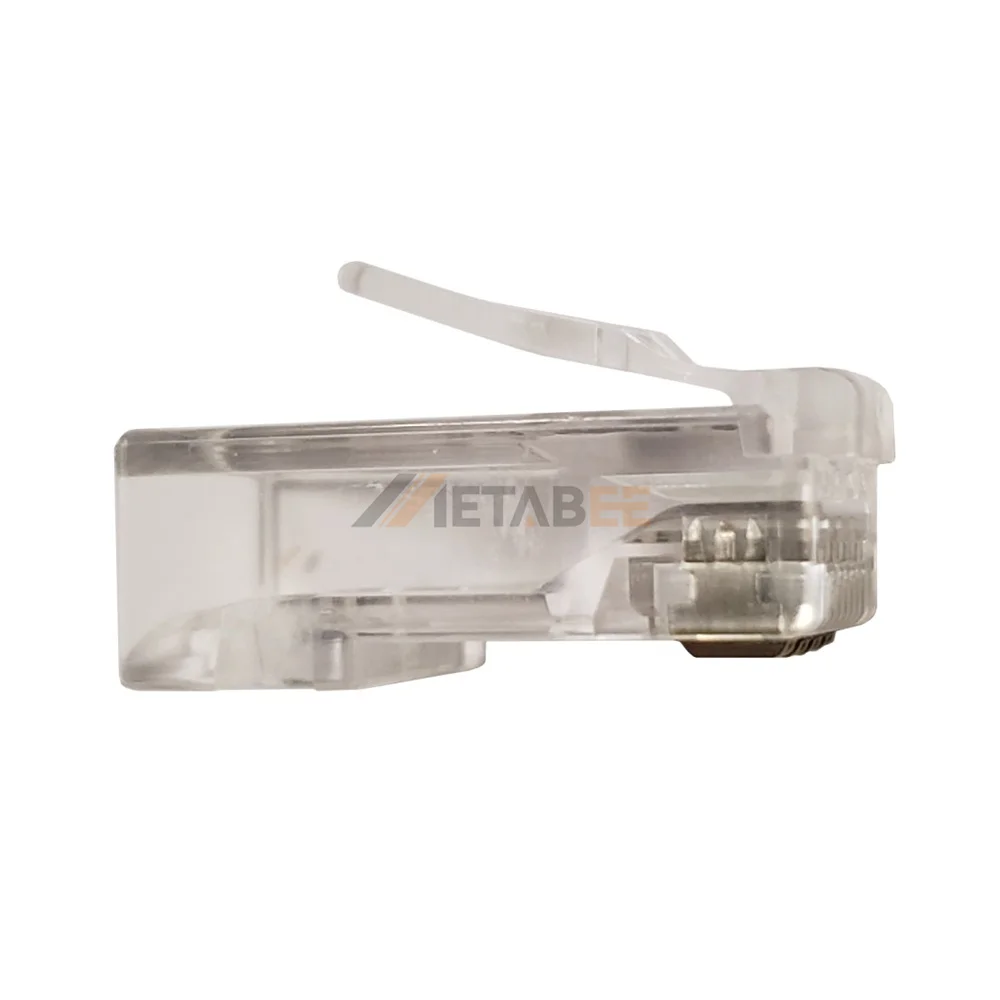

Terminating thick, solid, round cables for high-speed networks is simplified with this RJ45 Cat6 plug. Its specialized 3-prong contacts are engineered to pierce 21-23AWG copper conductors effectively for a lasting electrical bond. Because it adheres to Cat6 standards, the connector supports gigabit Ethernet performance in standard unshielded environments. The clear PC housing allows technicians to verify wire alignment easily before the final crimping step. With a gold-over-nickel finish on the copper alloy contacts, it provides superior conductivity and corrosion resistance. Technicians rely on this robust modular component for installations operating between -25°C and +55°C.
Key Features
- Cat6 Performance: Supports gigabit ethernet for high-bandwidth networking systems.
- 3-Prong Contacts: Engineered for secure termination on solid copper wires.
- 21-23AWG Compatibility: Accommodates thicker conductors for stable electrical connections.
- Clear PC Housing: Facilitates easy visual verification of wire alignment.
- Gold-Over-Nickel Finish: Ensures superior conductivity and lasting oxidation resistance.
Main Specifications:
General Information:
| Product No.: | MTPR-88-X-S-C6-A | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | RJ45 Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | Cat5e | |
| Wire Type: | Solid | |
| Cable Type: | Round | |
| Wire range: | 21-23AWG | |
| OD of the Individual Cable Core: | 1.09~1.99mm | |
| Body Length: | 22.4 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 V/AC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PC | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
