Introduction:
This RJ45 8P8C plug offers a reliable connection for gigabit Ethernet systems. It is specifically designed to terminate solid round cables, providing stable performance for local area network installations. Because it meets Cat5e standards, the connector supports data speeds up to 1000 Mbps with high signal integrity. The unshielded design features a clear polycarbonate housing that allows for easy visual inspection of the phosphor bronze contacts. With a dielectric strength of 1000 VAC, it ensures electrical safety for connected networking devices. Technicians value this modular component for its consistent termination and long-lasting durability in residential or commercial setups.
Key Features
- Cat5e Performance: Supports fast data speeds up to 1000 Mbps.
- Solid Cable Support: Designed specifically for termination on solid round cables.
- Clear Polycarbonate Shell: Facilitates quick visual verification of internal wiring.
- Superior Insulation: Ensures stable electrical performance with 1000 Mohms resistance.
Main Specifications:
General Information:
| Product No.: | MTPR-88-X-S-C5E | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | RJ45 Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | Cat5e | |
| Wire Type: | Solid | |
| Cable Type: | Round | |
| Wire range: | N/A | |
| OD of the Individual Cable Core: | N/A | |

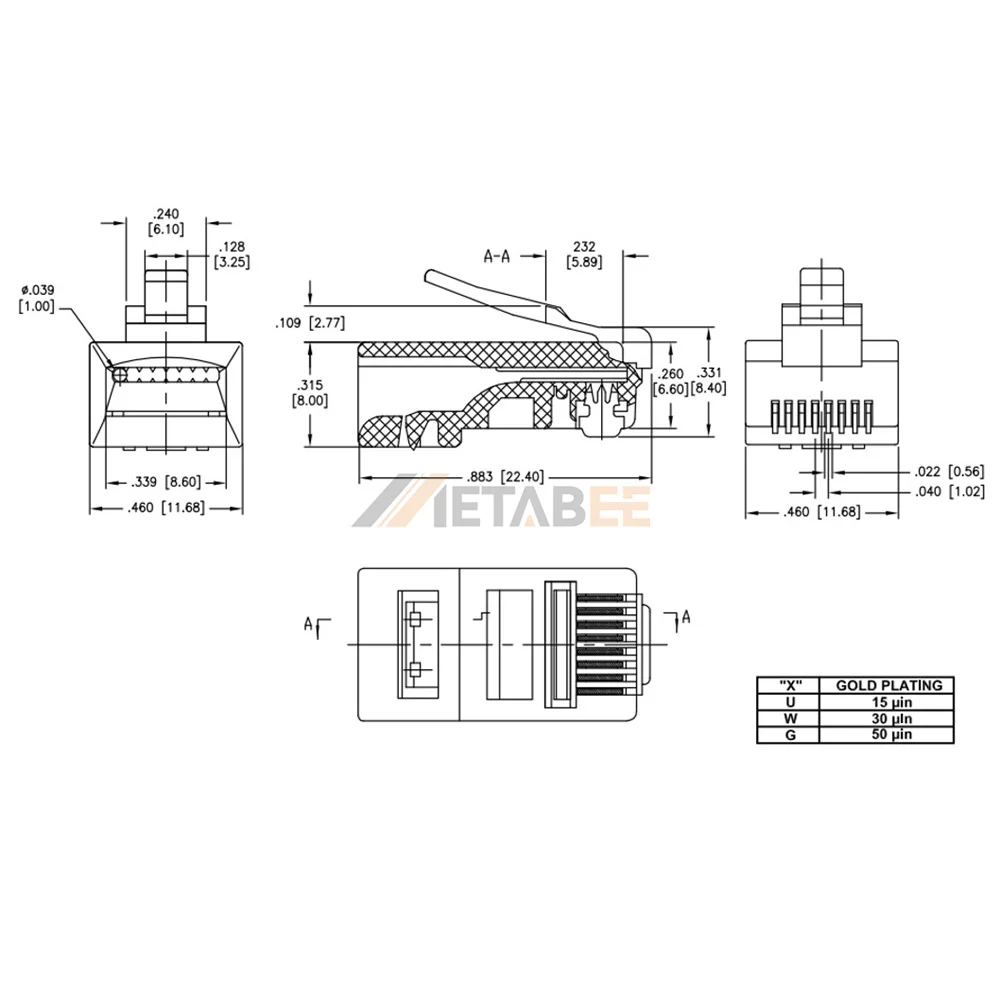

| Body Length: | 22.4 mm |
Electrical:
| Rated Current: | N/A | |
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Insulator Color: | Clear | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
