RJ45 8P8C PCB Mount Jack Vertical Connector, 1 Port, Shielded, Through Hole, Tab-Down, No LED
Introduction:
This is a single port shielded RJ45 PCB mount vertical connector designed for stable top-entry through hole installation on networking boards. It features a robust nickel plated brass shell that provides a full shield against electromagnetic interference to safeguard signal integrity across the 8P8C interface. The durable black PBT housing ensures high thermal stability while maintaining a superior insulation resistance of 1000MΩ Min. Premium Phosphor Bronze contacts include a Gold over Nickel finish to ensure high conductivity for stable 1.5A circuits within an industrial range of -40°C to +85°C. Utilizing a vertical configuration, this component optimizes board surface area while effectively handling dielectric voltages up to 1000 VAC. Technicians utilize this modular interface for industrial automation systems and telecommunication hardware requiring secure vertical board connectivity.
Key Features
- Full EMI Shielding: Metallic brass shell blocks signal interference effectively.
- Vertical Orientation: Optimizes top-entry mounting for compact PCB layouts.
- Gold Plated Contacts: Ensures high conductivity and signal stability.
- Industrial Temperature Range: Performs reliably between -40°C and +85°C.
- Durable PBT Material: Maintains 1000MΩ Min for enhanced electrical safety.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSE | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

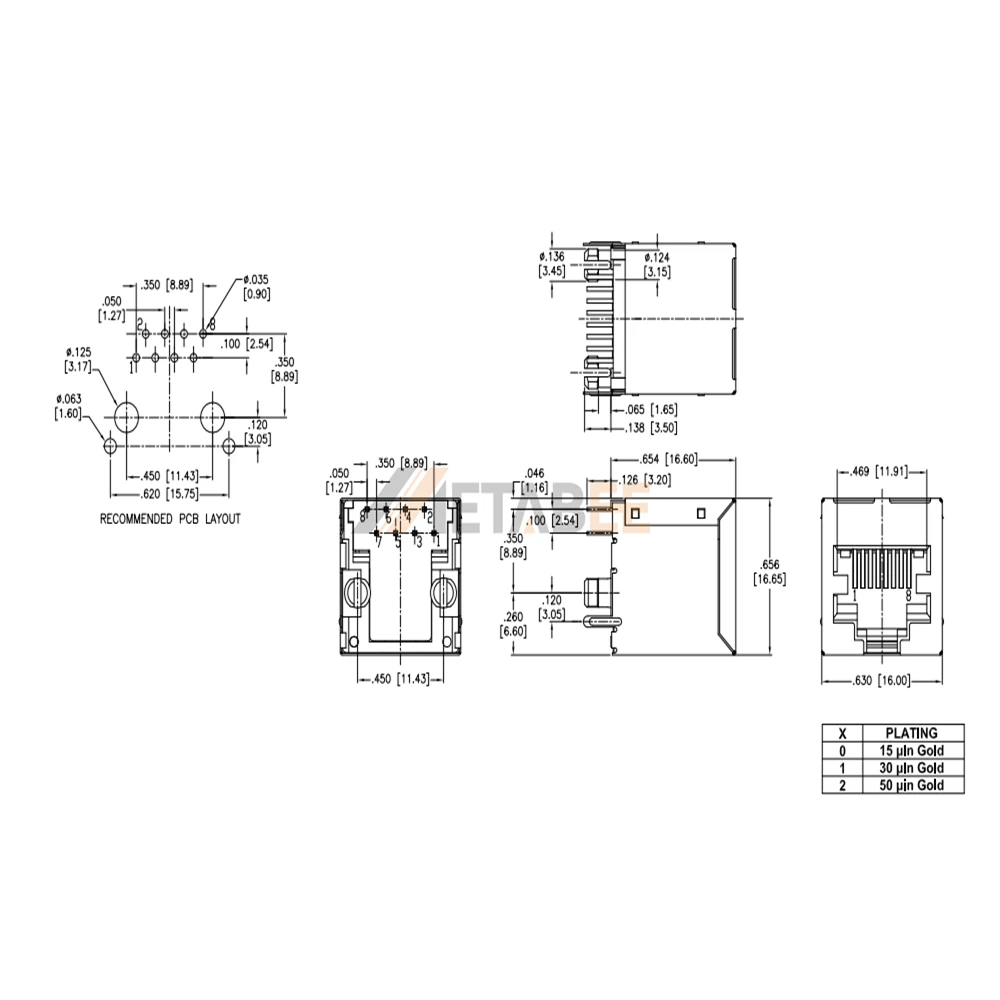

Structure of Modular Jack
