Introduction:
This is a female 5 pin magnet pogo pin power connector engineered for stable charging and data transmission in compact devices. It utilizes a magnetic self-mating interface to ensure effortless automatic alignment and a secure connection every time. The rectangular housing features high-quality Brass contacts with a 3u” Gold plating to maintain low resistance and resist oxidation. Designed with a 1.5A current rating at 12V DC, this component survives at least 30,000 cycles thanks to its robust SUS spring. Technicians utilize this connector for smart wearables and medical hardware requiring a reliable and fast docking solution.
Key Features
- Magnetic Auto-Alignment: Facilitates quick and effortless self-mating connection.
- 30,000 Cycle Lifetime: Ensures long-term durability for frequent docking applications.
- Gold Plated Contacts: Provides superior conductivity and excellent corrosion resistance.
- 1.5A Current Support: Delivers reliable power for small electronic devices.
- Compact Rectangular Design: Saves valuable space in modern wearable hardware.
Main Specifications:
General Information:
| Product No.: | PH1-C2524-05-MVF-2533 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 5 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.5mm | |
| Working Stroke (mm): | 0.8mm@50gf±20gf max | |
| Life Test: | 30,000 Cycles min |
Electrical:
| Rated Current: | 1.5A max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | ABS | |
| Insulator Color: | N/A | |
| Contact Material: | Brass | |
| contact plating: | 3u” Gold plated over Nickel | |
| Spring Material: | SUS | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

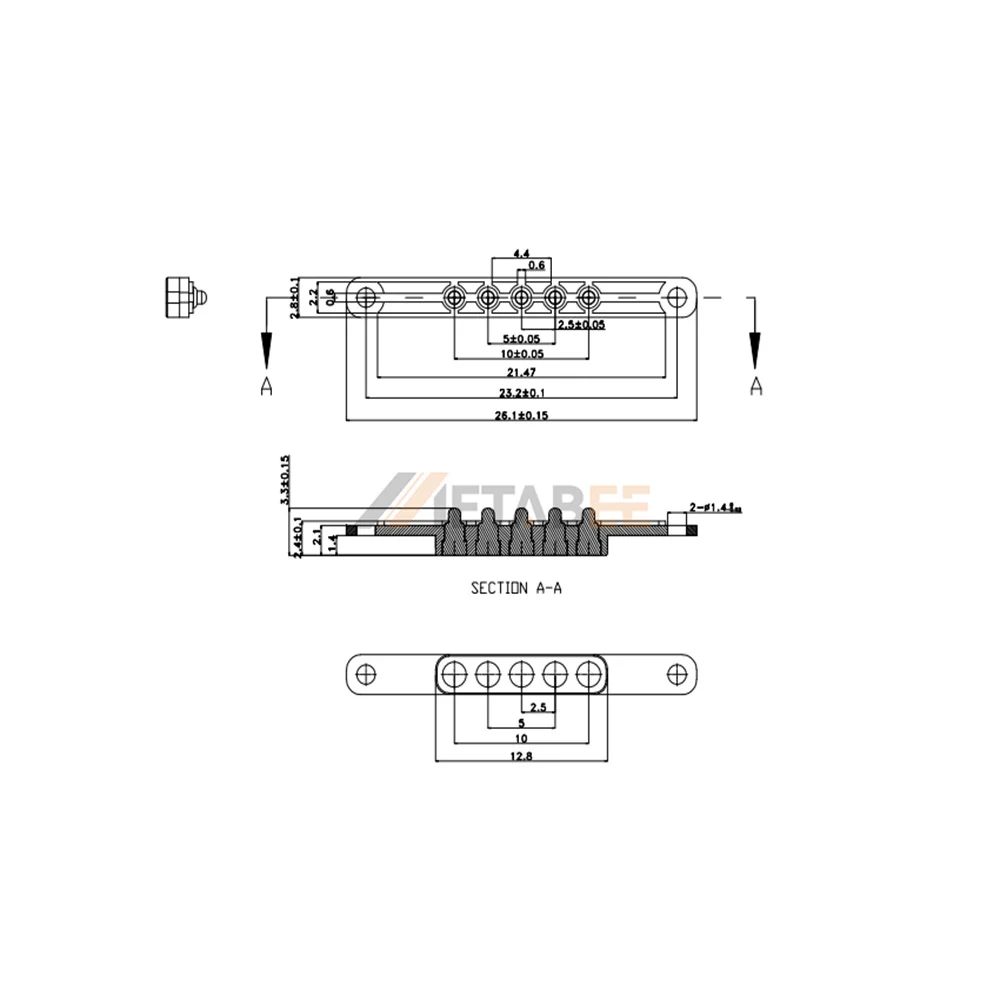

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
