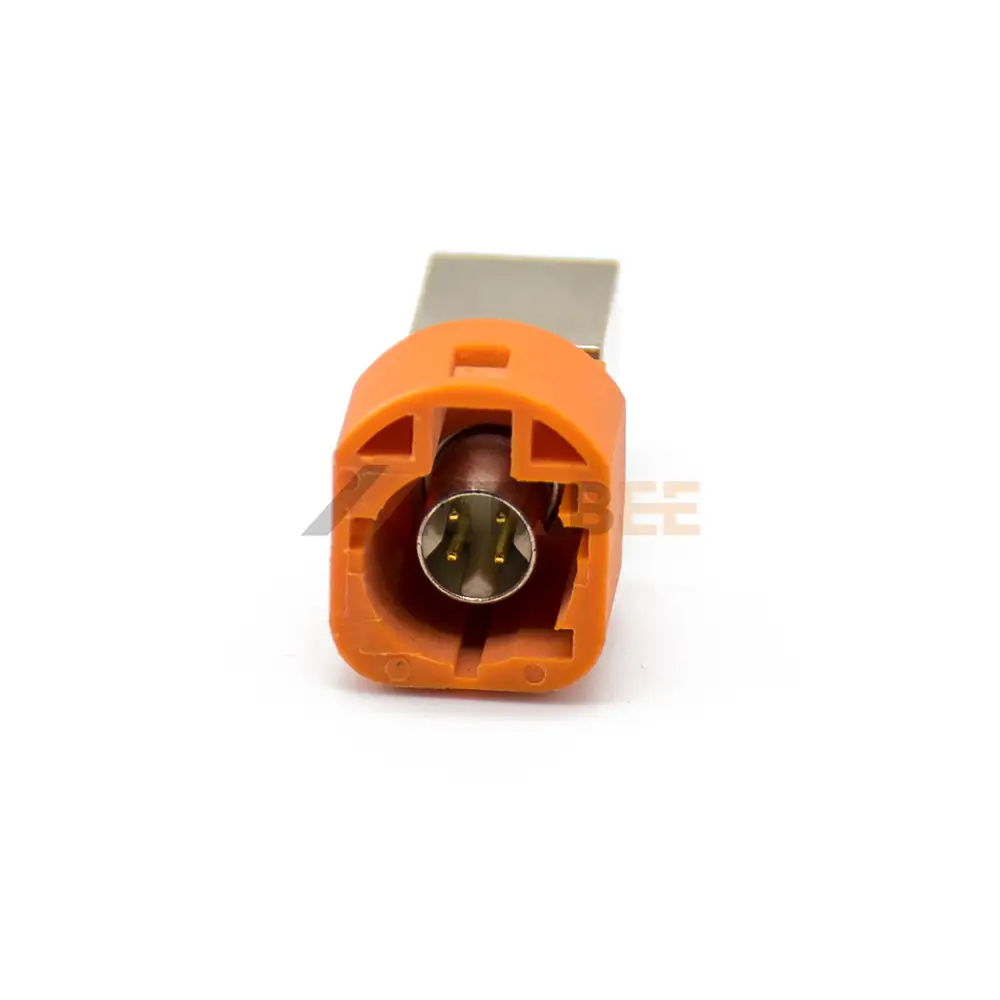

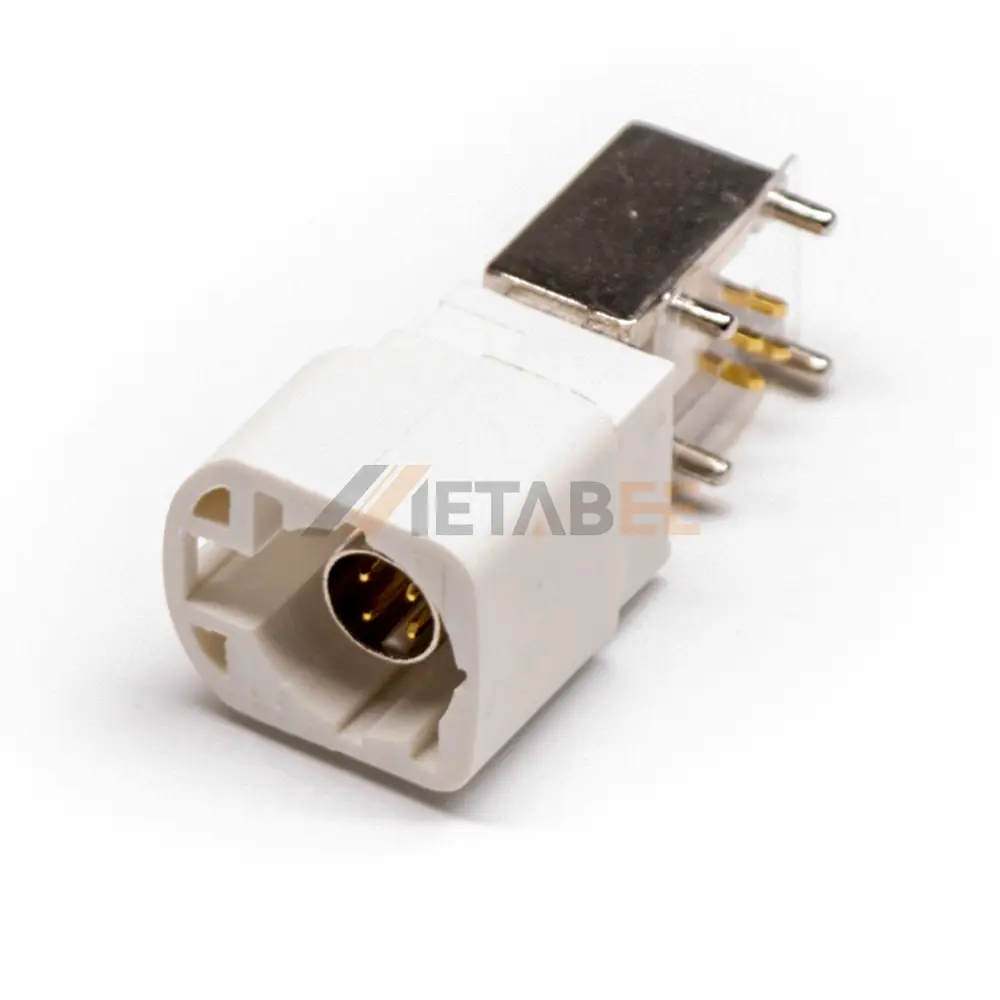

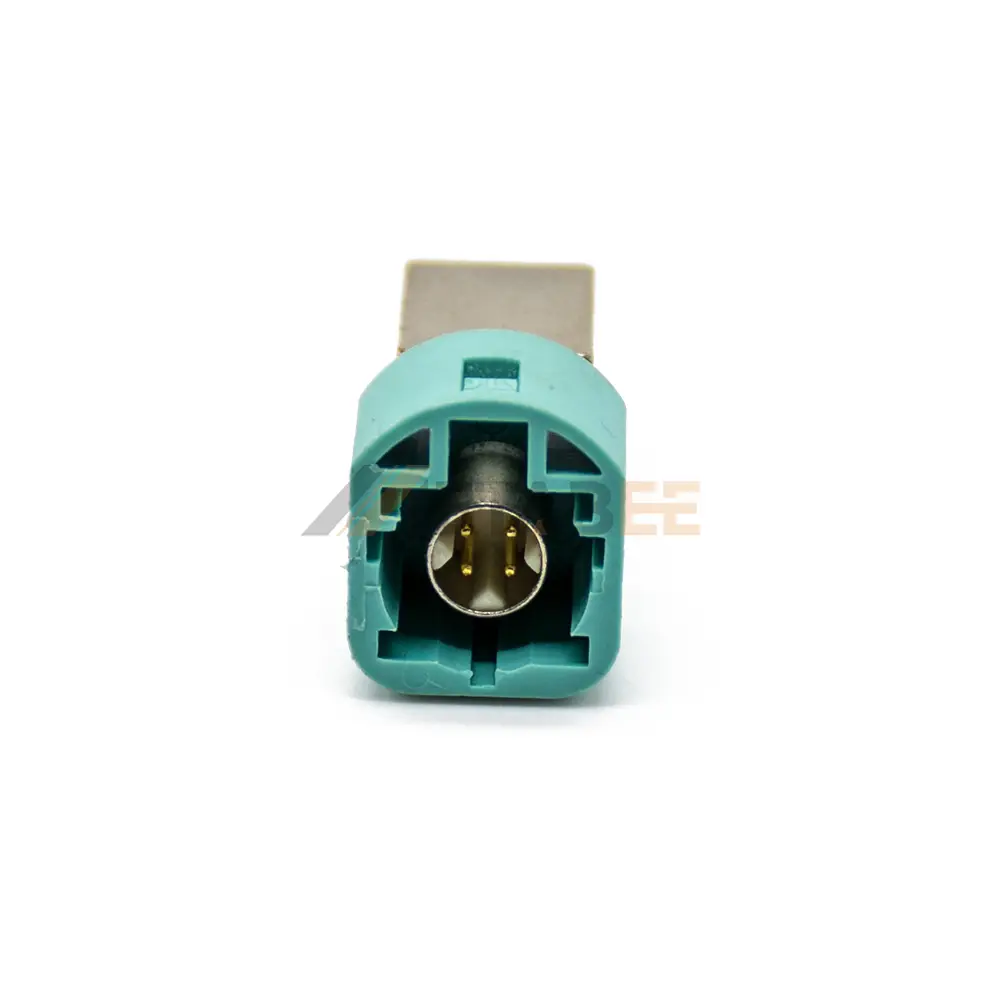

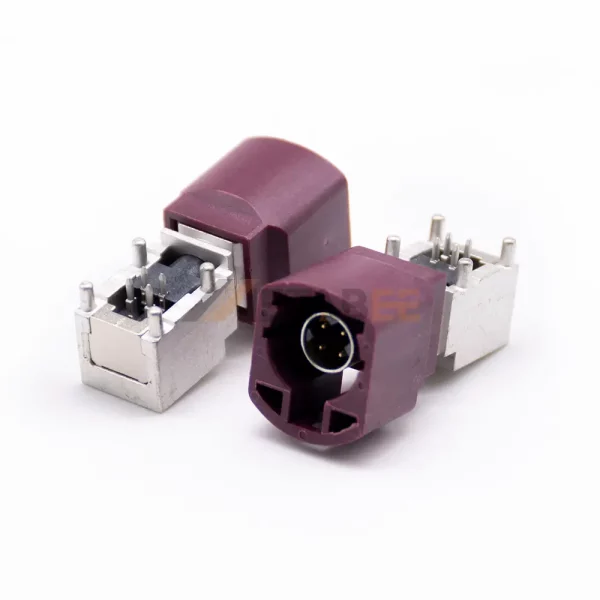

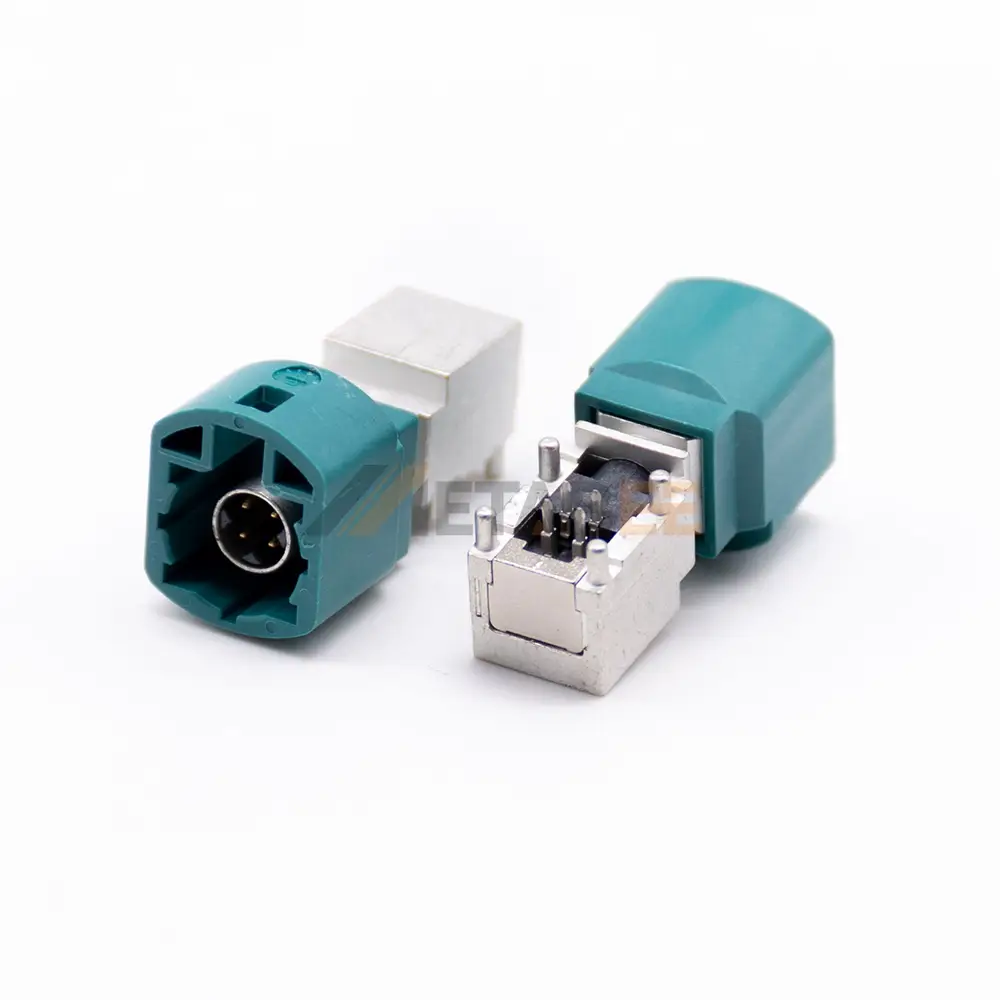

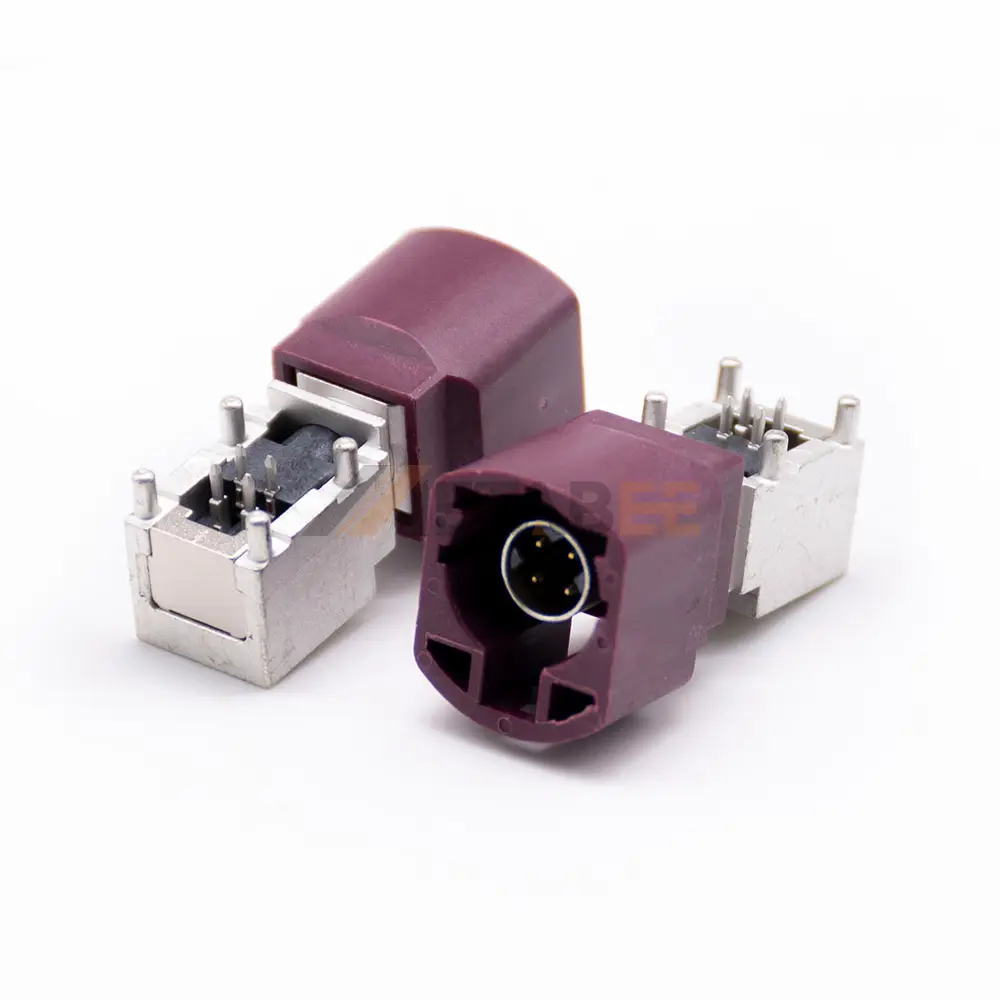

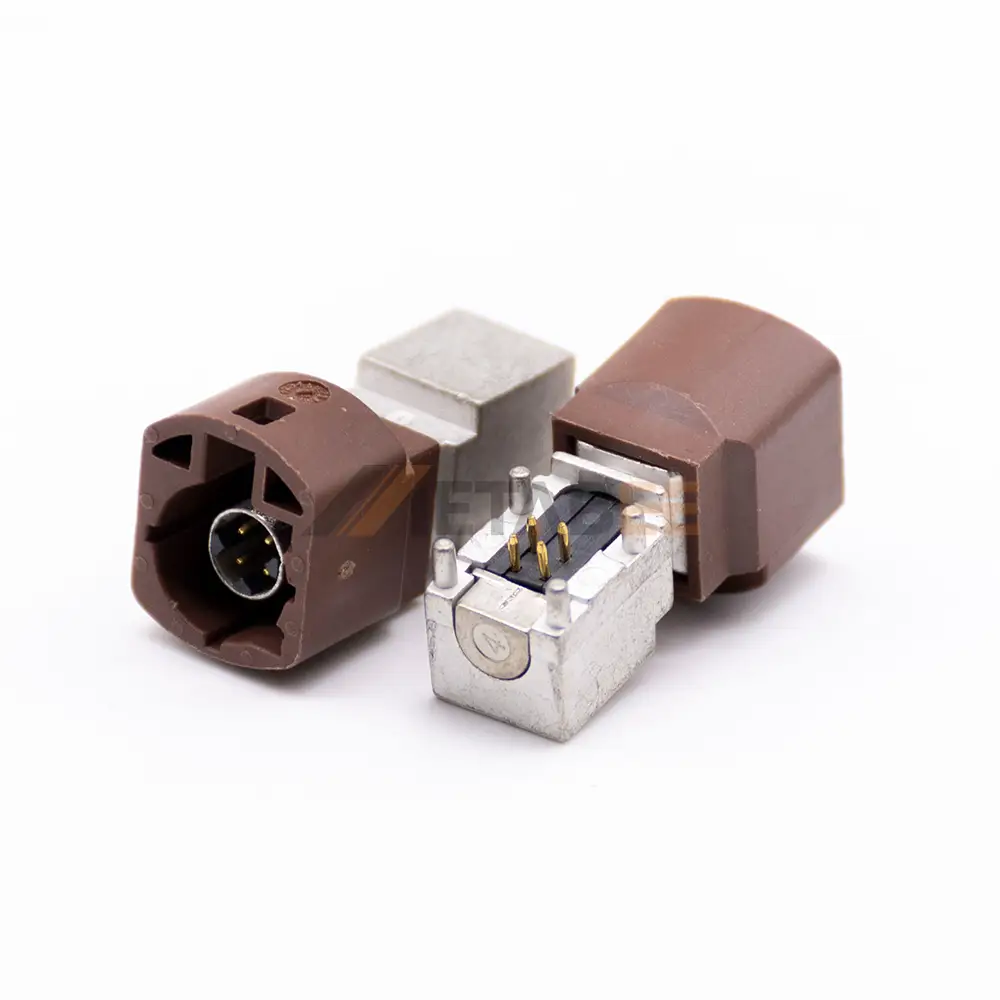

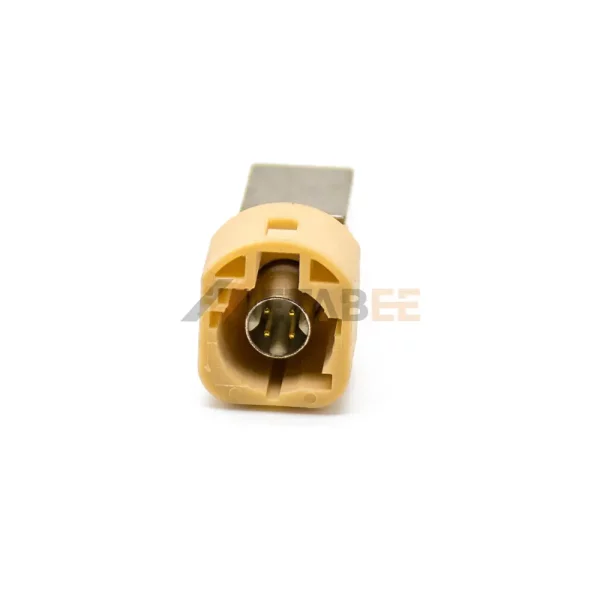

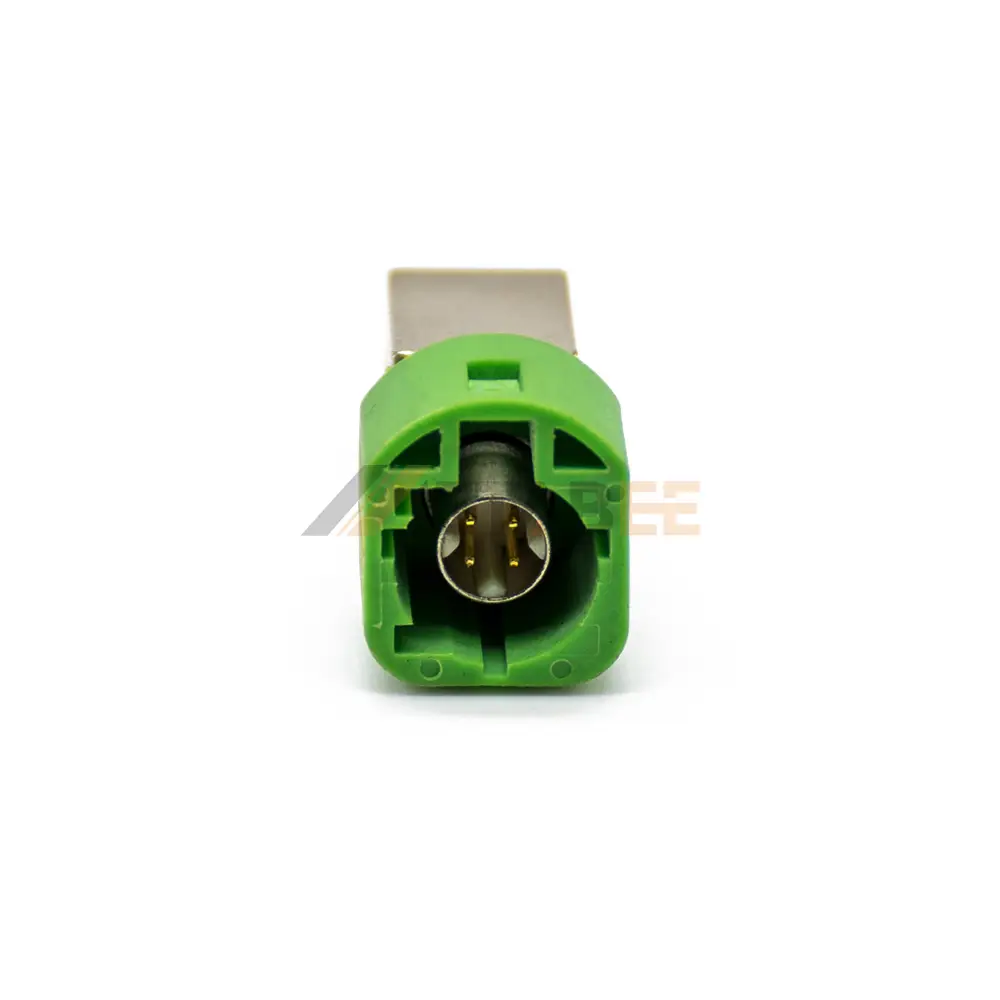

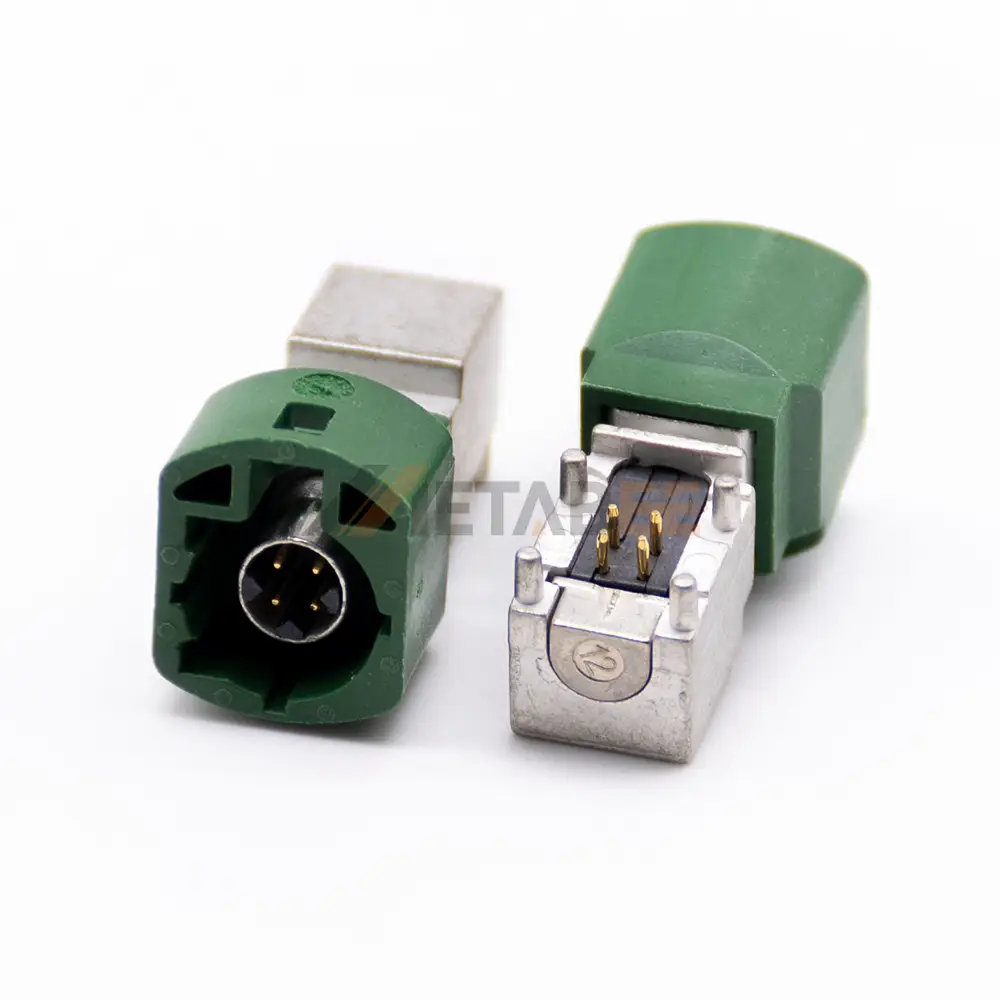

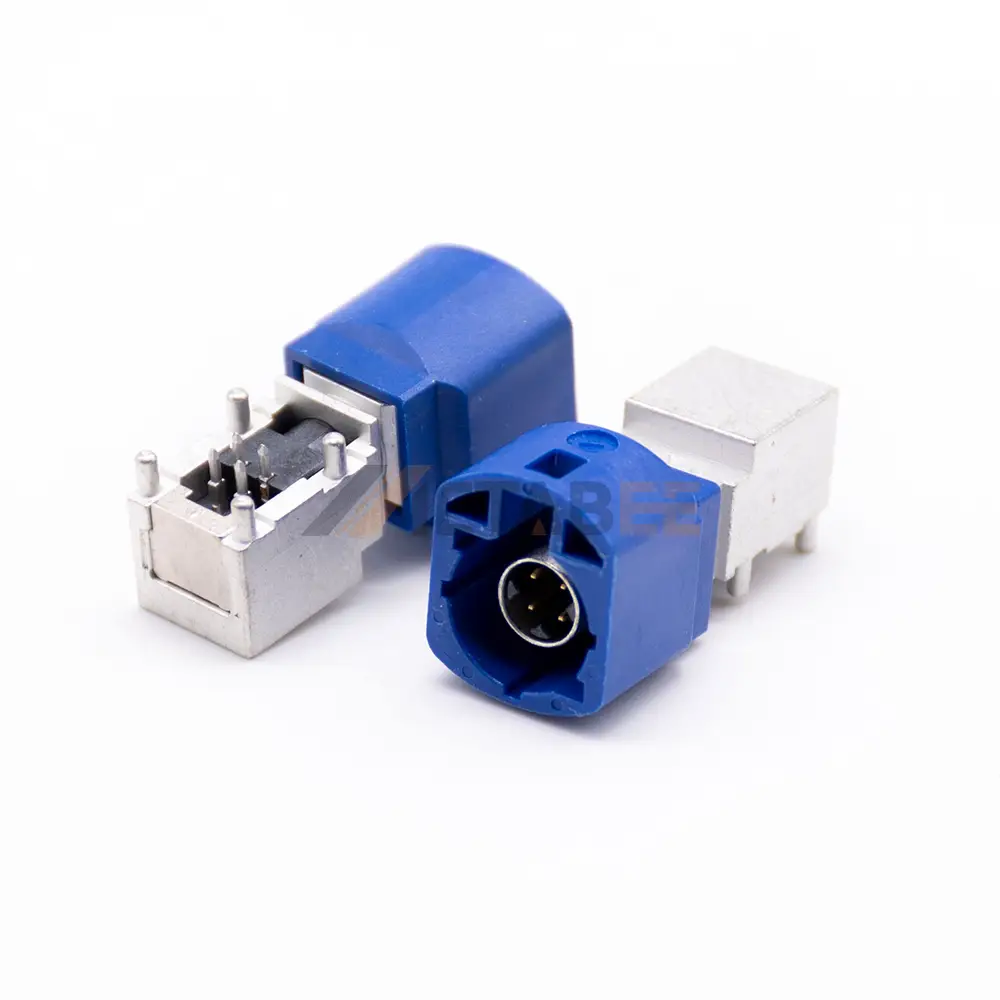

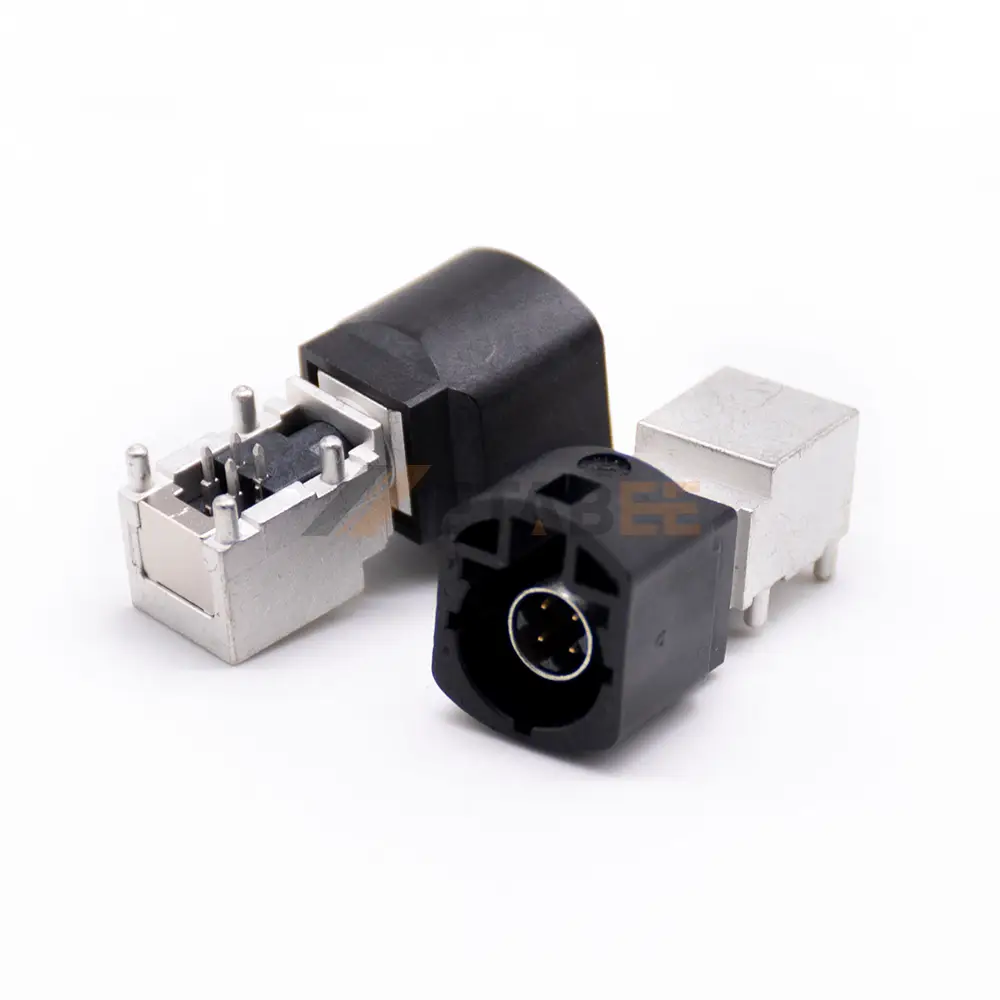

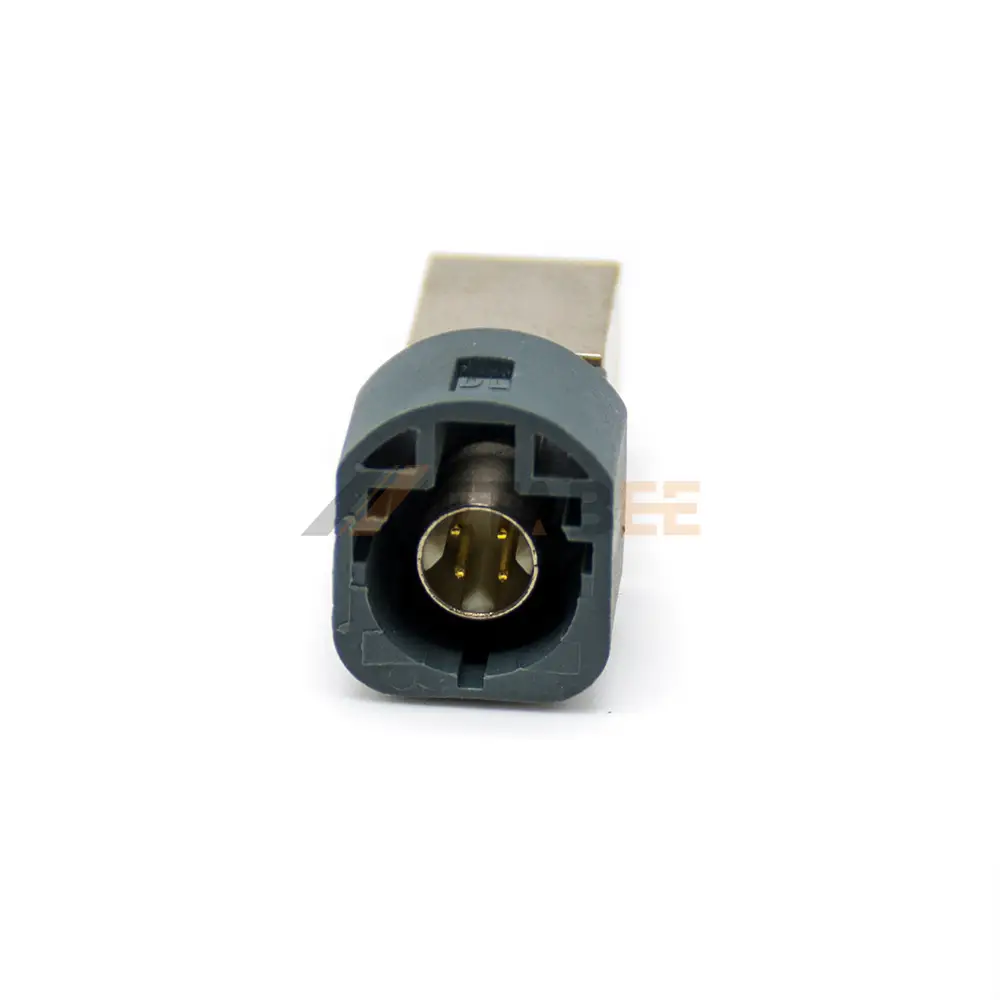

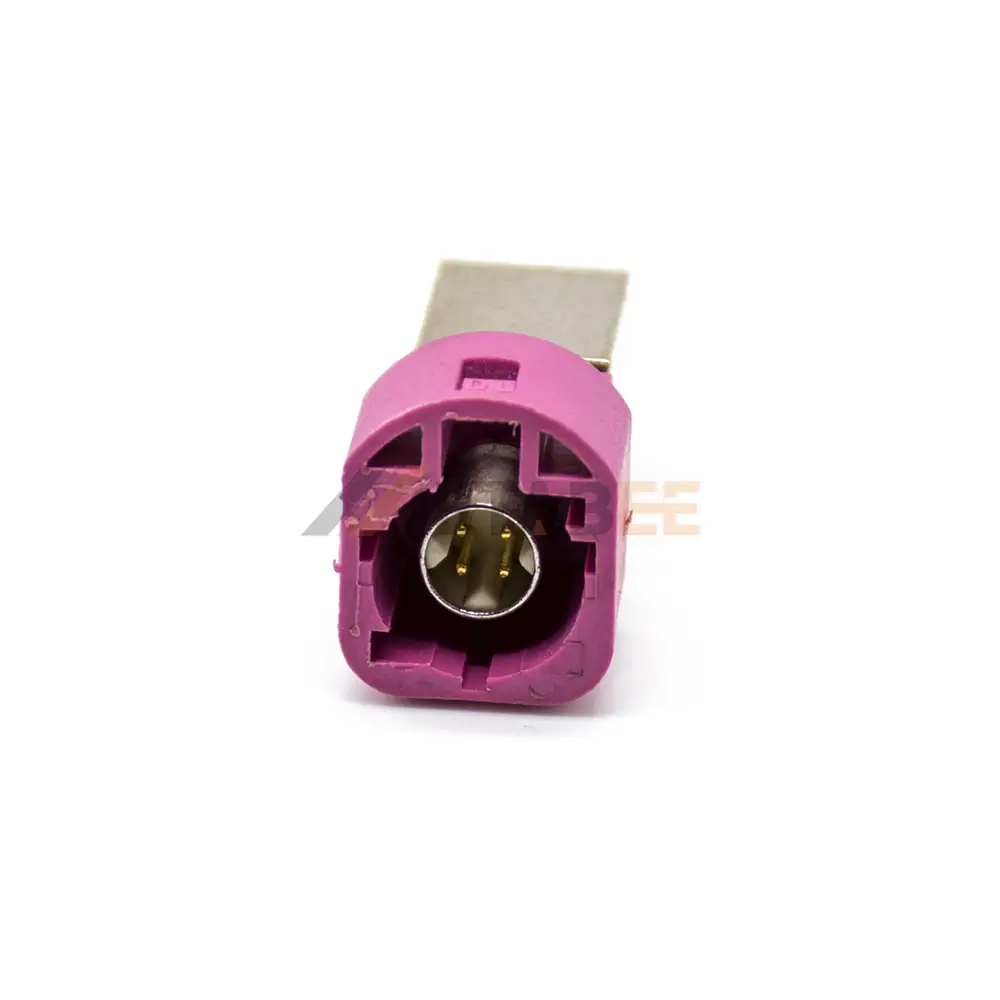

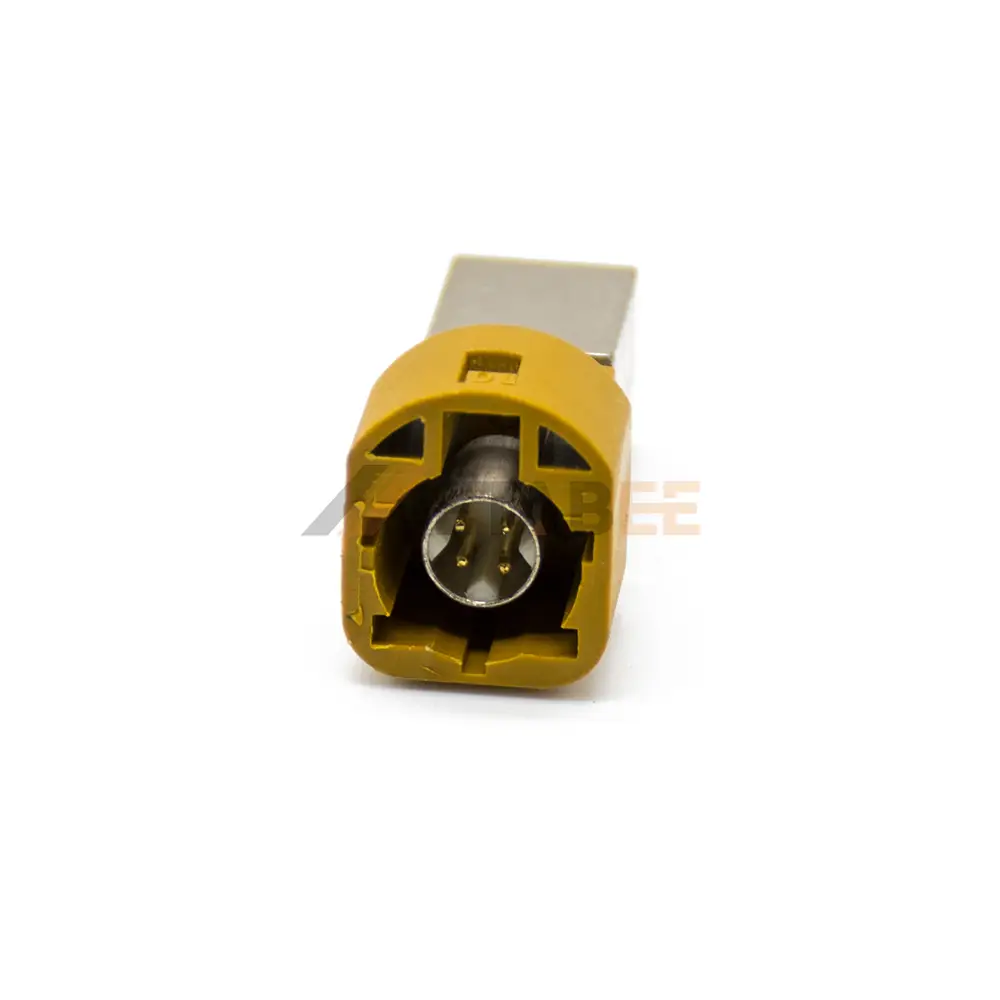

Right Angle HSD LVDS 4 Pin Plug Connector for PCB, Through Hole

Introduction

The HSD LVDS connector is engineered for high-speed differential signal transmission in automotive and industrial applications. Designed with a right-angle configuration for efficient PCB mounting, it ensures space-saving integration while maintaining superior signal integrity. The through-hole termination offers strong mechanical stability, making it ideal for environments subject to vibration and mechanical stress.

This connector supports multiple key codes (A, B, C, D, E, F, G, H, I, K, L, M, O, Z) for versatile compatibility and system design flexibility. Built with a PA plastic housing, a zinc alloy outer conductor with nickel plating, and a gold-plated copper alloy inner conductor, it delivers exceptional durability, corrosion resistance, and consistent performance. With a characteristic impedance of 100 Ω and a frequency range of DC to 2 GHz, it ensures reliable data transmission in demanding conditions, spanning –40°C to +105°C.

Key Features:

• Right-angle design for compact PCB mounting
• LVDS high-speed signal support
• 4-pin configuration with single port contact
• Through-hole solder termination for secure fit
• Durable PA housing with nickel-plated zinc alloy shell
• Gold-plated copper alloy inner conductor for optimal conductivity
• Wide operating temperature range: –40°C to +105°C

Main Specifications:

General Information:

Part No.:	102-11-10
Product Series:	HSD Connectors
Brand:	Metabee
Gender:	Plug
Orientation:	Right Angle
Connector Coding:	A, B, C, D, E, F, G, H, I, K, L, M, O, Z
Number of Contacts:	1 Port
Number of Positions:	4 Pin
Contact Termination:	Solder
Mount Method:	PCB Mount
Mount Feature:	Through Hole
Temperature Range:	-40°C to +105°C
Other Feature:	None

Materials and Plating:

Plastic Housing:	PA
Outer Contact Material:	Zinc Alloy
Outer Contact Plating:	Nickel Plated
Inner Contact Material:	Copper Alloy
Inner Contact Plating:	Gold-Plated
Insulator Material:	PTFE

Electrical Performance:

Impedance:	100 Ohms
Frequency Range:	DC – 2 GHz
Insulation Resistance:	≥ 1000 MΩ
Withstanding Voltage:	250 V rms
Operating Voltage:	100 V rms
Durability:	≧25 Cycles
Signal Contact Resistance:	10 mΩ Max
Outer Contact Resistance:	7.5 mΩ Max

HSD plug and jack in schematic view with pin assignment:

14 codes and colors of HSD male and female:

Applications of this Right Angle HSD LVDS 4 Pin Plug Connector for PCB:

HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.

Here are some main applications:

• Advanced Driving Assistant System (ADAS)
• Automotive Infotainment Systems;
• In-Vehicle Networking (IVN);
• GPS and Navigation Units;
• VR headsets and displays;
• Telecommunications Infrastructure:
• Surgical Equipment and Robot-Assisted Surgery.
