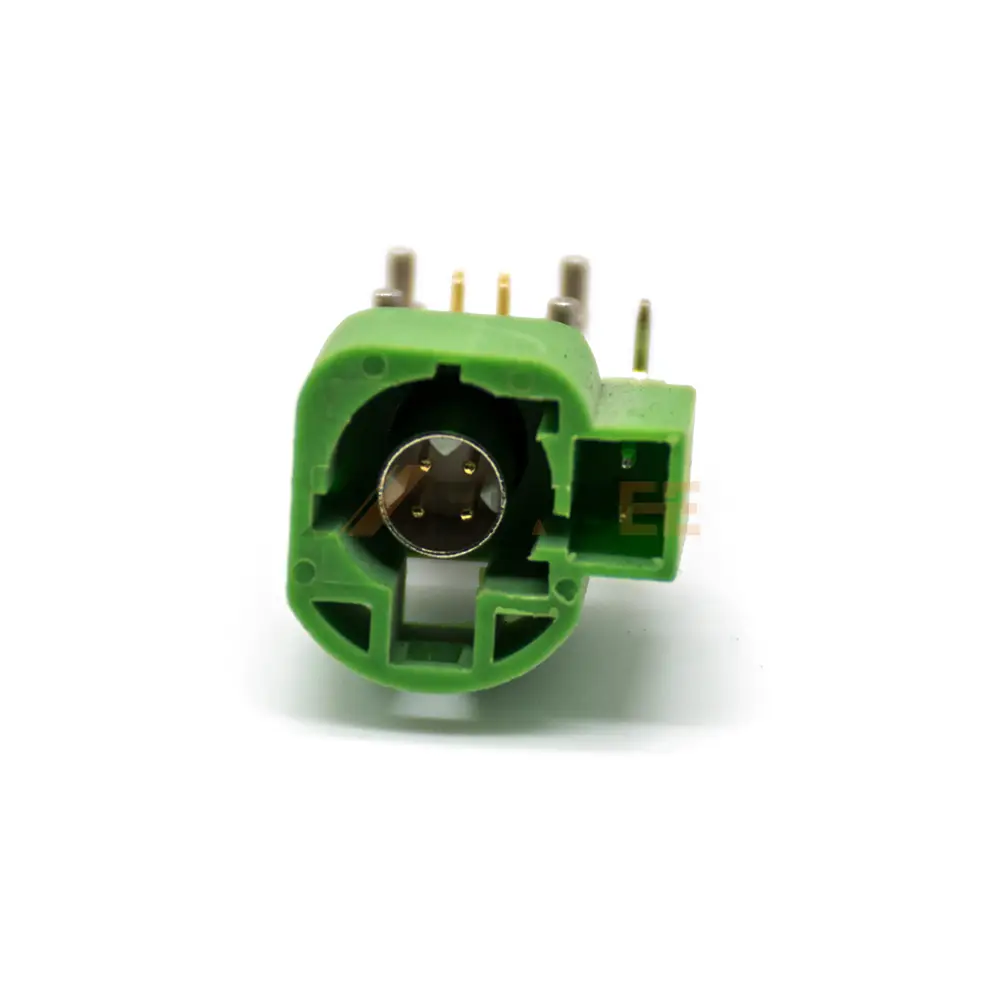

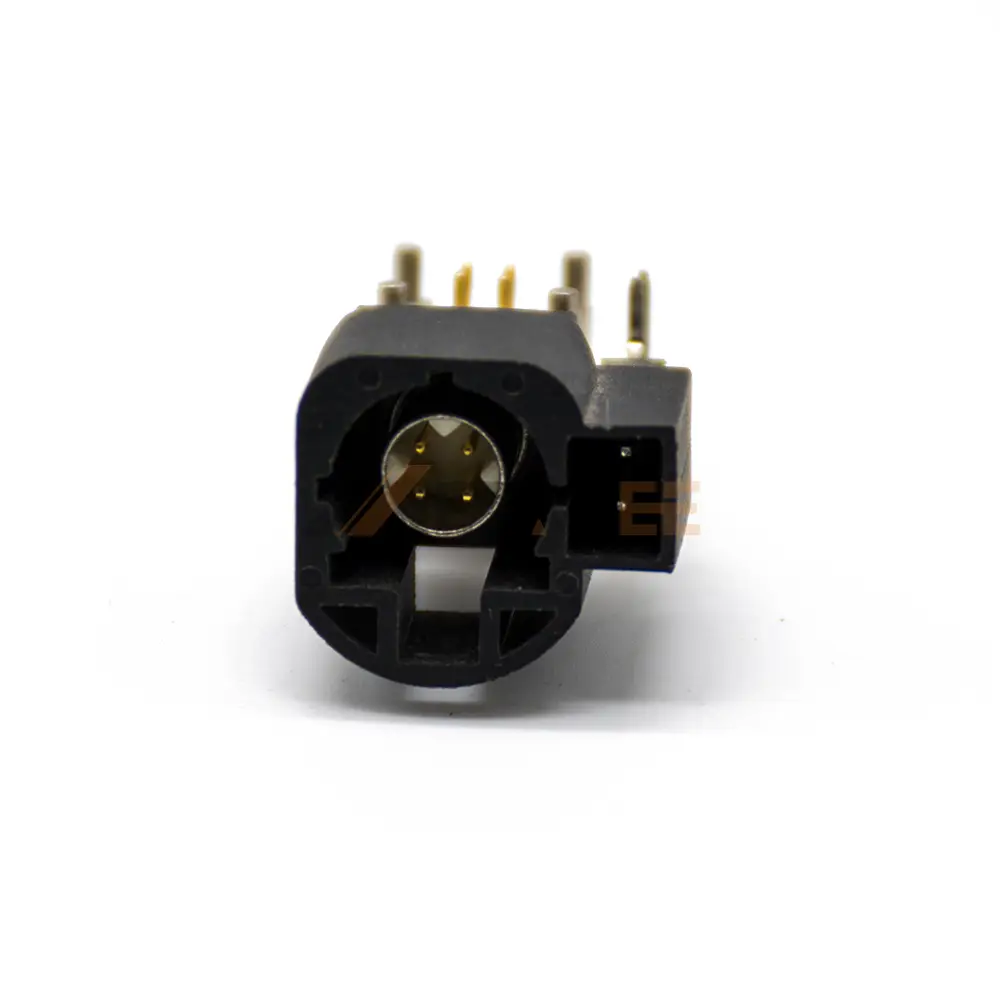

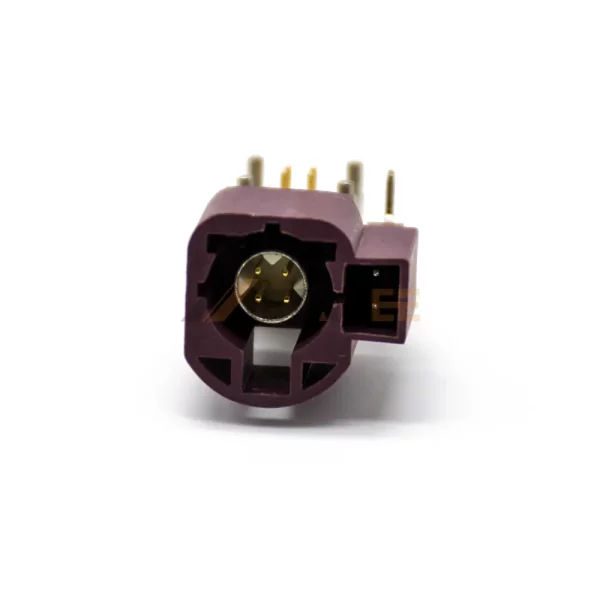

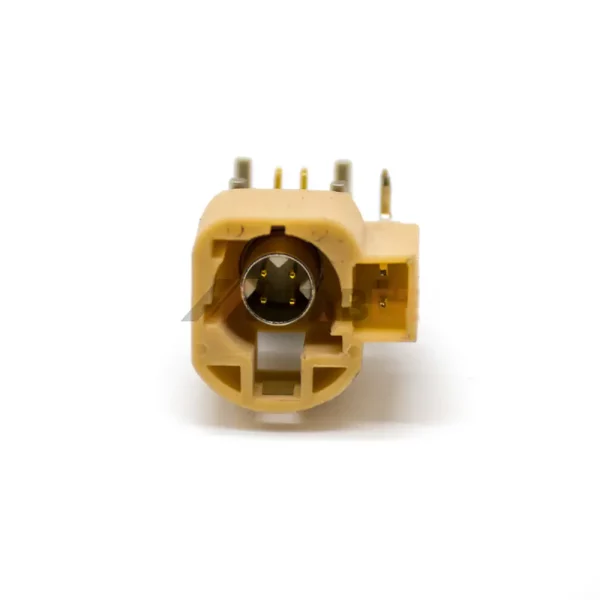

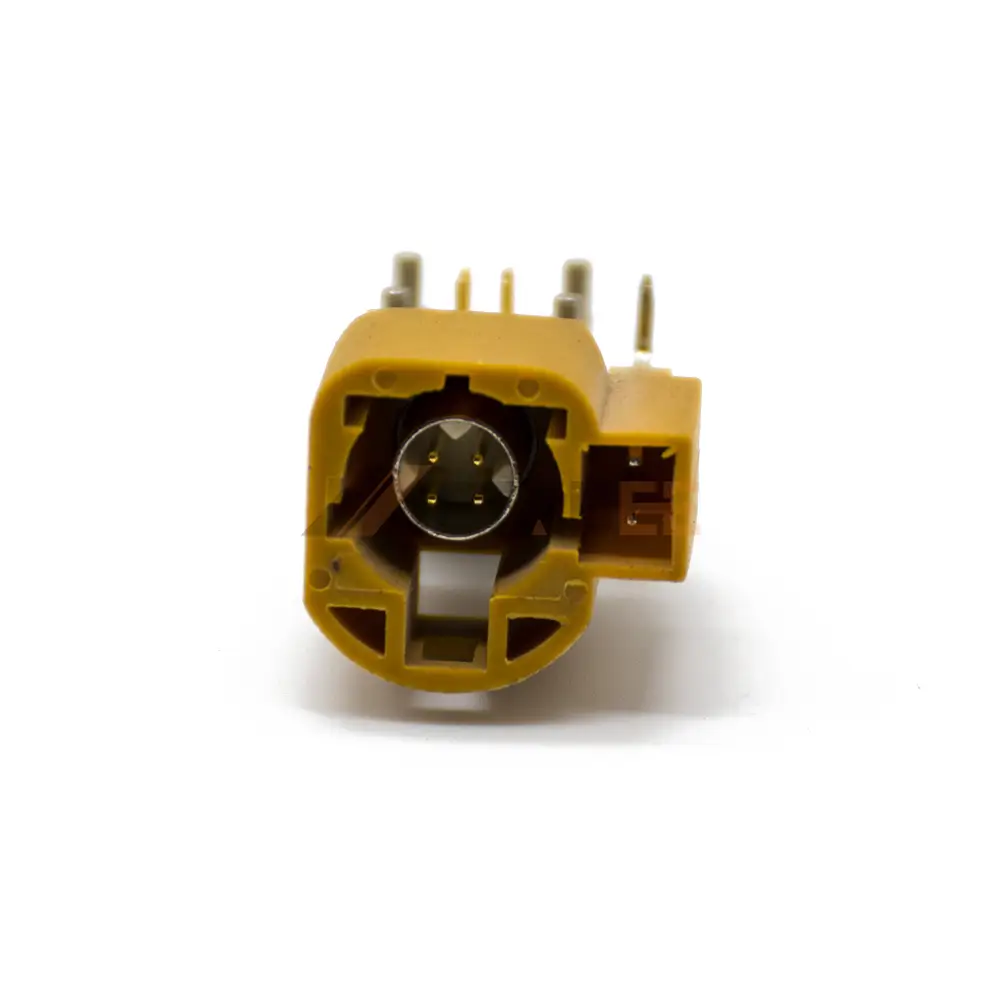

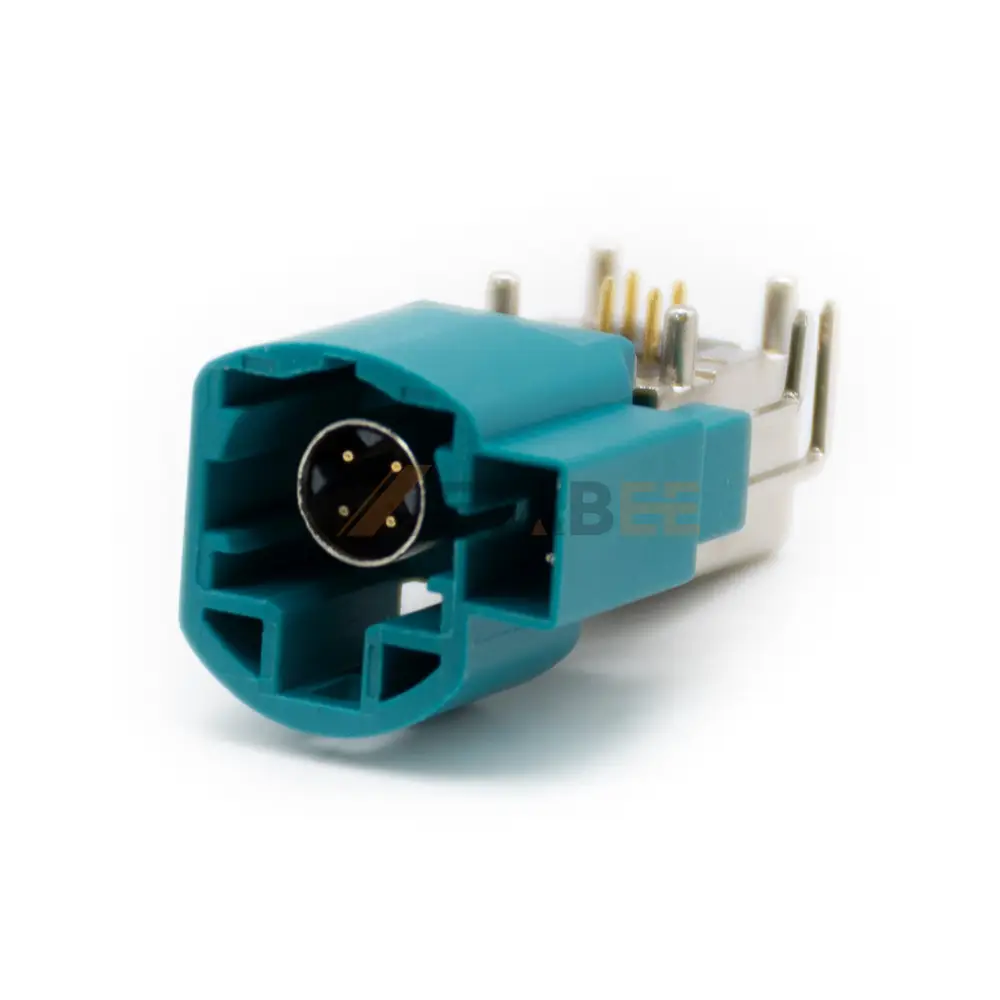

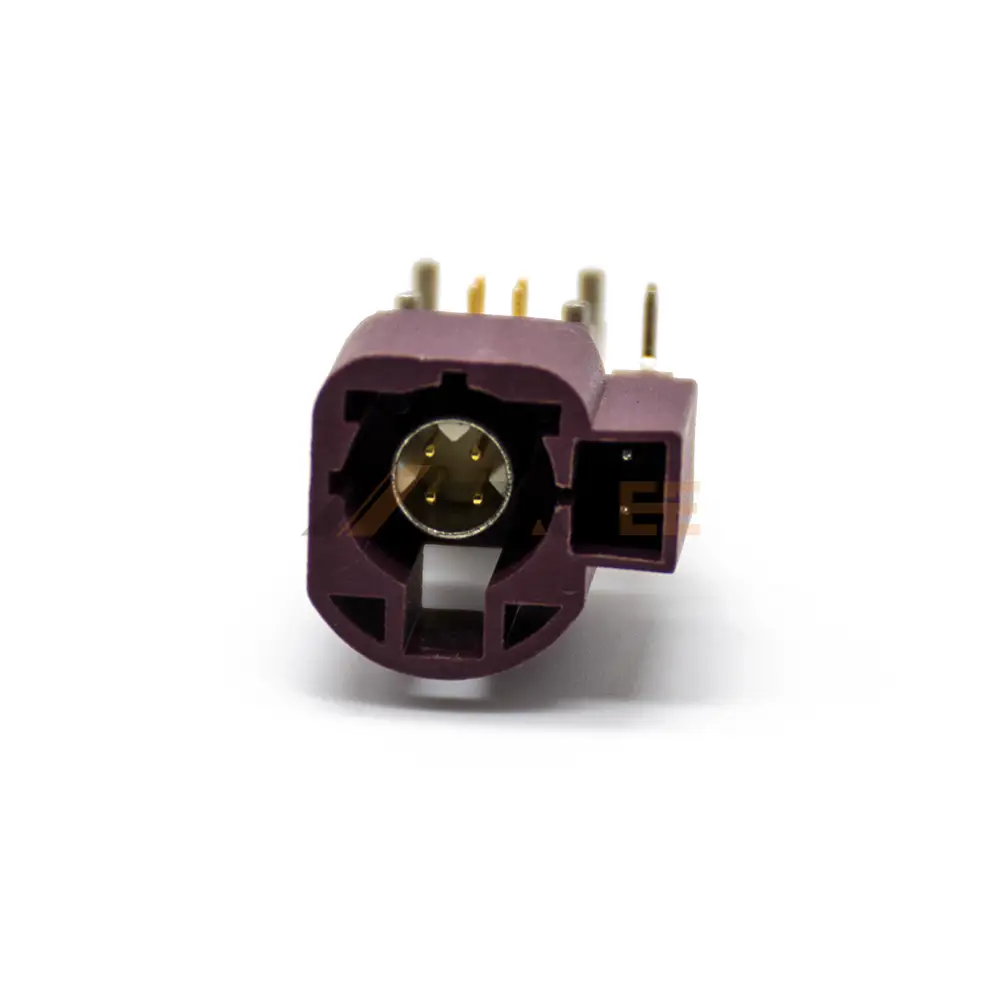

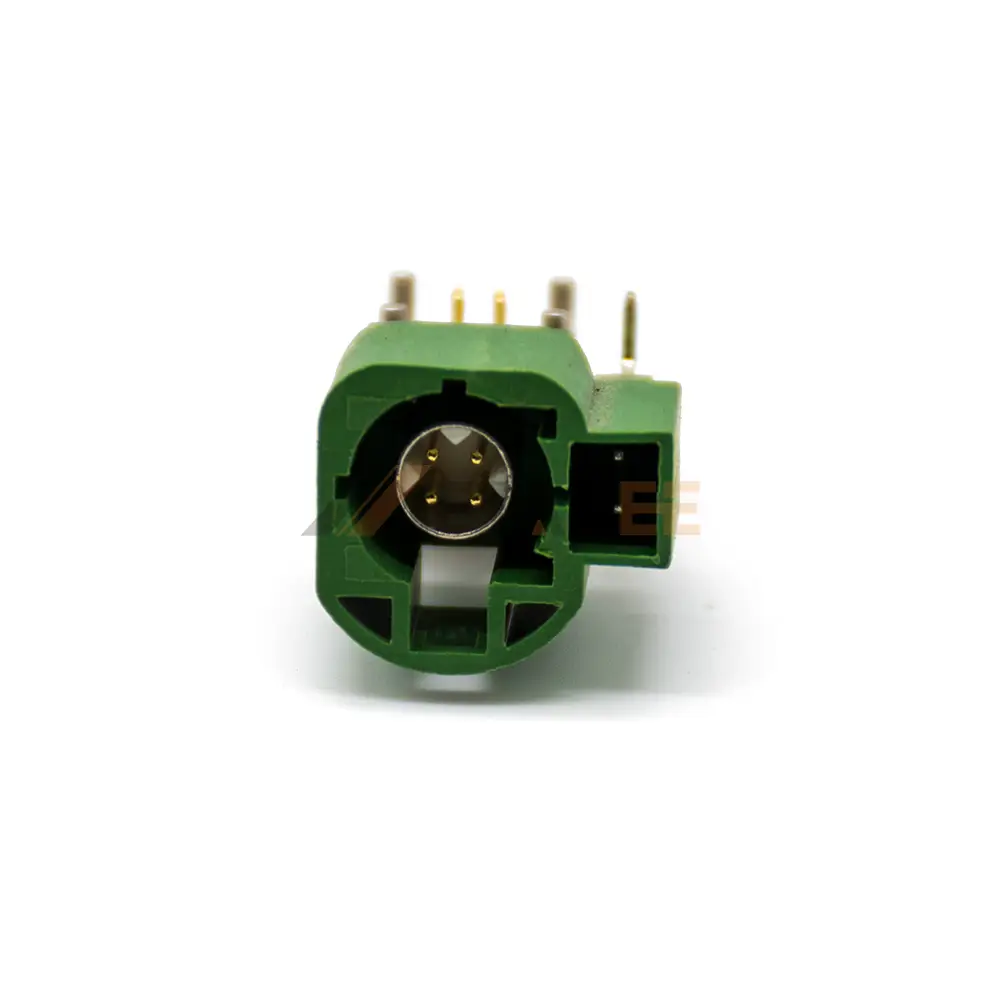

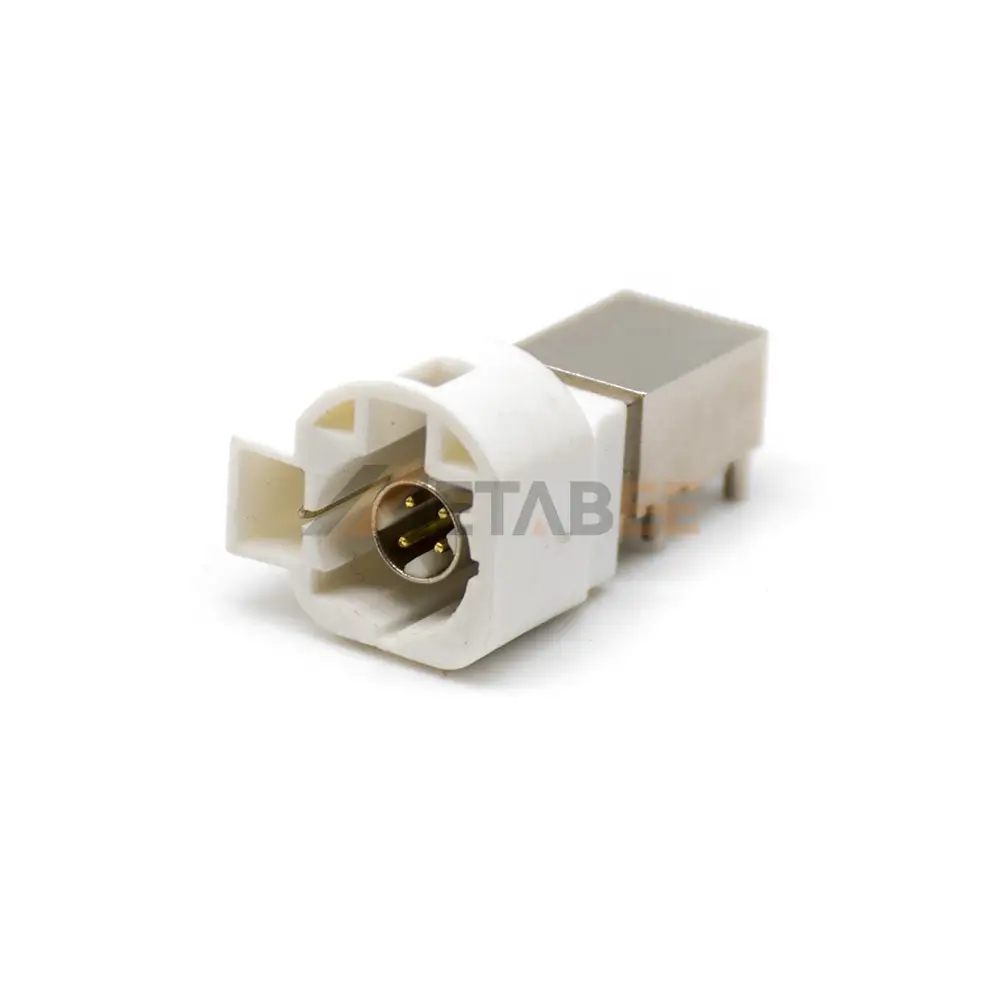

Right Angle Fakra HSD 4+2 Pin Plug Connector for PCB, Through Hole

Introduction

This high-performance Fakra HSD connector is designed for reliable PCB-mounted applications, offering excellent signal transmission in automotive, telecommunication, and industrial systems. Featuring a right-angle installation and through-hole mounting, it ensures secure PCB integration. The connector’s PA plastic housing provides durability, while the zinc alloy outer conductor with nickel plating enhances EMI shielding and corrosion resistance. The copper alloy inner conductor with gold plating ensures low contact resistance (100 ohms) and superior conductivity, supporting frequencies up to 2 GHz.

With a 4+2 pin configuration and multiple keying options (A, B, D, E, F, G, H, I, K, L, M, O, Z), this plug connector prevents mismating and ensures secure connections. Its solder termination guarantees stable performance in harsh environments, with an operating temperature range of -40°C to 105°C. Ideal for high-speed data transmission, this HSD connector combines robustness with precision engineering.

Key Features:

• Right-angle, through-hole PCB mount design
• 4+2 pin configuration for secure connections
• PA housing & zinc alloy outer conductor (nickel-plated)
• Copper alloy inner conductor with gold plating
• Low contact resistance (100 ohms), DC-2 GHz frequency range
• 14 keying options (A-Z) for anti-mismating
• Wide operating temperature: -40°C to 105°C

Main Specifications:

General Information:

Part No.:	102-11-10
Product Series:	HSD Connectors
Brand:	Metabee
Gender:	Plug
Orientation:	Right Angle
Connector Coding:	A, B, C, D, E, F, G, H, I, K, L, M, O, Z
Number of Contacts:	1 Port
Number of Positions:	4+2 Pin
Contact Termination:	Solder
Mount Method:	PCB Mount
Mount Feature:	Through Hole
Temperature Range:	-40°C to +105°C
Other Feature:	None

Materials and Plating:

Plastic Housing:	PA
Outer Contact Material:	Zinc Alloy
Outer Contact Plating:	Nickel Plated
Inner Contact Material:	Copper Alloy
Inner Contact Plating:	Gold-Plated
Insulator Material:	PTFE

Electrical Performance:

Impedance:	100 Ohms
Frequency Range:	DC – 2 GHz
Insulation Resistance:	≥ 1000 MΩ
Withstanding Voltage:	250 V rms
Operating Voltage:	100 V rms
Durability:	≧25 Cycles
Signal Contact Resistance:	10 mΩ Max
Outer Contact Resistance:	7.5 mΩ Max

HSD plug and jack in schematic view with pin assignment:

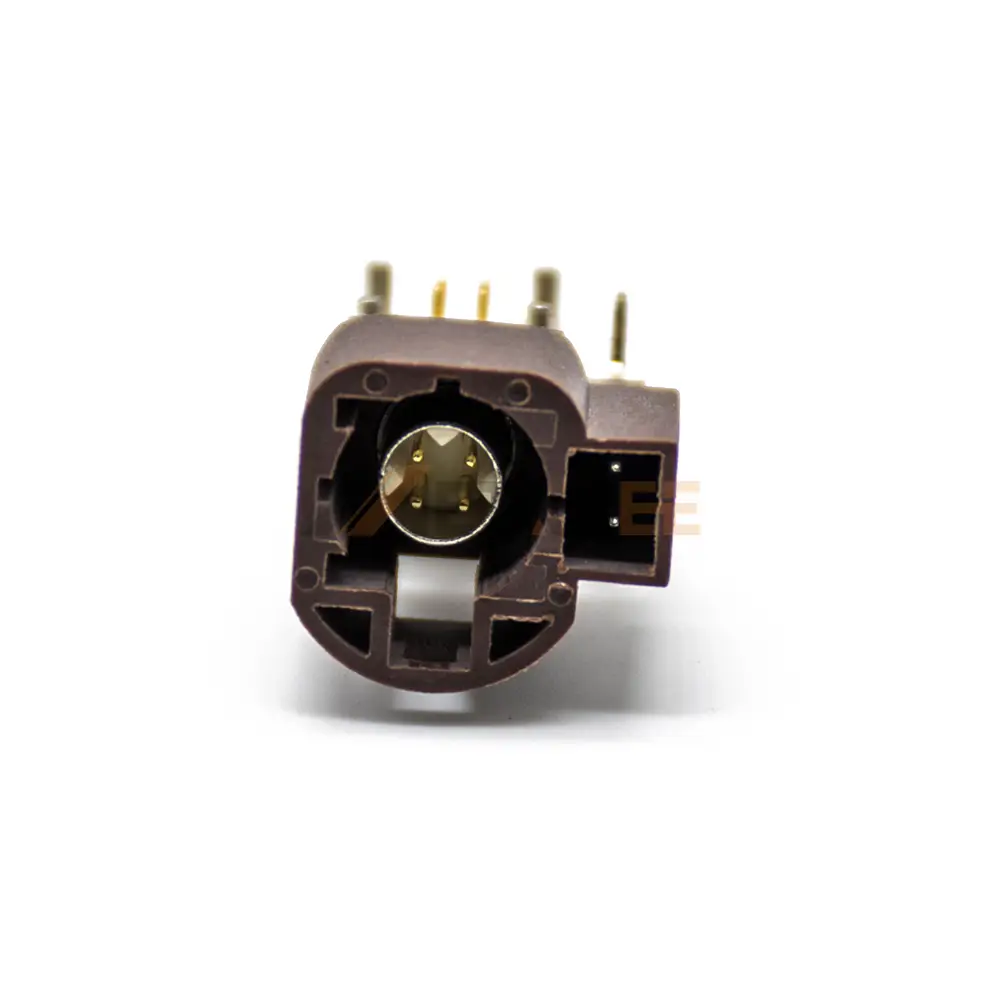

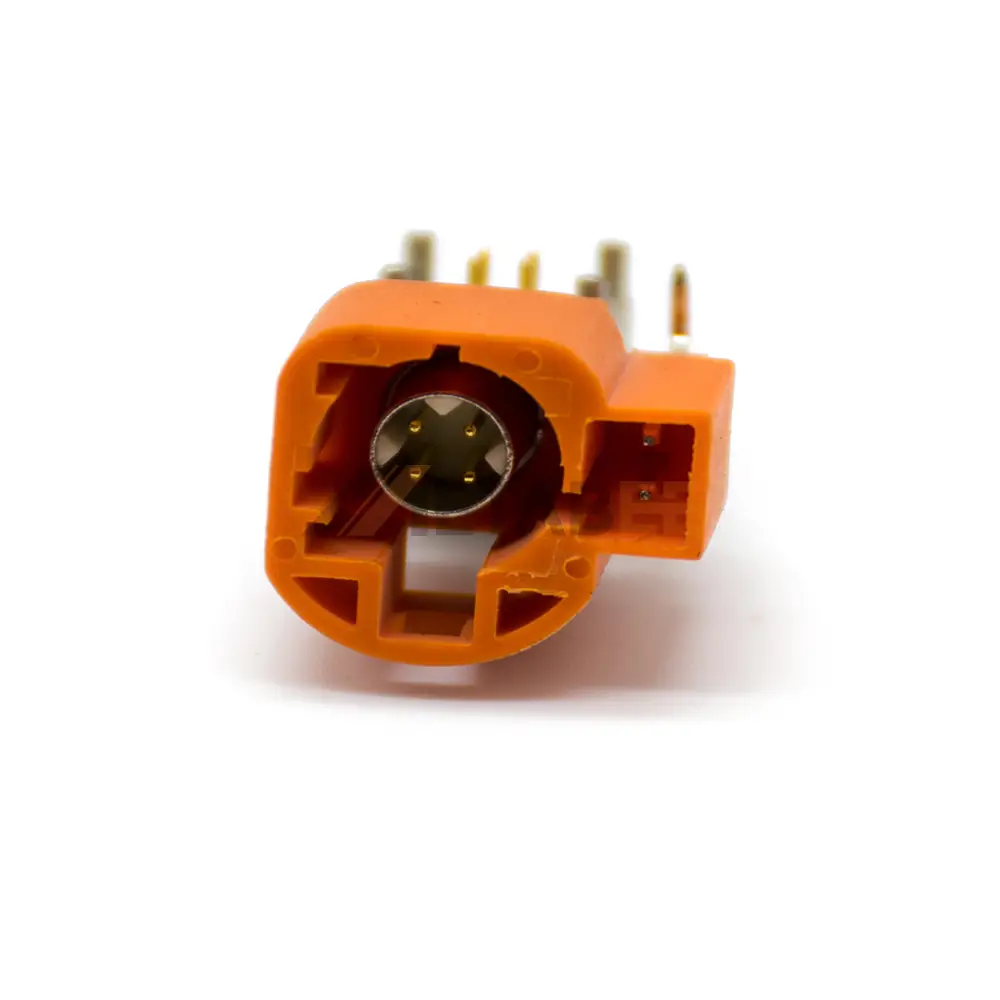

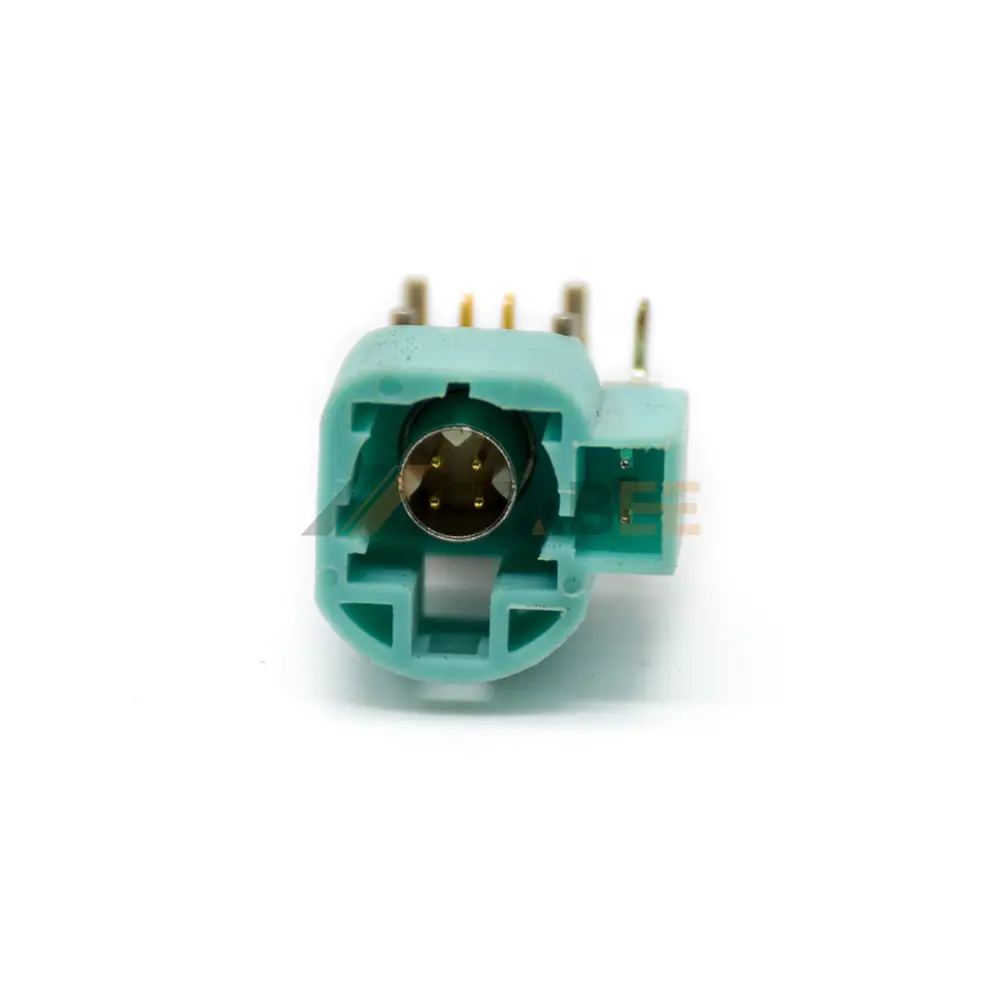

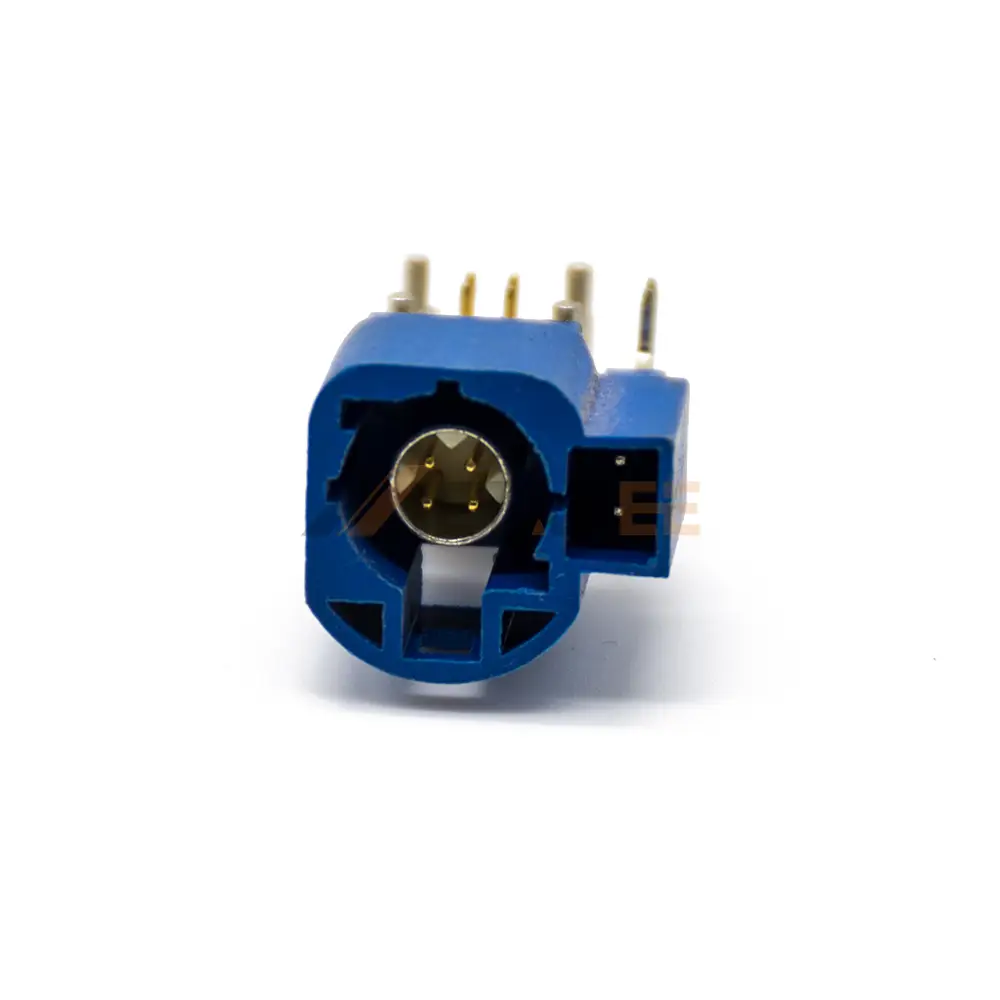

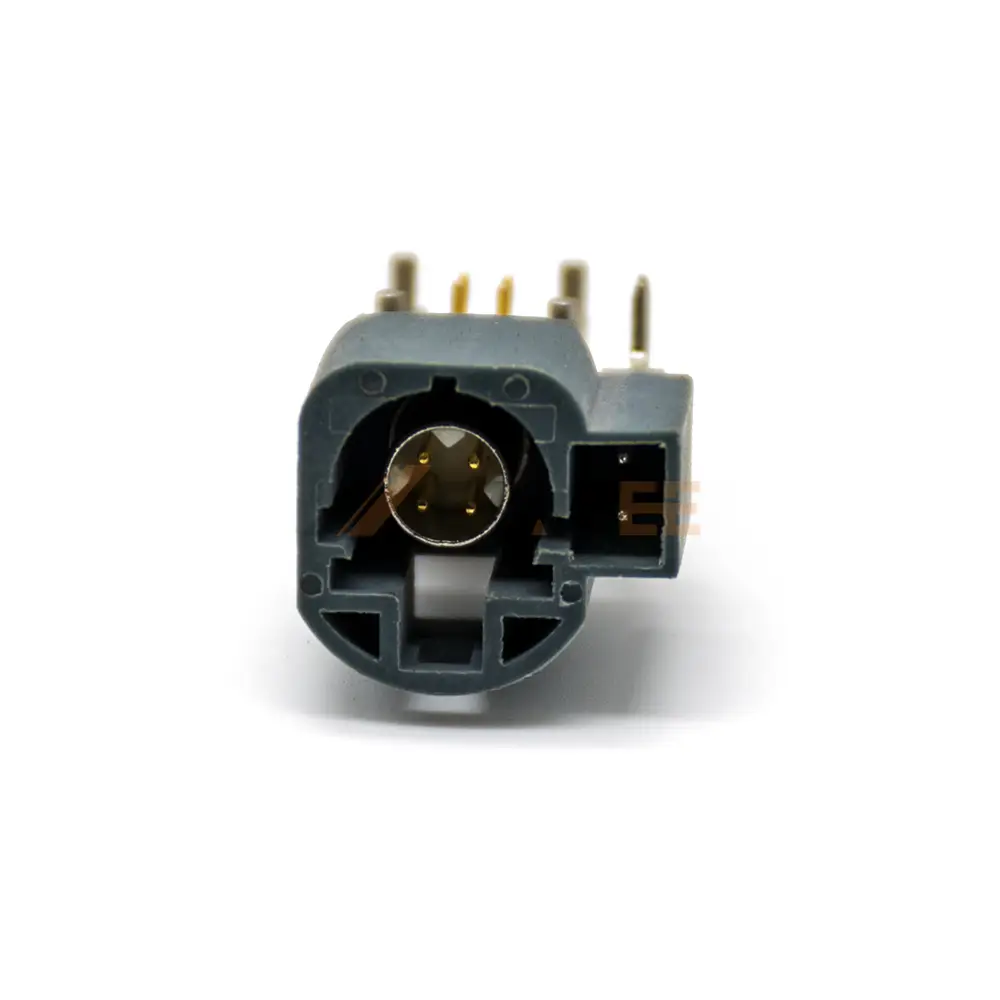

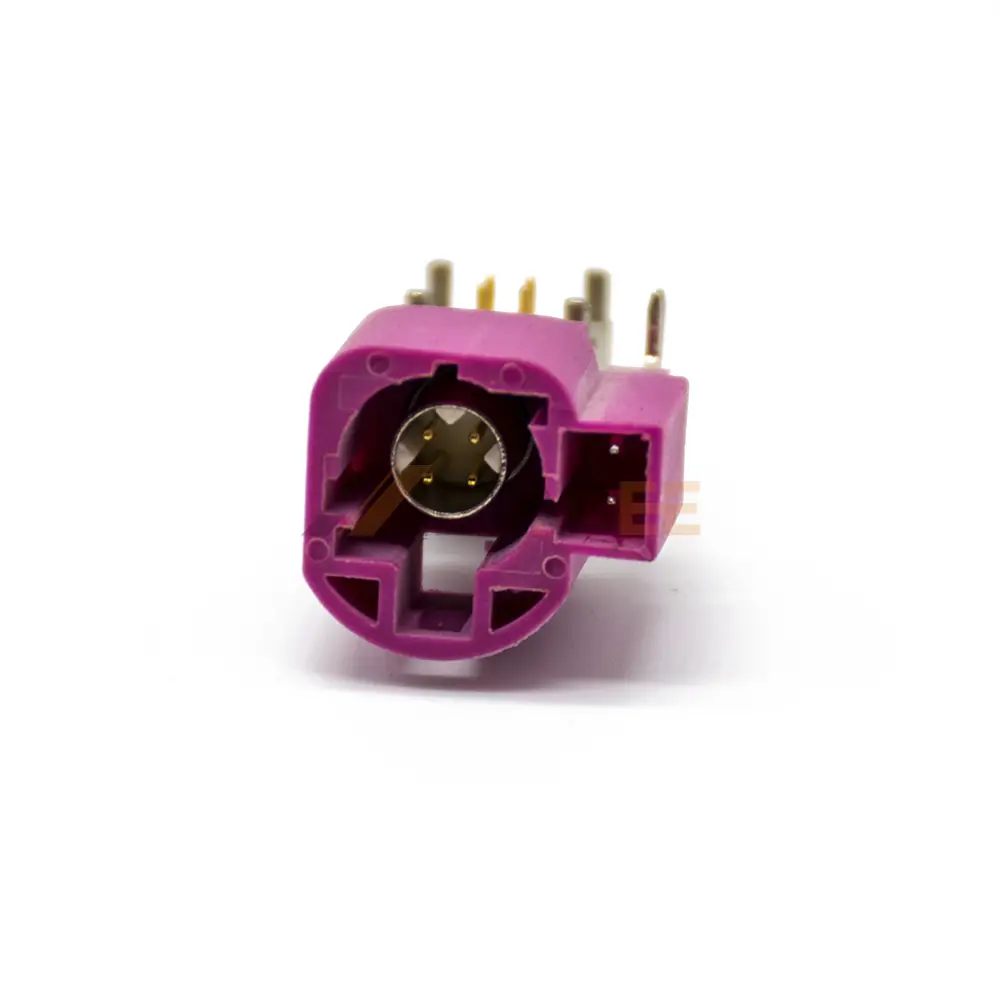

14 codes and colors of HSD male and female:

Applications of this Right Angle Fakra HSD 4+2 Pin Plug Connector for PCB:

HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.

Here are some main applications:

• Advanced Driving Assistant System (ADAS)
• Automotive Infotainment Systems;
• In-Vehicle Networking (IVN);
• GPS and Navigation Units;
• VR headsets and displays;
• Telecommunications Infrastructure:
• Surgical Equipment and Robot-Assisted Surgery.
