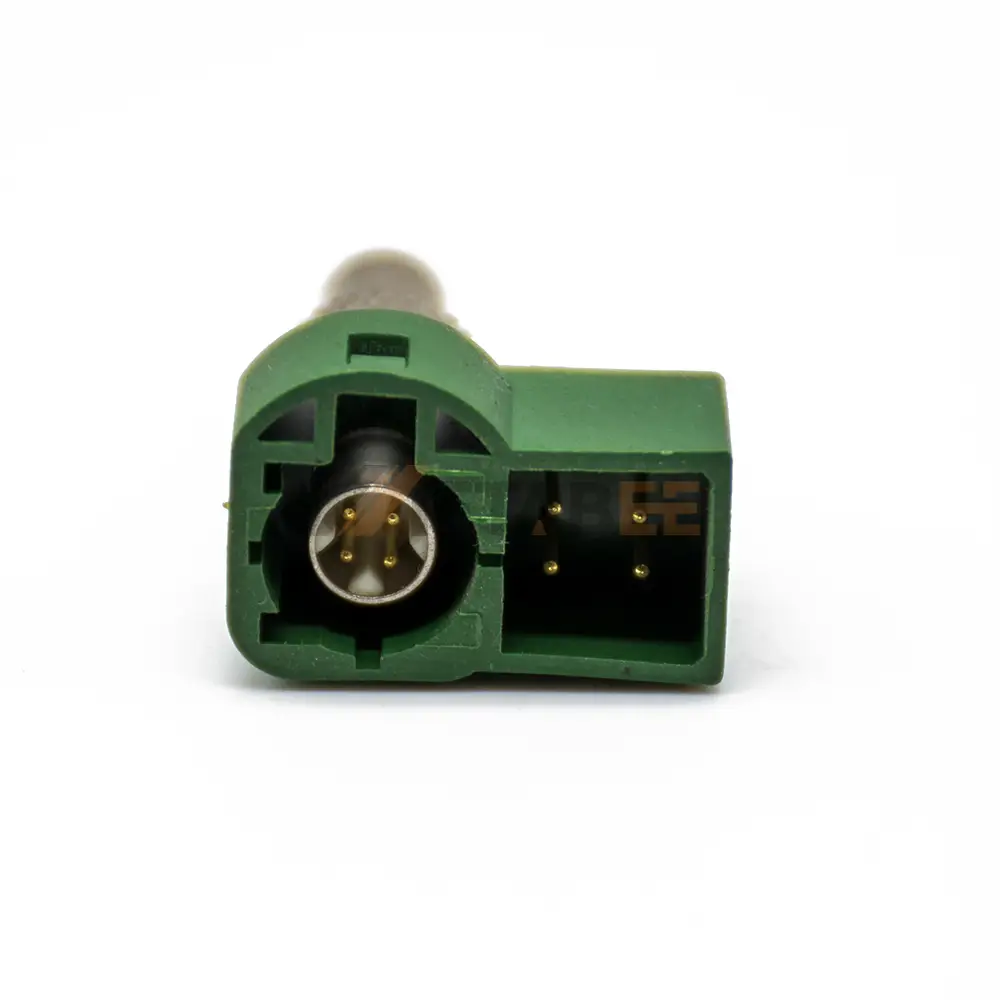

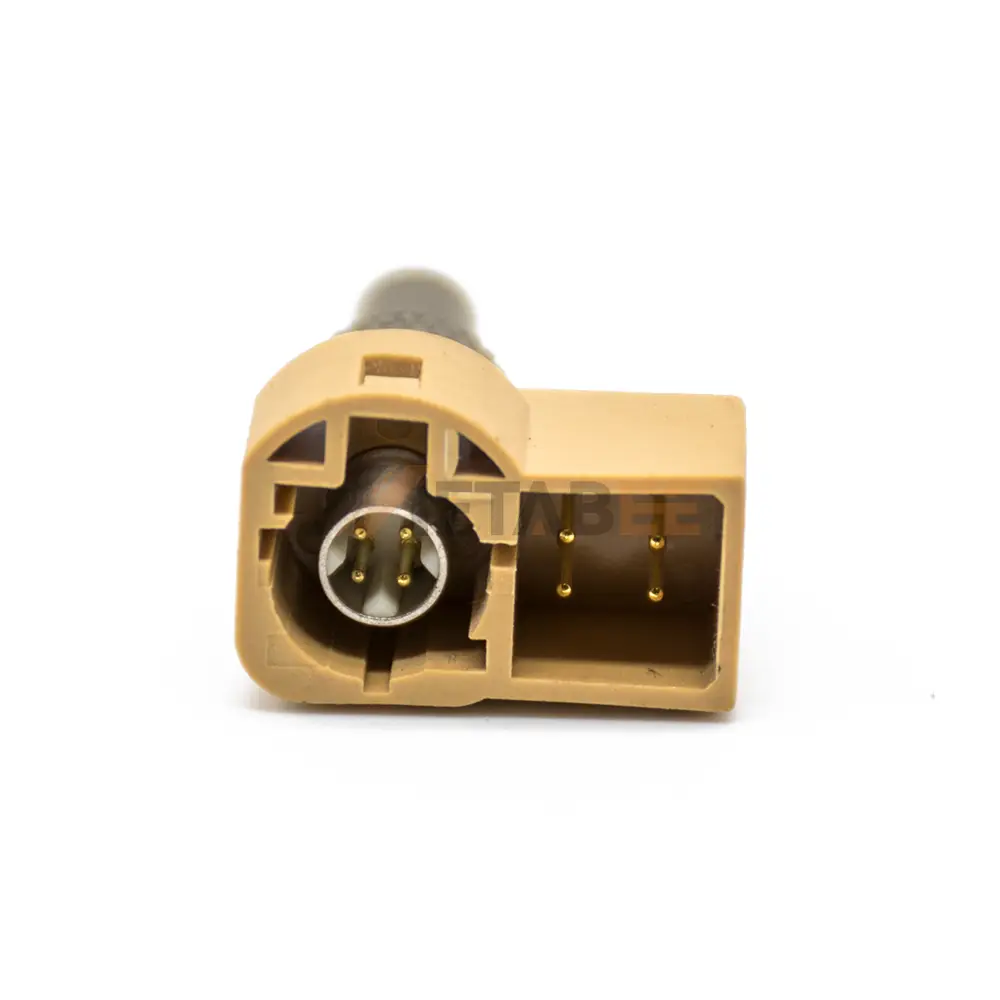

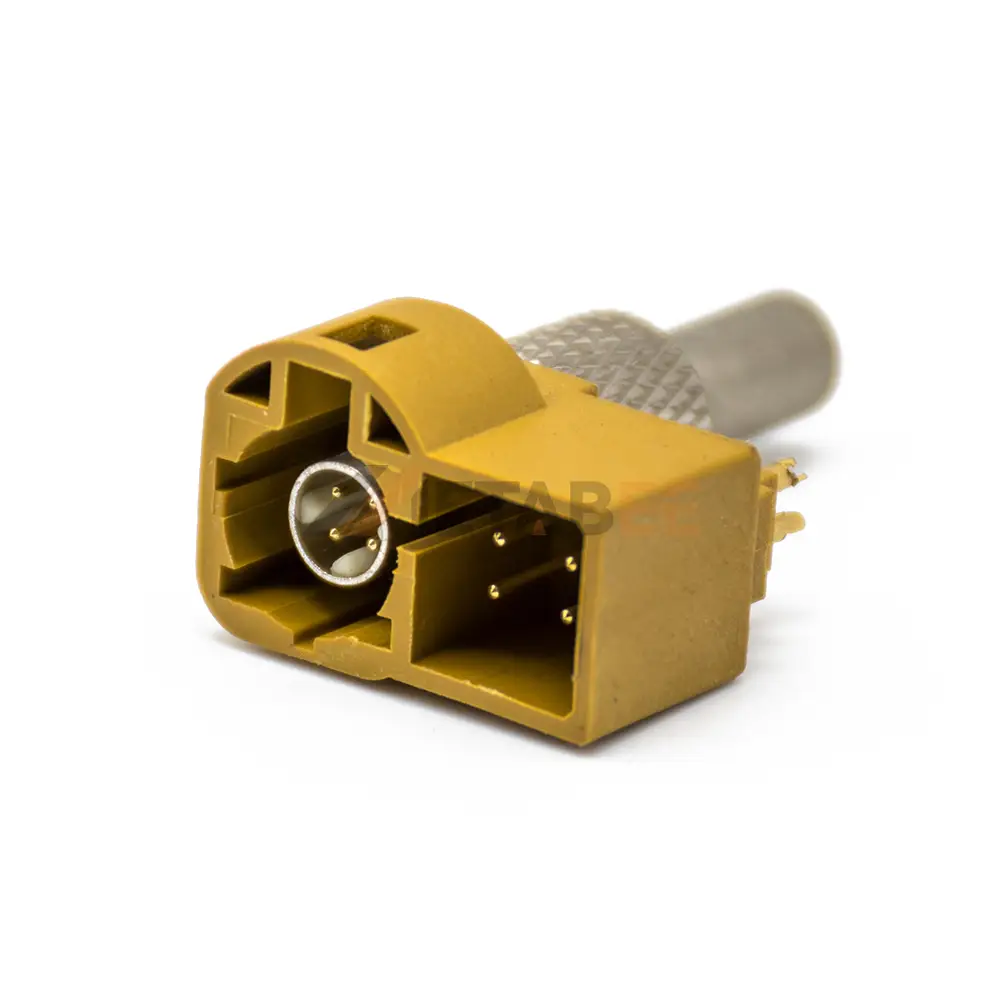

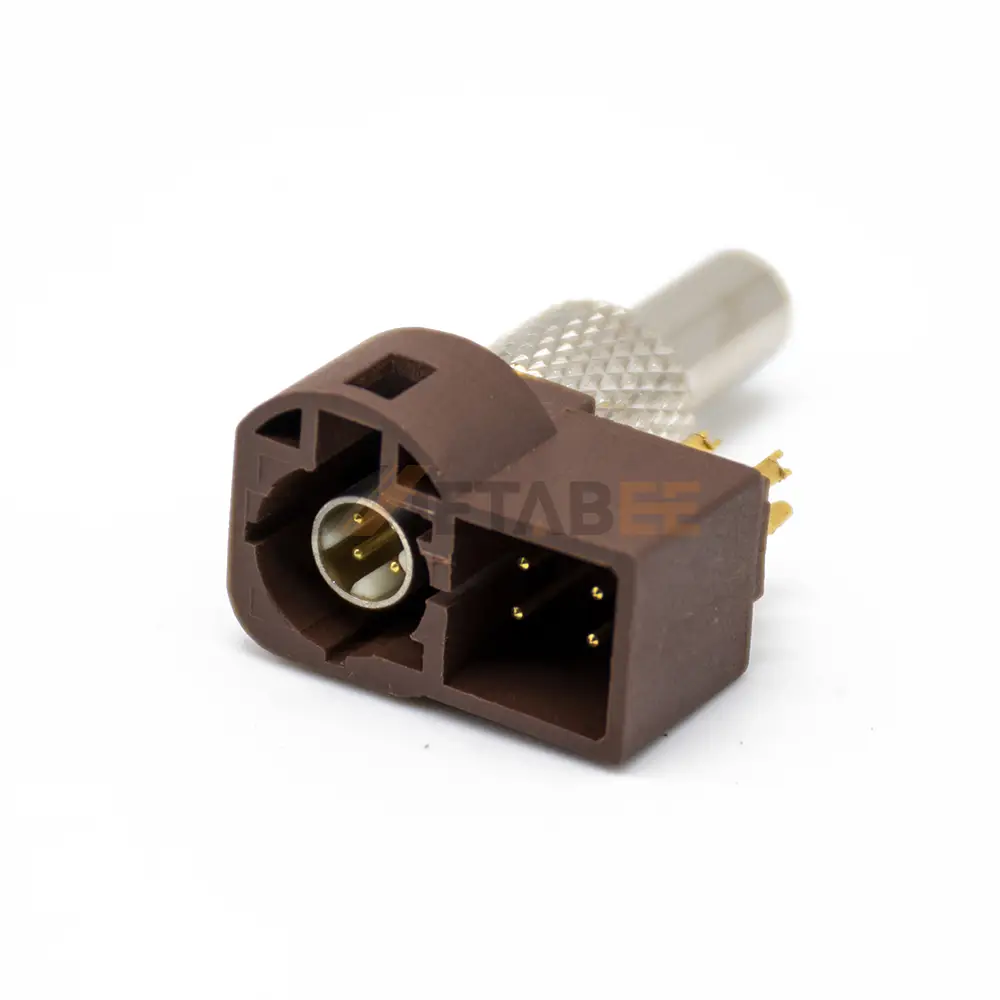

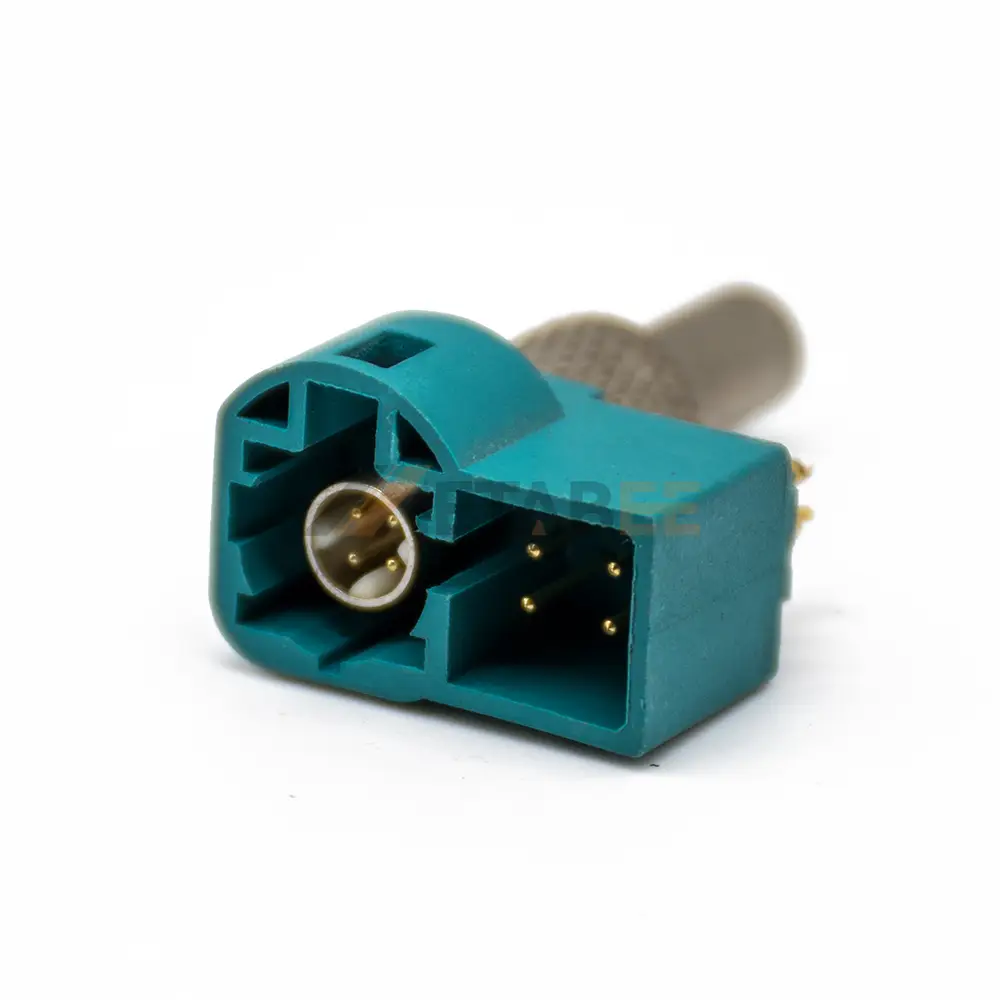

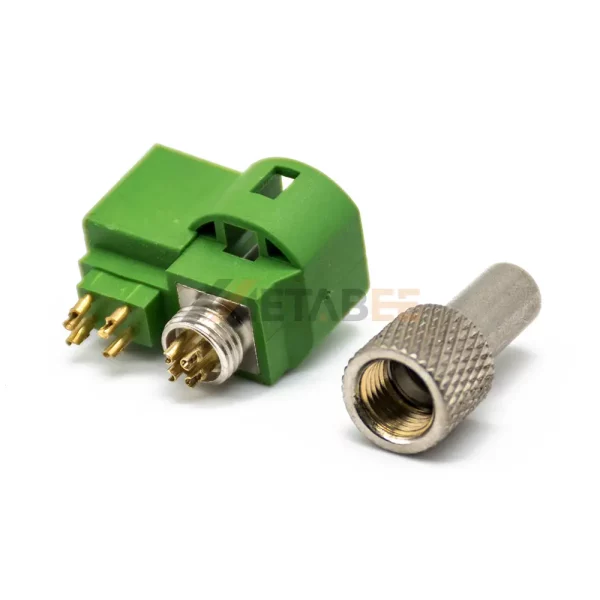

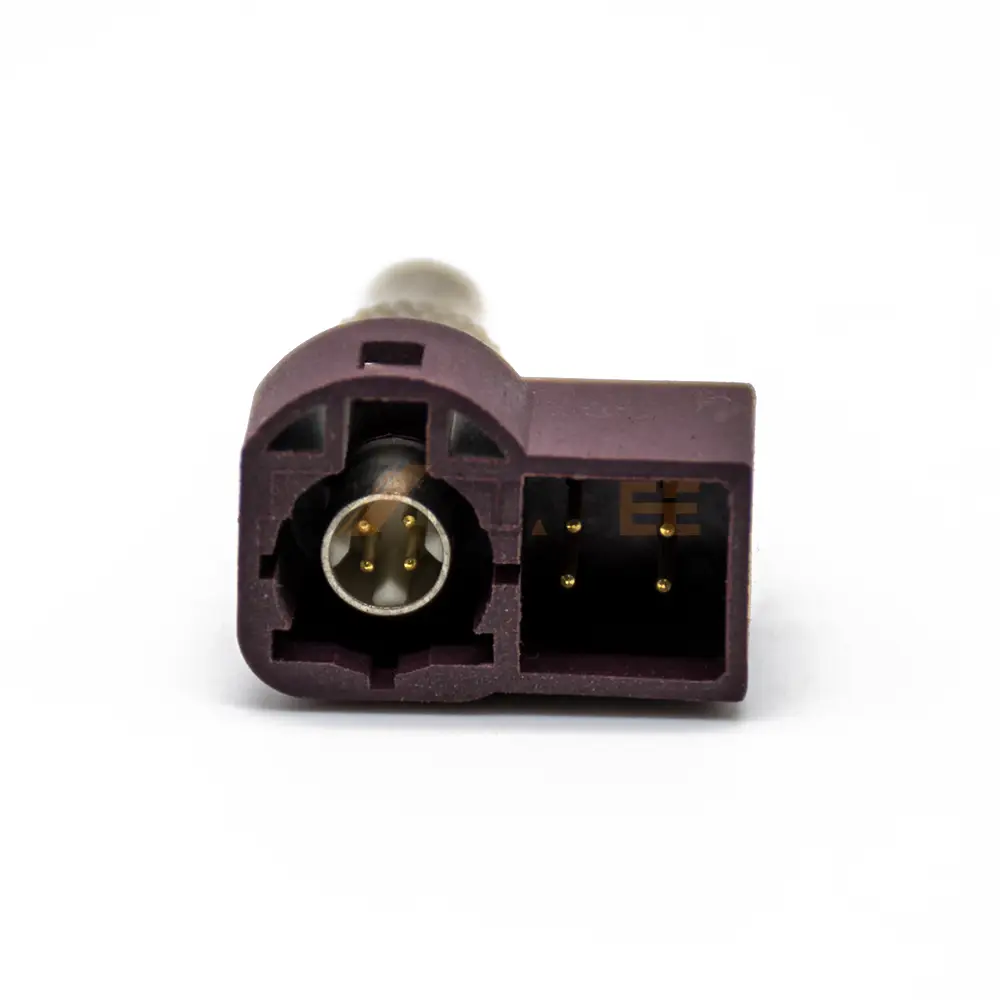

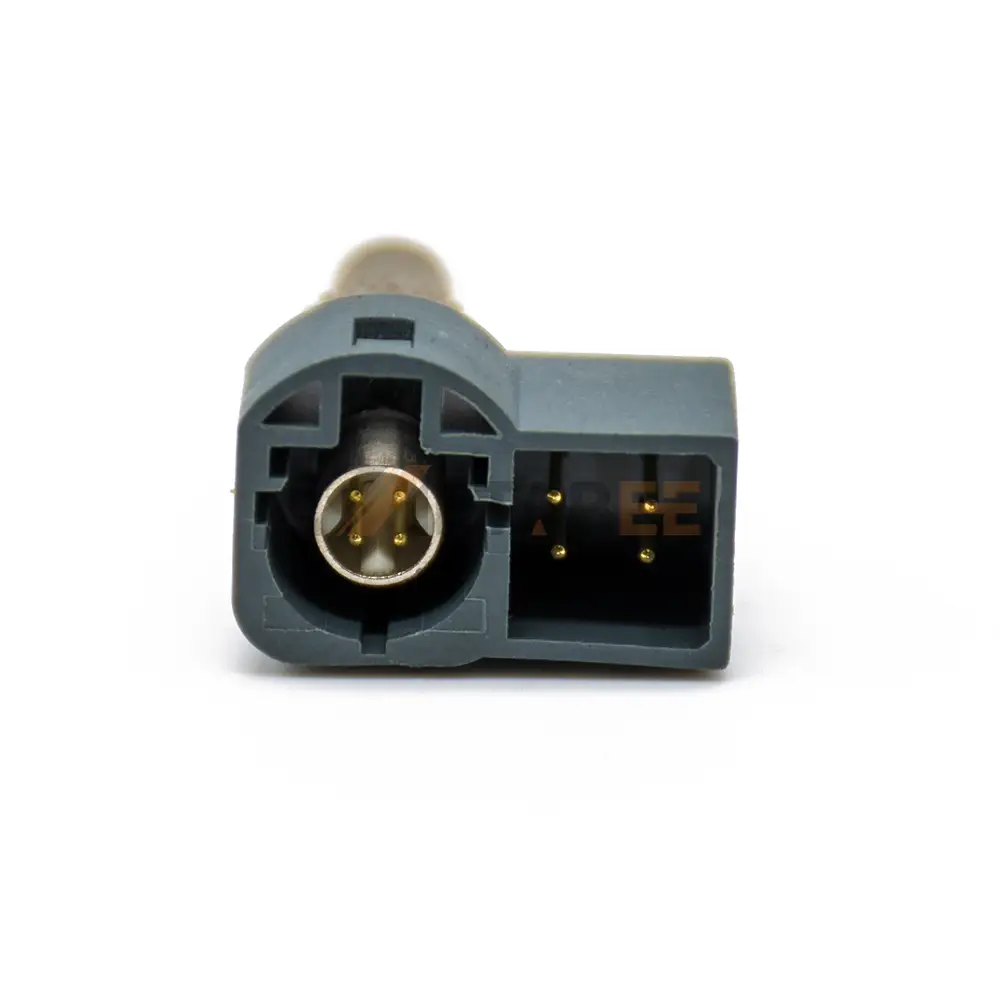

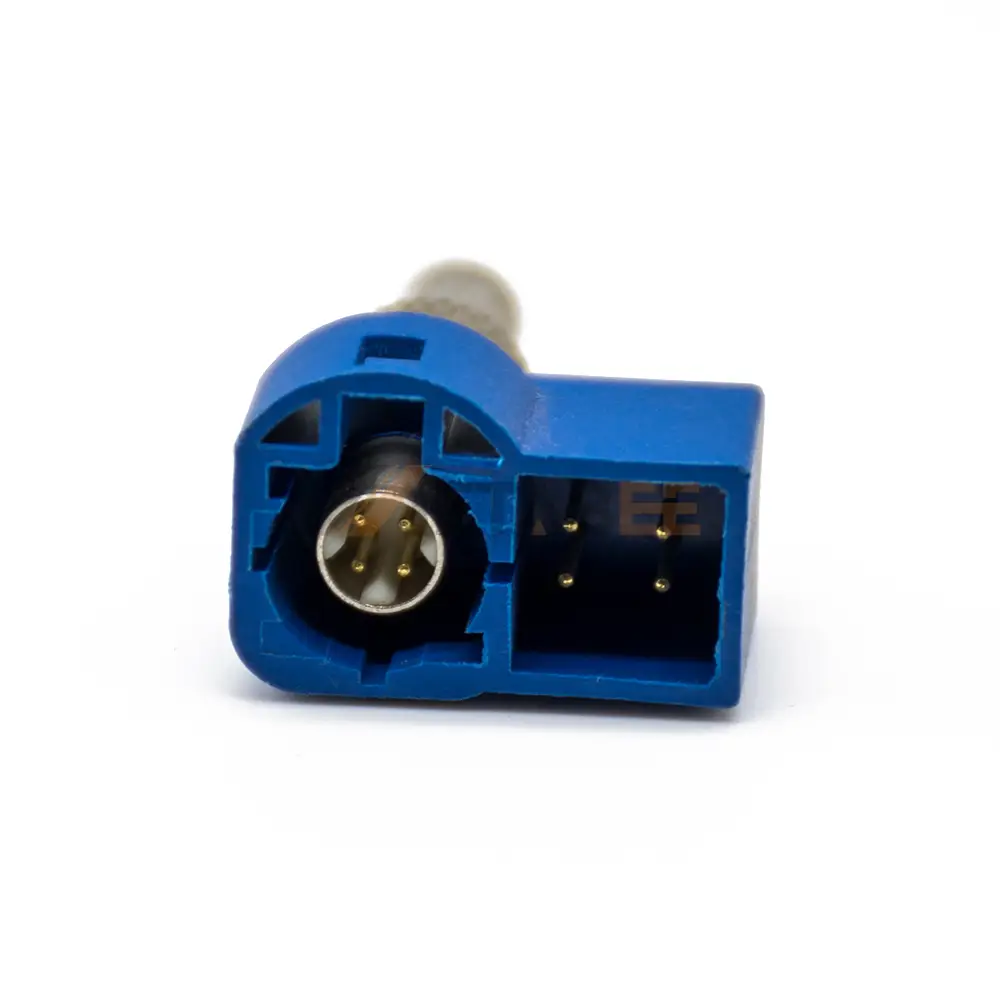

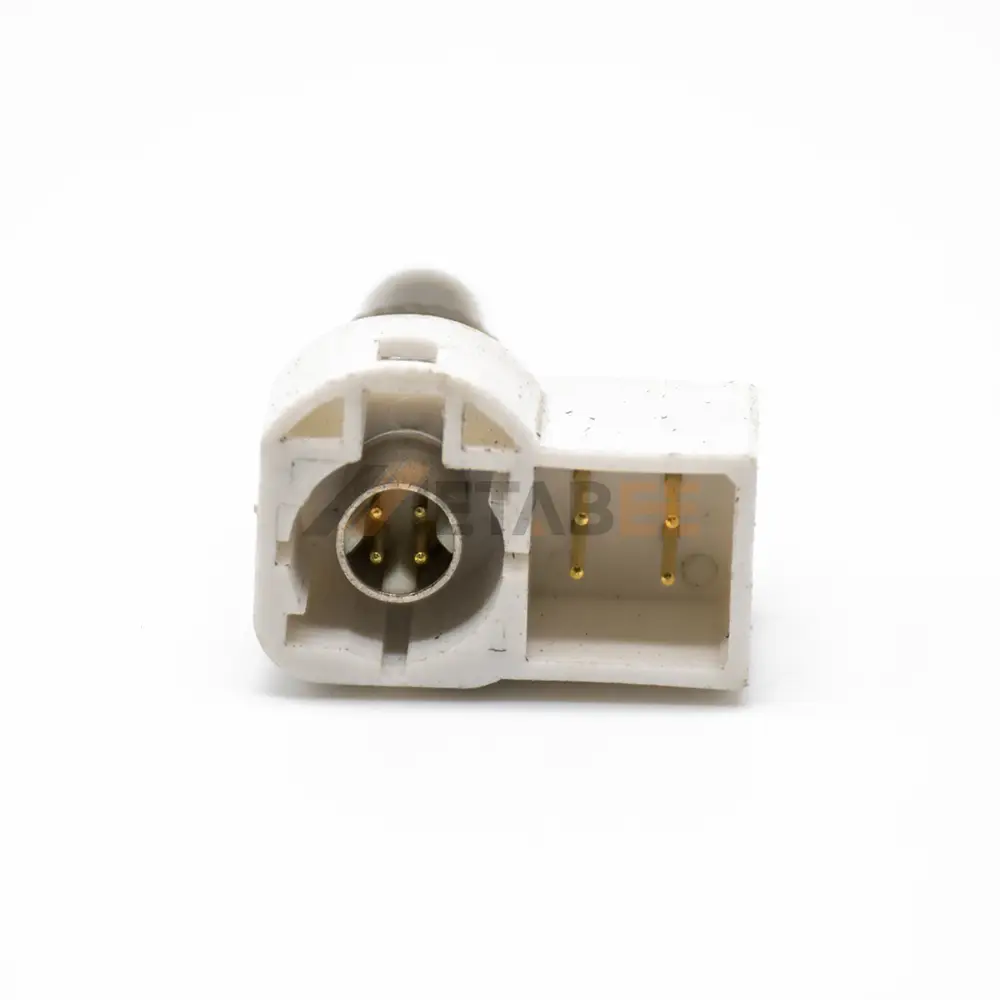

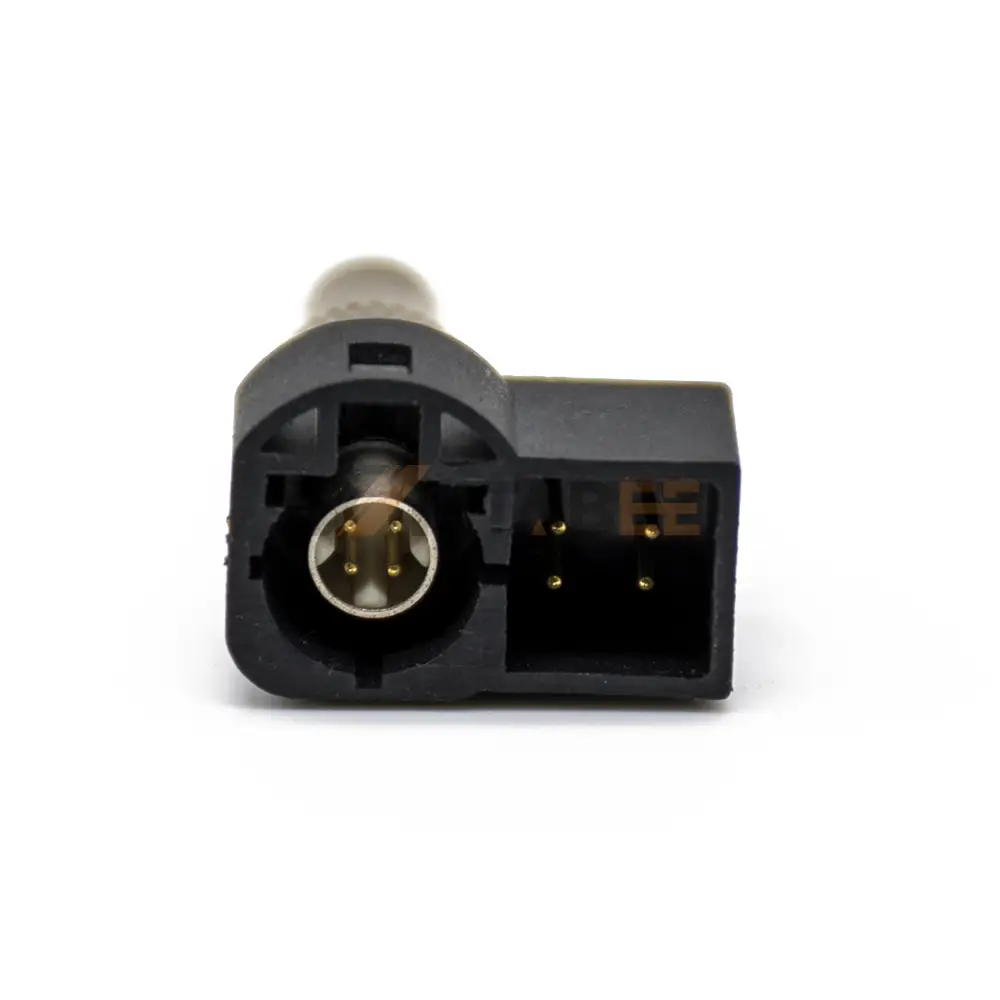

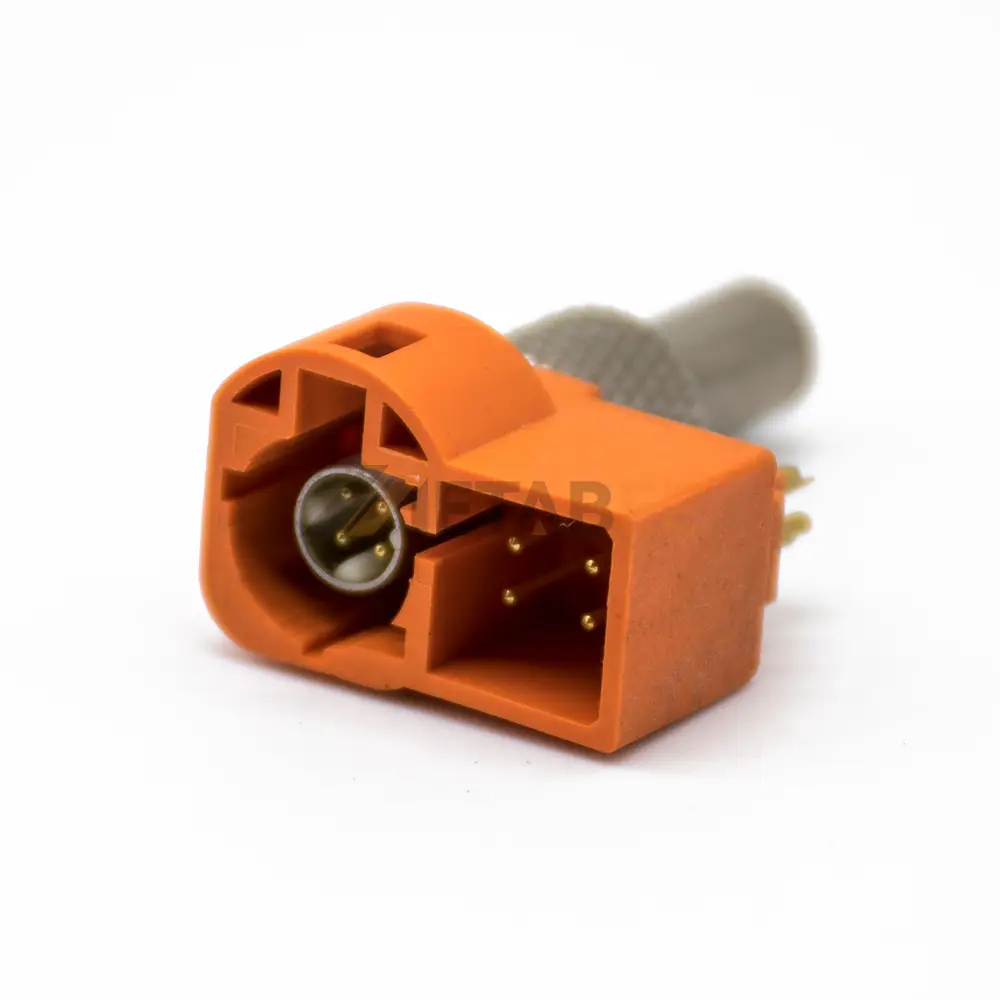

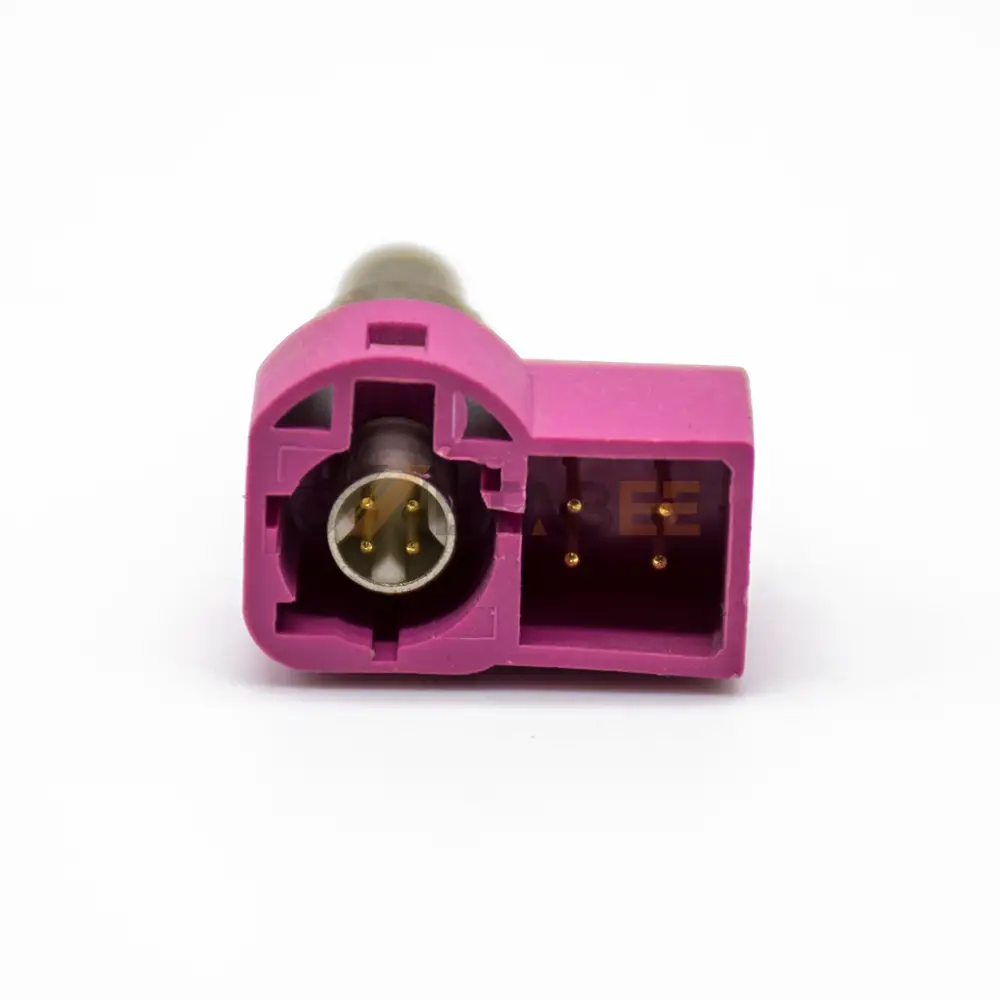

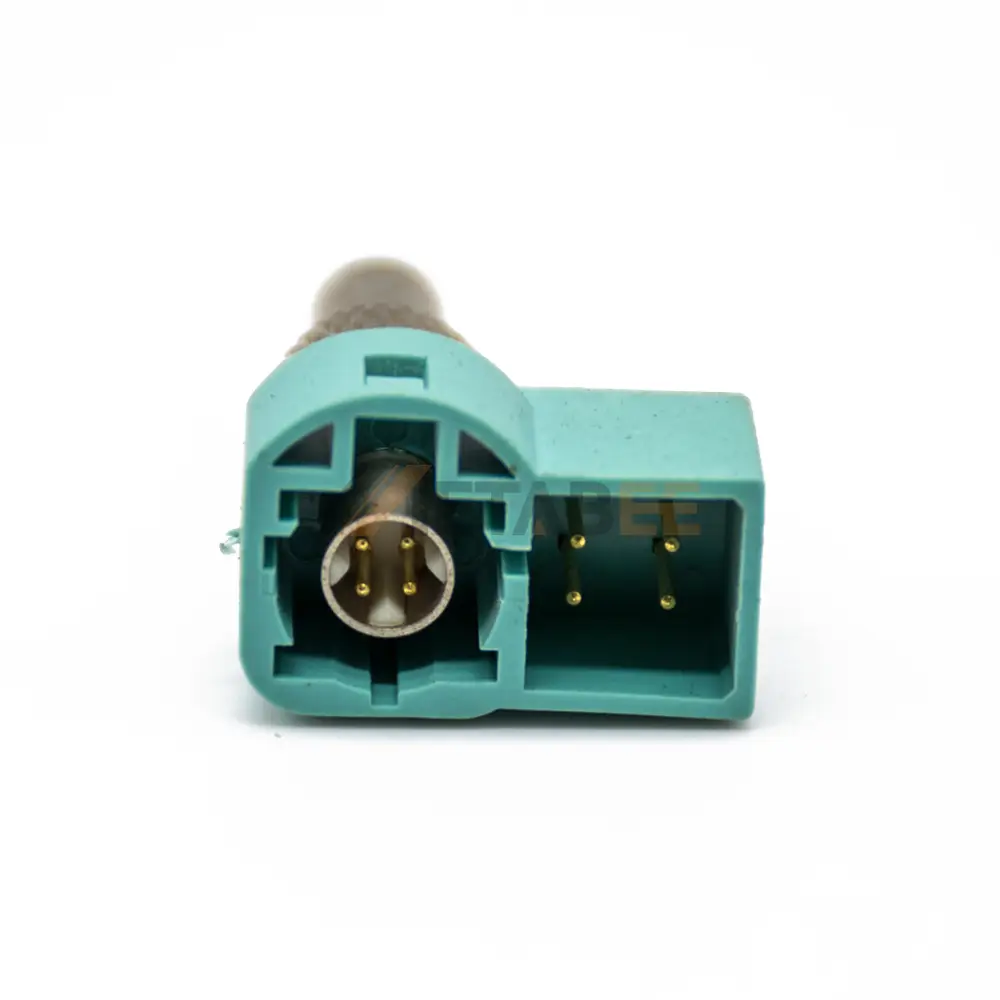

HSD 4+4 Pin Plug Automotive Connector for Cable, Solder
Introduction
HSD automotive connector is designed for high-speed automotive data transmission with superior durability and reliability. Featuring a straight mounting orientation and multiple keying options (A, B, C, D, E, F, G, H, I, K, L, M, O, Z), it ensures secure mating and compatibility across various automotive systems. The solder termination and cable-mount design provide stable signal performance and easy installation.
Built with a PA plastic housing, a zinc alloy outer conductor with nickel plating, and a copper alloy inner conductor with gold plating, this connector offers excellent corrosion resistance and conductivity. With a 100-ohm impedance and a frequency range from DC to 2 GHz, it delivers optimal signal integrity for high-speed applications. Operating reliably between –40 °C and +105 °C, it meets automotive-grade environmental requirements.
Key Features:
- 4+4 pin configuration for high-speed data transfer
- Straight mounting orientation for streamlined installation
- Multiple keying options for secure and versatile connections
- PA housing with zinc alloy nickel-plated outer conductor
- Gold-plated copper alloy inner conductor for superior conductivity
- 100 Ω impedance, DC–2 GHz frequency range
- Wide –40 °C to +105 °C operating temperature range
Main Specifications:
General Information:
| Part No.: | 102-11-10 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Straight | |
| Connector Coding: | A, B, C, D, E, F, G, H, I, K, L, M, O, Z | |
| Number of Contacts: | 1 Port | |
| Number of Positions: | 4+4 Pin | |
| Contact Termination: | Solder | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD 4+4 Pin Plug Automotive Connector for Cable:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
