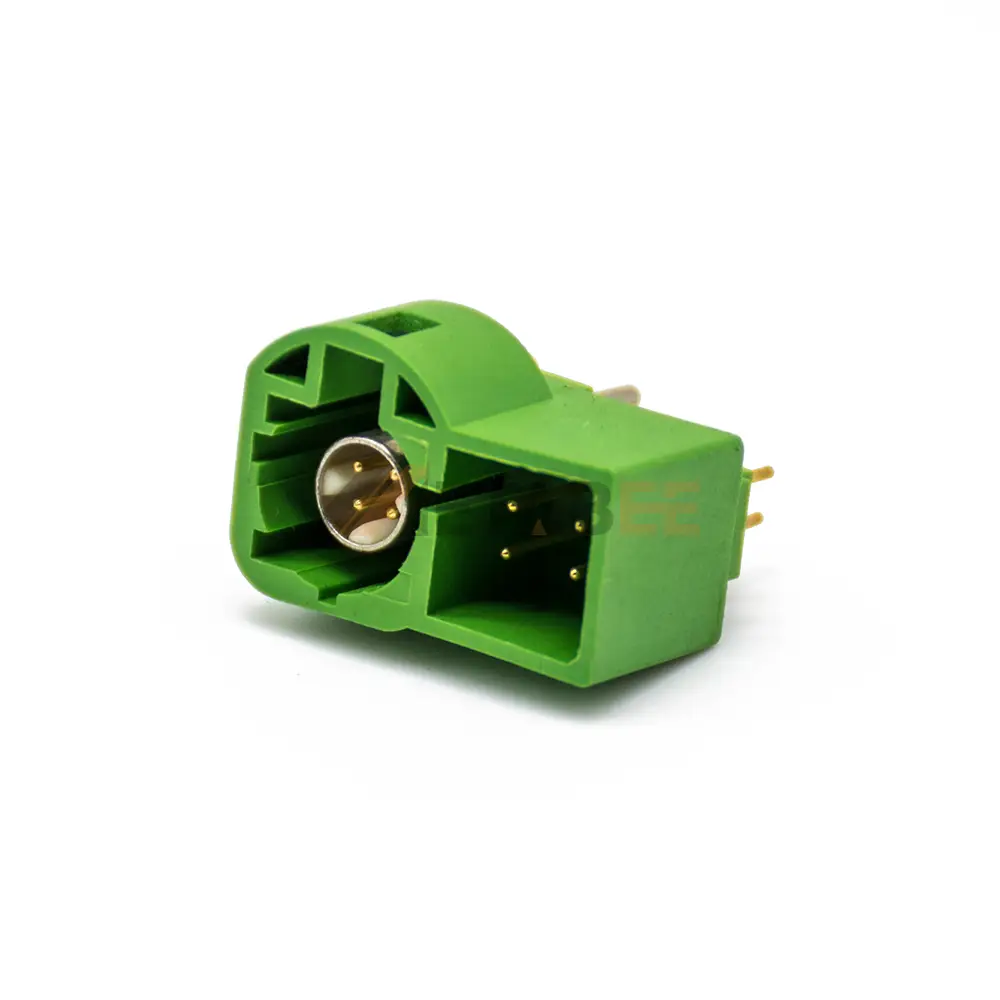

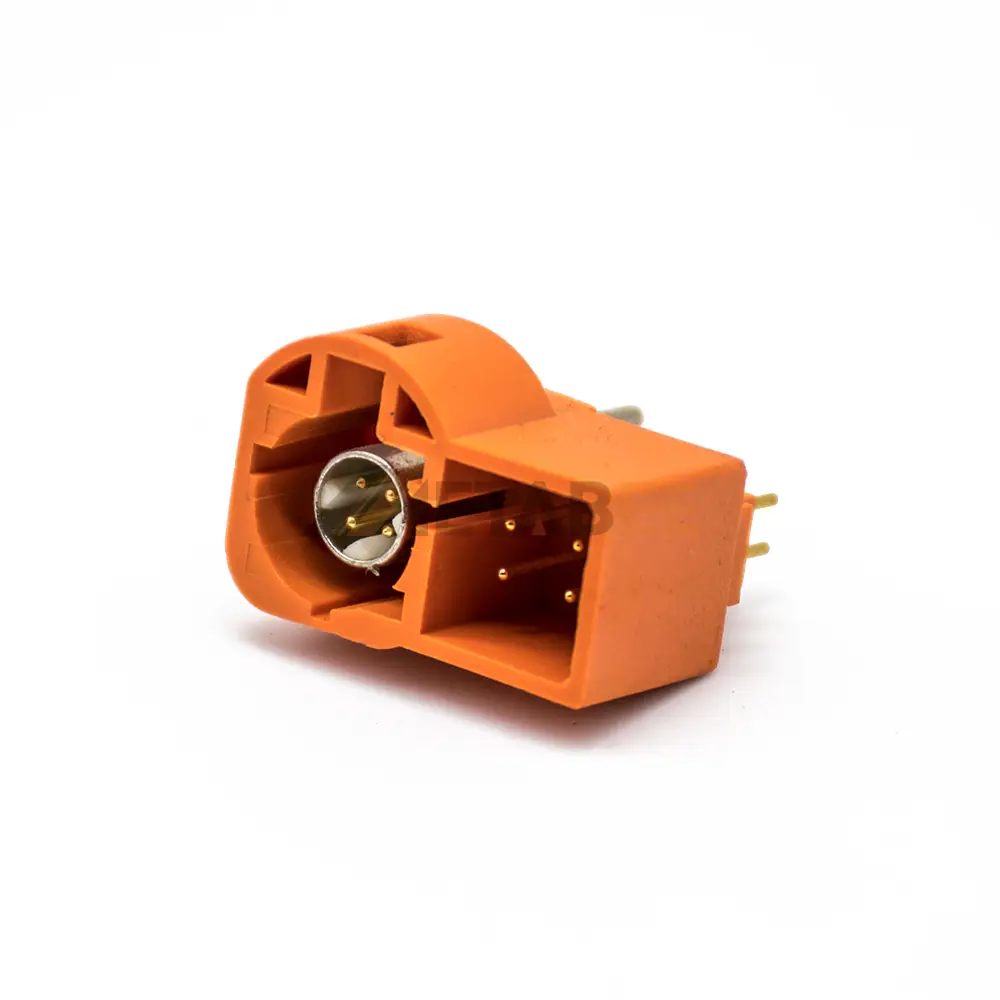

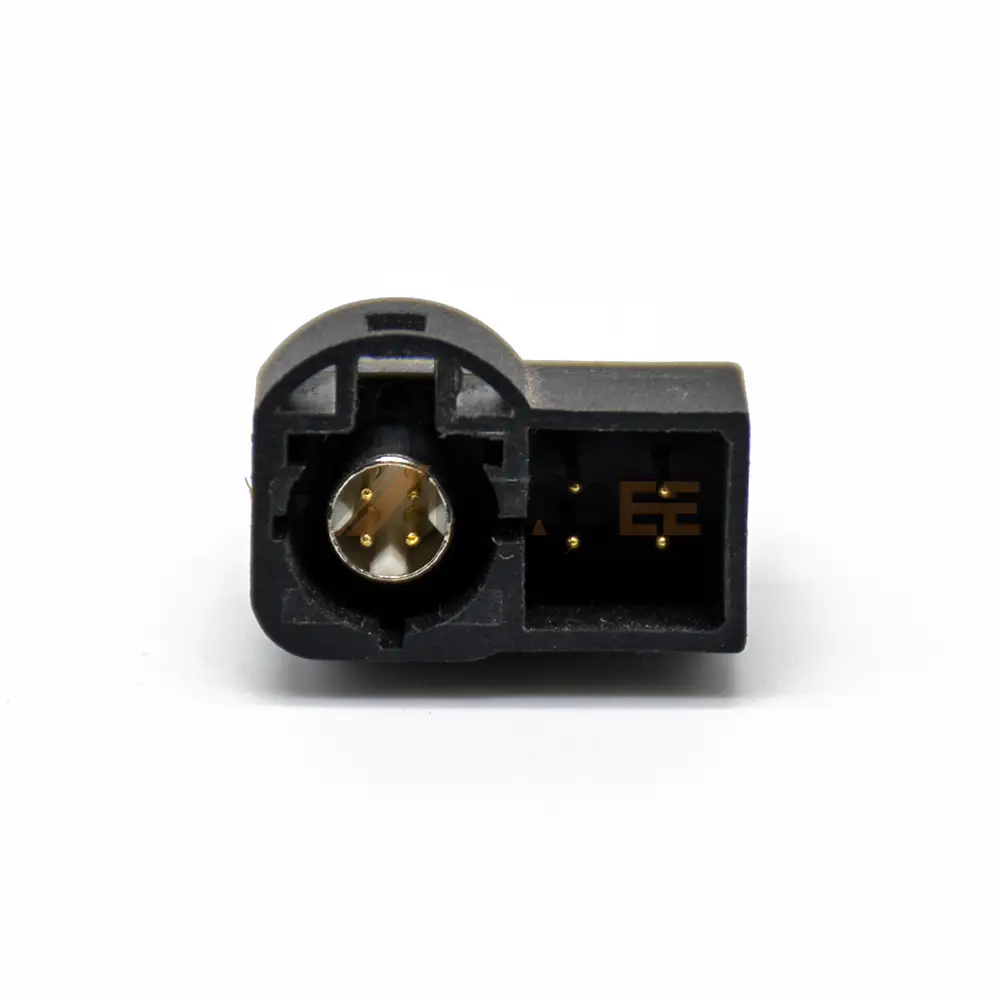

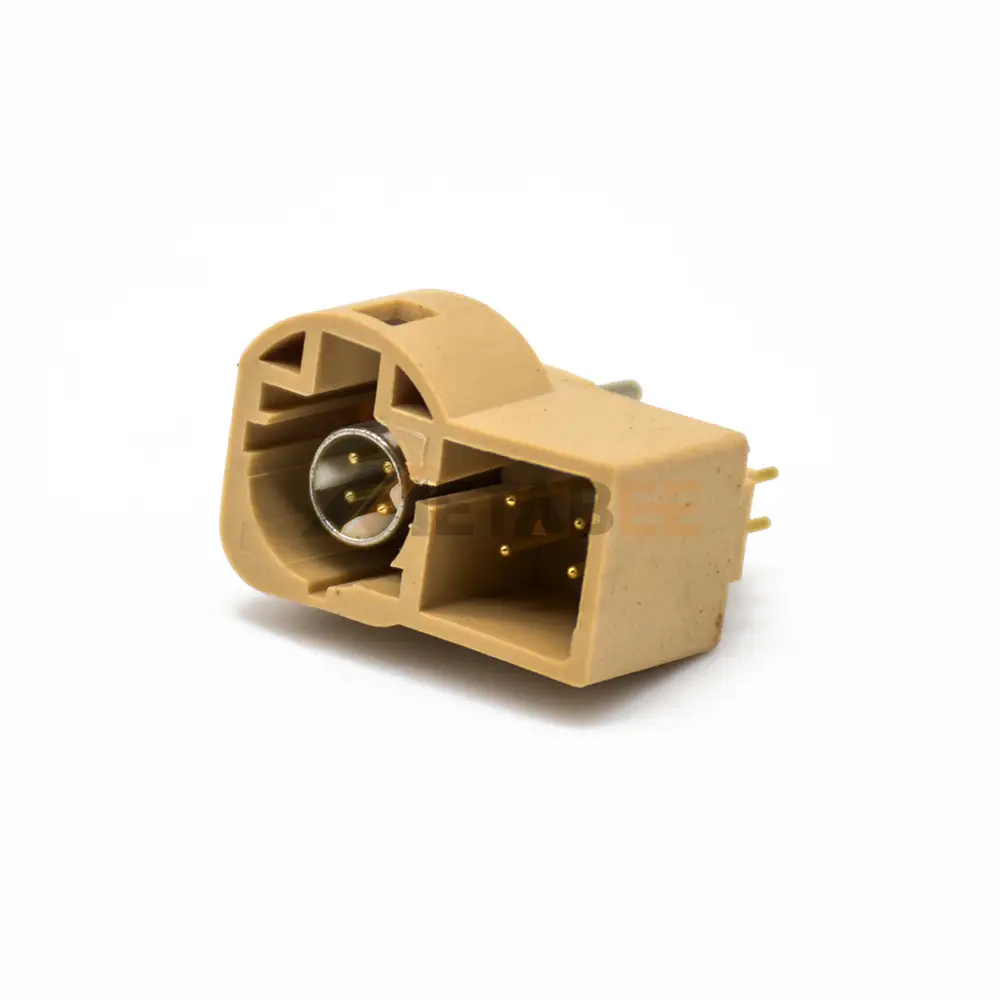

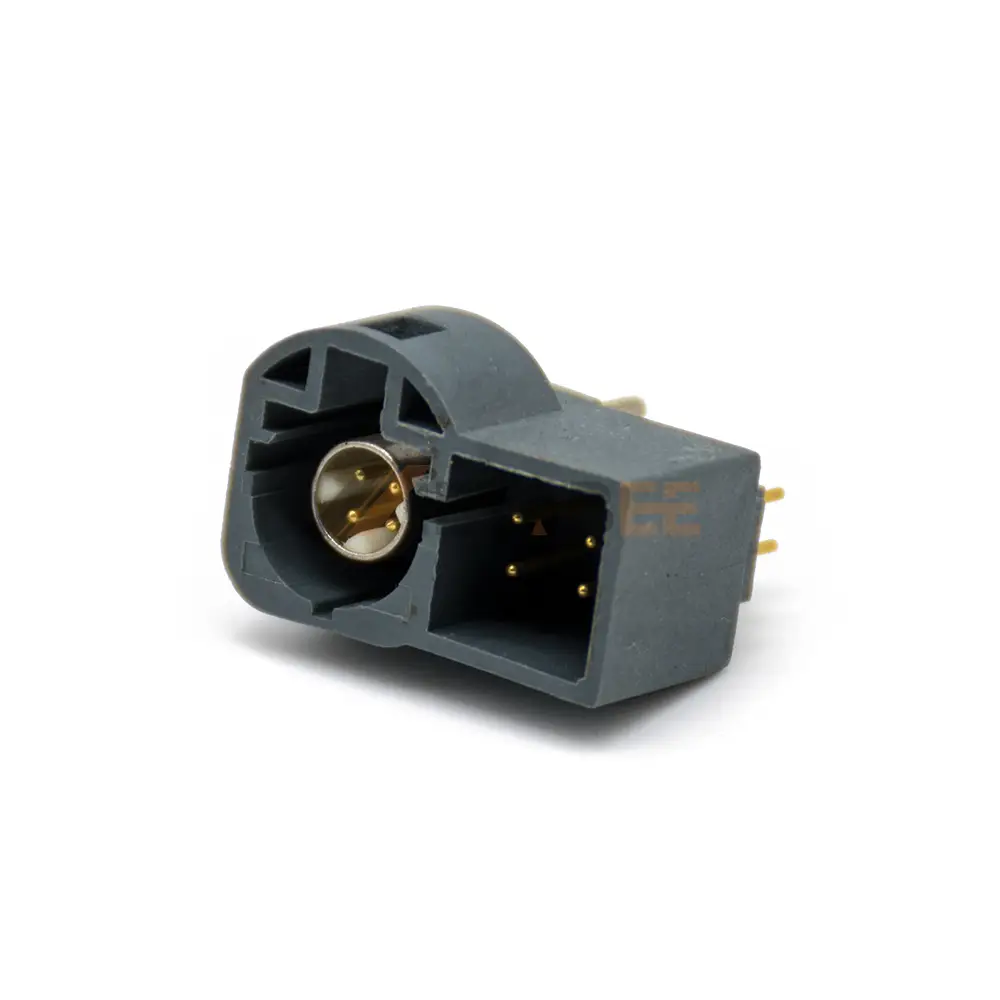

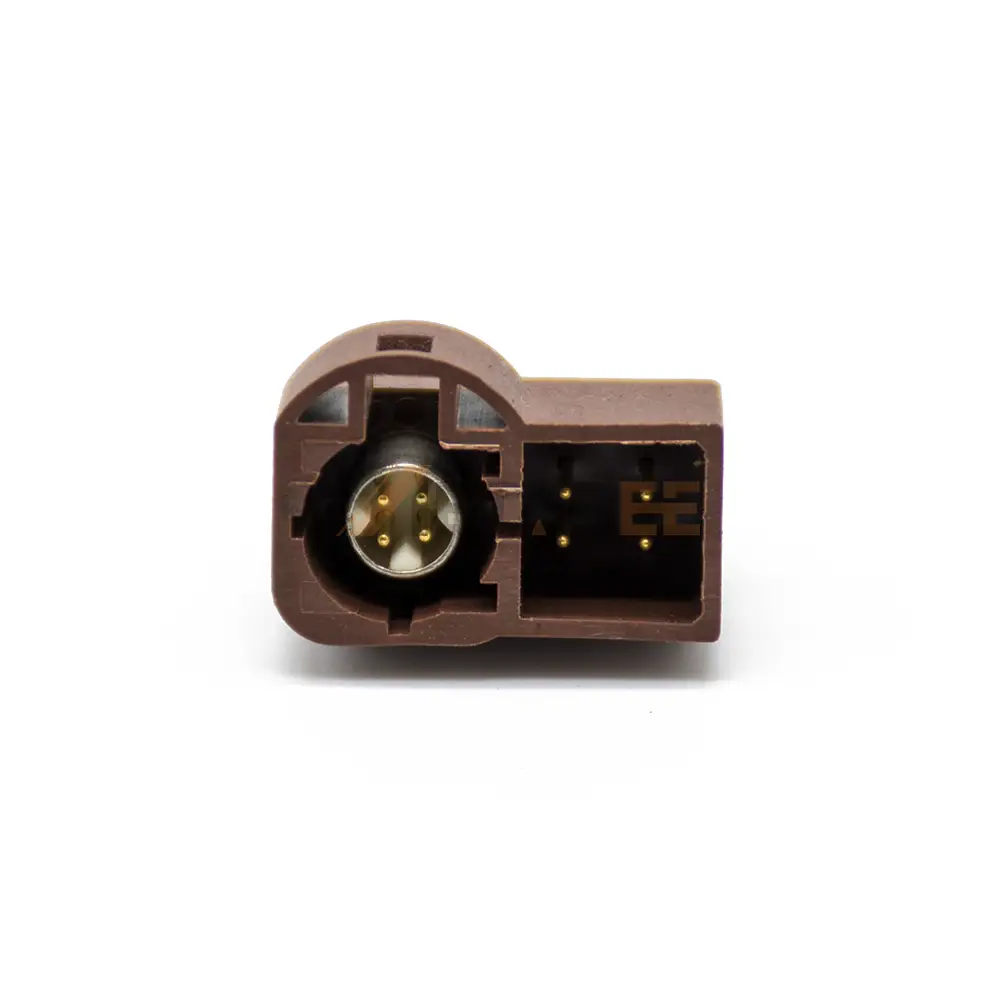

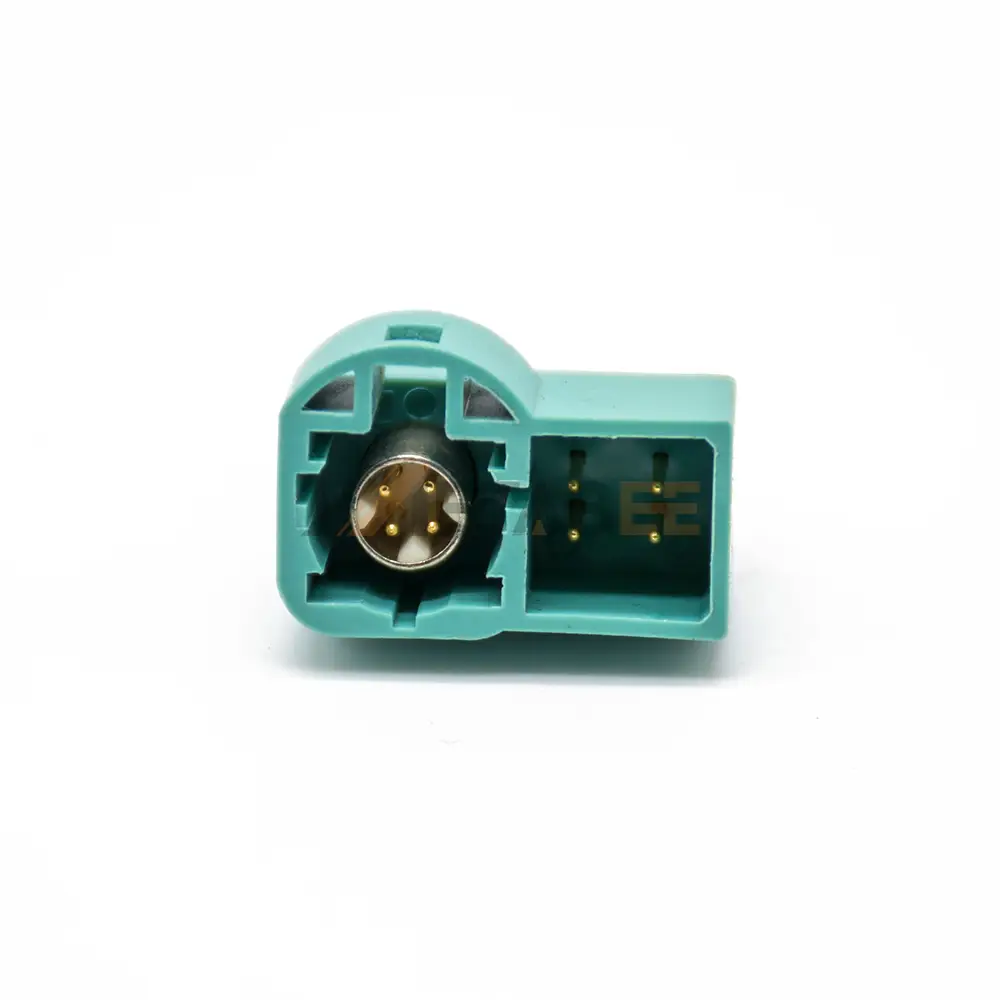

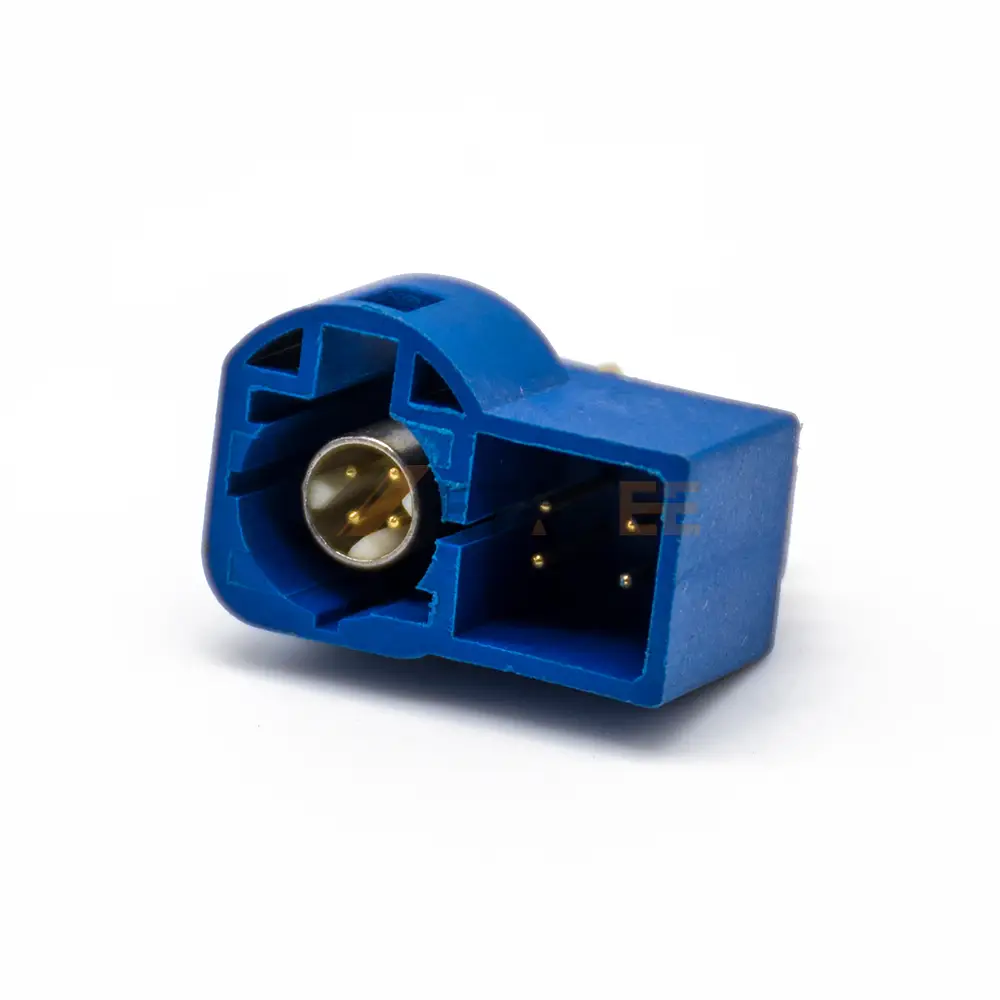

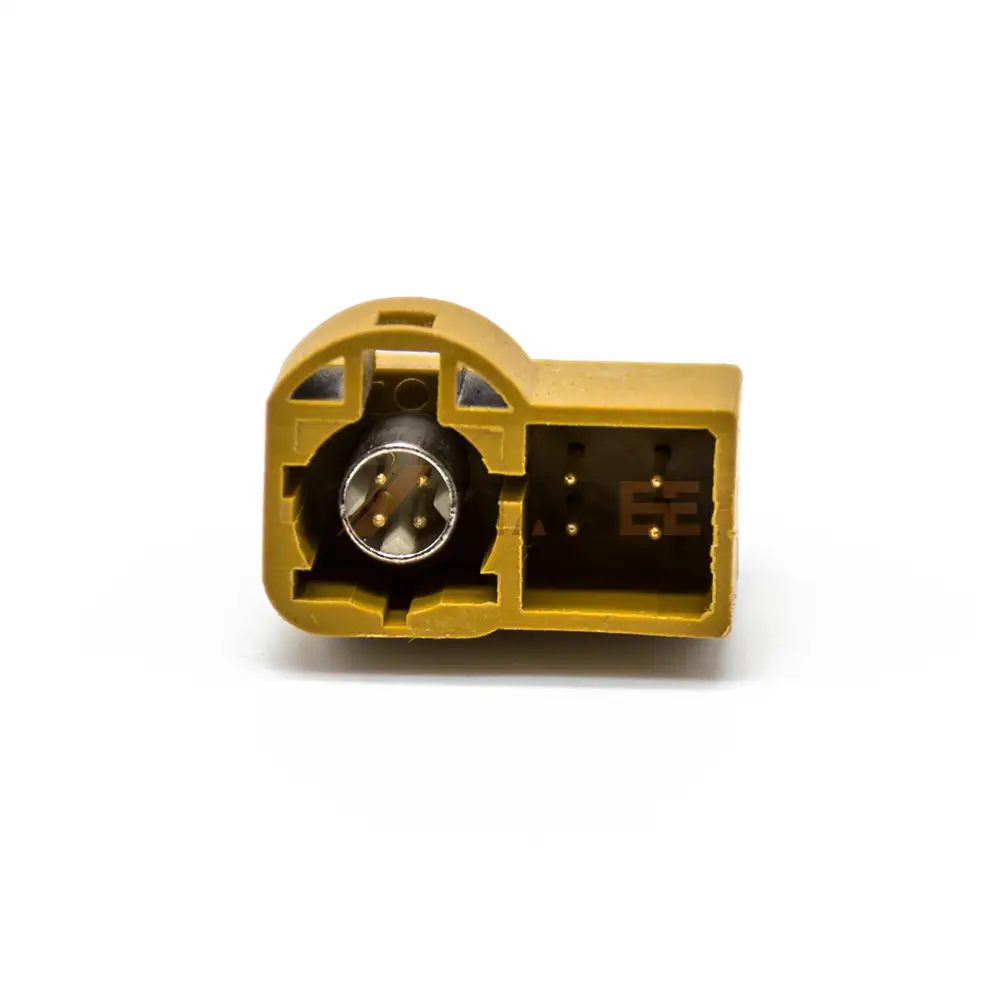

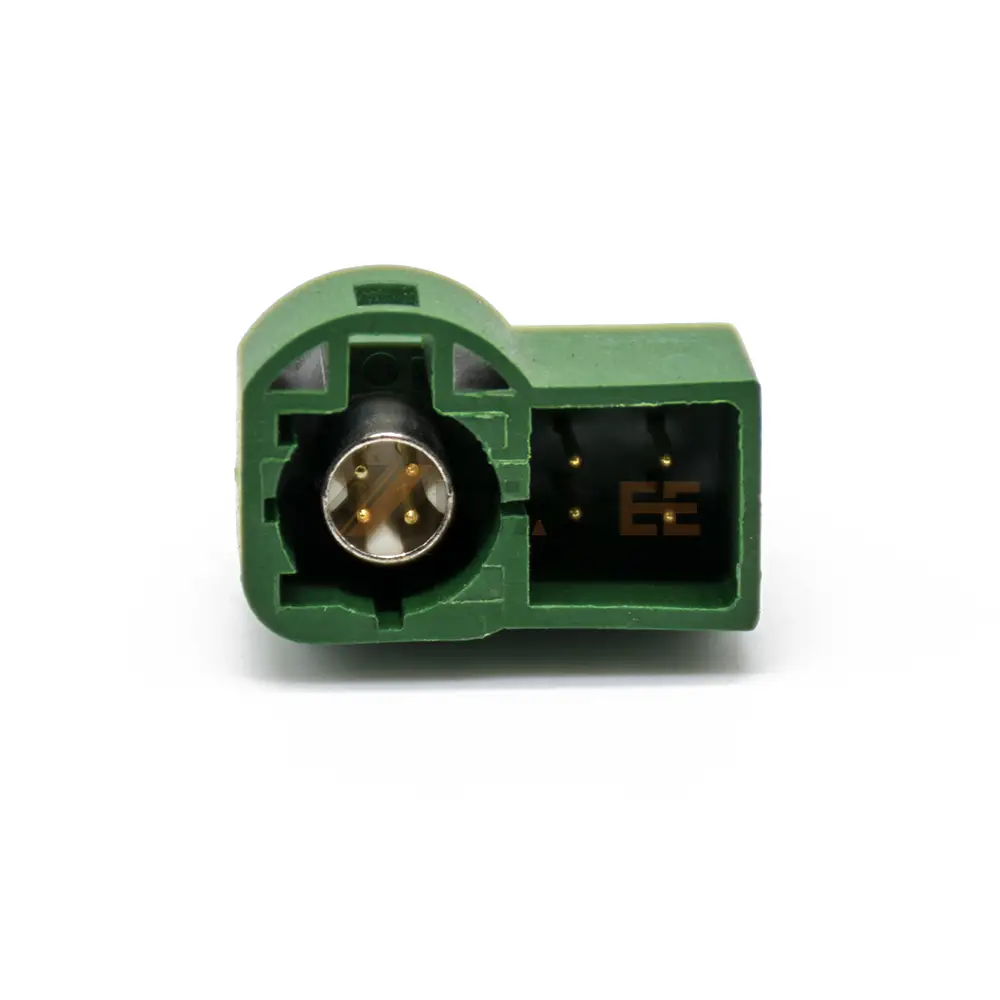

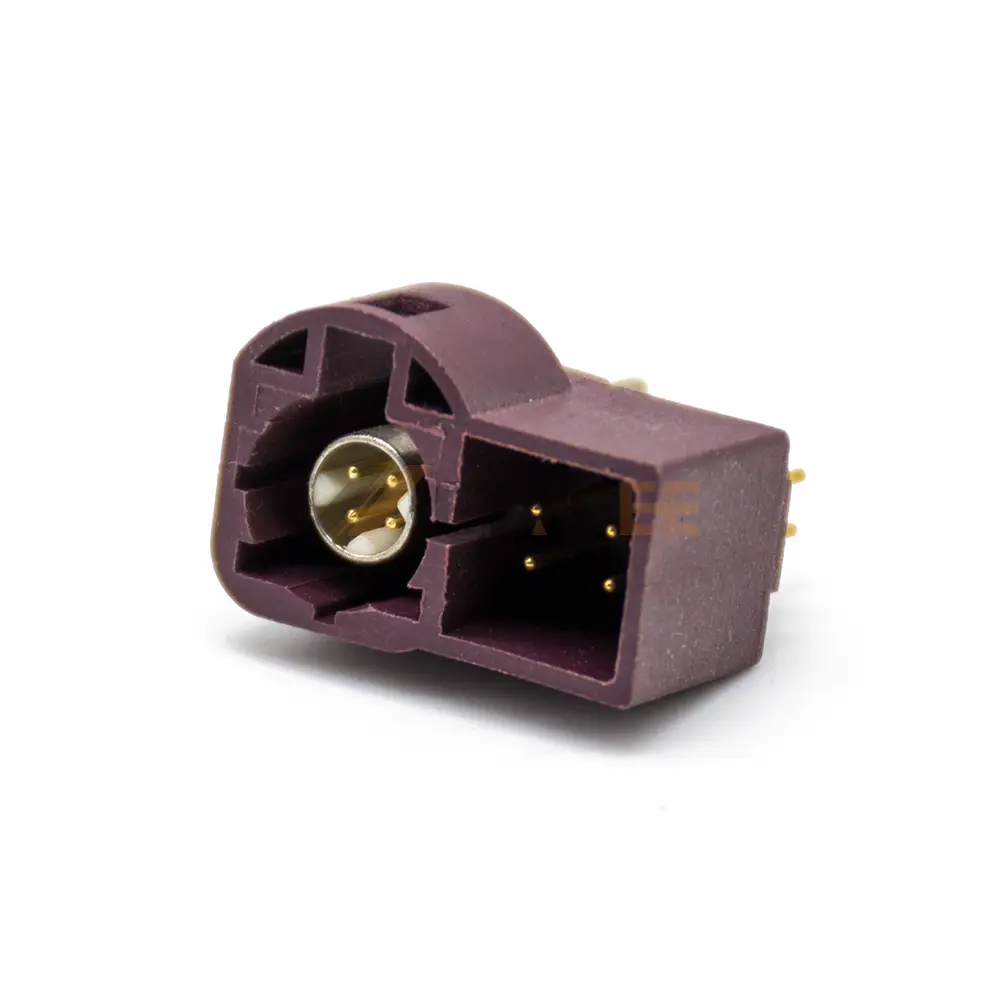

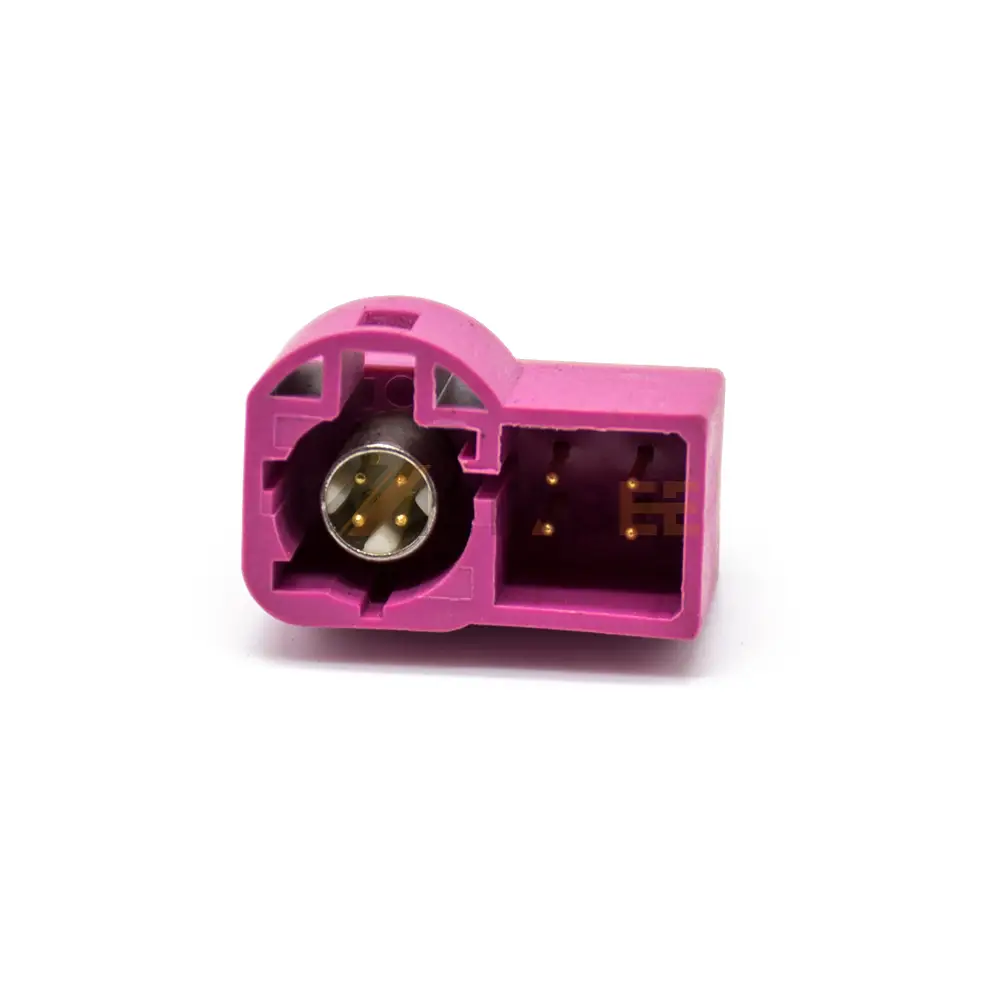

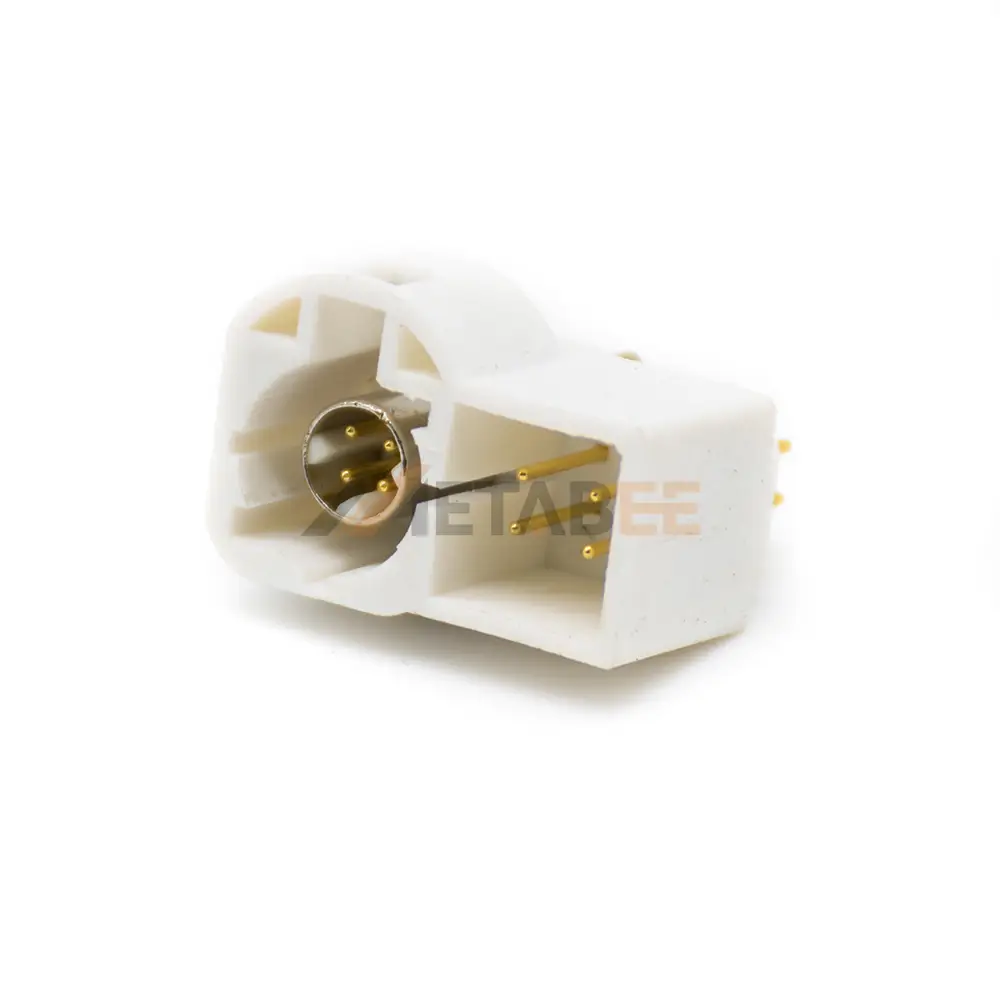

HSD High Speed Data 4+4 Pin Plug Automotive Connector for PCB
Introduction
Engineered for high-speed data transmission in demanding automotive applications, this HSD automotive connector is designed for efficient and reliable performance. The PCB-mount through-hole design enables flexible routing and space-saving installation in confined electronic systems. With a robust construction featuring a PA plastic housing and a nickel-plated zinc alloy outer conductor, this connector ensures durability and resistance to harsh environmental conditions, including a wide operating temperature range from -40°C to 105°C. The gold-plated copper alloy inner conductors guarantee a stable, high-quality electrical connection.
This HSD connector is a key component for modern automotive systems that rely on seamless data transfer. Its 100-ohm impedance and DC-2 GHz frequency range make it suitable for a variety of protocols, including LVDS, Ethernet, and USB, which are essential for infotainment, camera, and driver-assistance systems. The diverse range of available keying codes (A, B, C, D, E, F, G, H, I, K, L, M, O, Z) prevents mismating and ensures accurate, secure connections, simplifying assembly and maintenance. The solder termination method provides a strong, permanent bond for long-term reliability.
Key Features:
- PCB Mount: Optimizes space and simplifies cable routing.
- High-Speed Data (HSD) Connector: Ideal for high-performance automotive electronics.
- 4+4 Pin Configuration: Provides ample contact points for data and power.
- 100 Ohm Impedance: Ensures signal integrity and high-quality transmission.
- Broad Frequency Range: Supports frequencies from DC up to 2 GHz.
- Durable Materials: PA plastic housing and nickel-plated zinc alloy outer conductor.
- Wide Temperature Range: Reliable operation from -40°C to 105°C.
Main Specifications:
General Information:
| Part No.: | 102-11-10 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Straight | |
| Connector Coding: | A, B, C, D, E, F, G, H, I, K, L, M, O, Z | |
| Number of Contacts: | 1 Port | |
| Number of Positions: | 4+4 Pin | |
| Contact Termination: | Solder | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD High Speed Data 4+4 Pin Plug Automotive Connector for PCB:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
