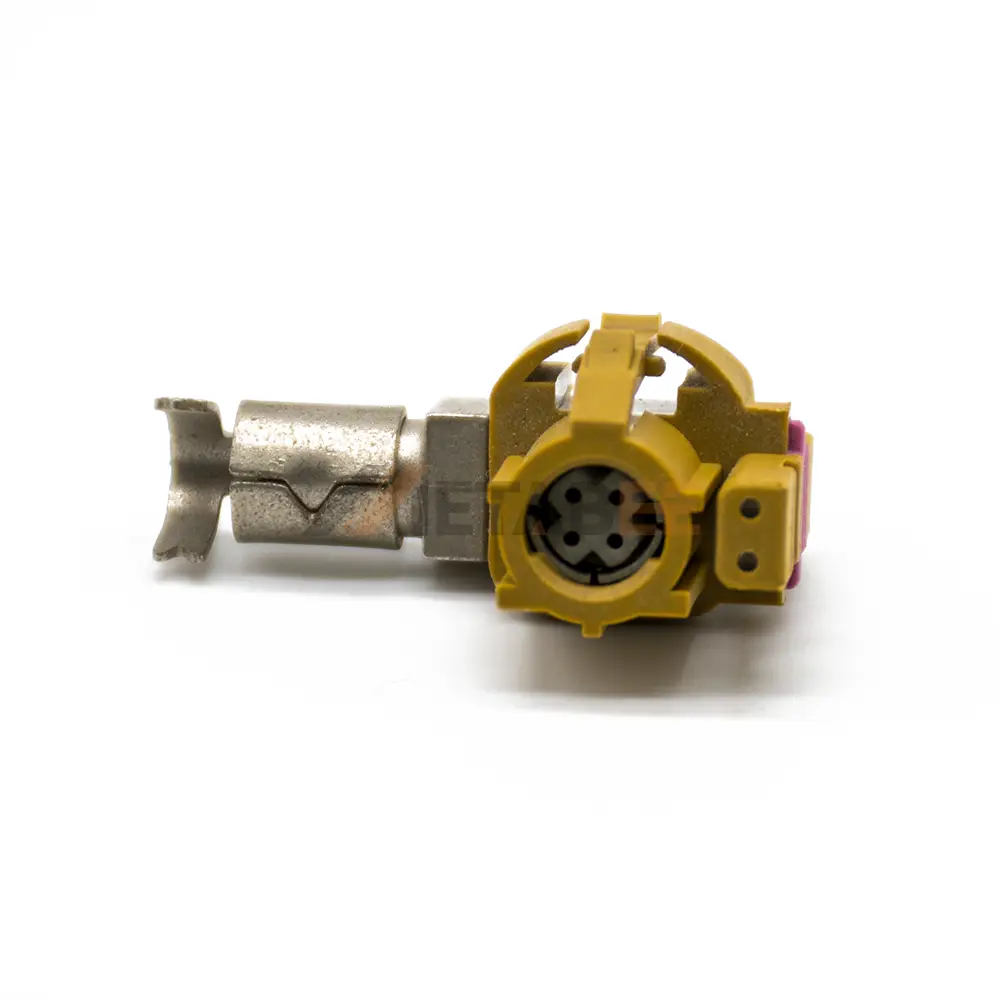

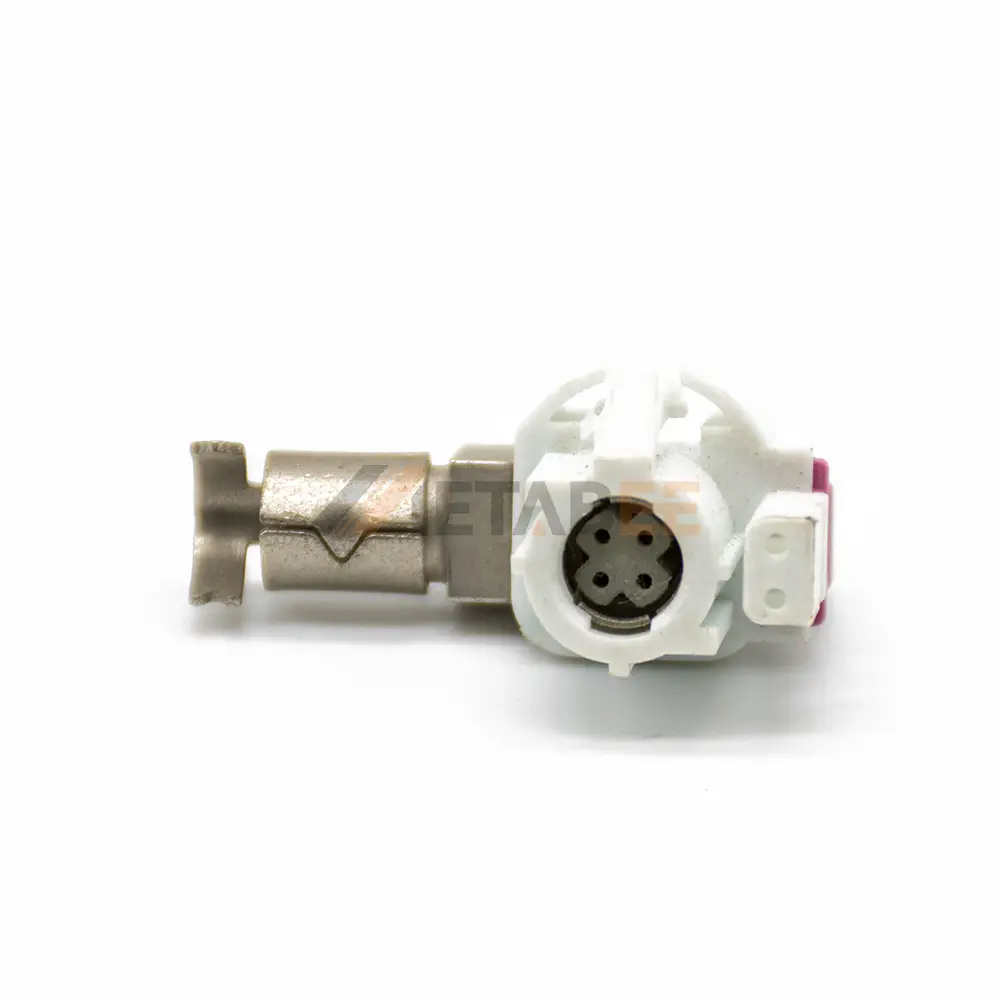

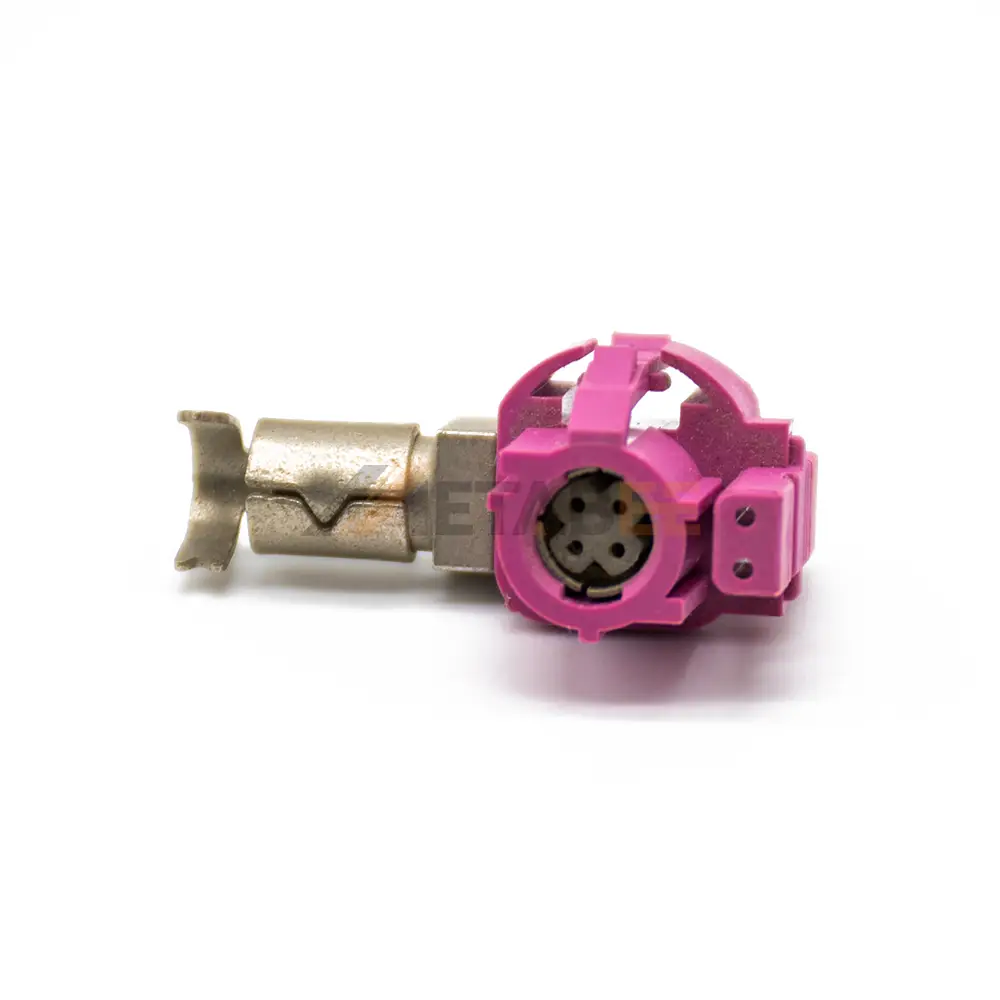

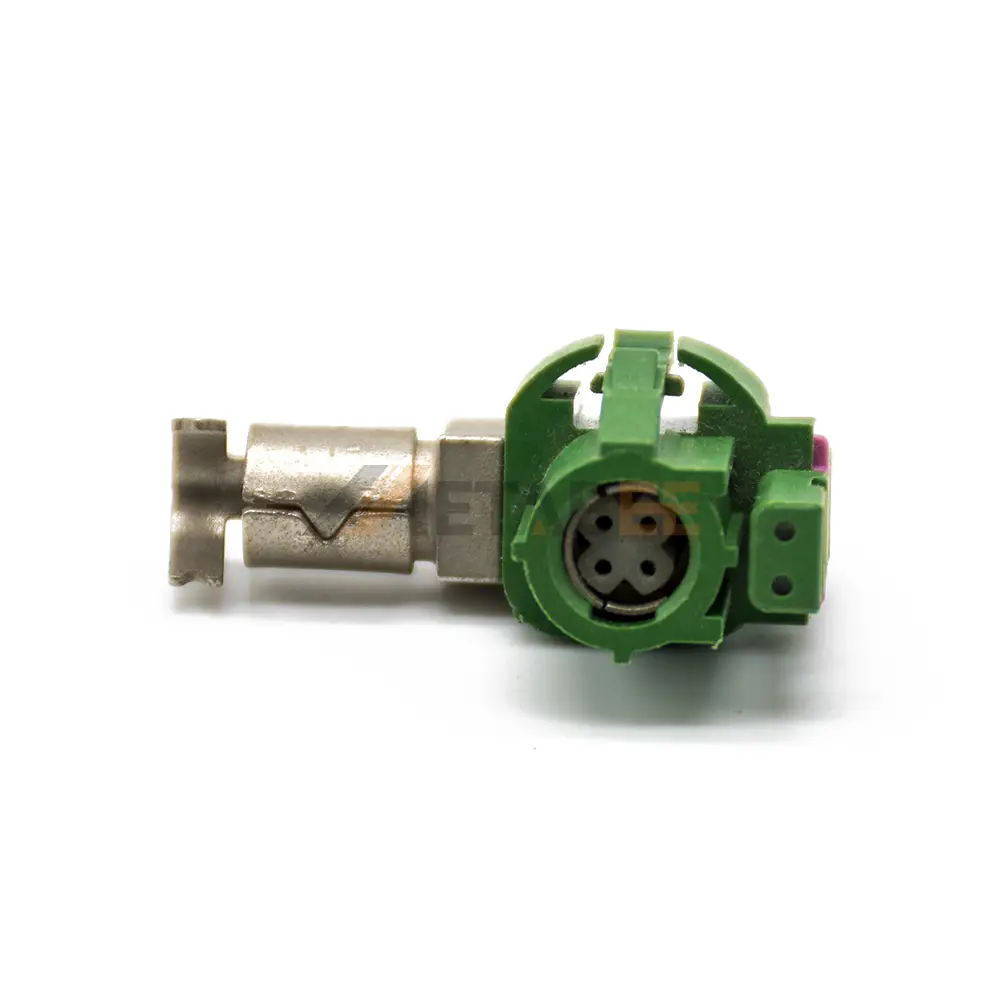

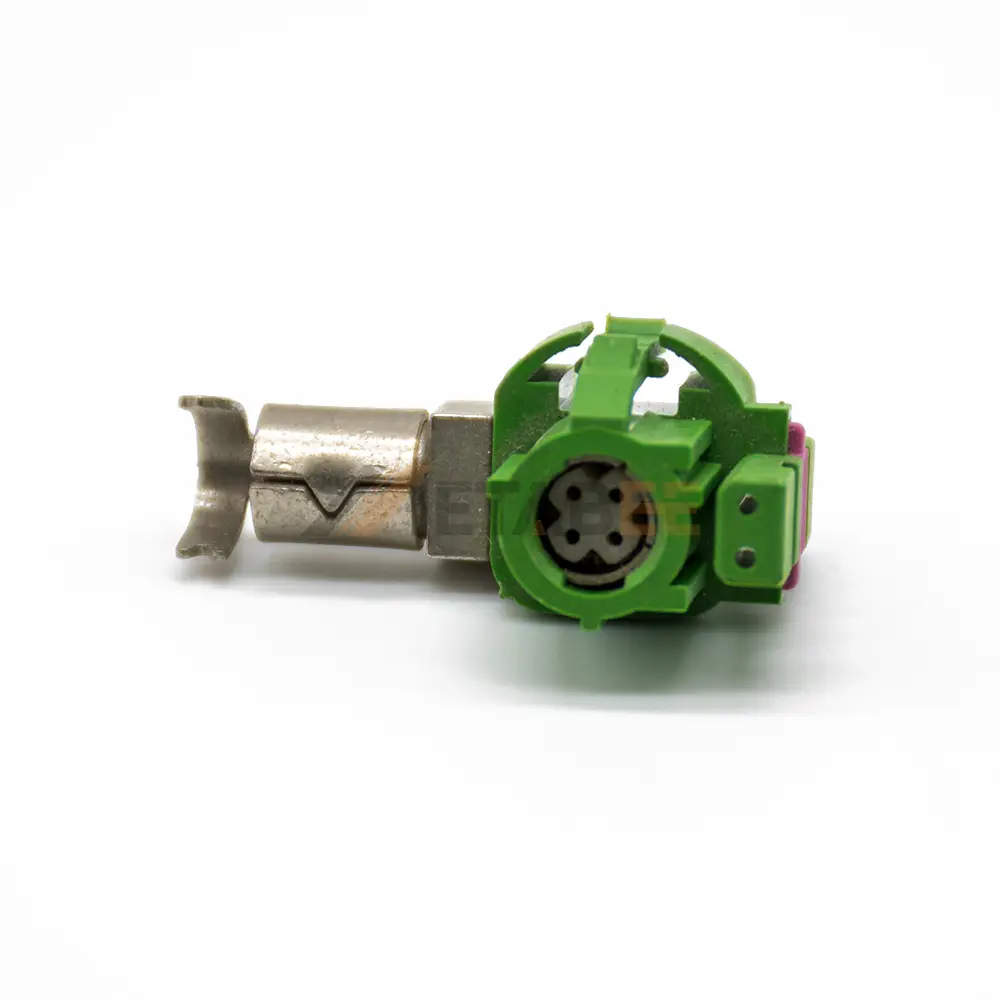

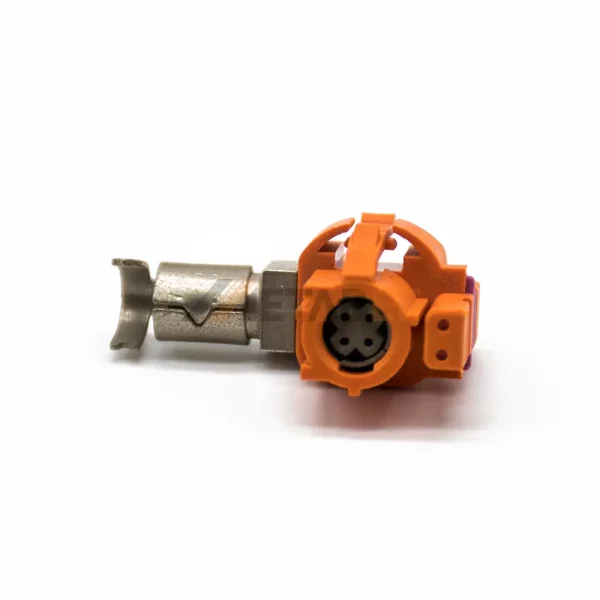

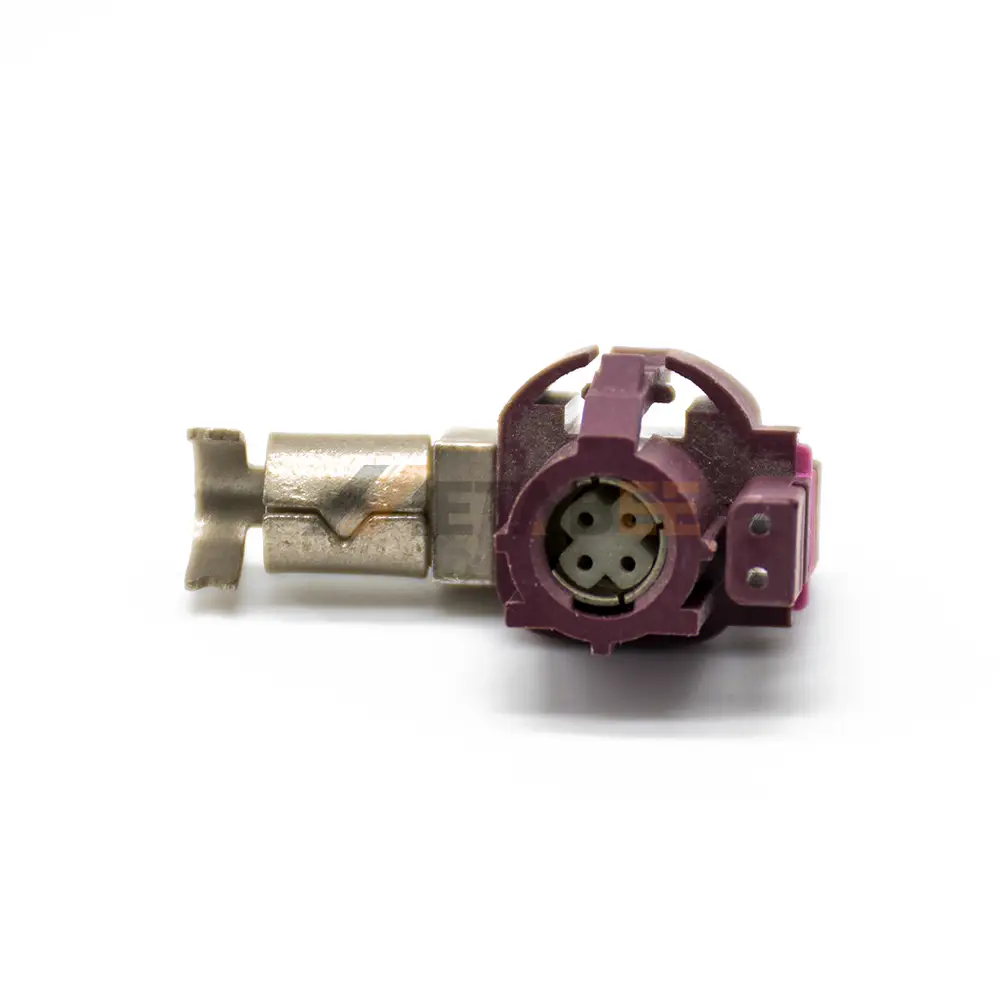

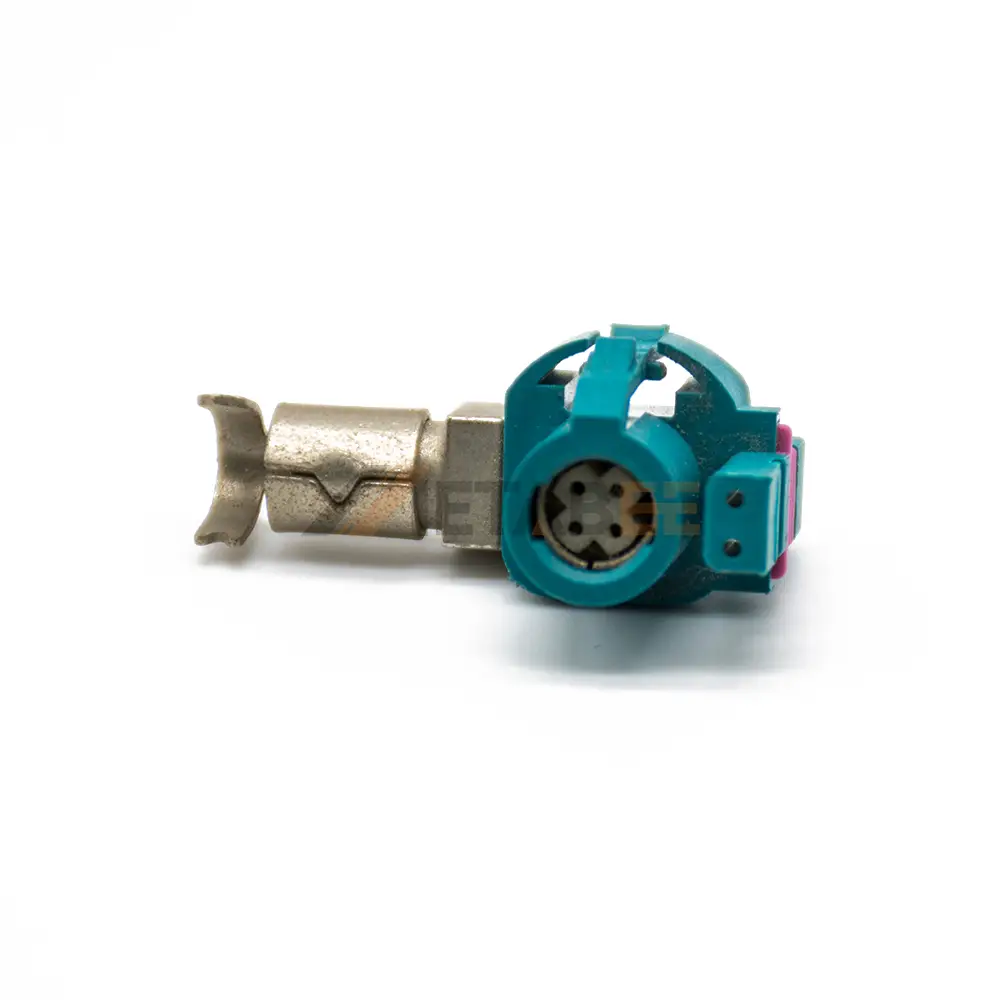

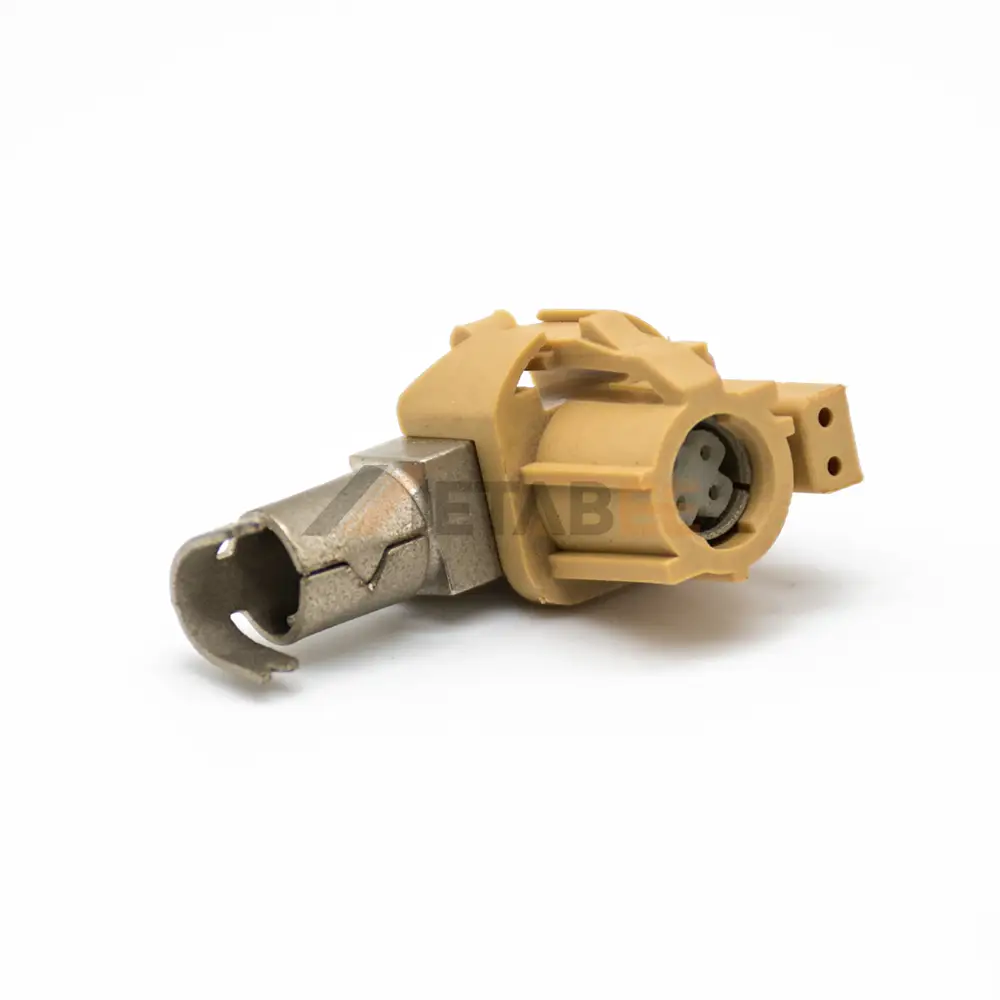

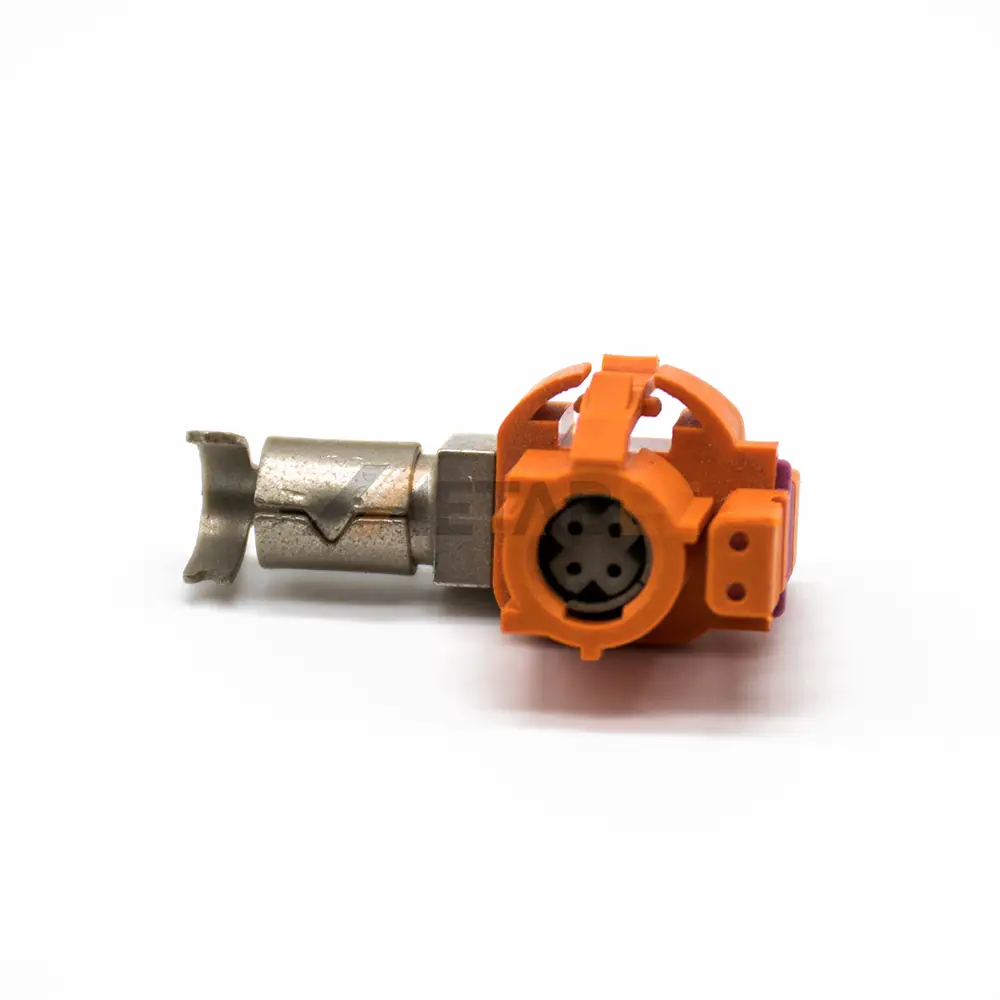

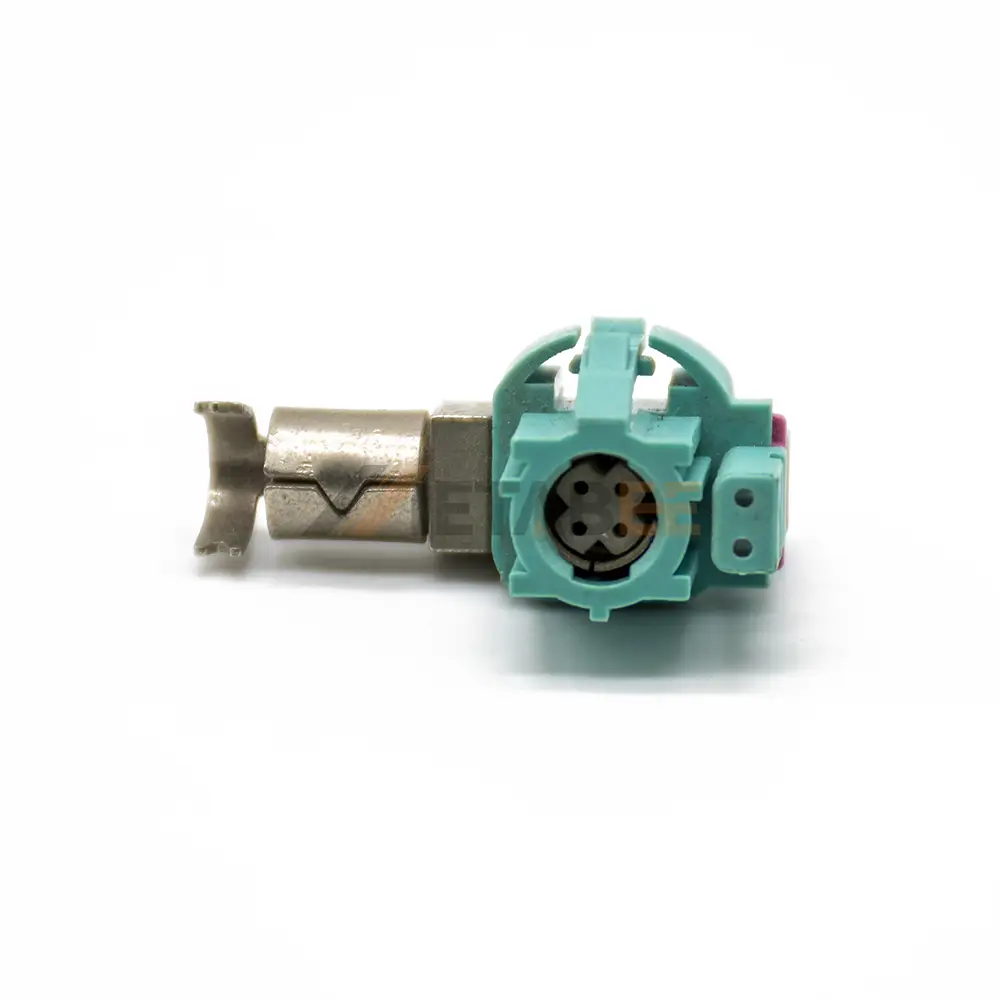

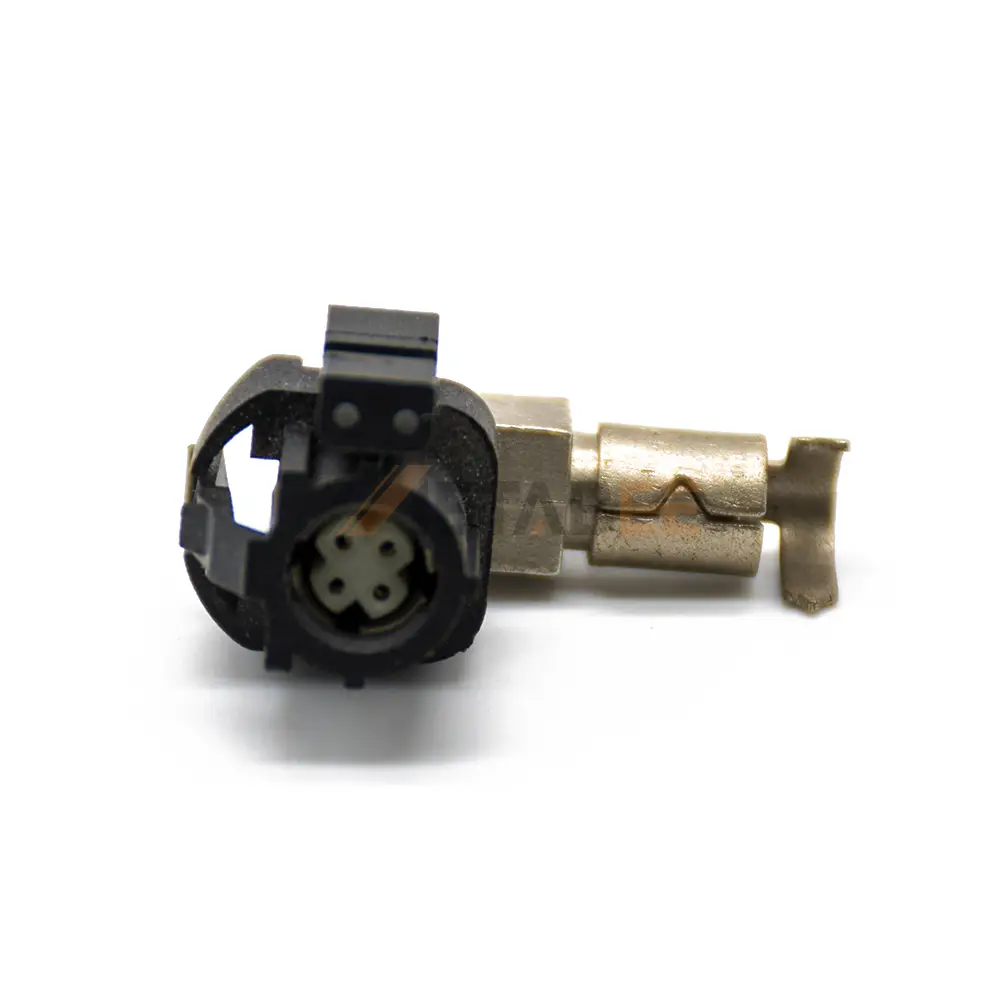

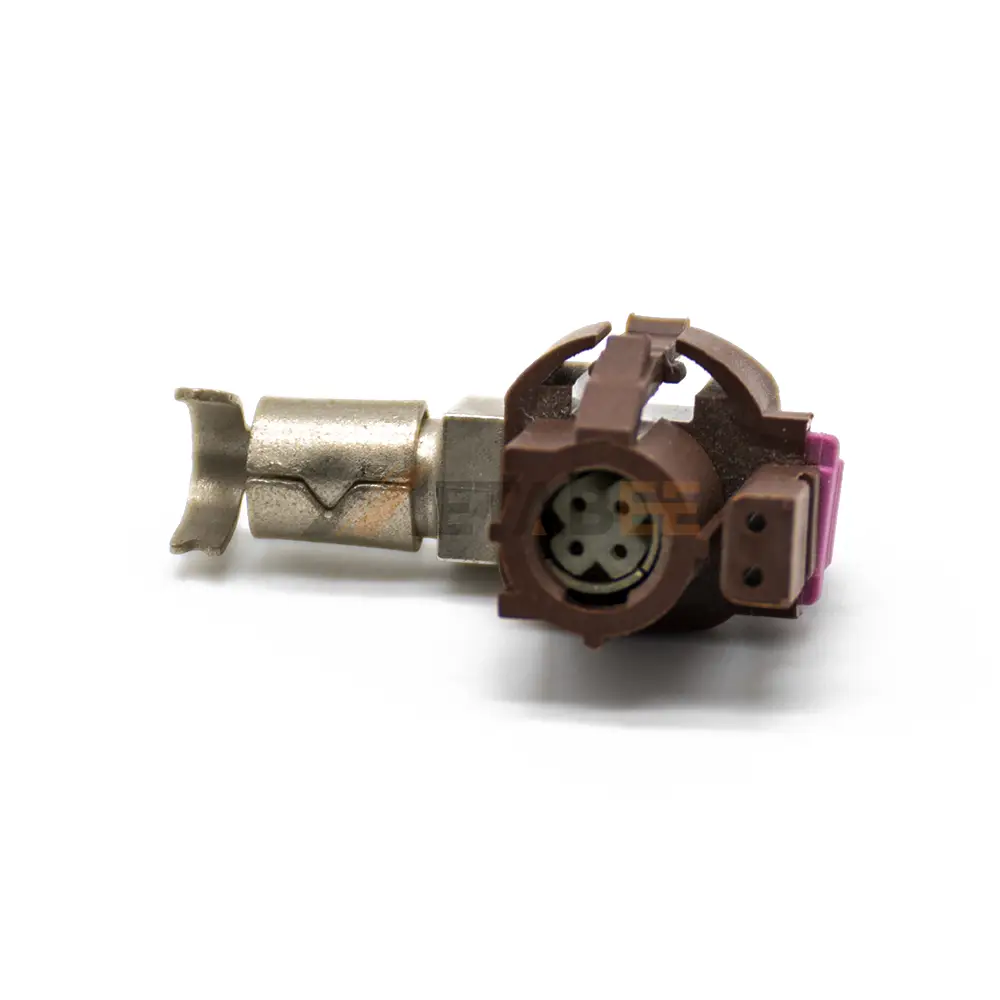

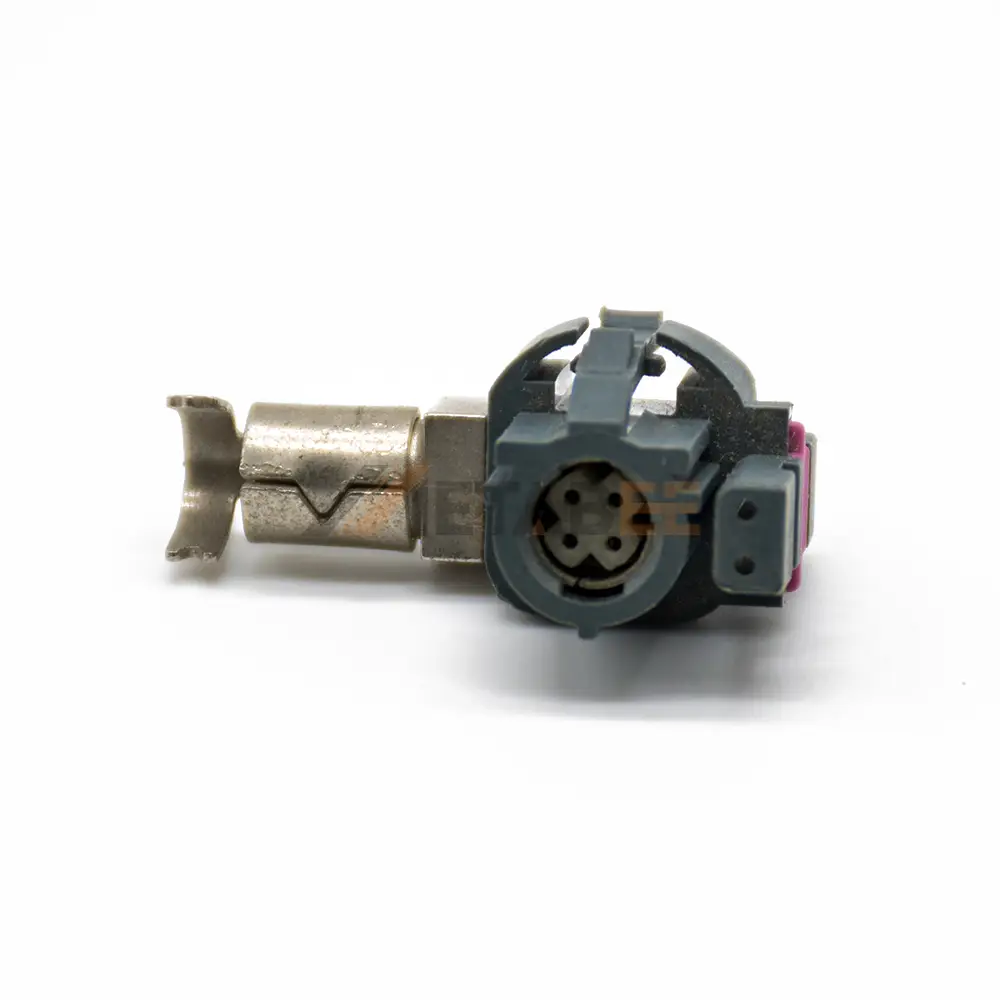

HSD High Speed Data 4+2 Pin Jack Connector for Cable, Right Angle
Introduction
The HSD High-Speed Data connector is a high-performance right-angle connector designed for reliable signal transmission in demanding environments. Featuring a PA plastic housing and a zinc alloy outer conductor with nickel plating, it ensures durability and EMI shielding. The copper alloy inner conductor with gold plating provides excellent conductivity and corrosion resistance, supporting a frequency range of DC-2 GHz and a contact impedance of 100 ohms. Its right-angle design saves space while enabling efficient cable routing.
This solder-terminated, cable-mounted connector offers secure connections with multiple keying options (A, B, C, D, E, F, G, H, I, K, L, M, O, Z) to prevent mismating. With 4+2 pin configuration and a wide operating temperature range (-40°C to 105°C), it is ideal for automotive, industrial, and high-speed data applications requiring stable performance under extreme conditions.
Key Features:
- Right-angle and Jack Connector for space-saving installations.
- PA housing & zinc alloy outer conductor (Ni-plated) for robustness.
- Gold-plated copper alloy inner conductor for superior signal integrity.
- Solder termination & cable mounting for secure connections.
- Multiple keying options (A-Z) to prevent incorrect mating.
- Frequency range: DC-2 GHz with 100-ohm impedance.
- Wide temp. range (-40°C to 105°C) for harsh environments.
Main Specifications:
General Information:
| Part No.: | 102-11-10 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Jack | |
| Orientation: | Right Angle | |
| Connector Coding: | A, B, D, E, F, G, H, I, K, L, M, O, Z | |
| Number of Contacts: | 1 Port | |
| Number of Positions: | 4+2 Pin | |
| Contact Termination: | Solder | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD High Speed Data 4+2 Pin Jack Connector for Cable:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
