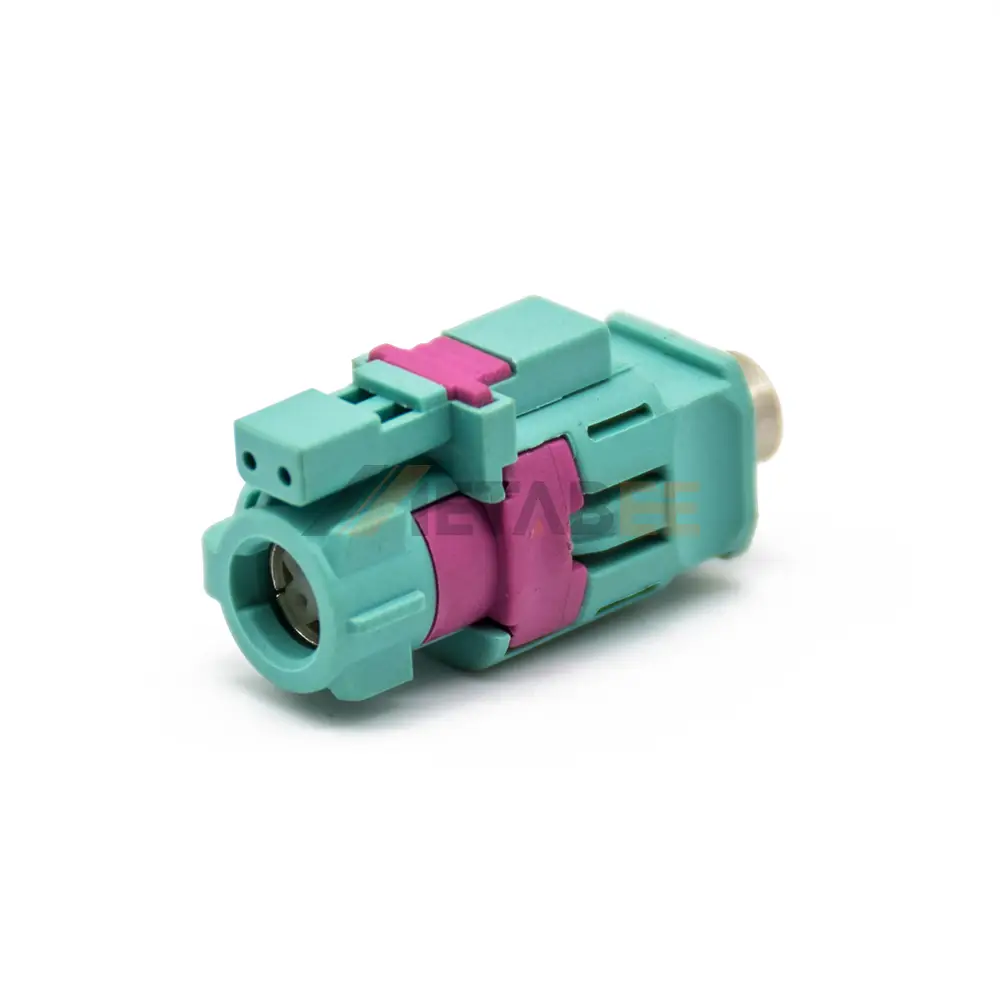

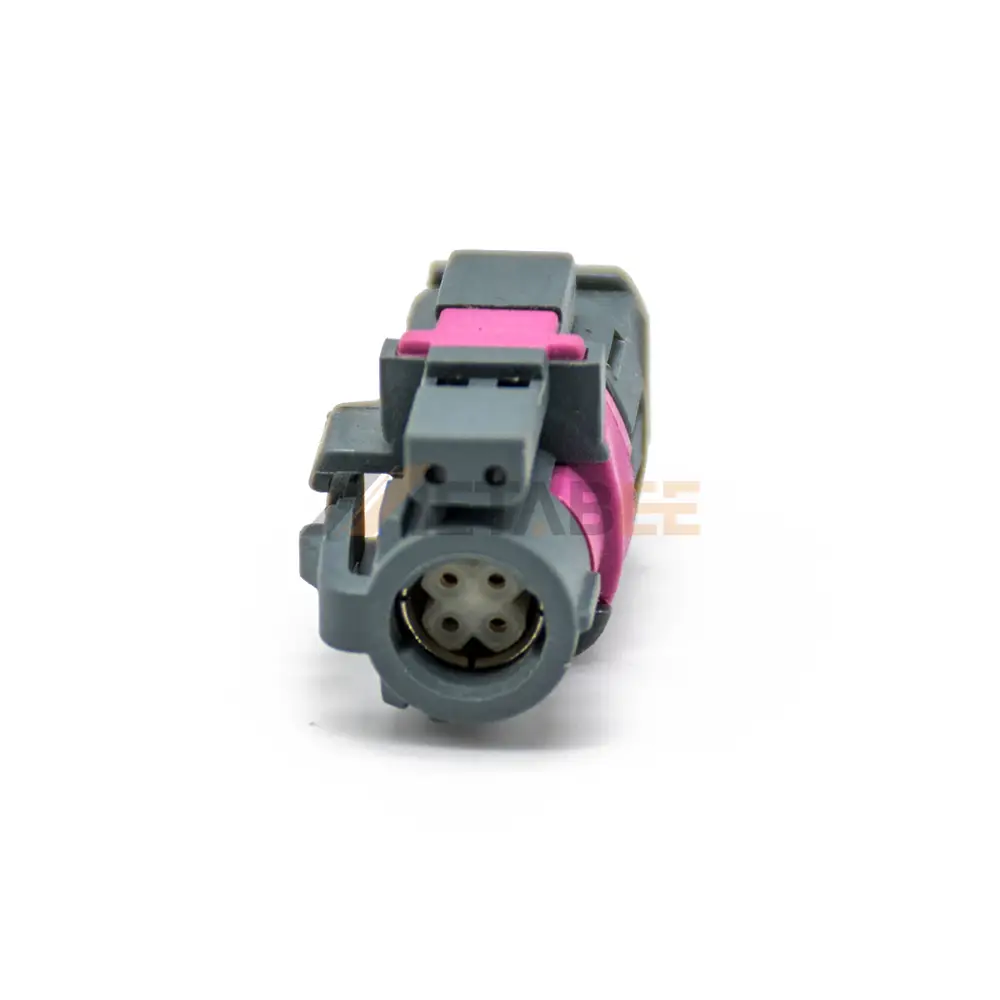

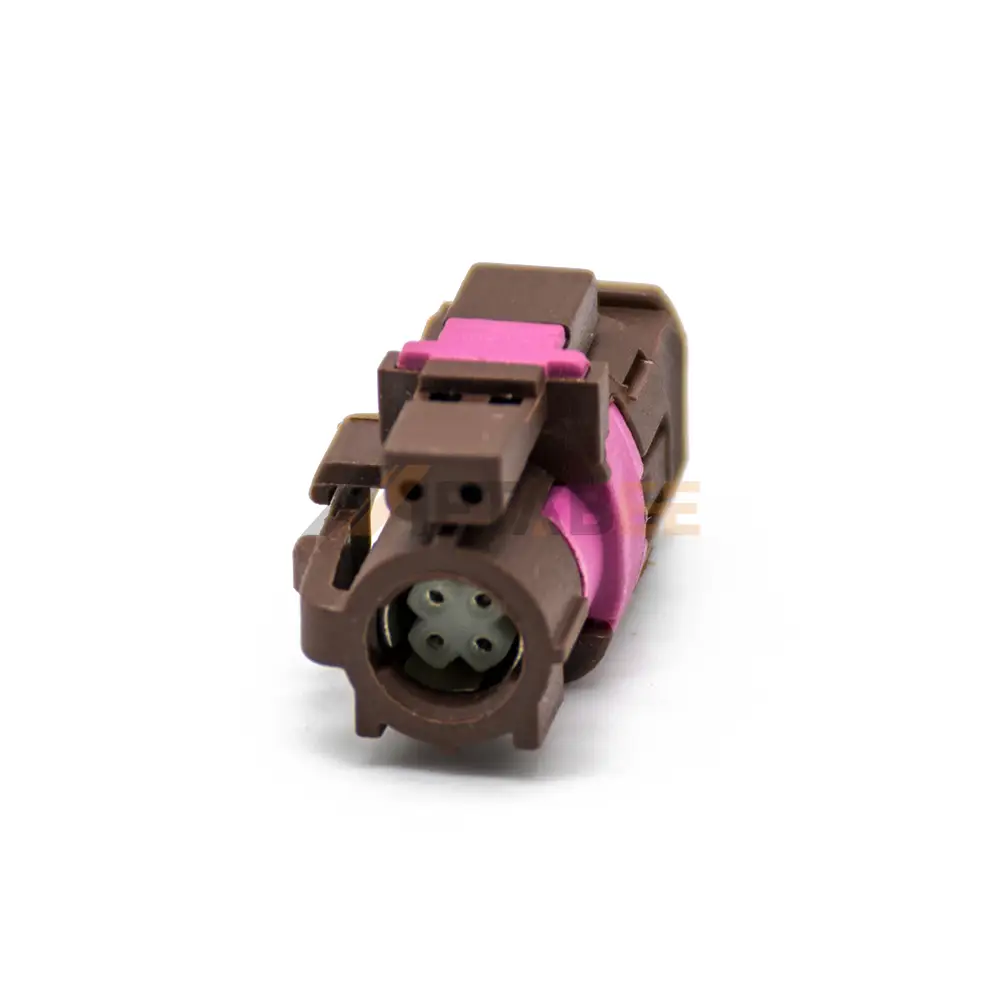

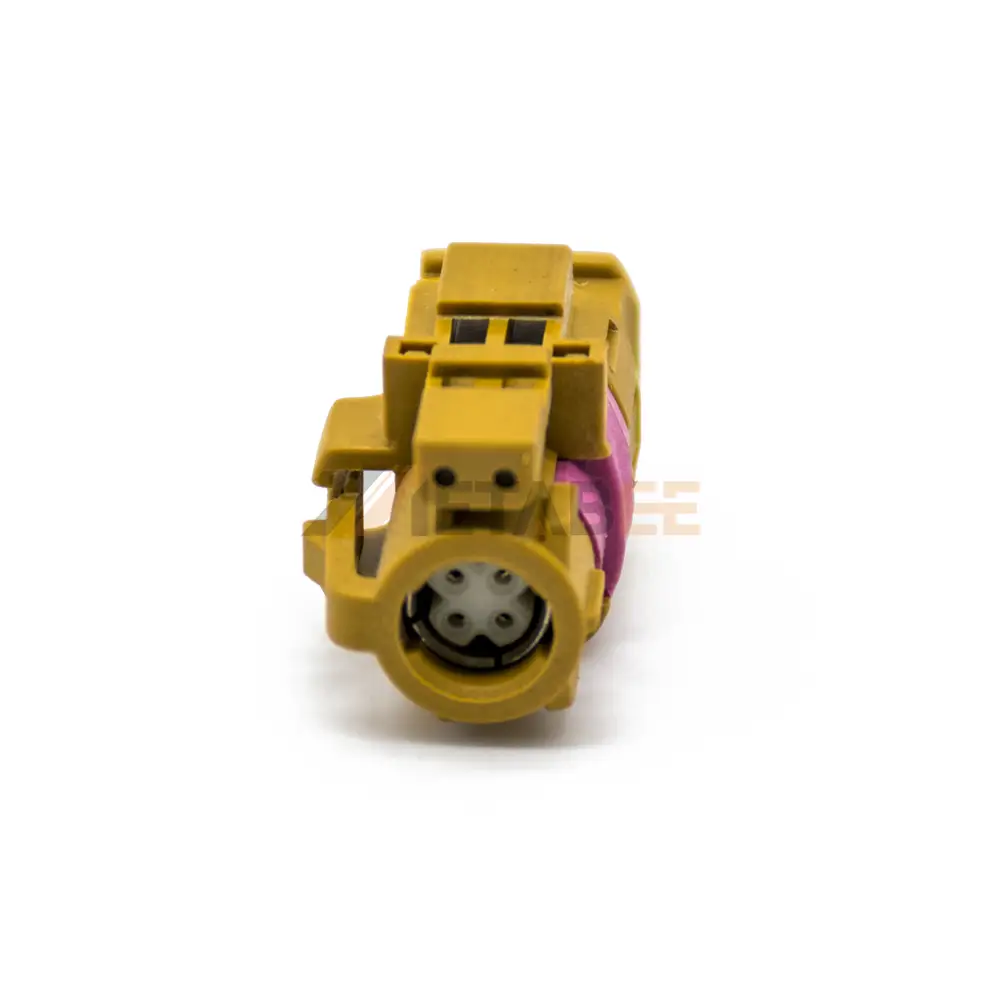

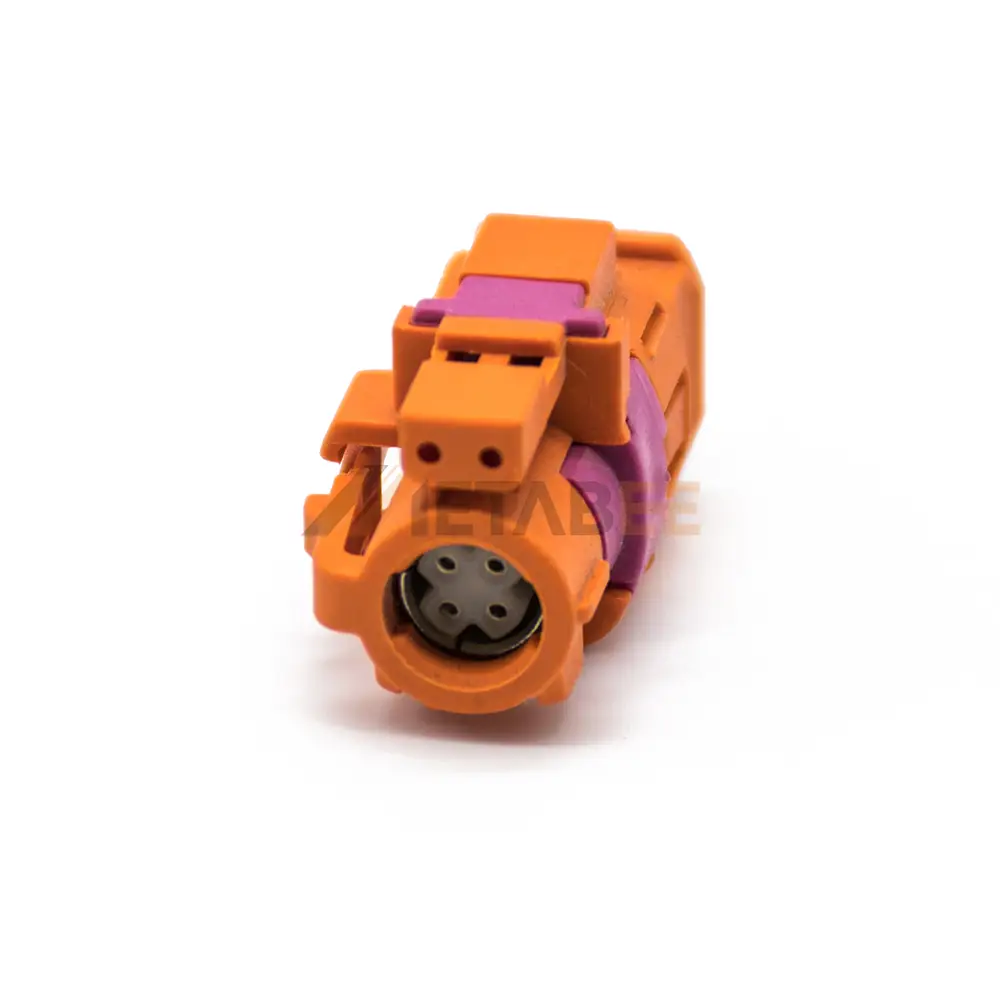

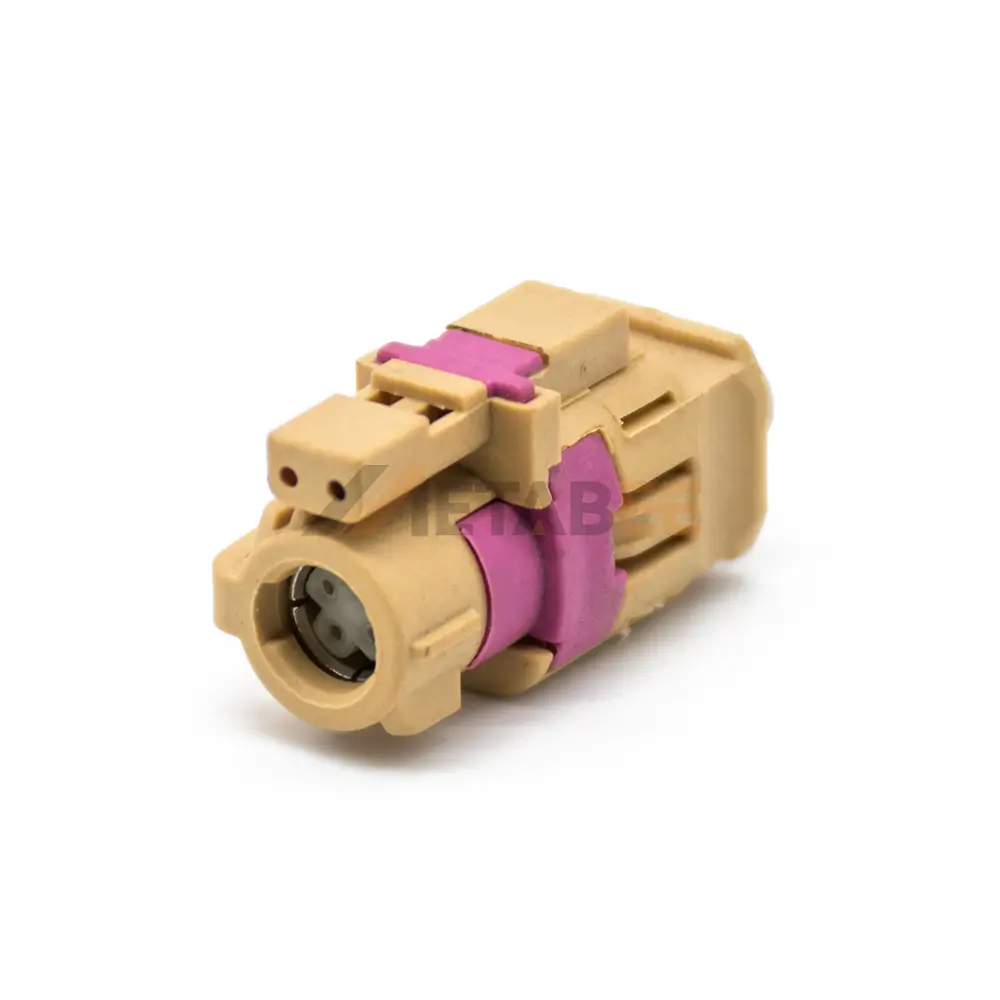

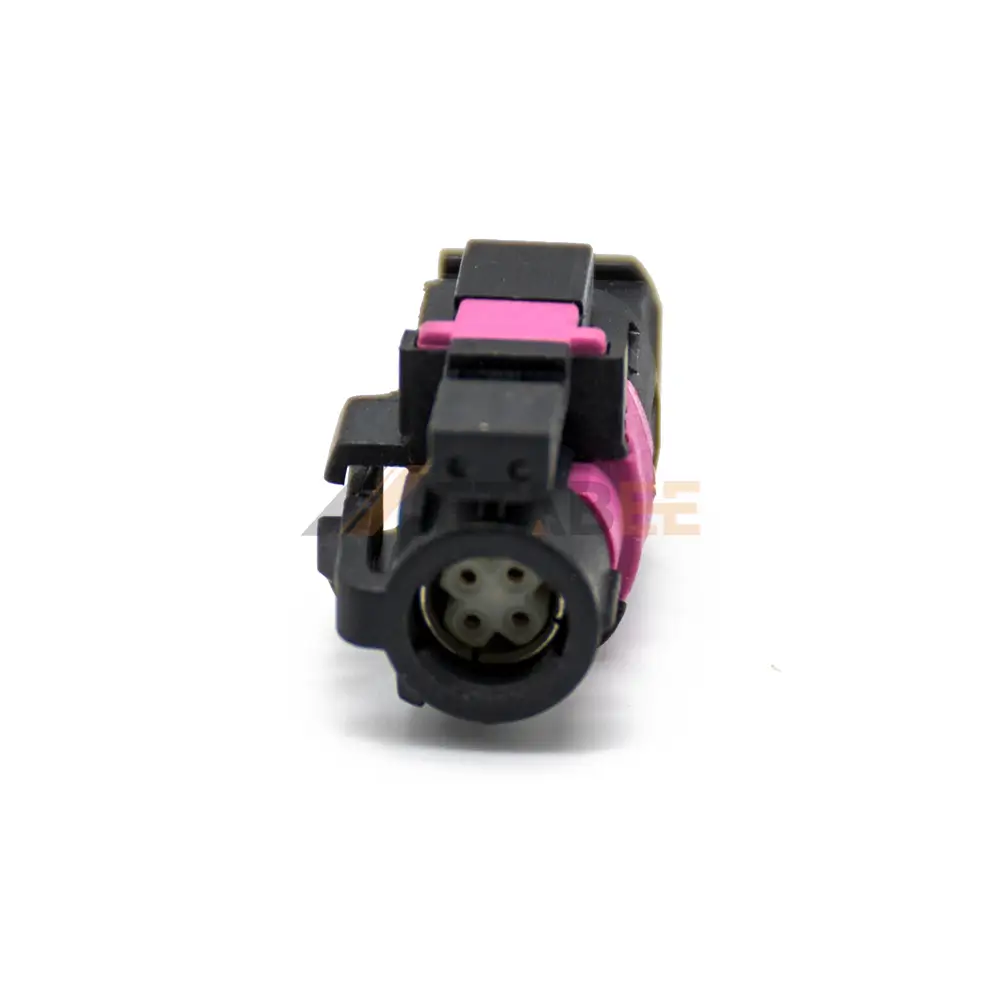

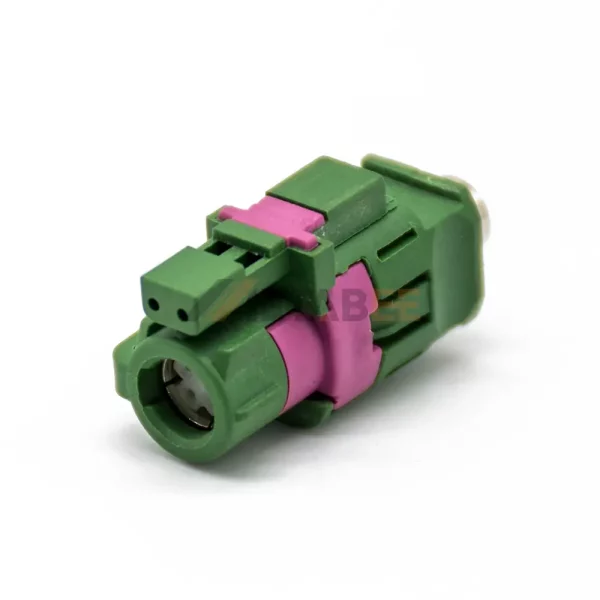

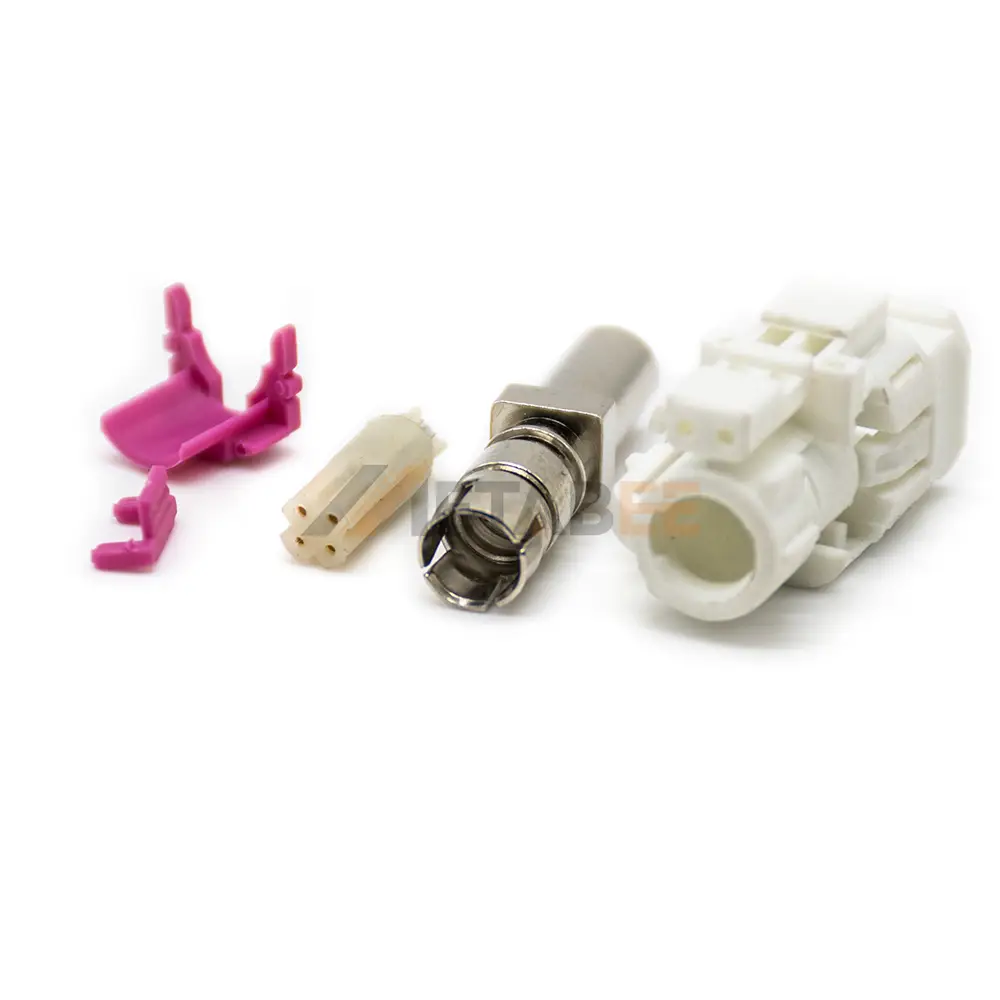

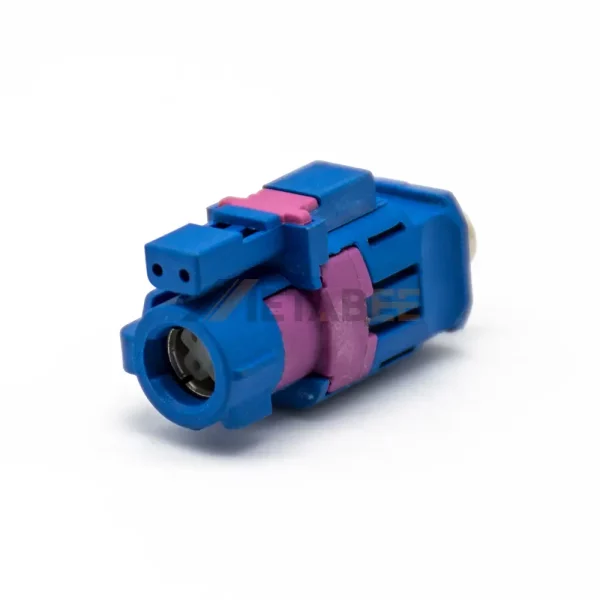

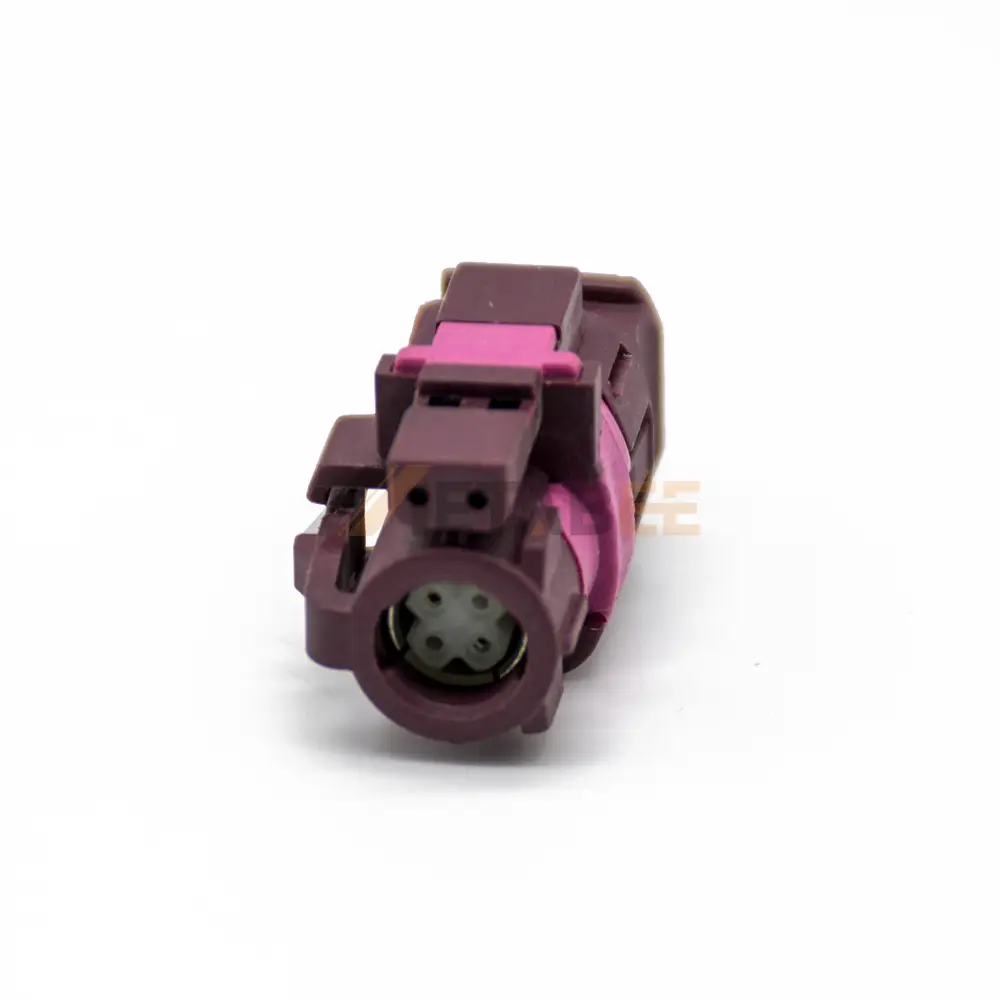

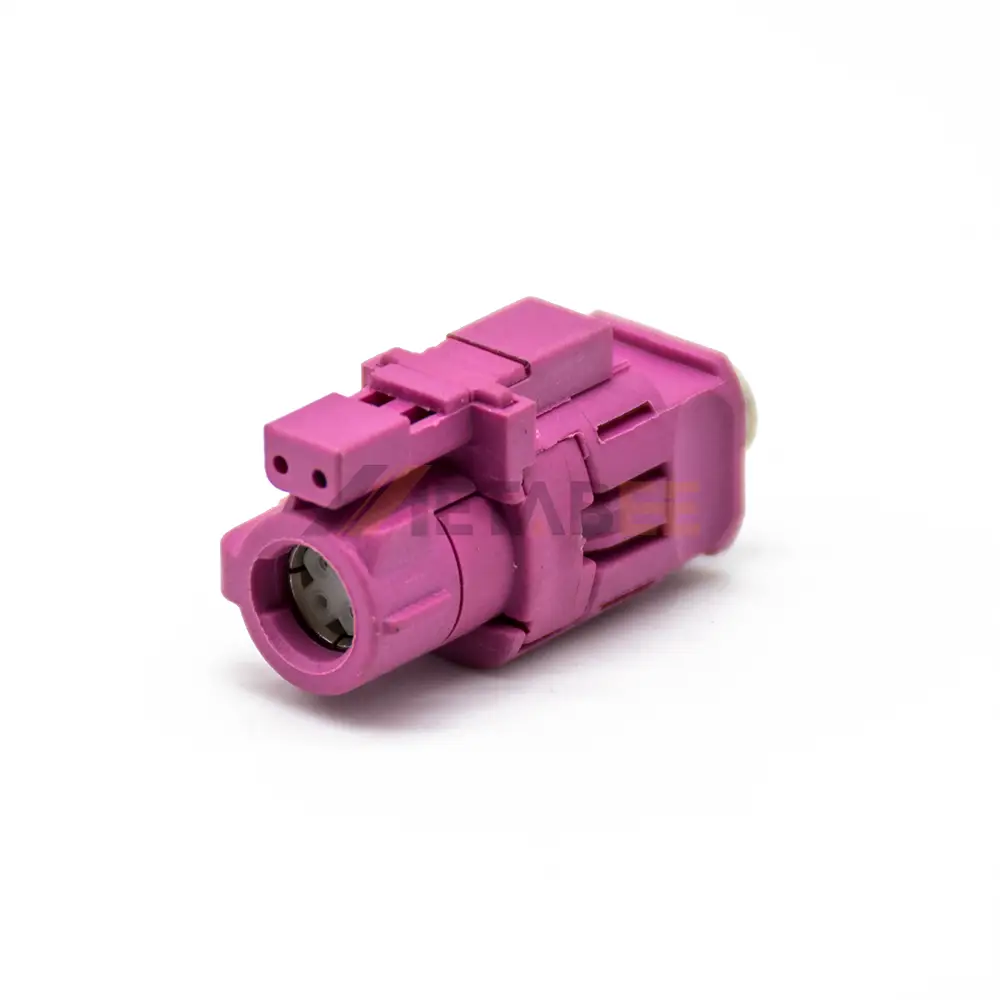

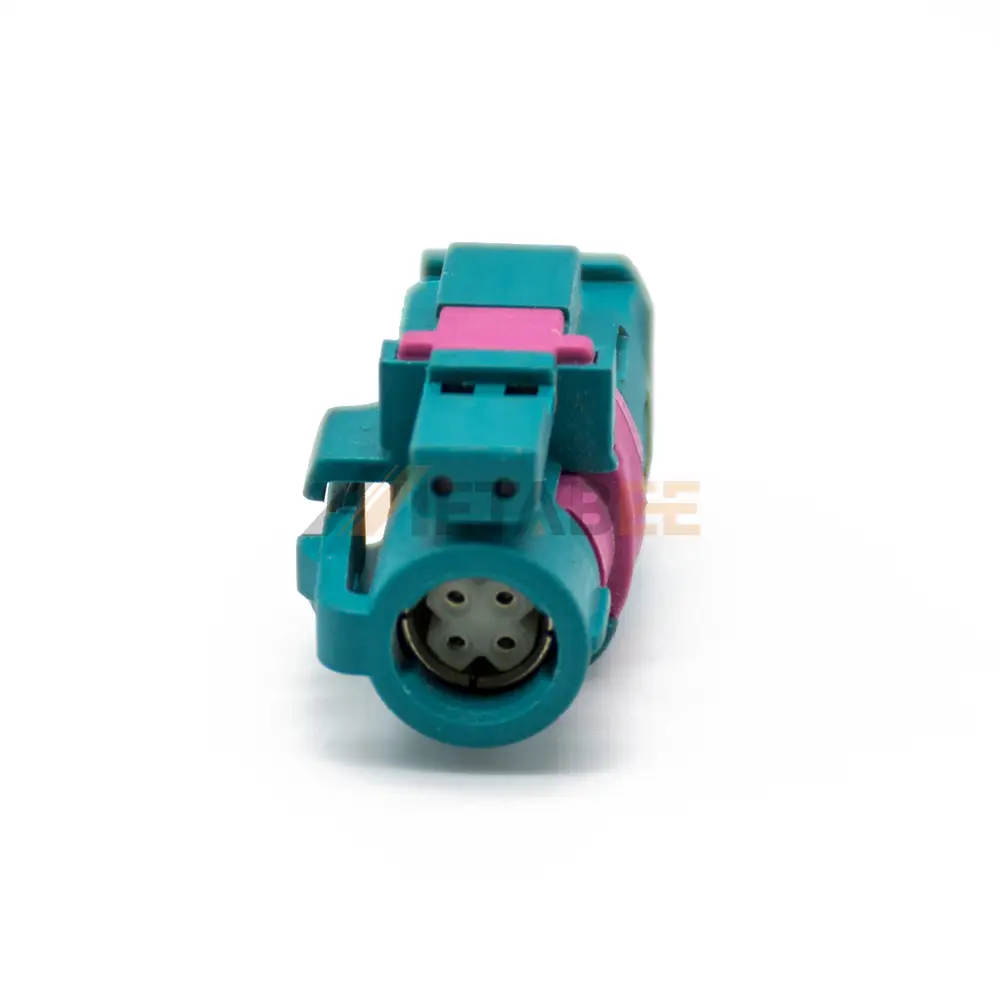

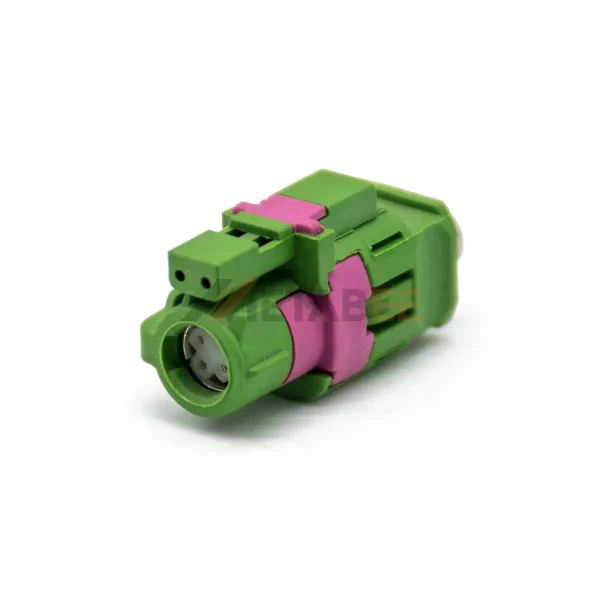

Fakra HSD 4+2 Pin Jack Connector for Cable, Solder
Introduction
The Fakra HSD connector is an advanced, high-speed data (HSD) connector designed for reliable performance in automotive and other demanding applications. This straight jack connector is specifically built for cable mounting with a solder termination method, ensuring a secure and stable connection. It features a robust design with a PA plastic housing and a nickel-plated zinc alloy outer conductor, providing excellent durability and resistance to environmental factors. The inner conductor is made of gold-plated copper alloy, which guarantees low contact resistance and superior signal integrity. With a 4+2 pin configuration, it offers versatile connectivity options for various data transmission needs.
The connector is engineered for optimal electrical performance, boasting a characteristic impedance of 100 ohms and a wide frequency range from DC to 2 GHz. This makes it ideal for high-bandwidth applications, including infotainment systems, cameras, and display links. The connector supports a variety of keying options (A, B, C, D, E, F, G, H, I, K, L, M, O, Z), allowing for error-proof mating and ensuring that the correct connectors are paired every time. Its operational temperature range of -40°C to 105°C ensures reliable functionality in extreme conditions, from freezing cold to intense heat.
Key Features:
- Configuration: 4+2 Pin Straight Jack
- Termination: Solder for secure cable mounting
- Impedance: 100 ohms for high-speed data
- Frequency Range: DC – 2 GHz
- Materials: PA housing, nickel-plated zinc alloy outer, gold-plated copper alloy inner conductor
- Keying Options: Supports multiple keying codes (A, B, C, D, E, F, G, H, I, K, L, M, O, Z)
- Temperature Range: -40°C to 105°C for extreme environments
Main Specifications:
General Information:
| Part No.: | 102-11-10 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Jack | |
| Orientation: | Straight | |
| Connector Coding: | A, B, C, D, E, F, G, H, I, K, L, M, O, Z | |
| Number of Contacts: | 1 Port | |
| Number of Positions: | 4+2 Pin | |
| Contact Termination: | Solder | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this Fakra HSD 4+2 Pin Jack Connector for Cable:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
