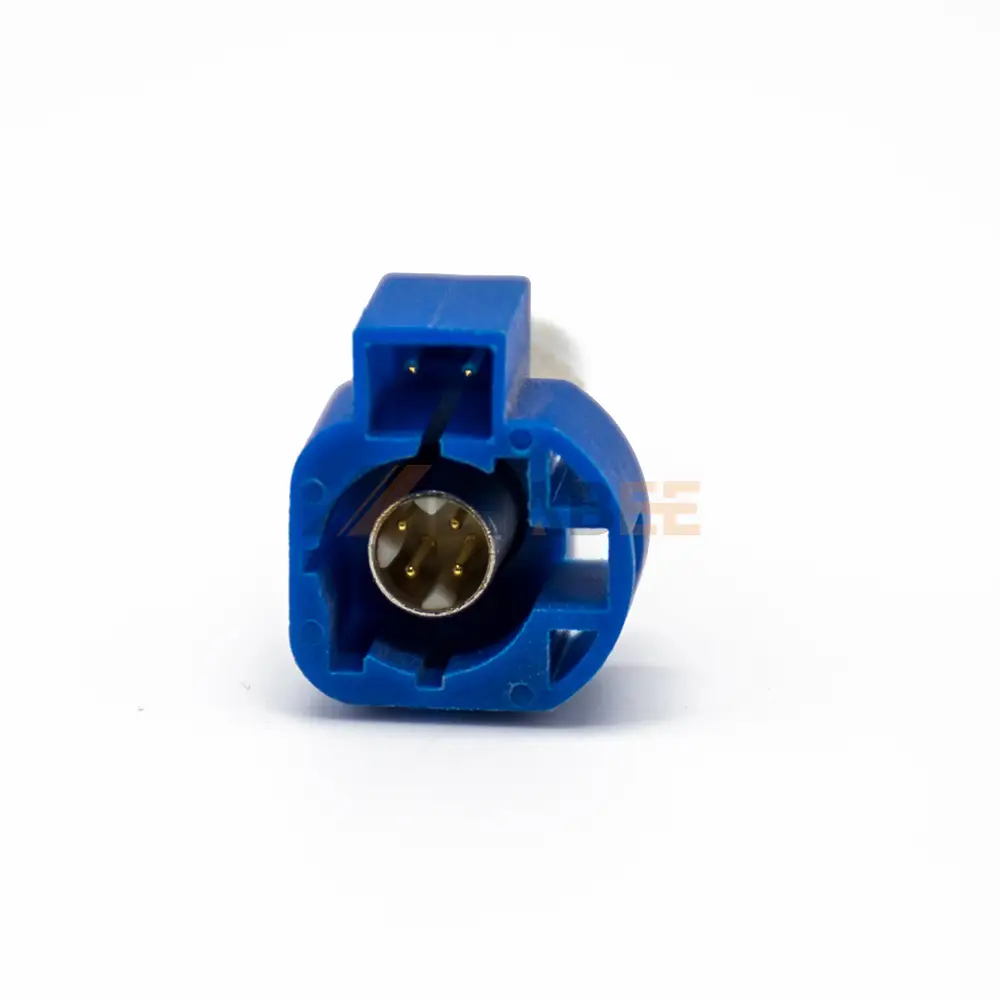

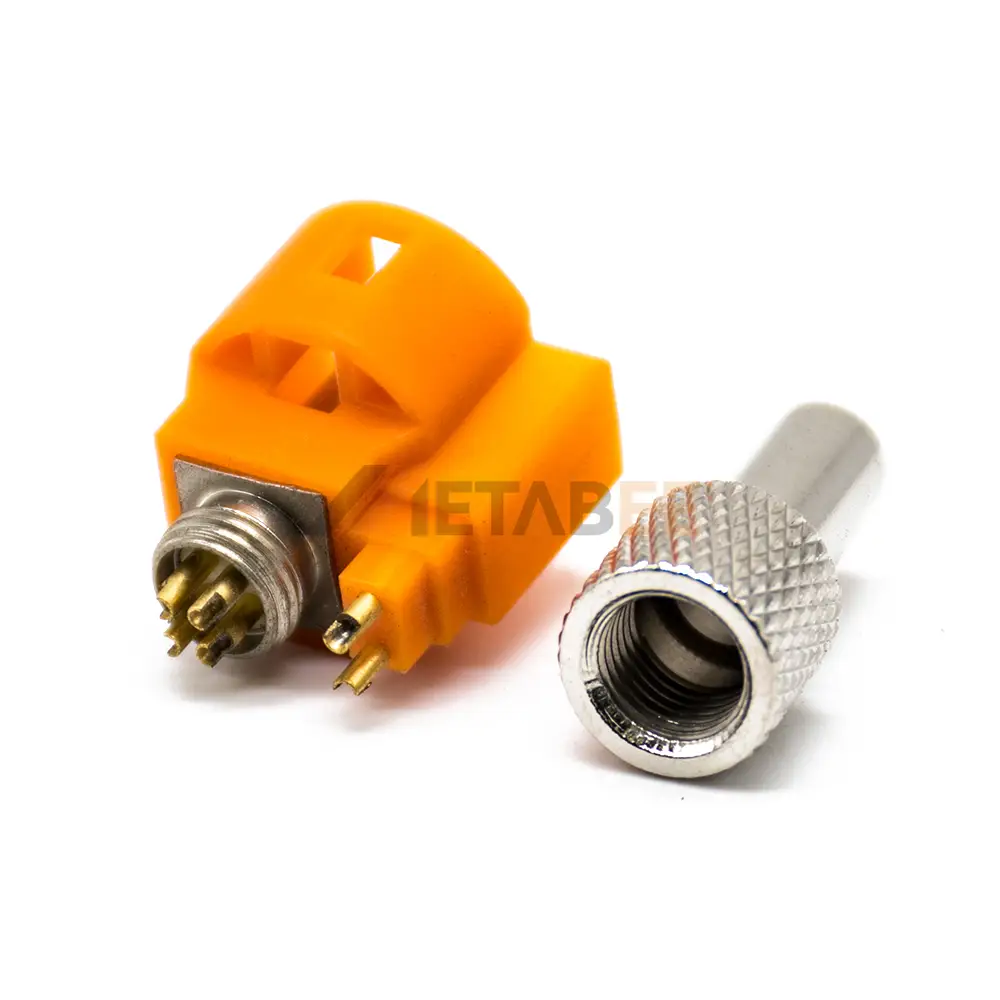

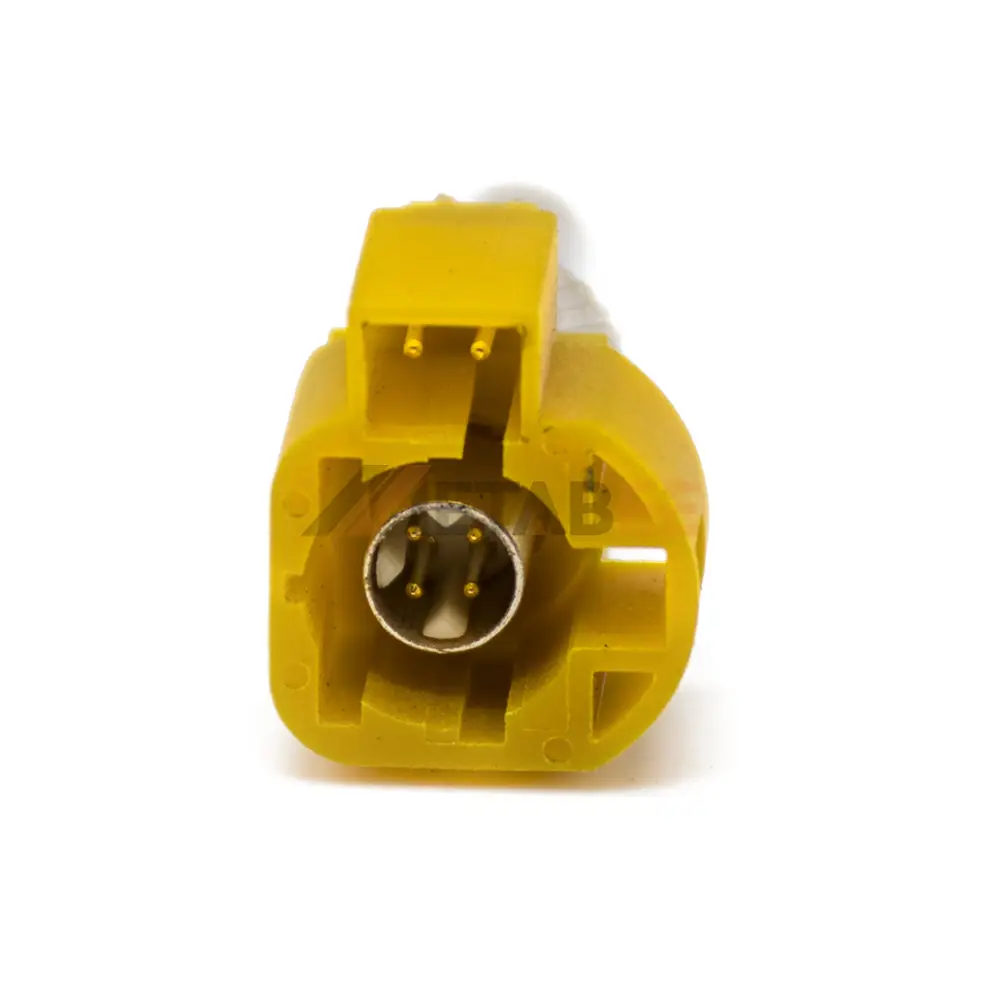

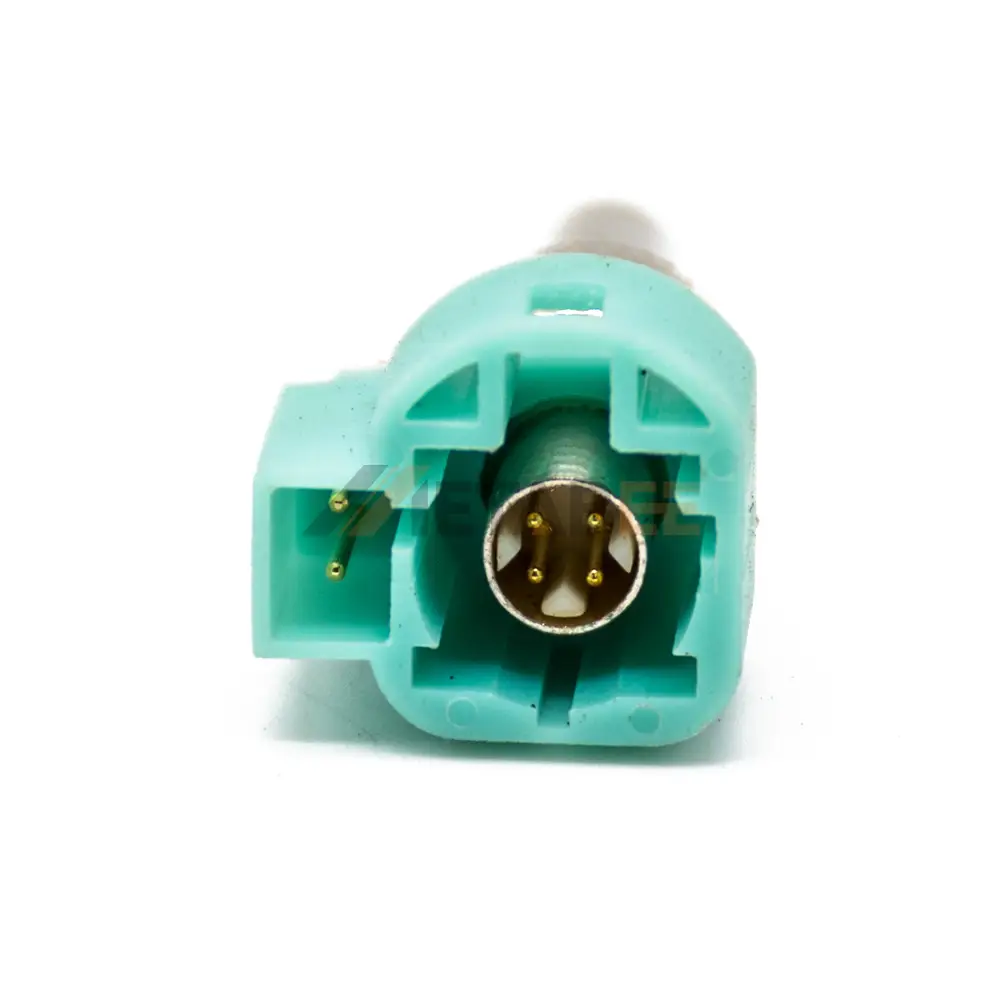

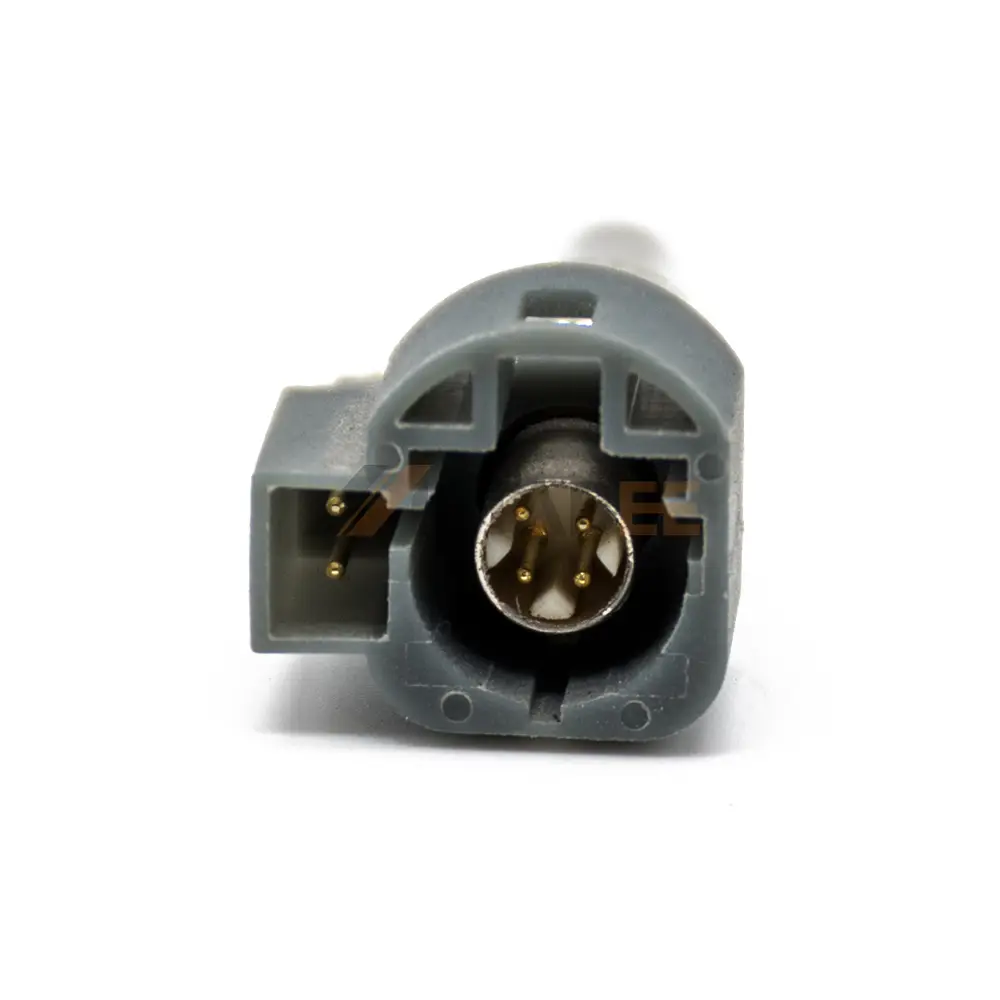

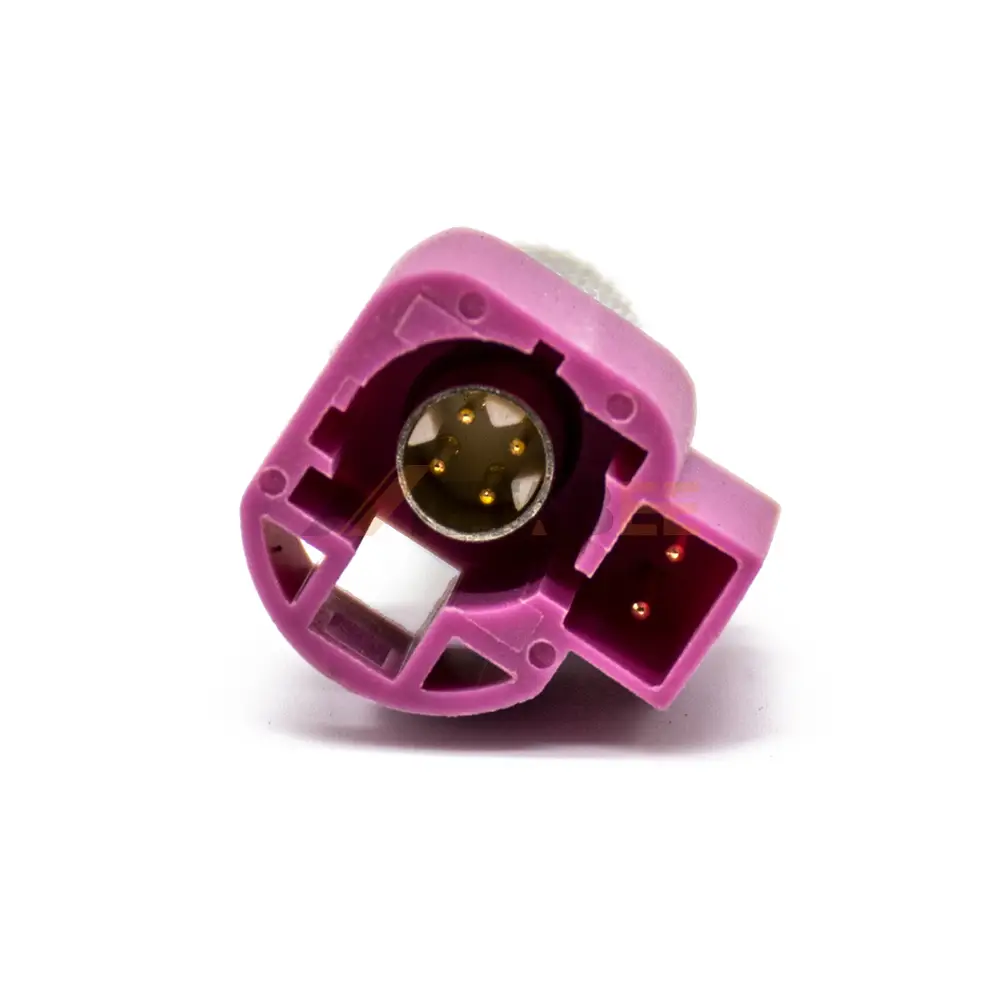

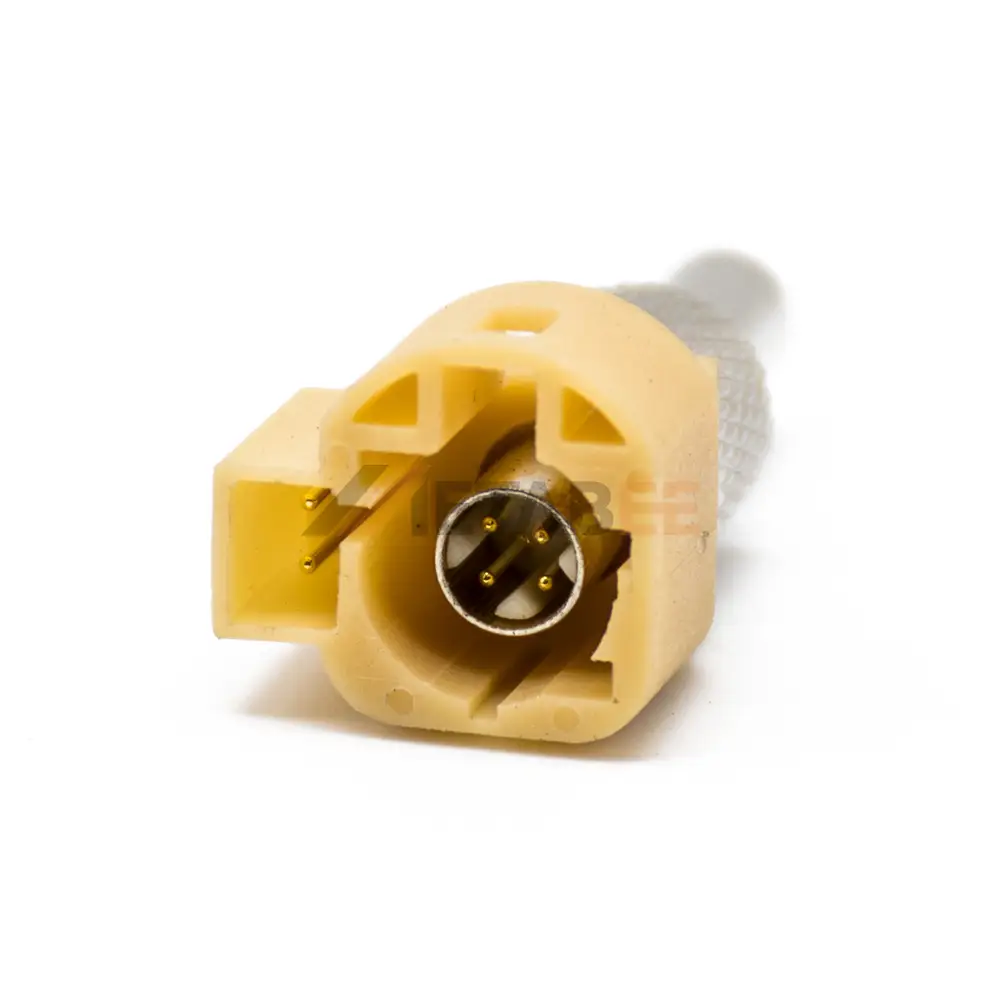

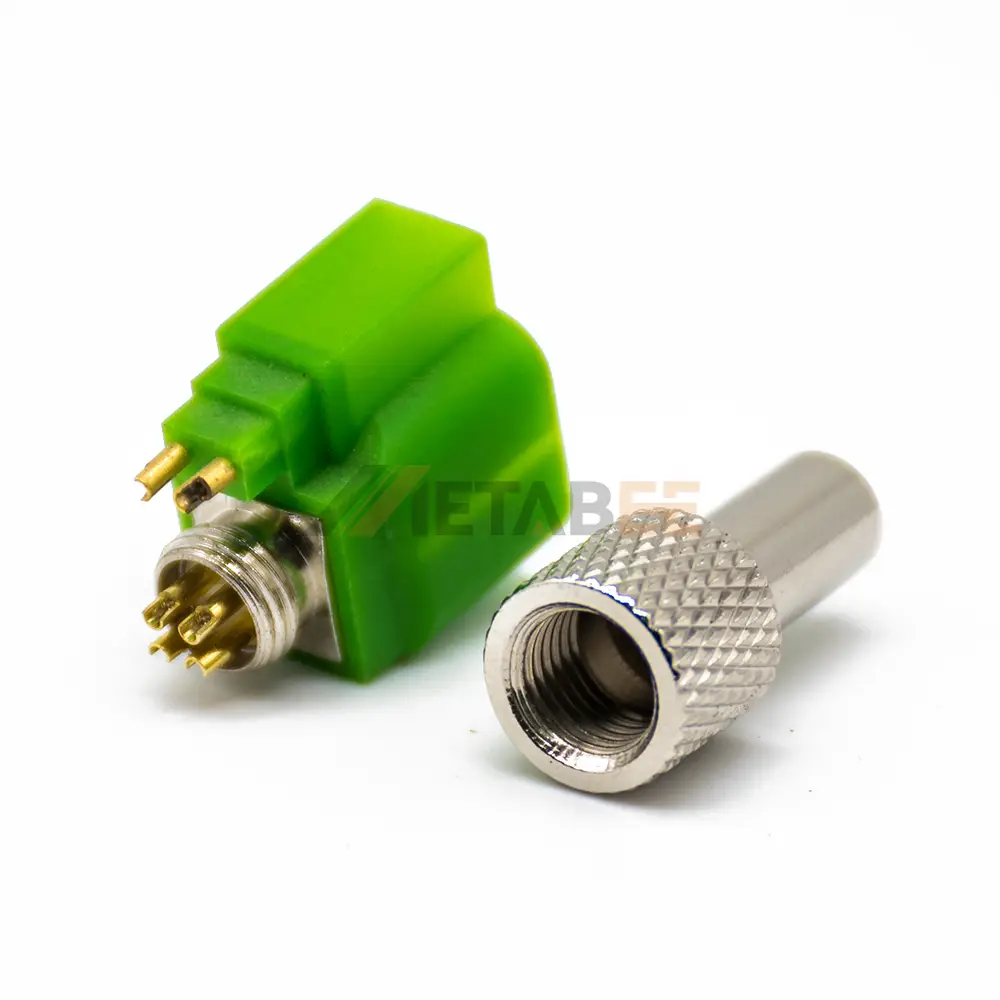

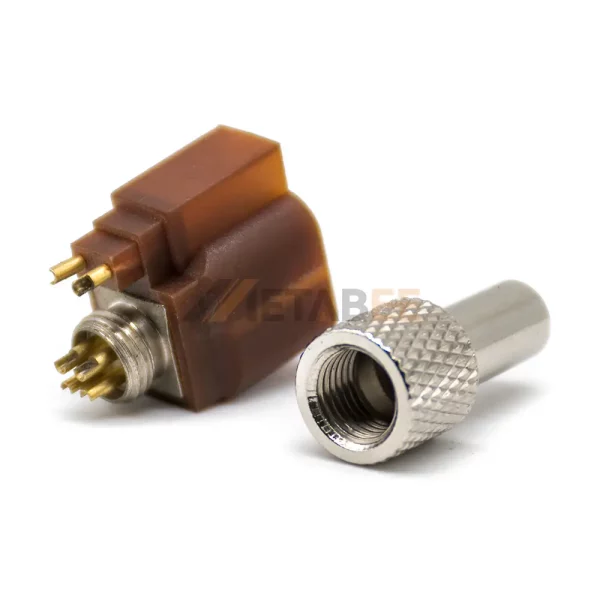

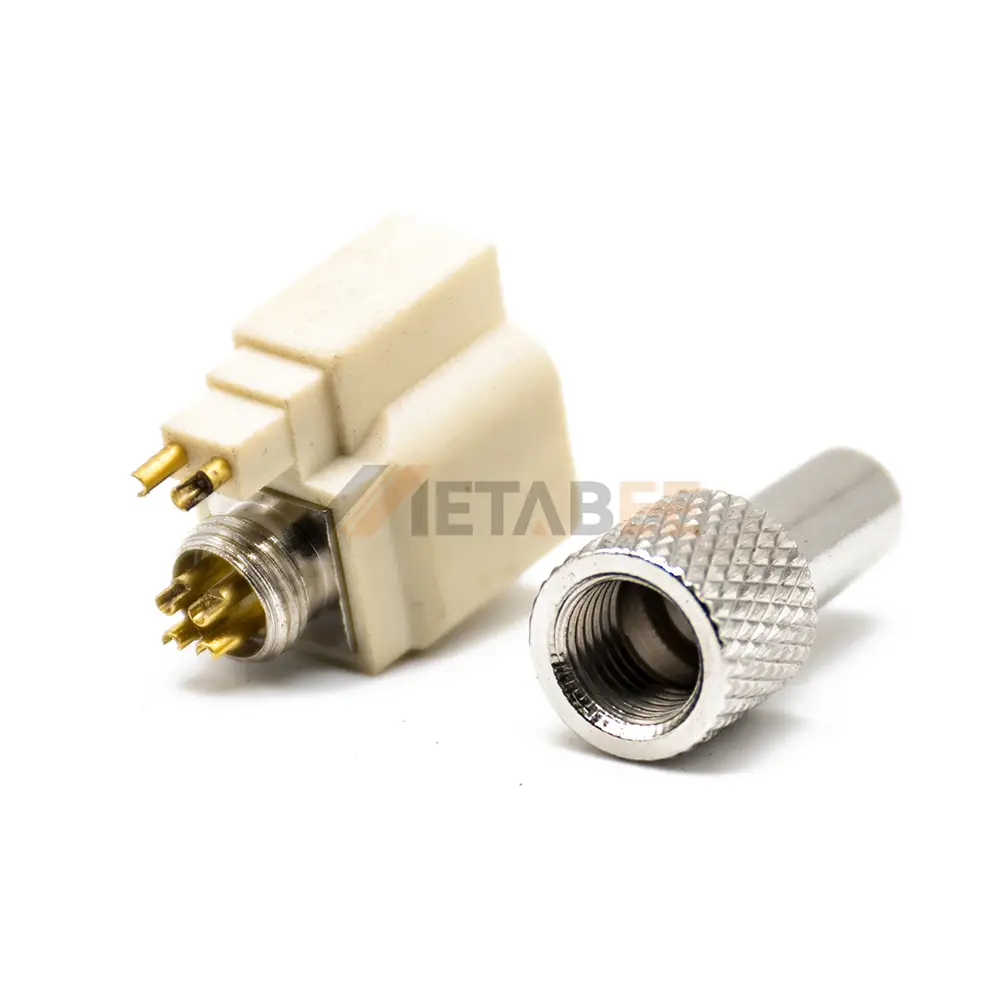

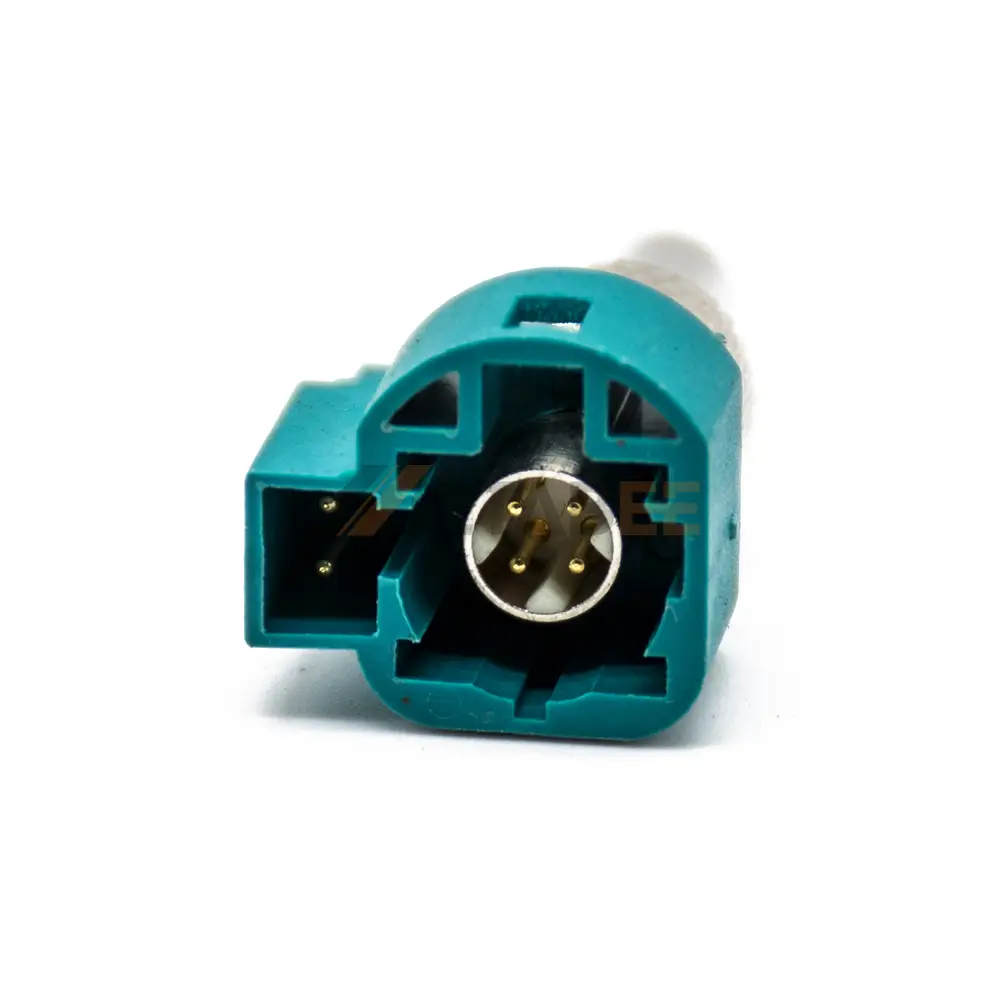

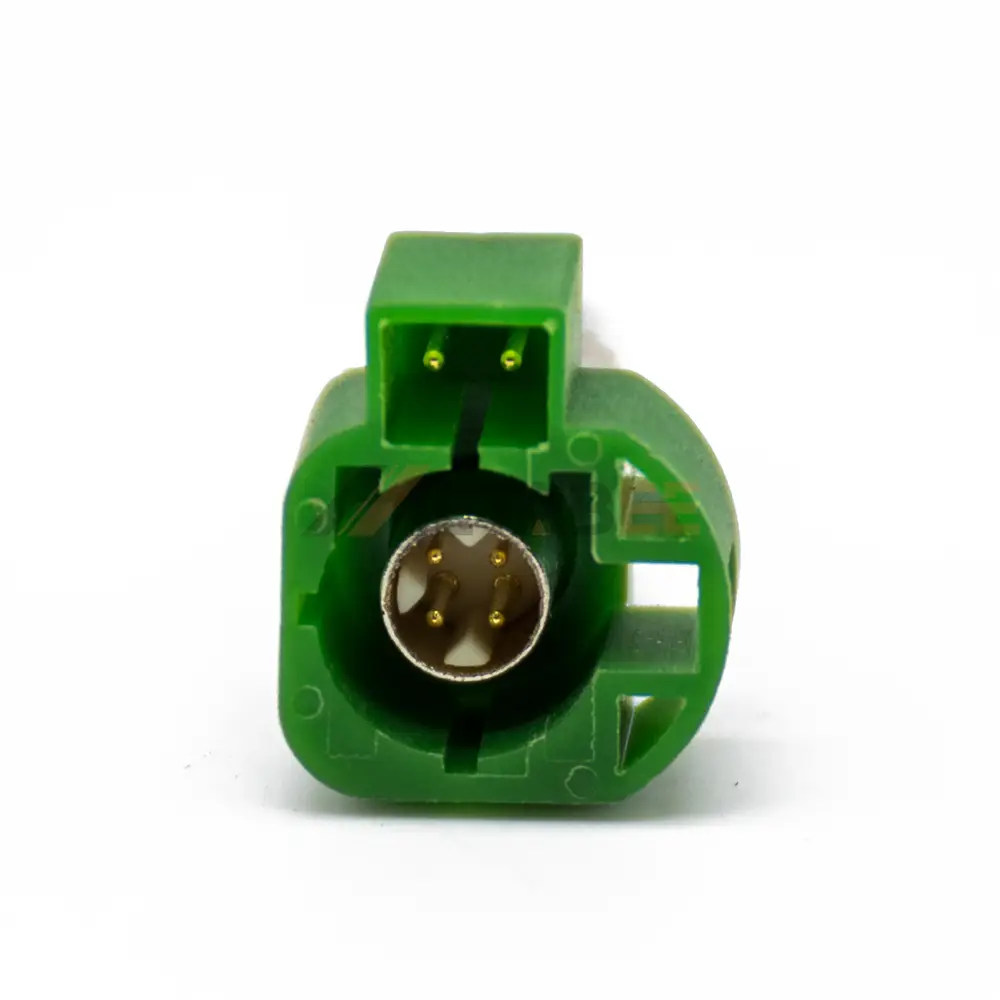

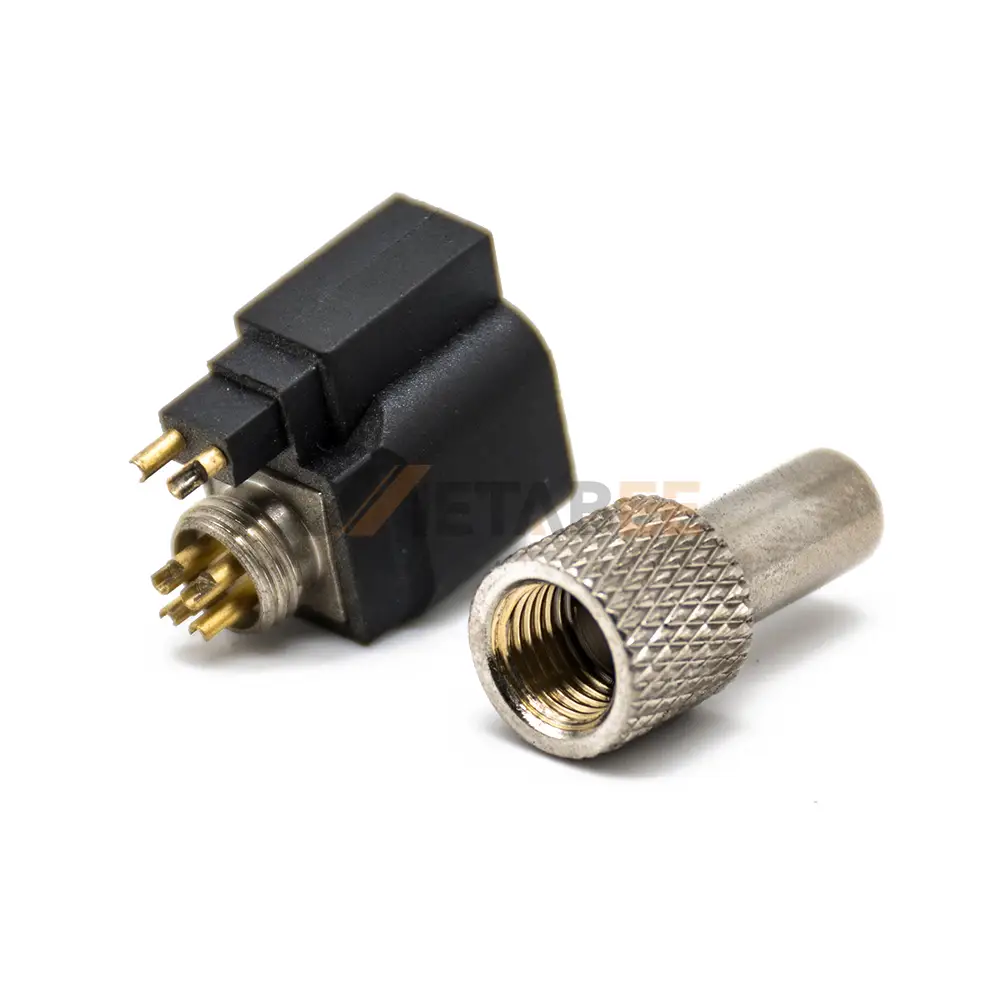

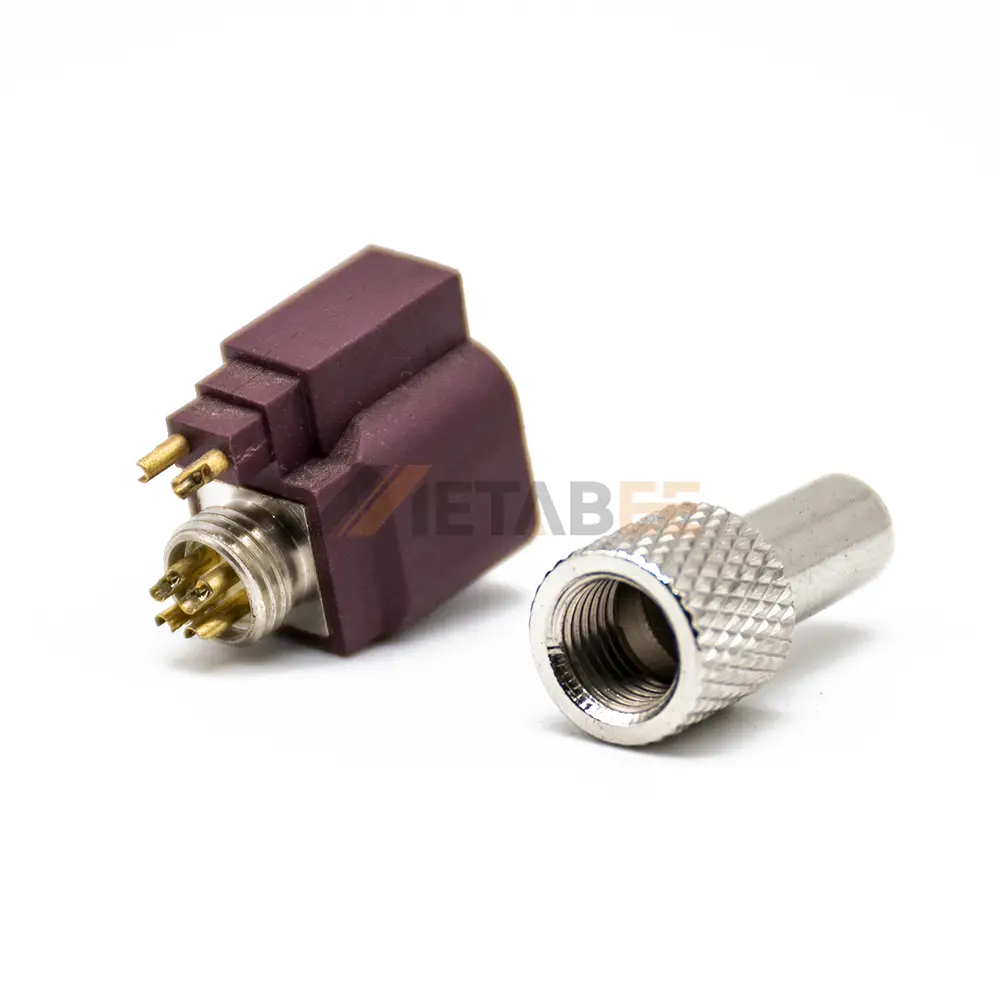

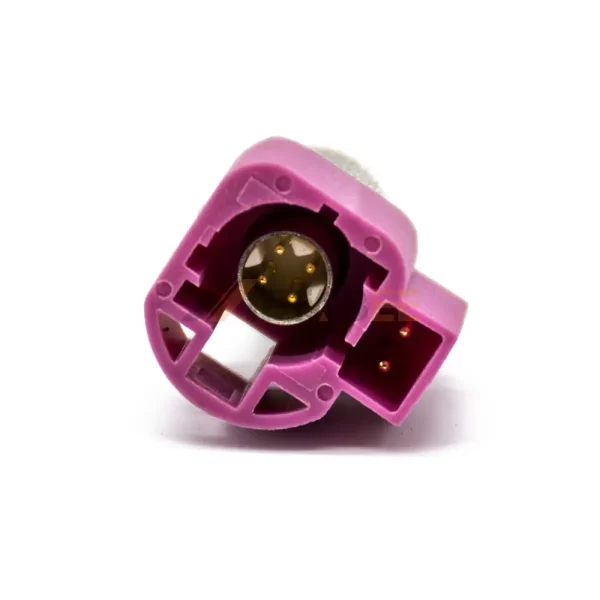

HSD High Speed Data 4+2 Pin Plug Connector for Cable, Solder
Introduction
The HSD high-speed data 4connector is engineered for high-performance data transmission, designed for optimal durability and reliability in demanding applications. This connector is ideal for high-frequency data transmission, supporting a wide frequency range of DC to 2 GHz. It features a straight installation orientation and a robust PA plastic housing, ensuring long-lasting protection in diverse environments. The outer conductor is made of zinc alloy with a nickel plating for enhanced resistance to corrosion, while the inner conductor is crafted from copper alloy with a gold plating, guaranteeing superior conductivity and minimal signal loss.
This connector’s 4+2 pin configuration, combined with its solder termination method, allows for secure and stable connections in critical systems. Operating within a wide temperature range of -40°C to 105°C, it is versatile and reliable in both industrial and commercial settings. The connector also offers excellent contact impedance of 100 ohms, ensuring optimal signal integrity.
Key Features:
- Connector Type: 4+2 Pin Plug, Solder Termination.
- Frequency Range: DC-2 GHz for high-speed data transfer.
- Material: PA plastic housing with zinc alloy outer conductor and copper alloy inner conductor, gold-plated.
- Impedance: 100 ohms for superior signal integrity.
- Temperature Range: -40°C to 105°C for reliable performance in various environments.
- Mounting: Straight installation with secure cable attachment.
- Versatility: 14 key positions (A-Z) for compatibility with different devices and applications.
Main Specifications:
General Information:
| Part No.: | 102-11-10 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Straight | |
| Connector Coding: | A, B, C, D, E, F, G, H, I, K, L, M, O, Z | |
| Number of Contacts: | 1 Port | |
| Number of Positions: | 4+2 Pin | |
| Contact Termination: | Solder | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD High Speed Data 4+2 Pin Plug Connector for Cable:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
