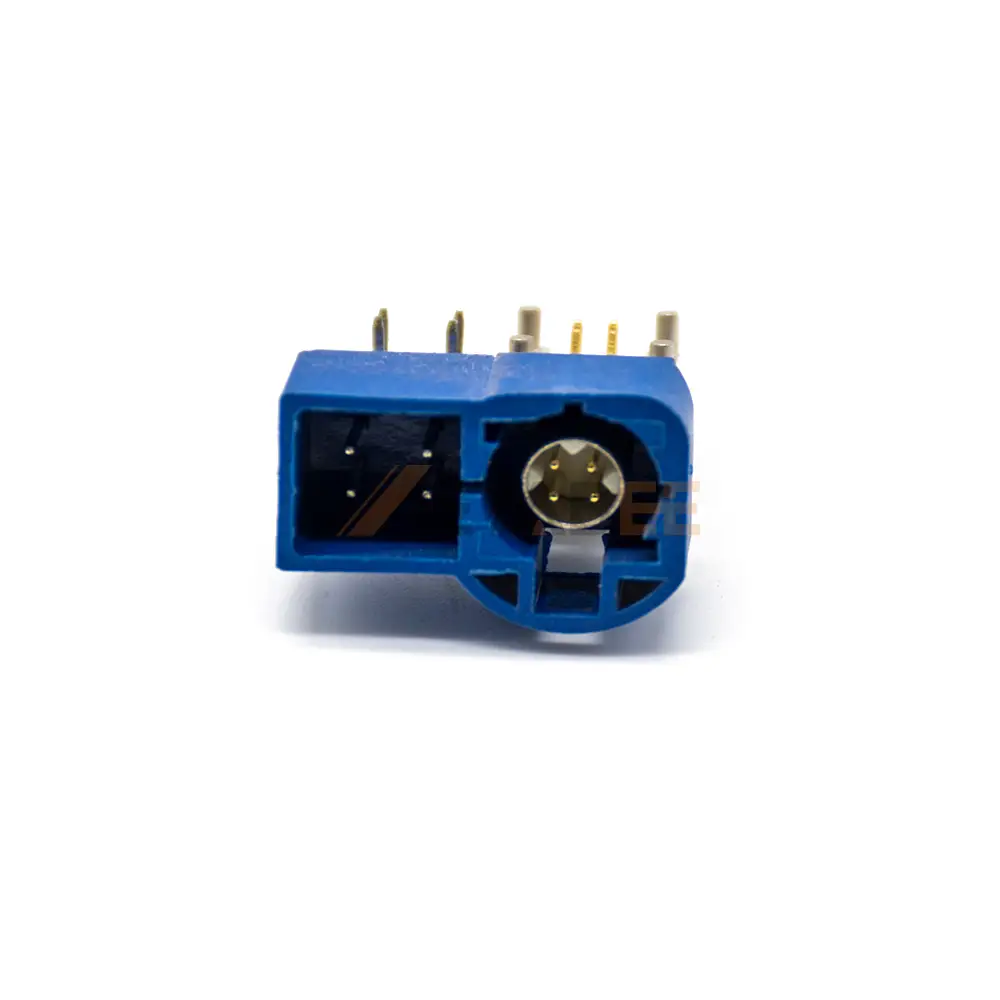

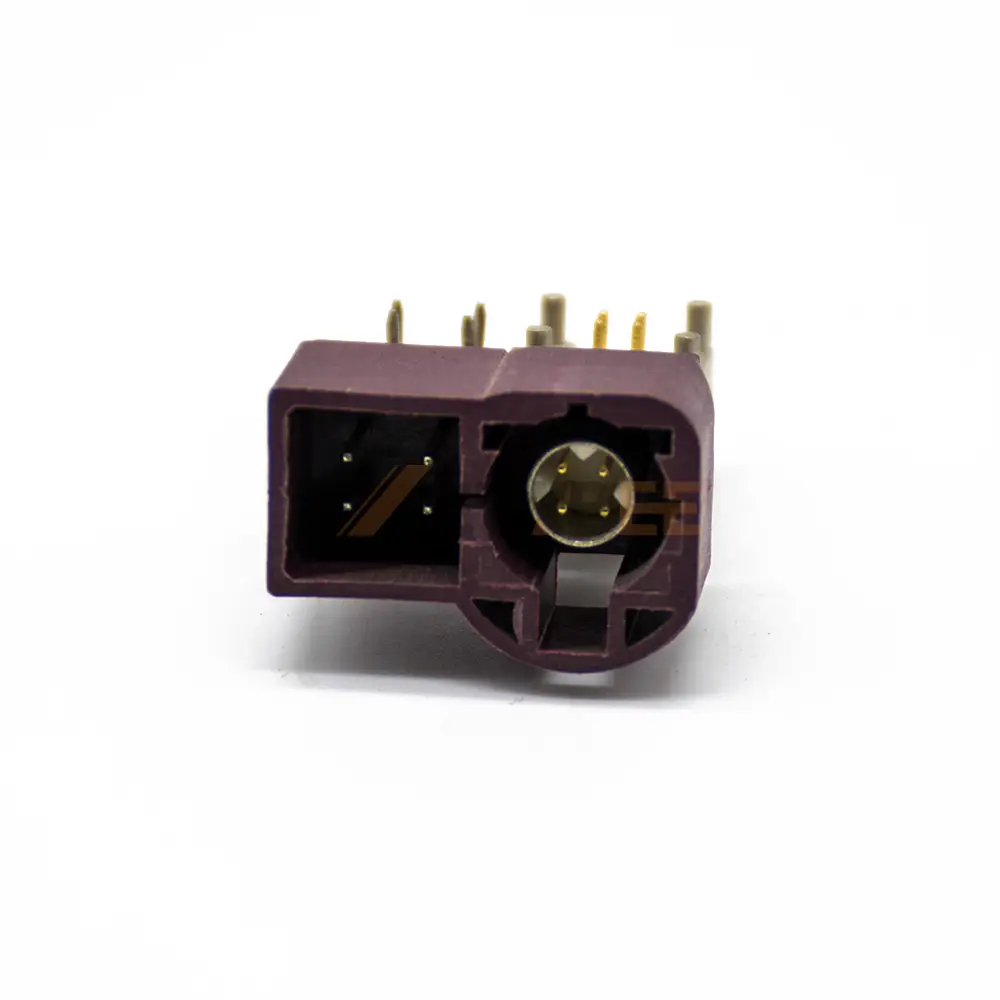

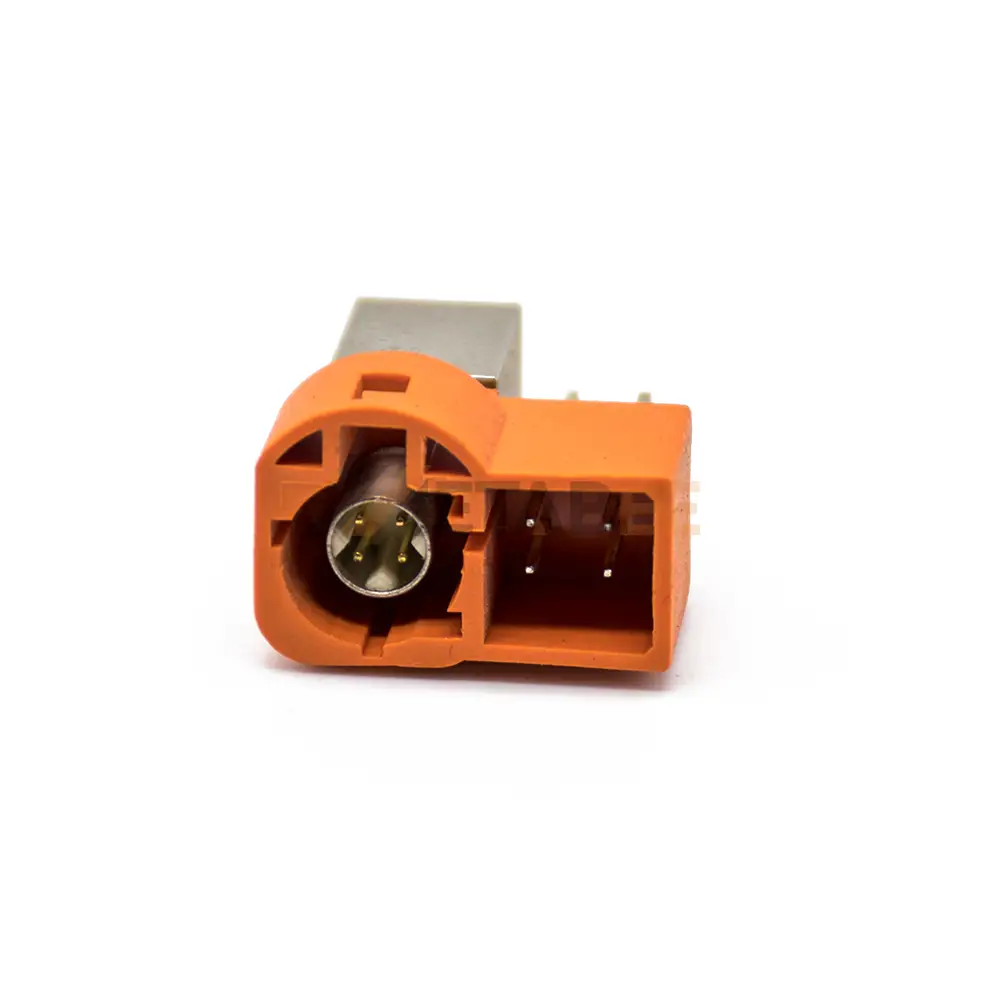

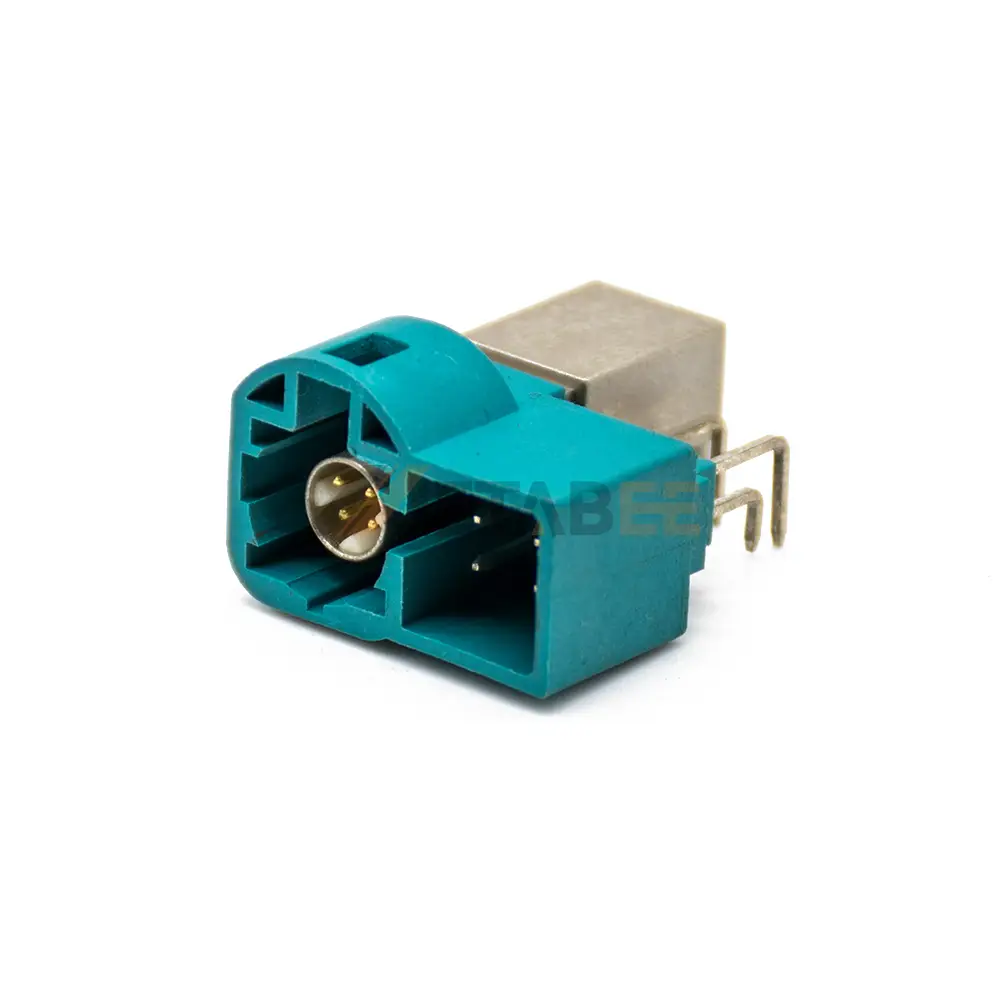

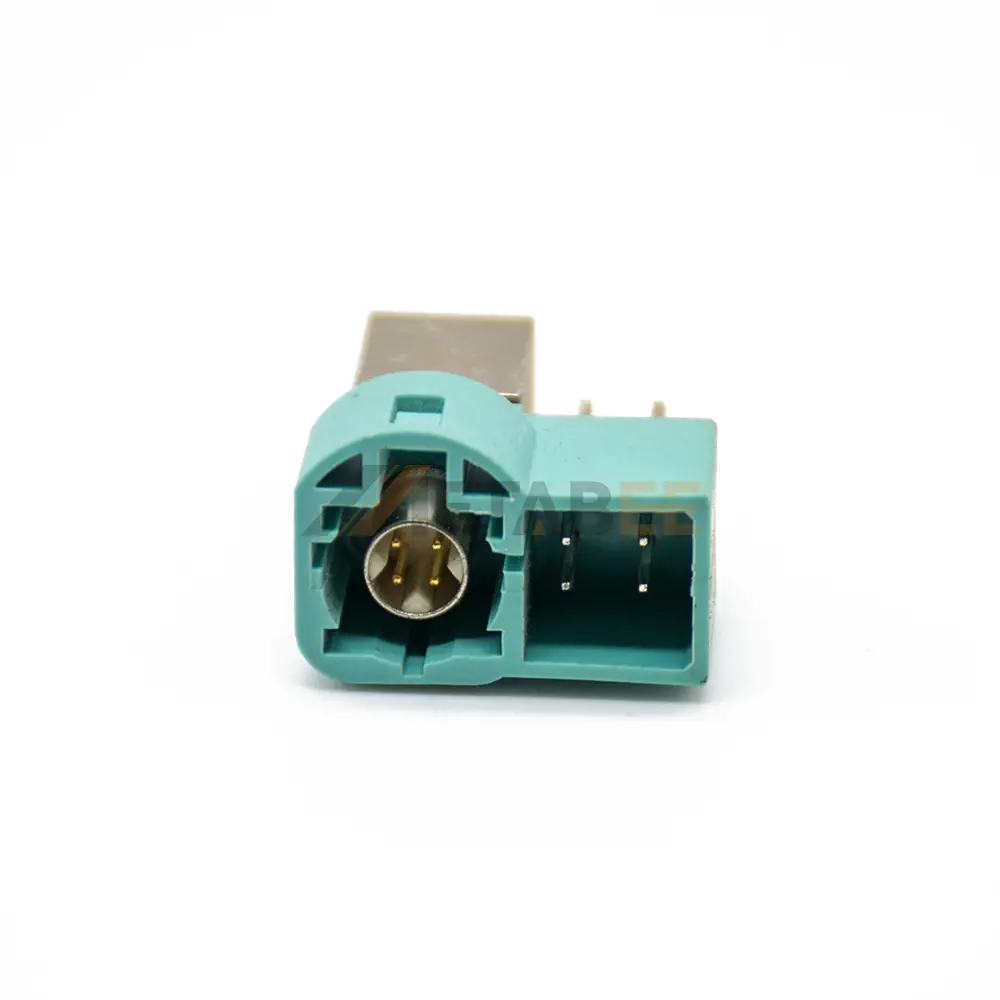

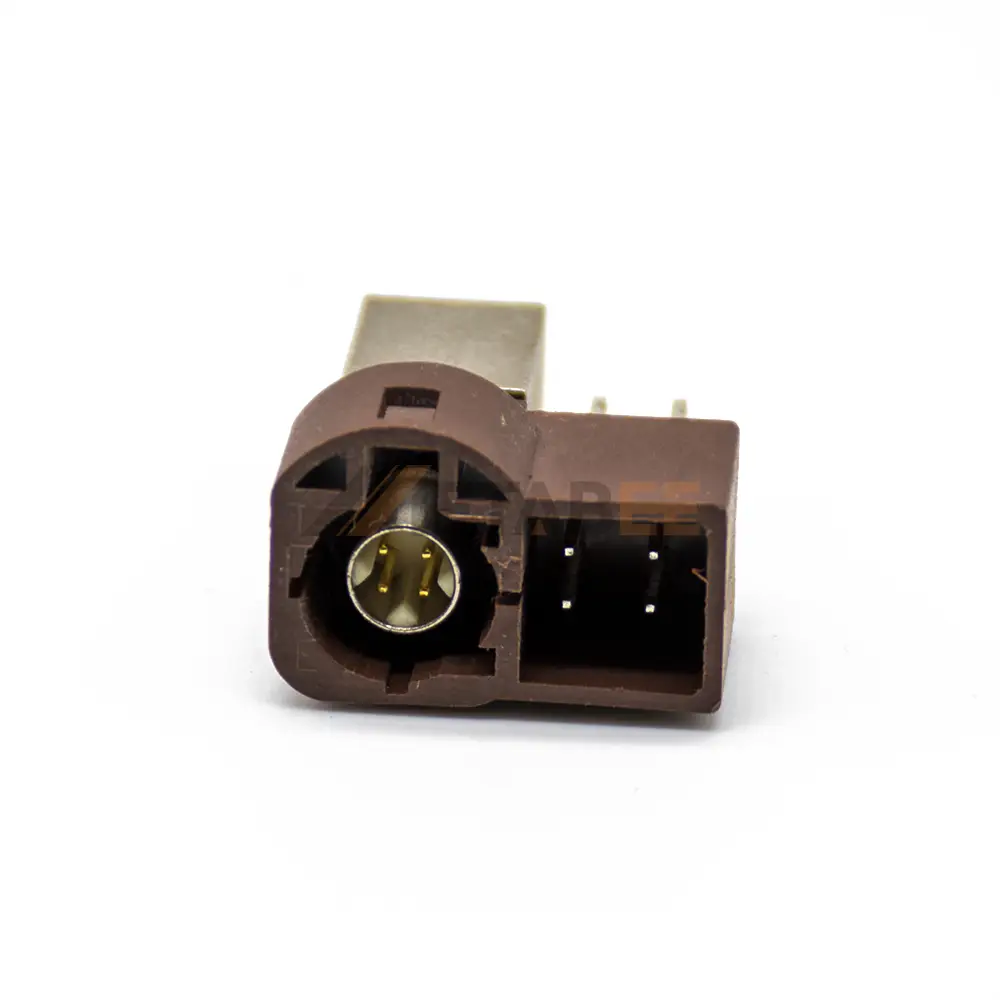

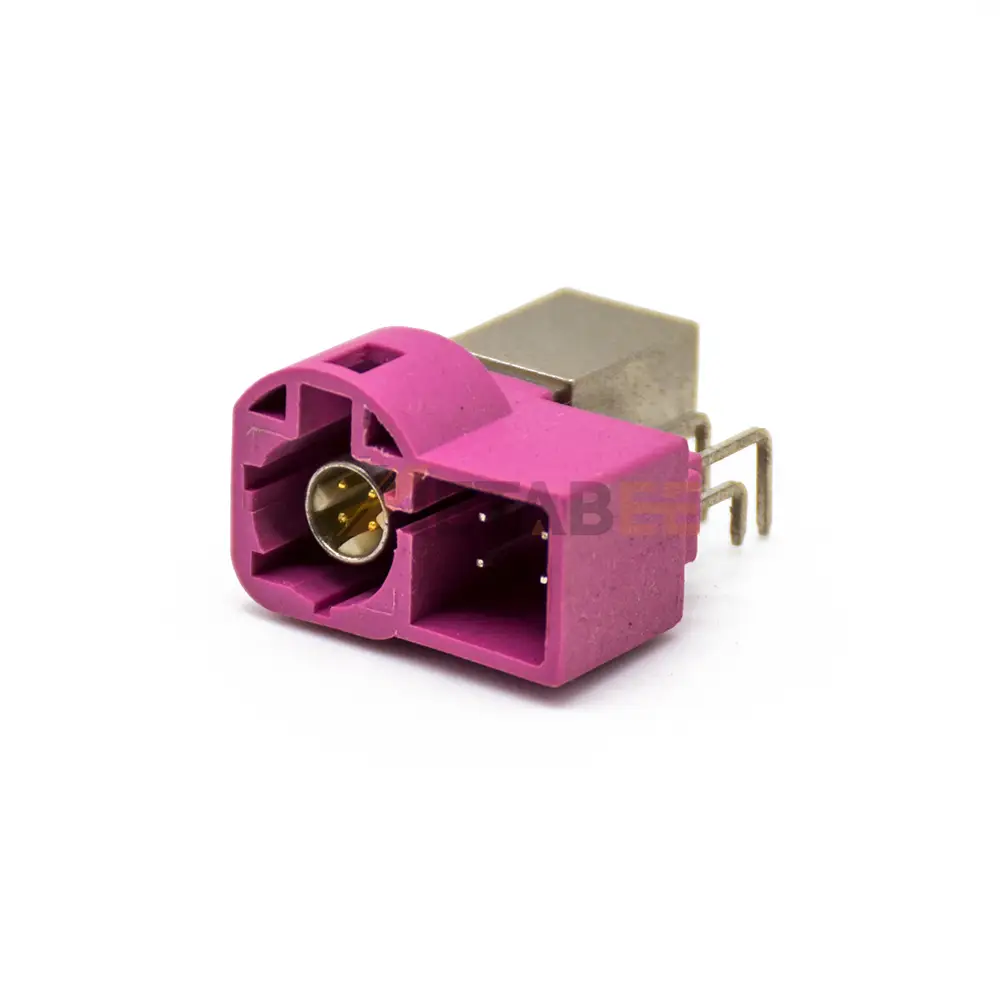

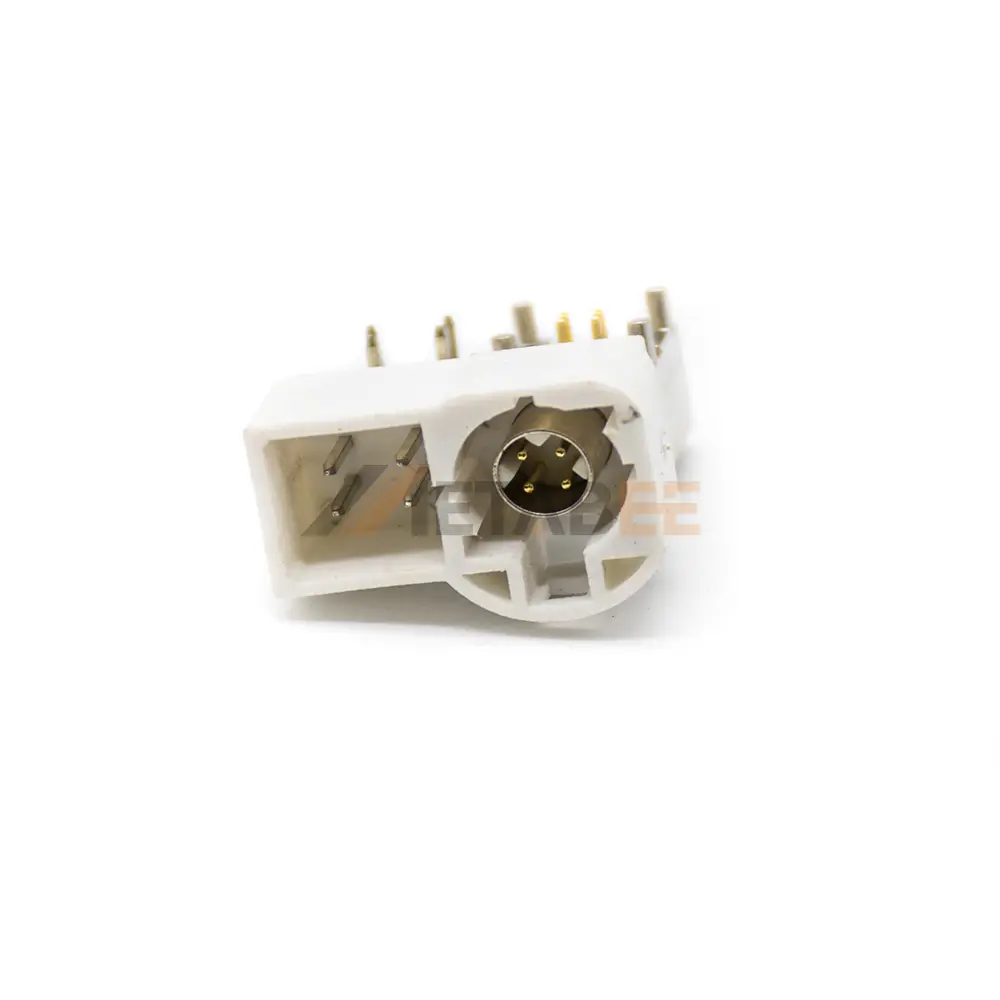

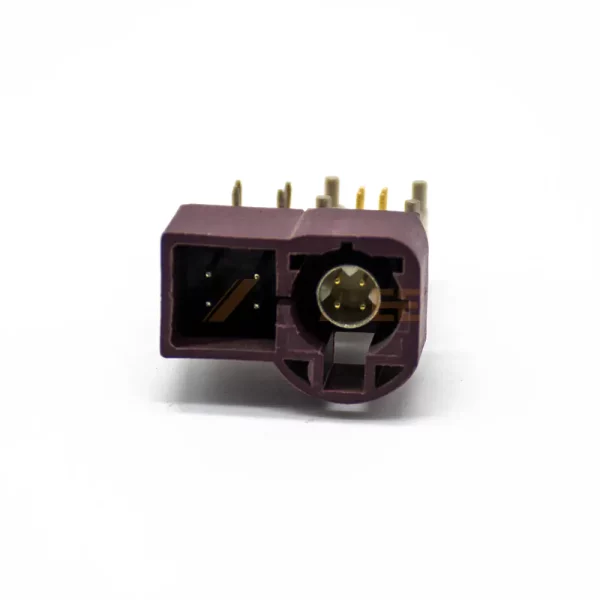

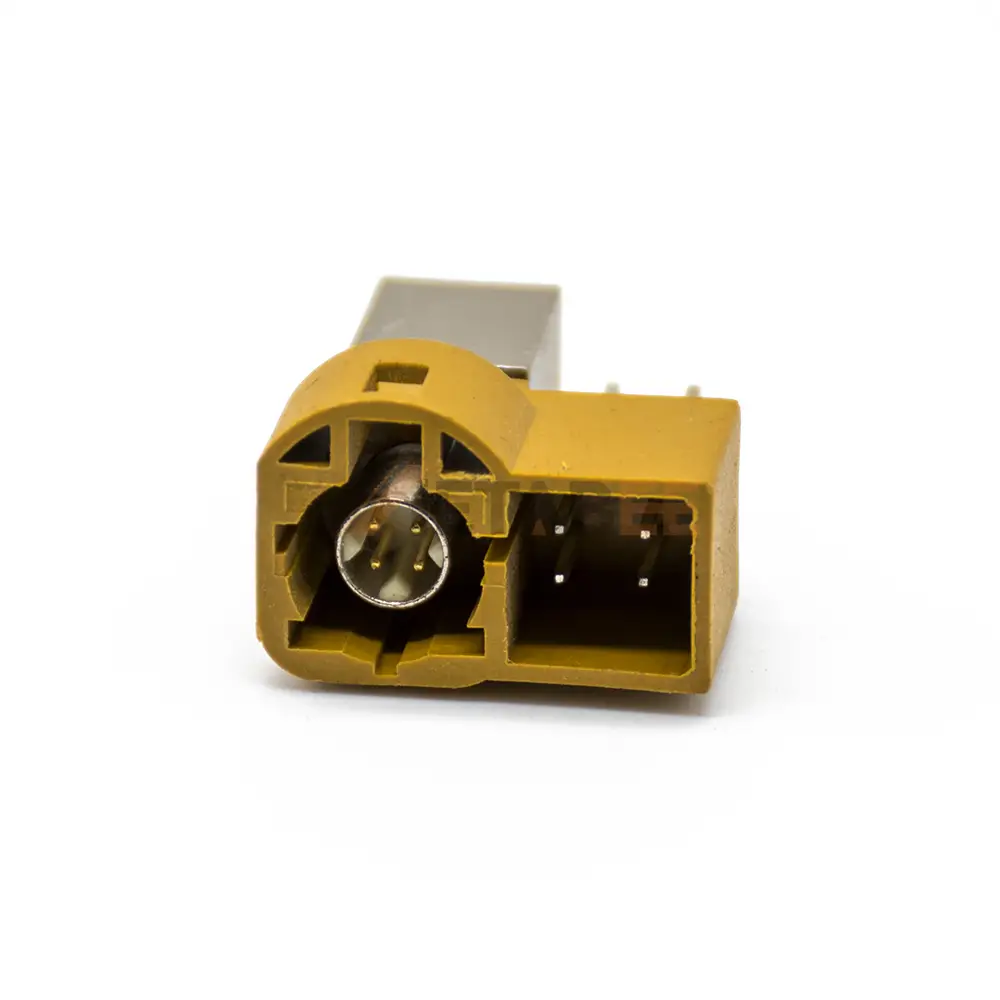

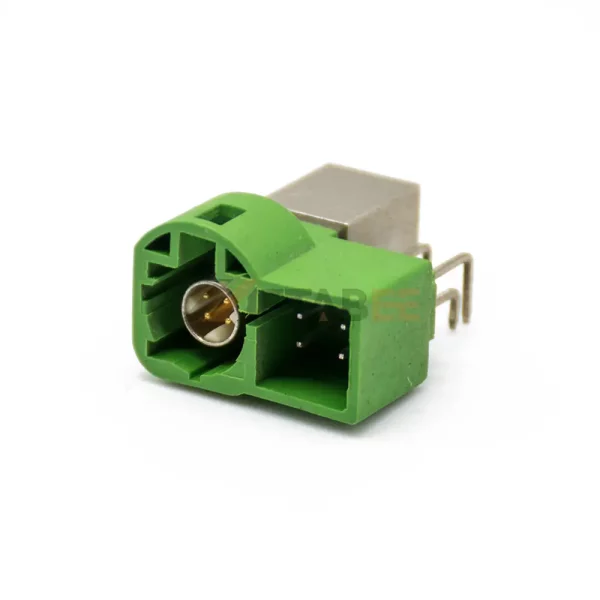

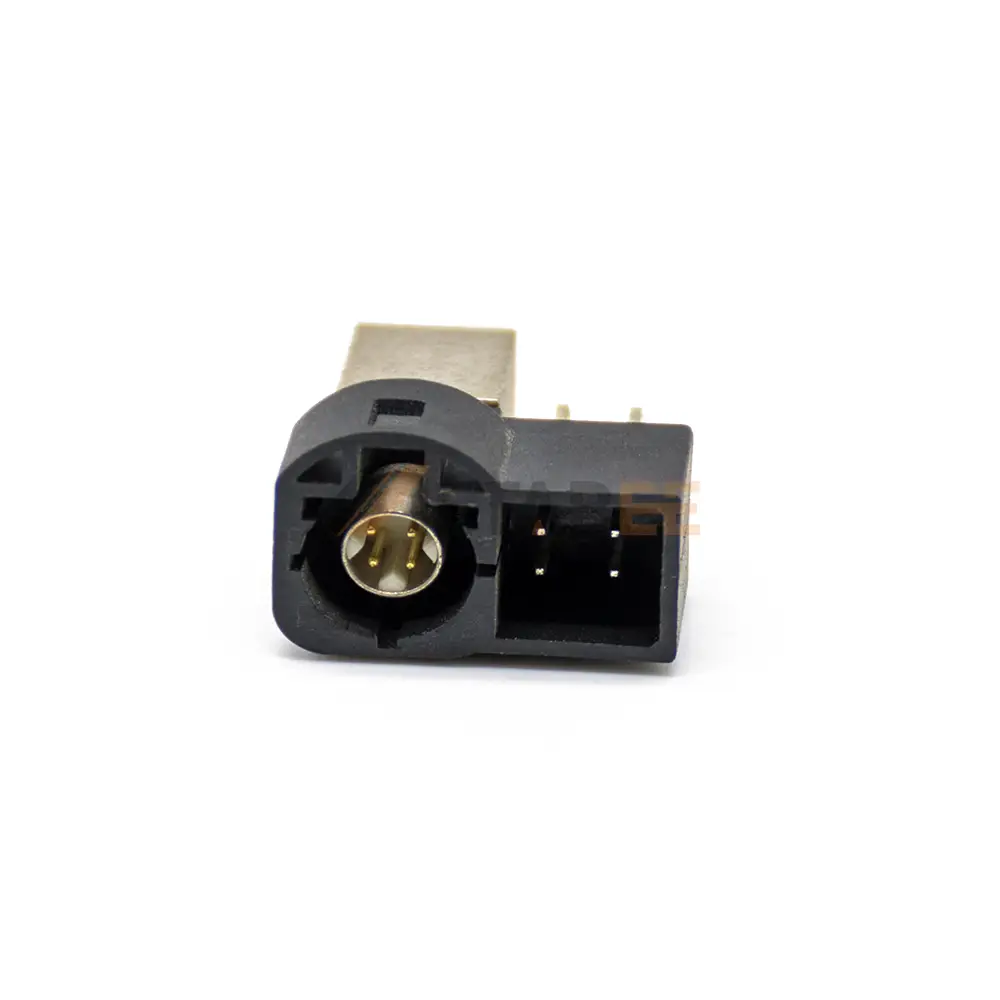

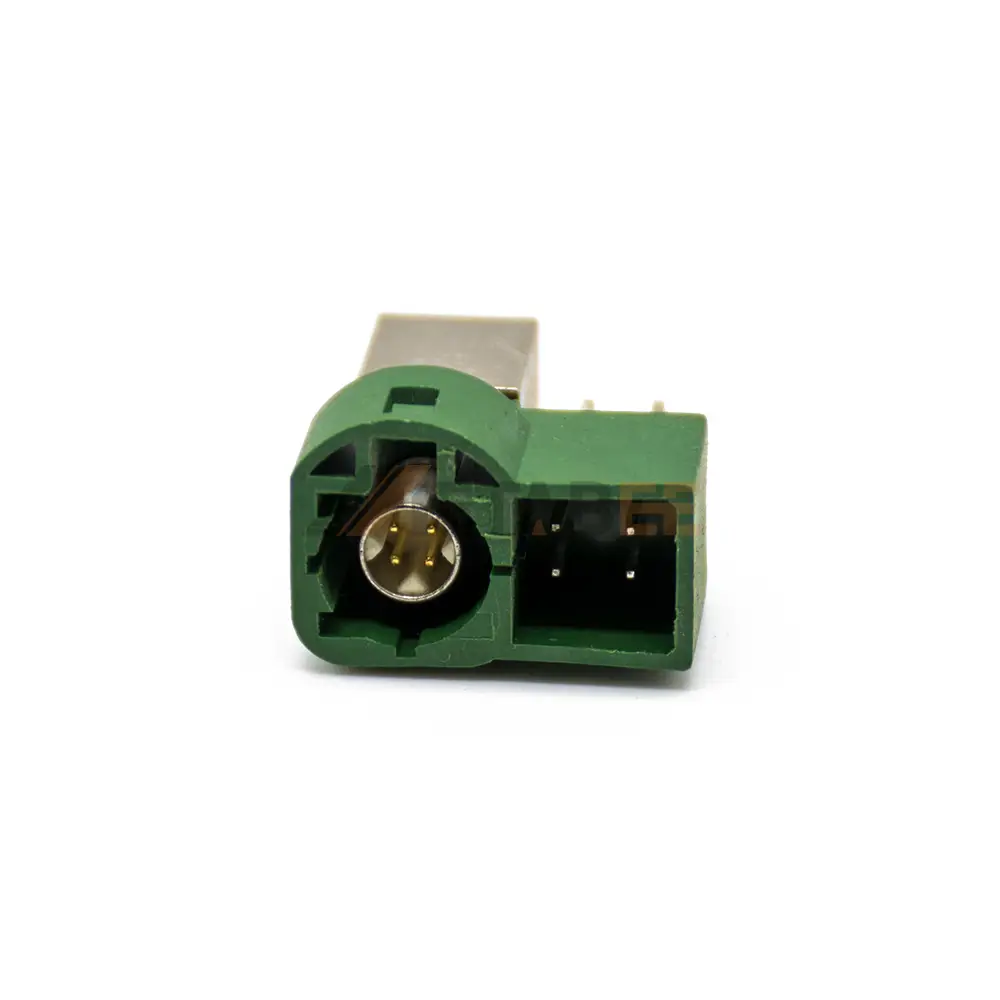

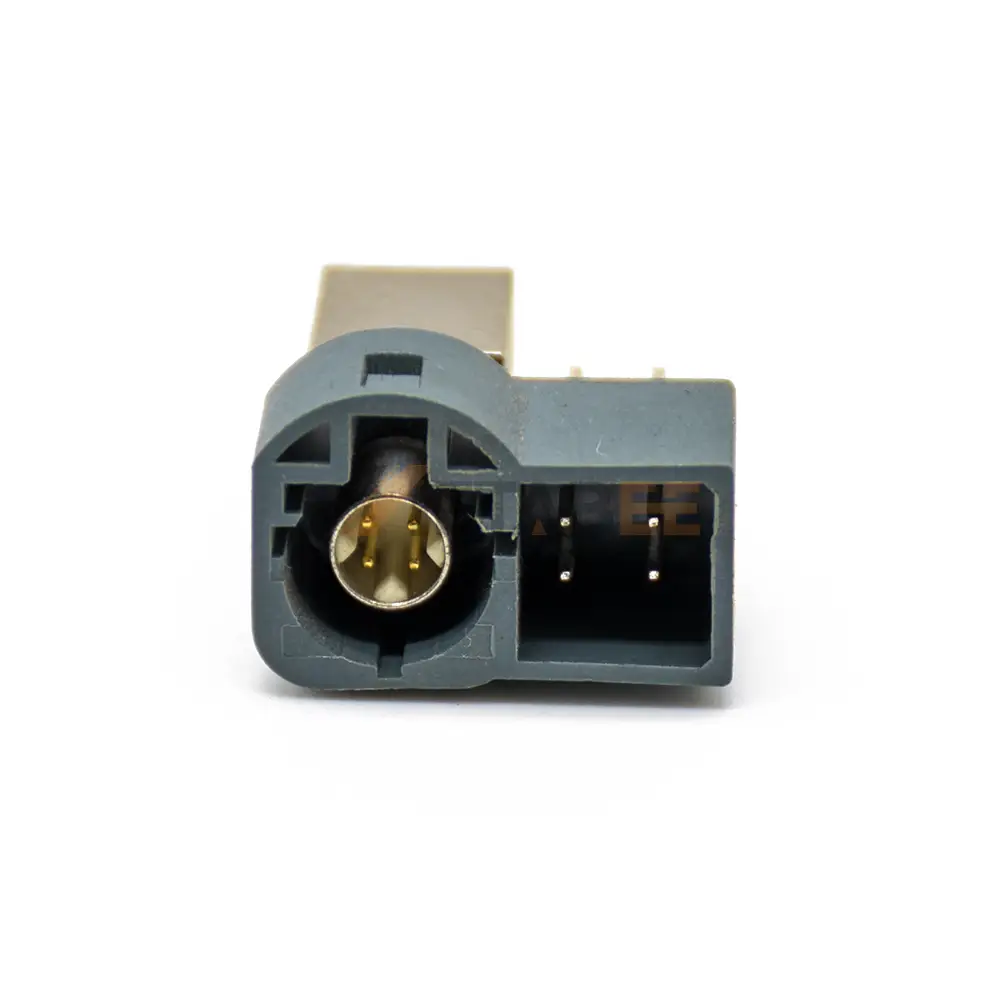

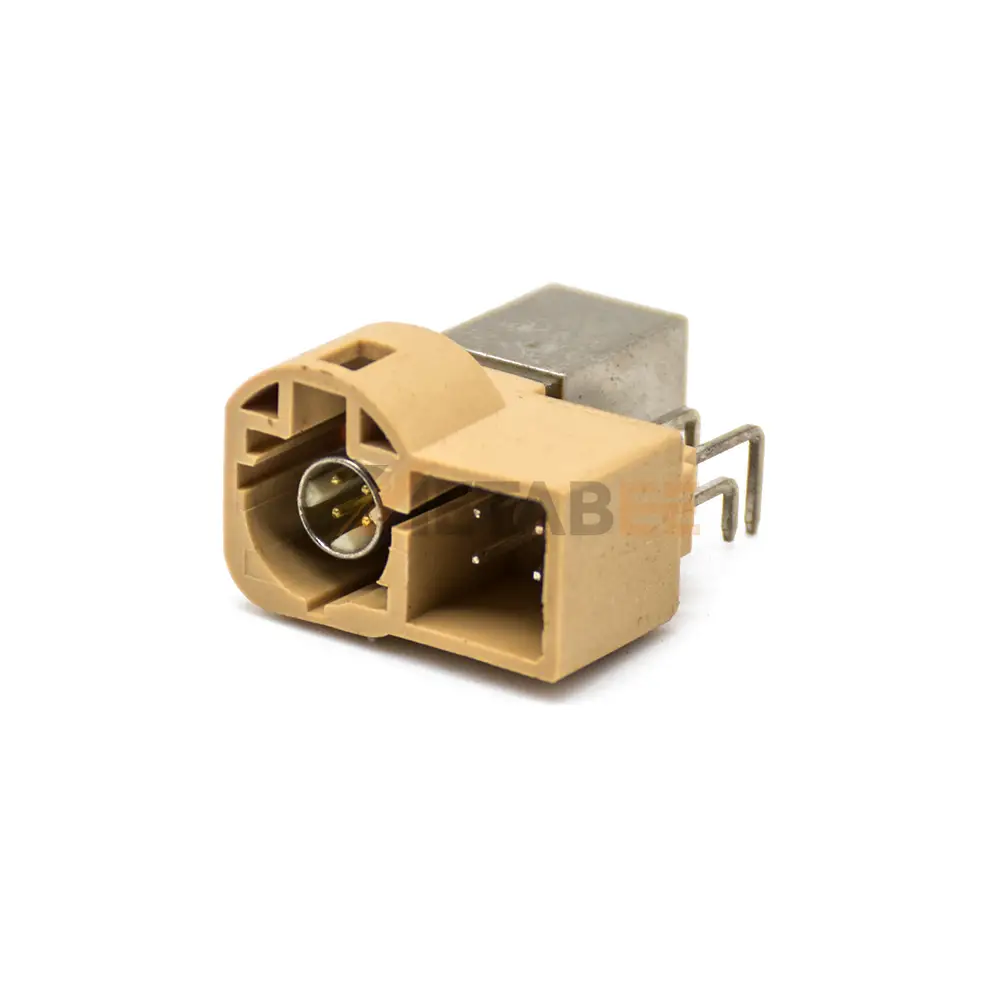

Right Angle HSD 4+4 Pin Plug Connector for PCB, Through Hole
Introduction
This HSD connector is designed for reliable PCB mounting in demanding applications. Featuring a PA plastic housing and a zinc alloy outer conductor with nickel plating, it ensures durability and excellent EMI shielding. The copper alloy inner contacts with gold plating provide low resistance (100Ω) and superior signal integrity, supporting frequencies up to 2 GHz. Its through-hole soldering termination guarantees a secure and stable connection, while the right-angle design saves space in compact layouts.
With keying options (A, B, C, D, E, F, G, H, I, K, L, M, O, Z), this connector prevents mismating and ensures proper alignment. It operates reliably in a wide temperature range (-40°C to +105°C), making it suitable for industrial, automotive, and telecommunications applications. The 4+4 pin configuration offers balanced signal transmission, ideal for high-speed data transfer.
Key Features:
- Right-angle, PCB-mount design for space-saving installation
- PA housing with zinc alloy outer conductor (nickel-plated)
- Gold-plated copper alloy inner contacts for low resistance (100Ω)
- Supports high-frequency signals up to 2 GHz
- Through-hole soldering for secure termination
- Wide operating temperature range (-40°C to +105°C)
- Multiple keying options (A-Z) to prevent misconnection
Main Specifications:
General Information:
| Part No.: | 102-11-10 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Right Angle | |
| Connector Coding: | A, B, C, D, E, F, G, H, I, K, L, M, O, Z | |
| Number of Contacts: | 1 Port | |
| Number of Positions: | 4+4 Pin | |
| Contact Termination: | Solder | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this Right Angle HSD 4+4 Pin Plug Connector:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
