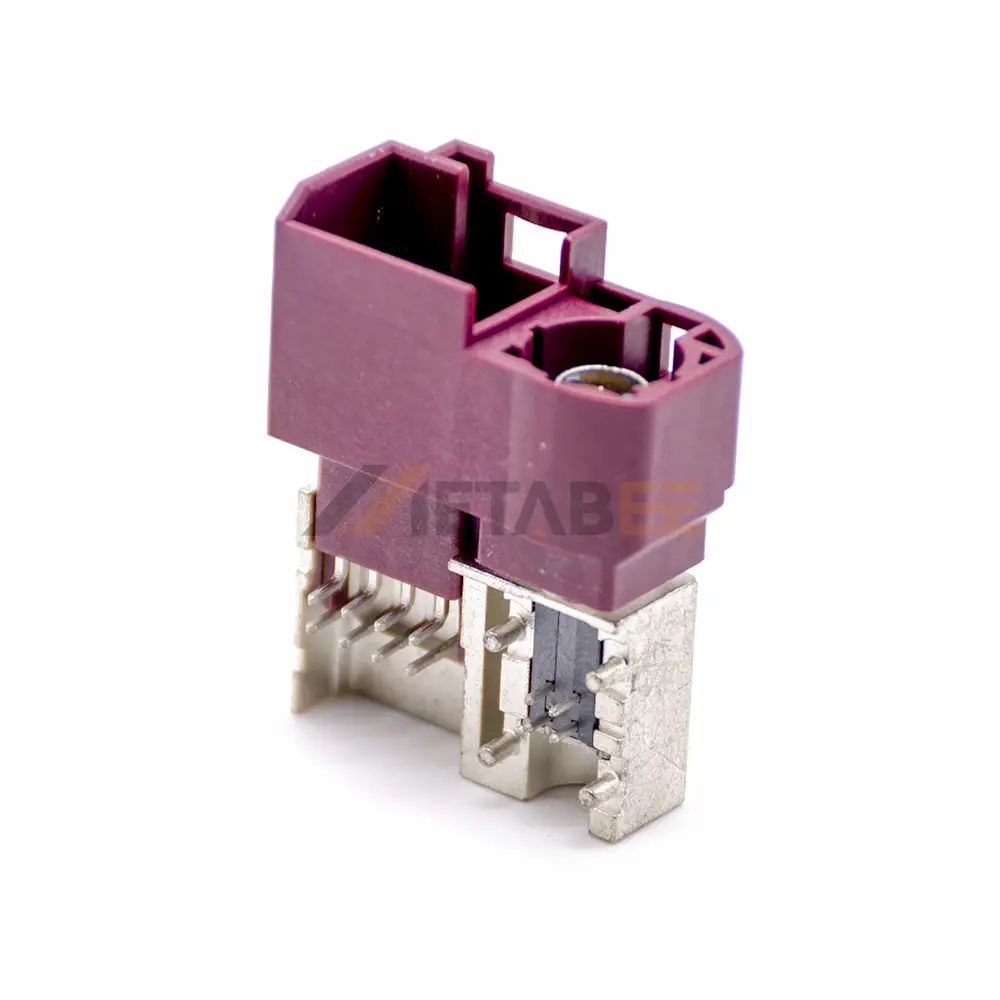

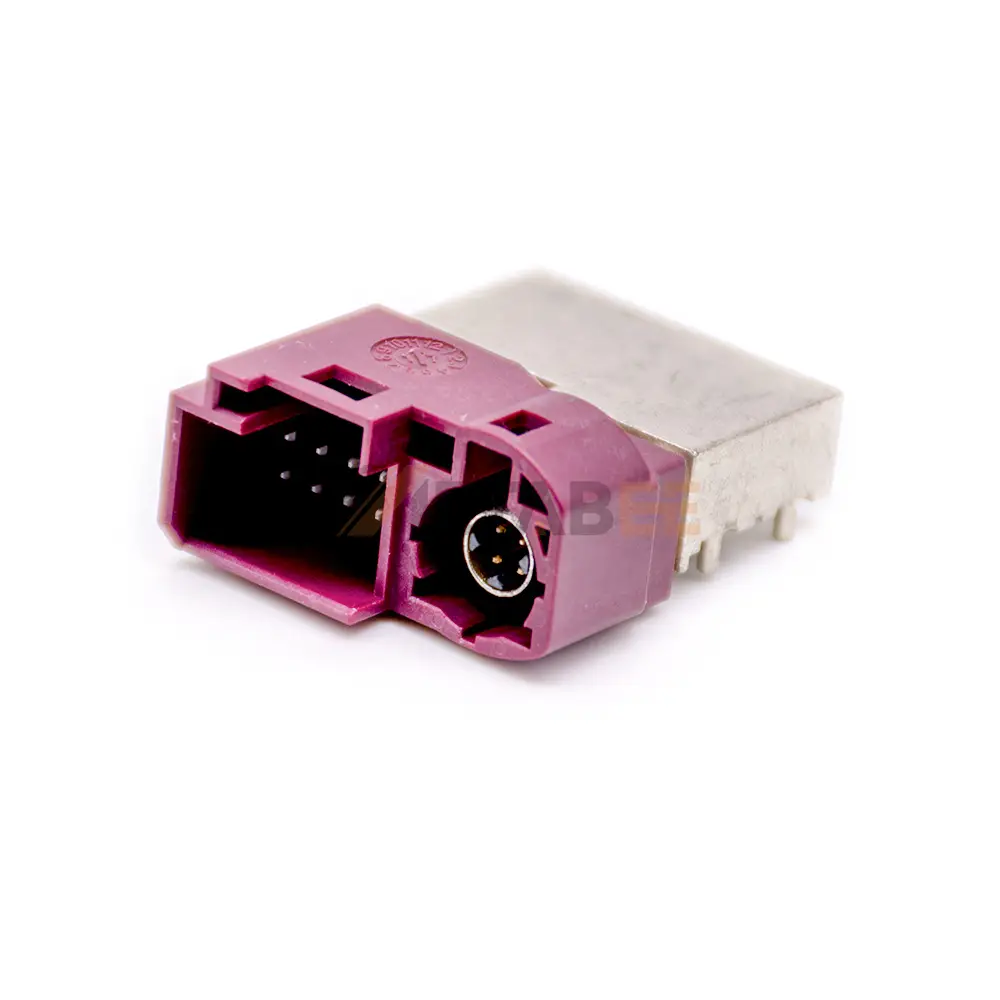

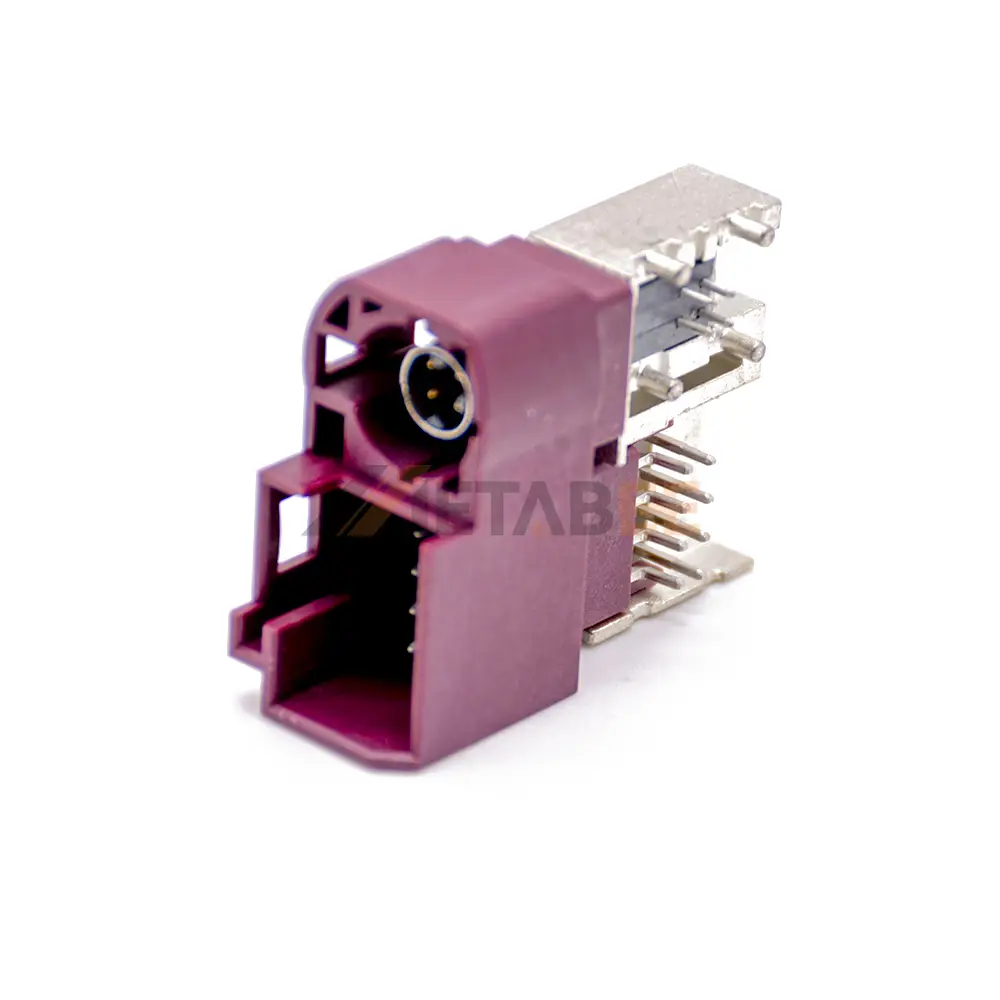

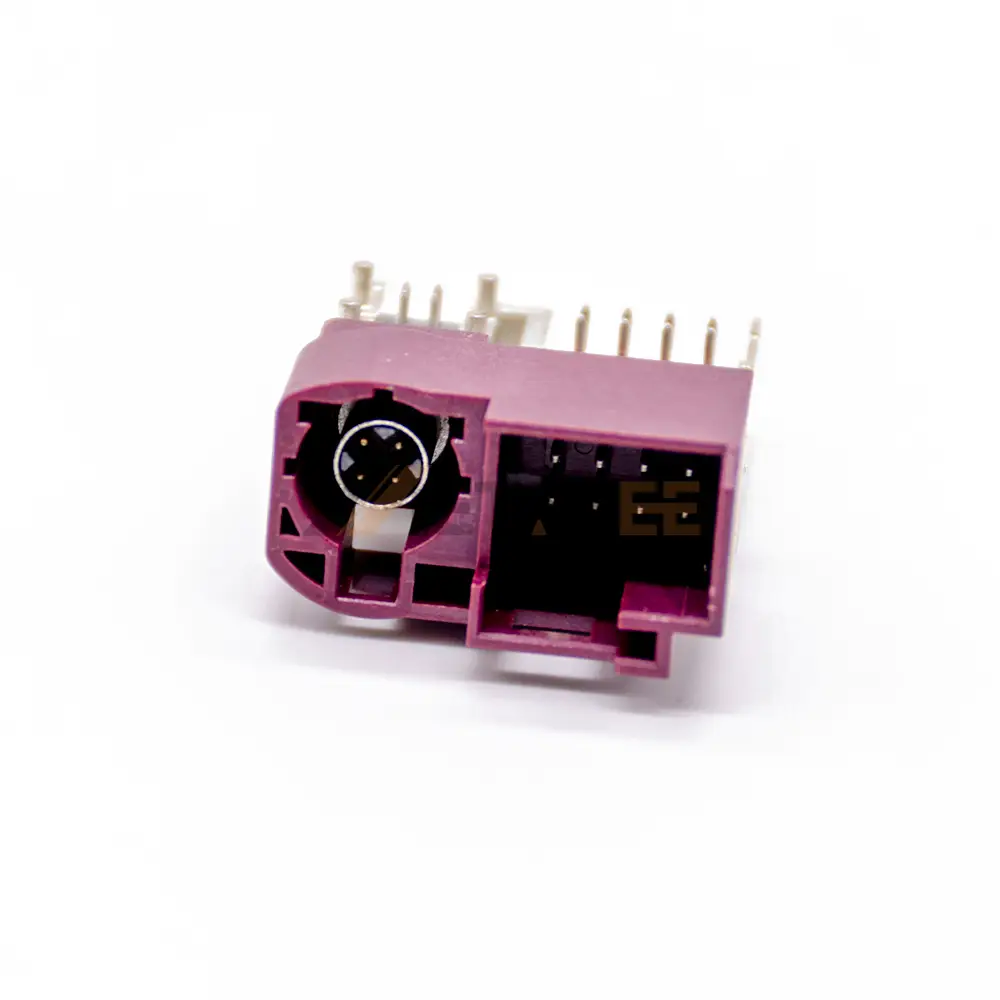

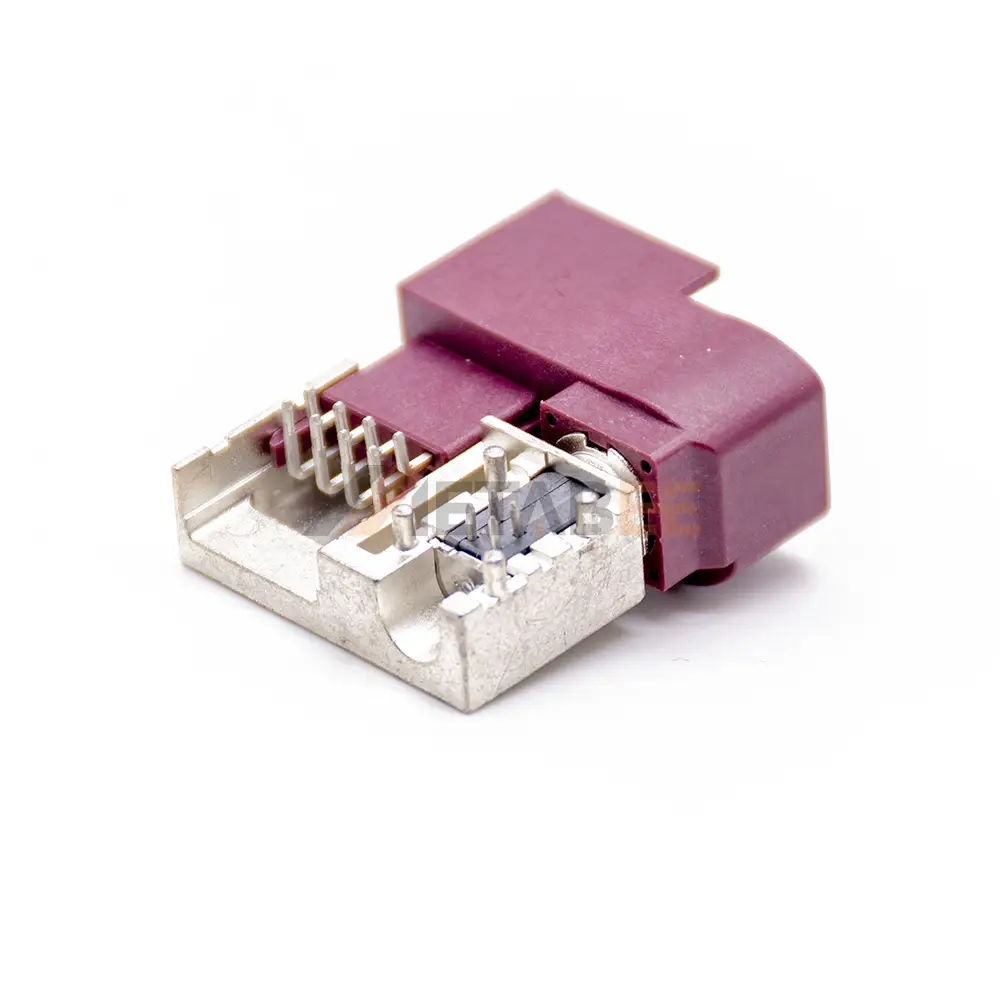

Right Angle HSD D Code 4+8 Pin Plug Connector for PCB, Through Hole
Introduction
This right-angle HSD connector is engineered for reliable, high-speed data transmission in a compact, durable package. Designed for PCB through-hole mounting, it provides a secure and stable connection, making it ideal for automotive and industrial applications where vibration and shock are a concern. The right-angle orientation saves space on the board, offering greater flexibility in design layouts. With a 4+8 pin configuration and a single mating port, this connector ensures efficient and precise signal transfer.
The connector is built with high-quality materials to guarantee exceptional performance and longevity. The plastic housing is made from robust PA material, while the outer conductor, plated with nickel, is crafted from a durable zinc alloy. Internally, the contacts are made from a copper alloy and are gold-plated to ensure low contact resistance of 100 ohms and excellent conductivity. This robust construction allows the connector to operate in a wide temperature range of -40°C to 105°C and handle frequencies from DC to 2 GHz.
Key Features:
- Right-Angle Orientation: Space-saving design for flexible PCB layouts.
- HSD D-Code Keying: Ensures correct mating and prevents misalignment.
- Through-Hole Mounting: Provides a strong, secure connection to the PCB.
- 4+8 Pin Configuration: Supports high-speed data and signal transmission.
- 100 Ohm Impedance: Matches common high-speed data protocols.
- DC-2 GHz Frequency: Suitable for various high-frequency applications.
- -40°C to 105°C Temperature Range: Withstands harsh operating environments.
Main Specifications:
General Information:
| Part No.: | 102-11-10002 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Right Angle | |
| Connector Coding: | D | |
| Number of Contacts: | 1 Port | |
| Number of Positions: | 4+8 | |
| Contact Termination: | Solder | |
| Mount Method: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this Right Angle HSD D Code 4+8 Pin Plug Connector for PCB:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
