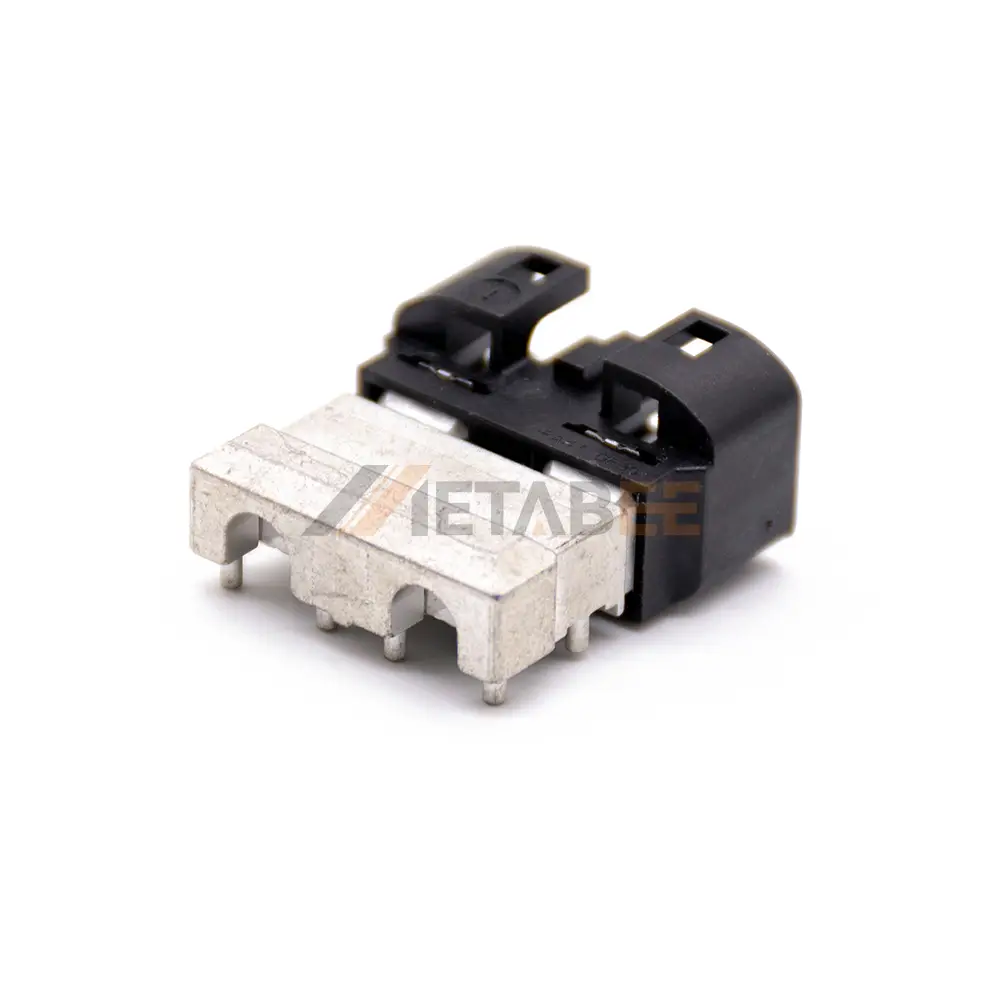

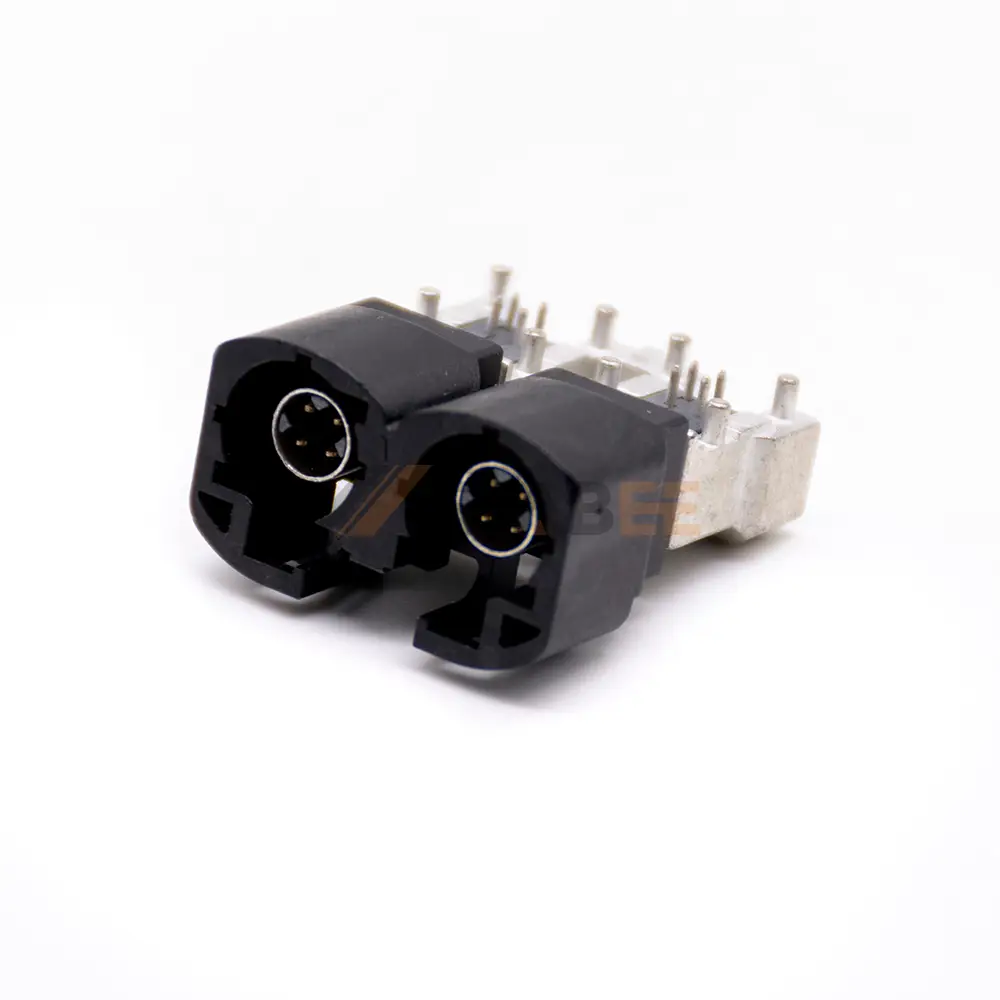

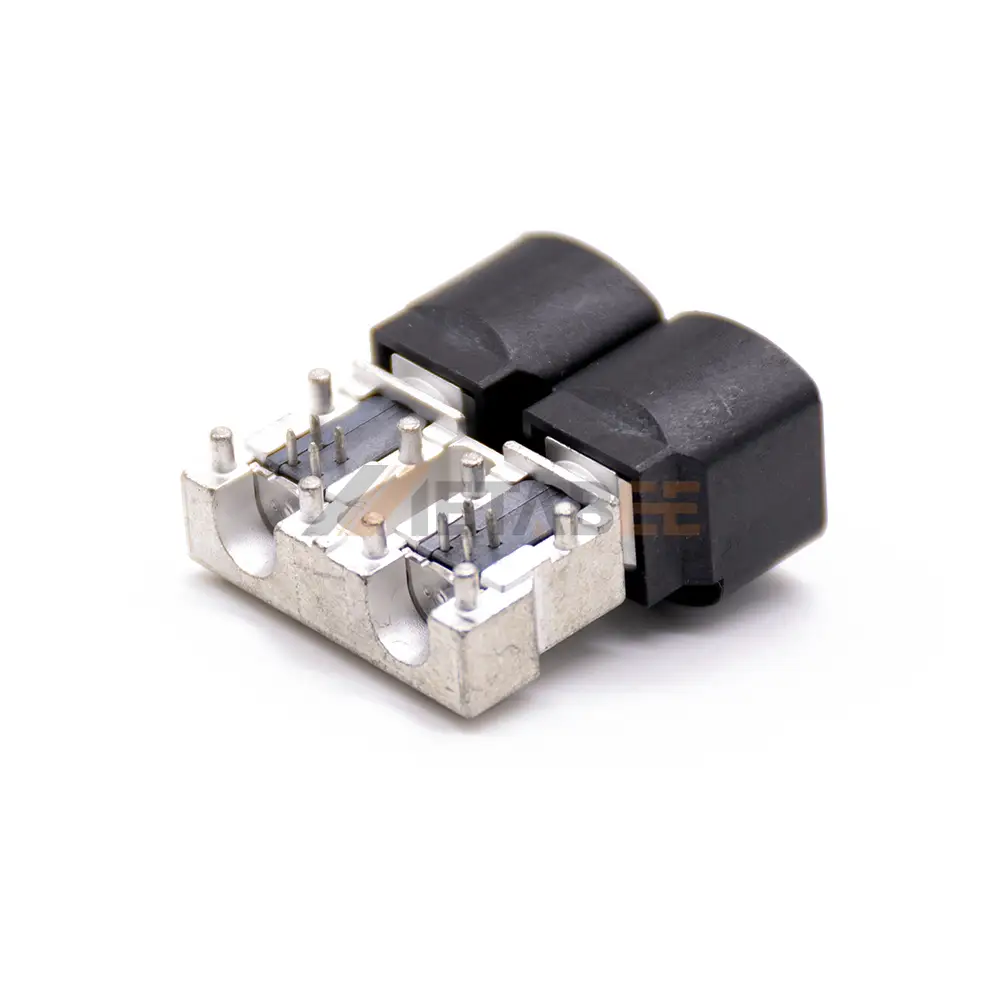

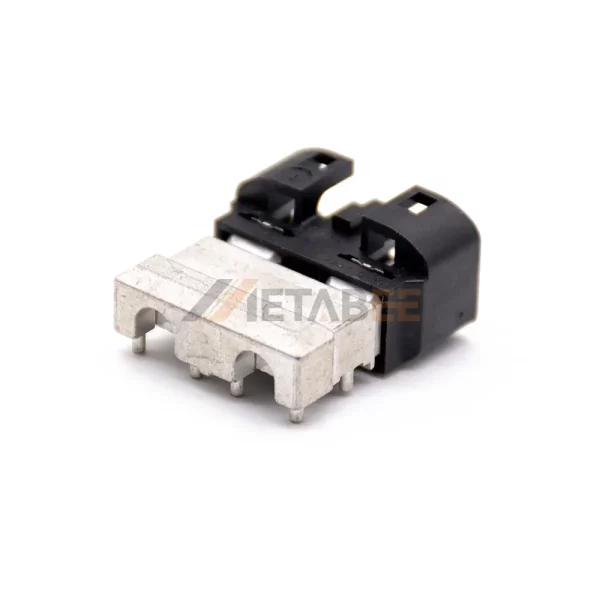

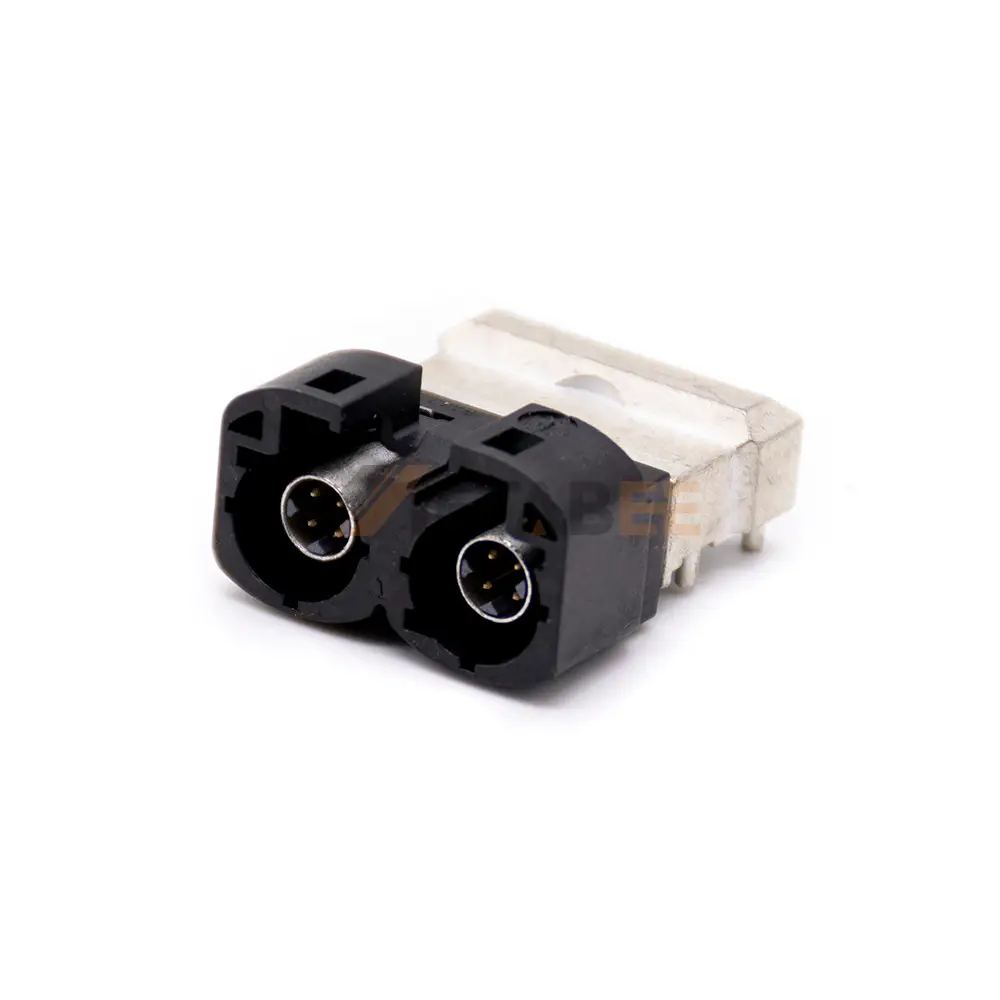

Right Angle Dual HSD A Code 4+4 Pin Plug Connector for PCB, Through Hole
Introduction
The Right Angle dual HSD connector delivers high-speed, reliable data transmission for automotive and industrial applications. Designed with an A-code keying system, it ensures secure mating and prevents mismatching. Its right-angle orientation and through-hole PCB mount design provide robust mechanical stability, ideal for high-vibration environments.
Constructed with a PA plastic housing for durability, this connector features a zinc alloy outer conductor with nickel plating for corrosion resistance and a copper alloy inner conductor with gold plating for superior conductivity. Supporting a 100Ω impedance and operating within a DC–2 GHz frequency range, it guarantees optimal signal integrity across demanding applications. Its dual 4+4 pin configuration supports two independent high-speed channels, making it suitable for multimedia, infotainment, and advanced driver-assistance systems (ADAS).
With a wide operating temperature range of -40°C to +105°C, this connector performs reliably in extreme conditions. Its solder termination ensures a secure electrical connection, while the precision-engineered design meets stringent automotive-grade performance standards.
Key Features:
- Right angle, through-hole PCB mount design.
- Dual 4+4 pin configuration with A-code keying.
- 100Ω impedance, DC–2 GHz frequency range.
- Durable PA housing, zinc alloy shell with nickel plating.
- Copper alloy contacts with gold plating for high conductivity.
- Wide temperature range: -40°C to +105°C.
- Solder termination for secure connections.
Main Specifications:
General Information:
| Part No.: | 102-11-10003 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Right Angle | |
| Connector Coding: | A | |
| Number of Contacts: | 2 Port | |
| Number of Positions: | 4+4 Pin | |
| Contact Termination: | Solder | |
| Mount Method: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this Right Angle Dual HSD A Code 4+4 Pin Plug Connector for PCB:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
