R/A One Port Shielded RJ45 8P8C Modular Lan Jack, Tab-Down, Through Hole, No LED
Introduction:
This is a single port shielded rj45 modular jack designed for stable through hole mounting on high-speed networking boards. It features a rugged brass shell with nickel plating that provides full EMI shielding to safeguard signal integrity from external interference. The durable black PBT housing ensures high thermal stability and maintains a superior insulation resistance of 1000MΩ Min. With Phosphor Bronze contacts finished in Gold over Nickel, the unit supports a consistent 1.5A current rating within an industrial range of -40°C to +85°C. Utilizing a Tab-Down right angle configuration, this component effectively optimizes board surface area while providing safe electrical paths. Technicians utilize this reliable interface for telecommunication devices and networking hardware needing stable board-level data links.
Key Features
- Full EMI Shielding: Metallic brass shell effectively blocks external signal interference.
- Gold Plated Contacts: Ensures high conductivity and lasting signal stability.
- High Insulation Resistance: Maintains 1000MΩ Min for enhanced electrical safety.
- Durable PBT Housing: Performs reliably between -40°C and +85°C environments.
- 8P8C Tab-Down Design: Optimizes mechanical fit for standard board layouts.

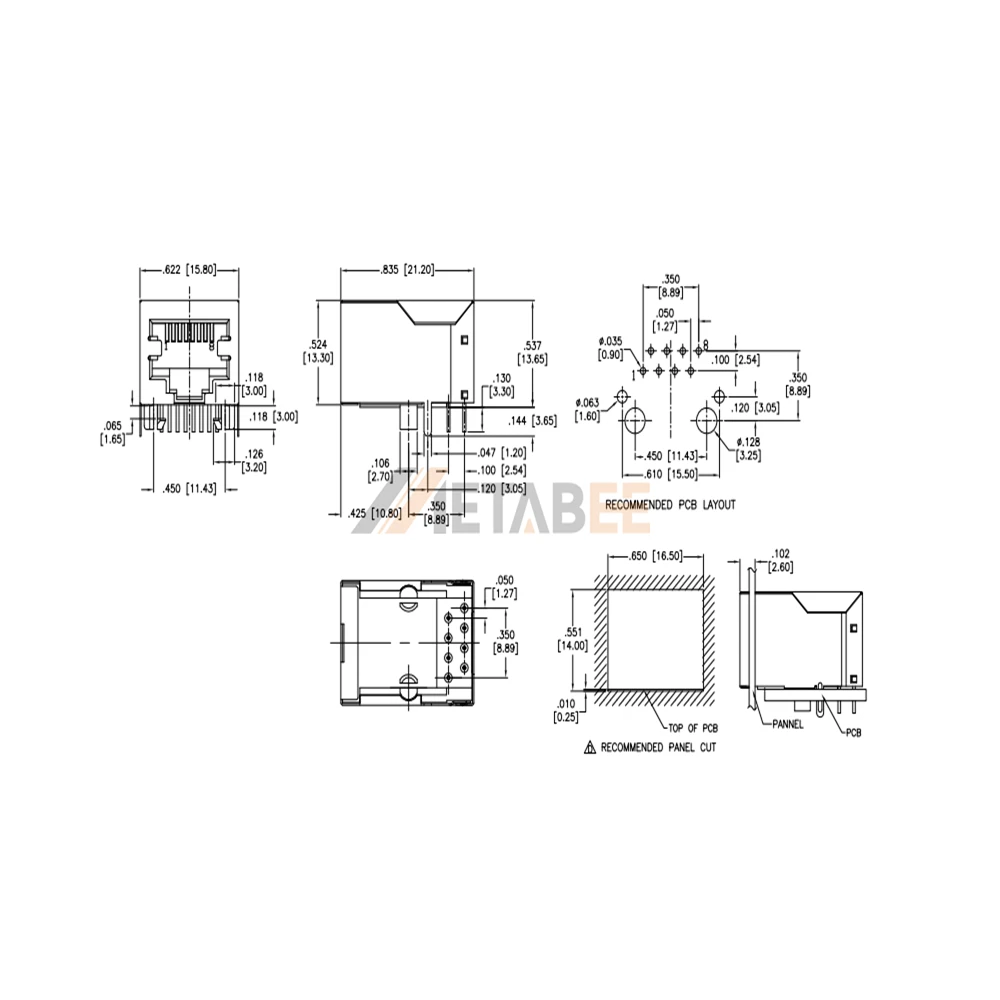

Main Specifications:
General Information:
| Product No.: | MTJ-88GX1-FSD | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute (C-C), 1500 VDC or AC Peak for 1 minute (C-Shield) |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
