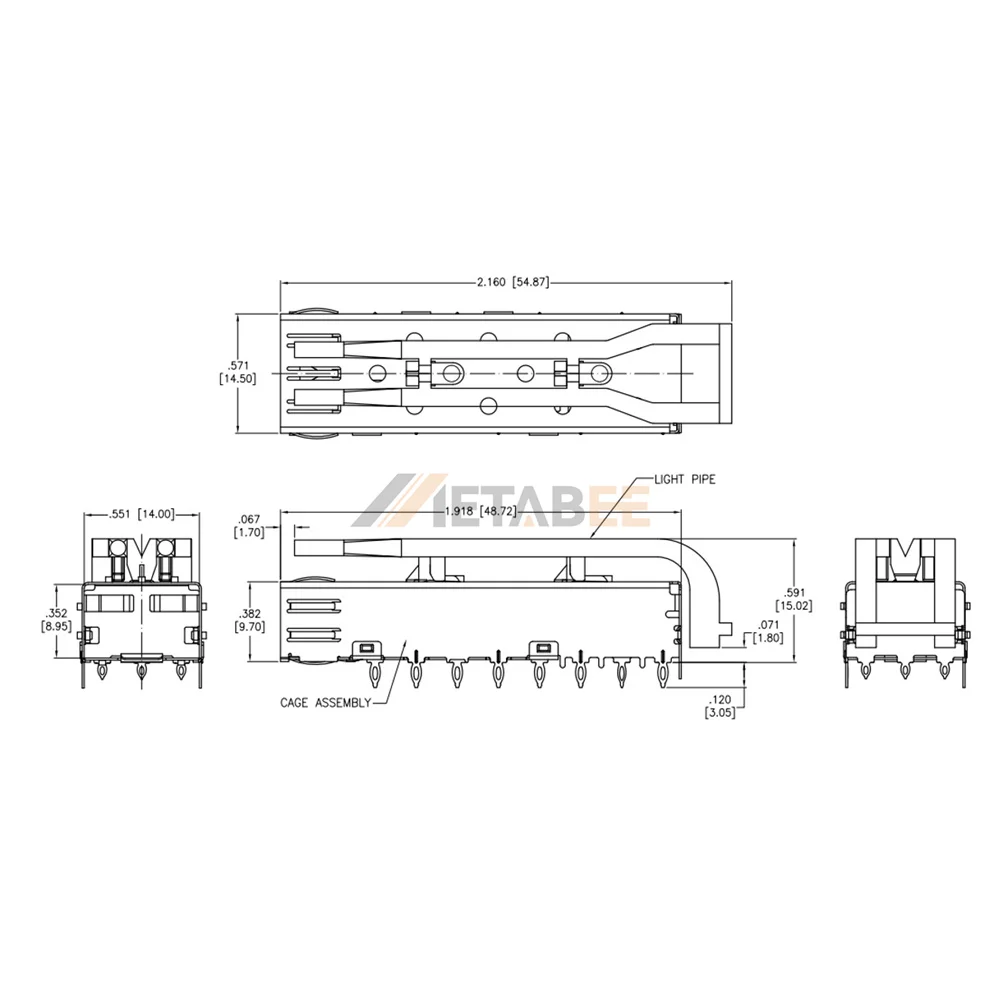

Press-Fit SFP Cage, 1×1 Single Port, Solderless, Integrated Light Pipe

Press-Fit SFP Cage, 1×1 Single Port, Solderless, Integrated Light Pipe

Introduction:

This single-port SFP cage accommodates high-speed pluggable transceivers while integrating optical status monitoring directly on the host board. Its solderless press-fit pins install firmly into plated PCB through-holes, eliminating thermal solder stress and simplifying high-density board assembly. Integrated light pipes route internal LED signals clearly to the front bezel, providing real-time port activity indicators without auxiliary optics. Furthermore, perimeter EMI spring fingers establish positive electrical grounding against the chassis cutout to curb electromagnetic radiation. These functional advantages make this cage suitable for enterprise switches, edge routers, and telecom aggregation hardware.

Key Features

• Solderless Press-Fit Pins: Enables fast PCB mounting without thermal stress.

• Integrated Light Pipe: Channels board-level LED status to front bezel.

• Perimeter EMI Spring Fingers: Minimizes electromagnetic leakage at chassis cutouts.

• Copper Alloy Structure: Delivers solid mechanical retention and ground continuity.

Main Specifications:

General Information:

Materials and Plating:

Environmental:

Single Row Cage Part Number Configuration

Applications:

• Switch
• Router
• Server & Storage
• Fibre Channel and Gigabit Ethernet
• Networking & Telecommunication
