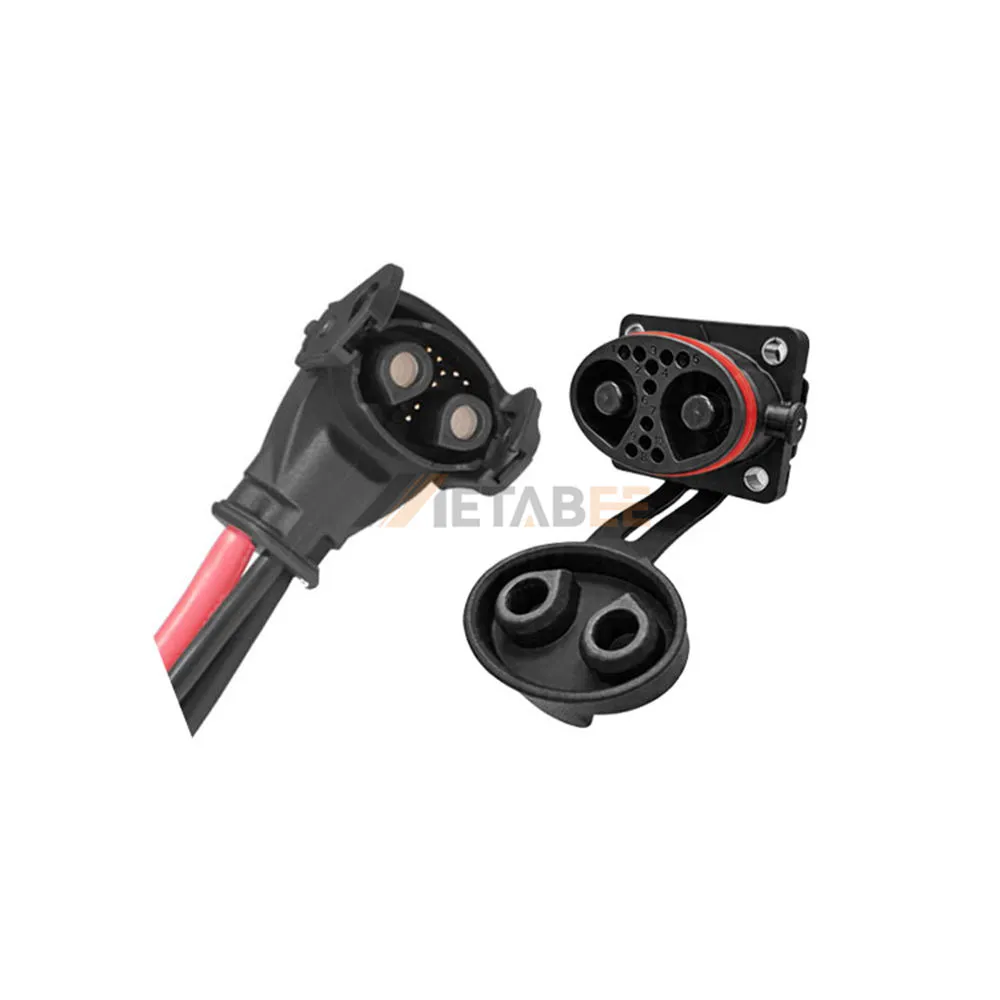

Power & Signal Hybrid Connector for Electric Motorcycles, 2+10 Pin, Waterproof
Introduction
Designed for electric motorcycle applications, this waterproof power and signal hybrid connector integrates high-current power transmission and signal connectivity in a compact PCB-mount design. Featuring a vertical mounting orientation and receptacle configuration, it supports reliable electrical connections for demanding electric vehicle systems. With IP67/IP69K protection, UL94V-0 flame retardancy, and an operating temperature range of -40°C to +105°C, it is engineered for harsh environments and demanding operating conditions.
Key Features:
- Hybrid Design: Integrated power and signal transmission
- Pin Configuration: 2+10 pin
- Rated Current: 150A (Power) + 5A (Signal)
- Rated Voltage: 160V DC (Power), 80V DC (Signal)
- Protection & Safety: IP67/IP69K, UL94V-0
Main Specifications:
General Information:
| Part No.: | YC-E1001-001 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+10 Pin | |
| Wire Gauge: | Power 3AWG/Max; Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 160V DC (Power), 80V DC (Signal) | |
| Rated Current: | 150A+5A | |
| Insulation Resistance: | 500MΩ at 500V DC | |
| Withstanding Voltage: | 1,500V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67/IP69K | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
