Introduction:
Combining Power over Ethernet with integrated signal filtering, this PoE RJ45 MagJack with LEDs streamlines networking hardware designs. High-quality transformers inside the unit ensure stable 10/100 Base-T data flow while providing essential electrical isolation. Because it uses a nickel-plated brass shell with EMI fingers, it creates a robust shield against interference in crowded electronic environments. The built-in board lock mechanism guarantees a secure mechanical fit on the PCB during daily operation. Yellow and green LED indicators are positioned for clear visibility, offering instant status diagnostics at a glance. Technical teams rely on this compact right angle port for professional telecommunication and office gear.
Key Features
- PoE Integration: Supports power and 10/100 Base-T data transmission.
- Integrated Magnetics: Filters signal noise for stable network connectivity.
- Full EMI Shielding: Metallic shell blocks external interference for data integrity.
- Status Indicator LEDs: Yellow and green lights show network activity instantly.
- Secure Board Lock: Ensures a strong mechanical bond to the PCB.

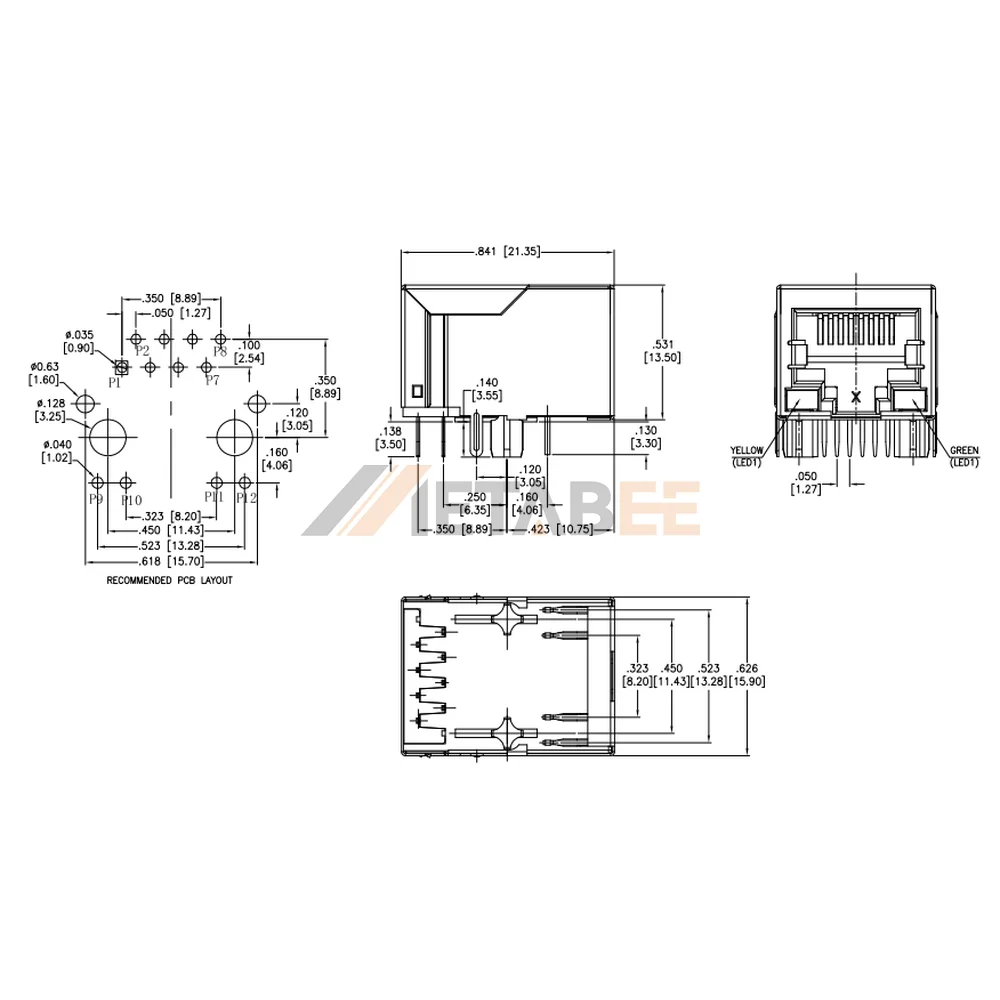

Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-LG1-M83 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
