Introduction:
Reliable power and data delivery are easily achieved through the PoE RJ45 jack with magnetics, designed specifically for standard 10/100 Base-T networks. A full nickel-plated brass shield protects the component against severe electromagnetic interference in demanding industrial environments. Extreme thermal conditions ranging from -40°C to 85°C pose no challenge for the robust black hi-temp thermoplastic housing. Secure printed circuit board mounting relies on a practical board guide integrated tightly into the right-angle, through-hole architecture. Visual network activity is clearly indicated by dual-color green and yellow/green LEDs positioned neatly within the tab-up profile. Furthermore, gold-plated phosphor bronze contacts ensure electrical resistance remains strictly below 20mΩ for flawless long-term performance.
Key Features
- 10/100 Base-T PoE: Delivers combined power and Fast Ethernet data flawlessly.
- Industrial Temperature Range: Withstands extreme thermal conditions from -40°C to 85°C.
- Brass Metal Shielding: Nickel-plated housing blocks severe electromagnetic interference.
- Hi-Temp Thermoplastic: Durable insulation includes a board guide for secure mounting.
- Multi-Color LED Status: Green and yellow/green lights display precise network activity.
Main Specifications:
General Information:
| Product No.: | MTJ-88CX1-FSP-PG-LV-M16-HT-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow/Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

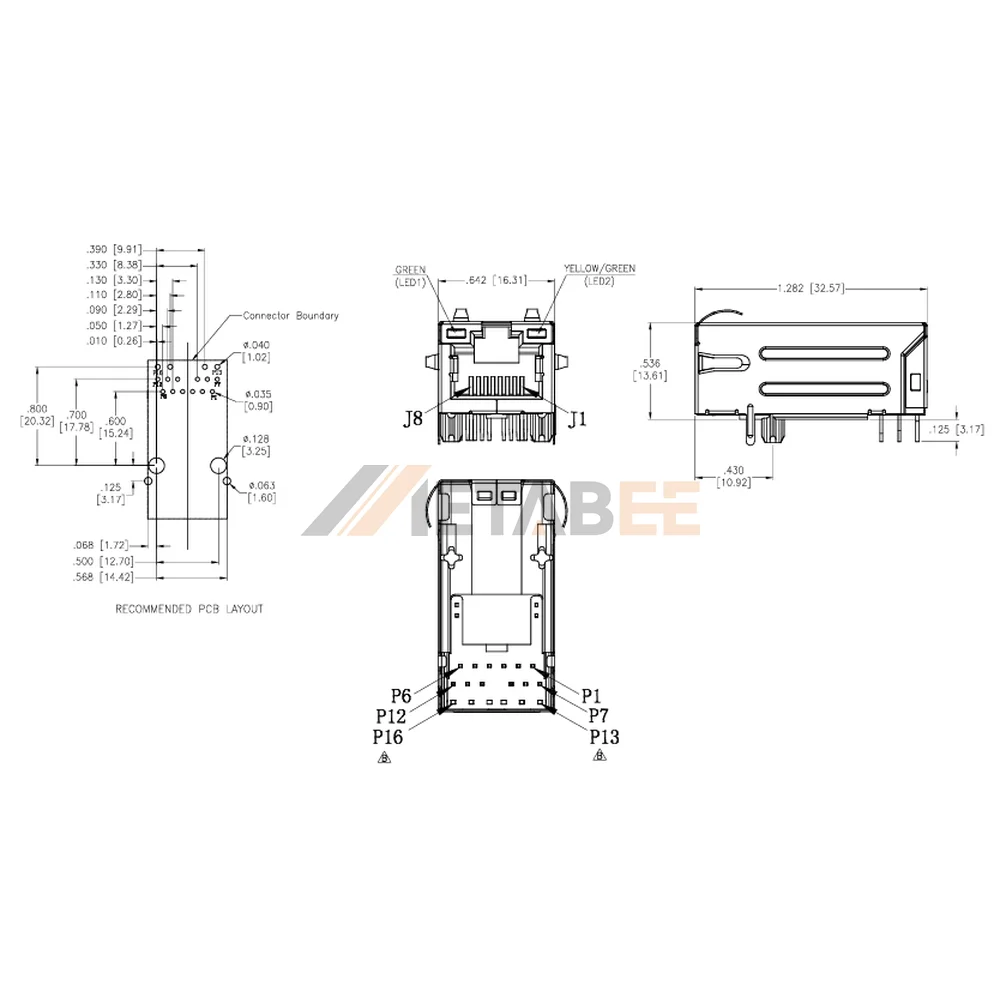

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
