Introduction:
Demanding industrial networks benefit greatly from the shielded PoE RJ45 jack, which flawlessly supports 10/100 Base-T Fast Ethernet connections. A full nickel-plated copper alloy shield protects the module against severe electromagnetic interference across an extreme -40°C to 85°C operating temperature range. Inside the robust black PBT insulator, a mechanical board lock ensures strict stability during right-angle printed circuit board mounting. Clear visual status tracking is provided by integrated orange/green and yellow LEDs positioned neatly within the tab-up profile. Furthermore, high-quality gold-plated copper alloy contacts maintain electrical resistance strictly below 20mΩ to guarantee excellent long-term signal clarity.
Key Features
- 10/100 Base-T PoE: Combines Fast Ethernet and power transmission securely.
- Industrial Temperature Range: Operates reliably between -40°C and 85°C.
- Copper Alloy Shielding: Nickel-plated metal housing blocks electromagnetic interference completely.
- Durable PBT Insulation: Black thermoplastic features a strict board lock.
- Multi-Color Status LEDs: Orange/green and yellow lights track network activity.
Main Specifications:
General Information:
| Product No.: | MTJ-88CX1-FSP-PG-L18-M49 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Orange/Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

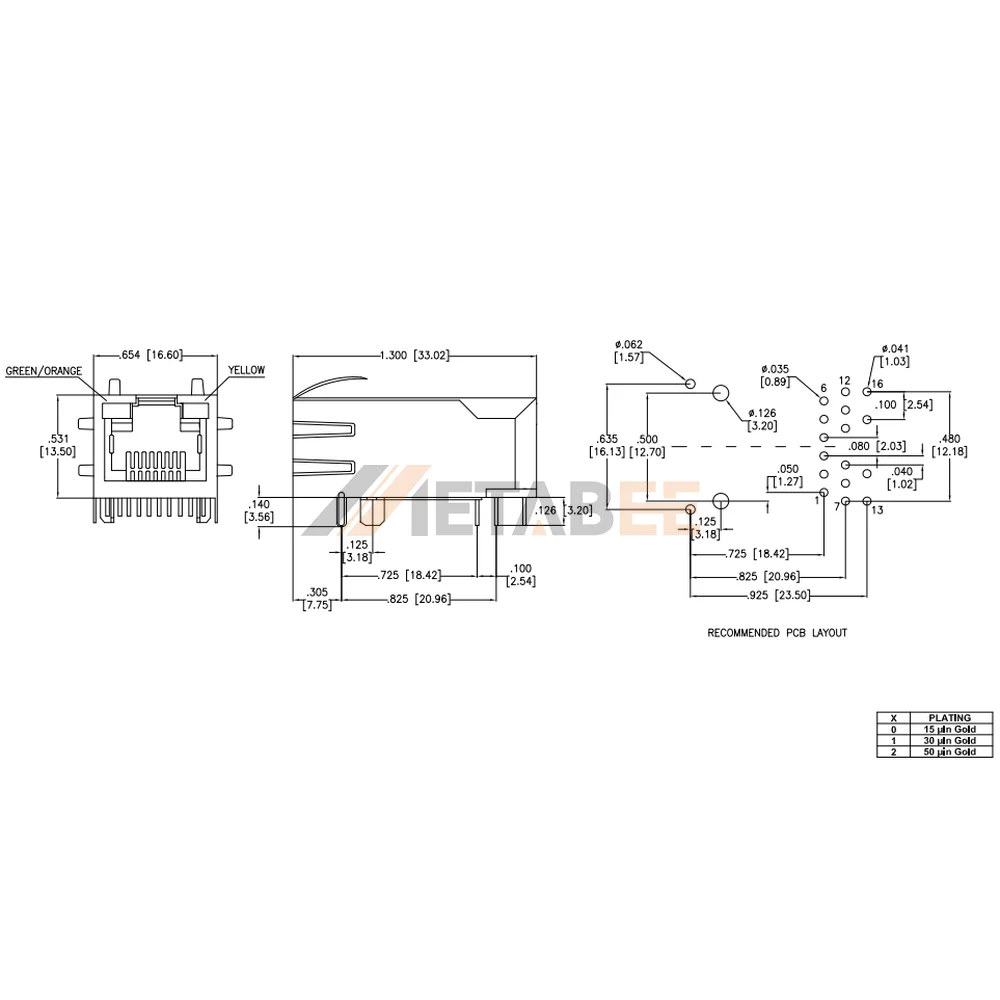

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
