Introduction:
Handling both power and data is simple with this PoE RJ45 jack connector with integrated magnetics. This industrial-grade port includes built-in filters to ensure steady 10/100 Base-T speeds while protecting chips from voltage surges. Because it features a Tab-Up design, it fits easily into specific board layouts where traditional connectors might conflict with other parts. The nickel-plated brass shell provides full EMI shielding to keep your networking signals clear. Thanks to its PA66 housing, the component works reliably in temperatures from -40°C to 85°C. A secure board lock keeps the right angle connector fixed tightly during daily use.
Key Features
- PoE Integration: Delivers power and 10/100 Base-T data simultaneously.
- Built-in Magnetics: Filters signal noise for stable network connectivity.
- Industrial Temp Range: Operates reliably between -40°C and 85°C.
- Tab-Up Configuration: Optimizes mechanical fit for specific PCB layouts.
- Secure Board Lock: Provides a strong and lasting mechanical bond.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-VLH-M392C-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ 85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack

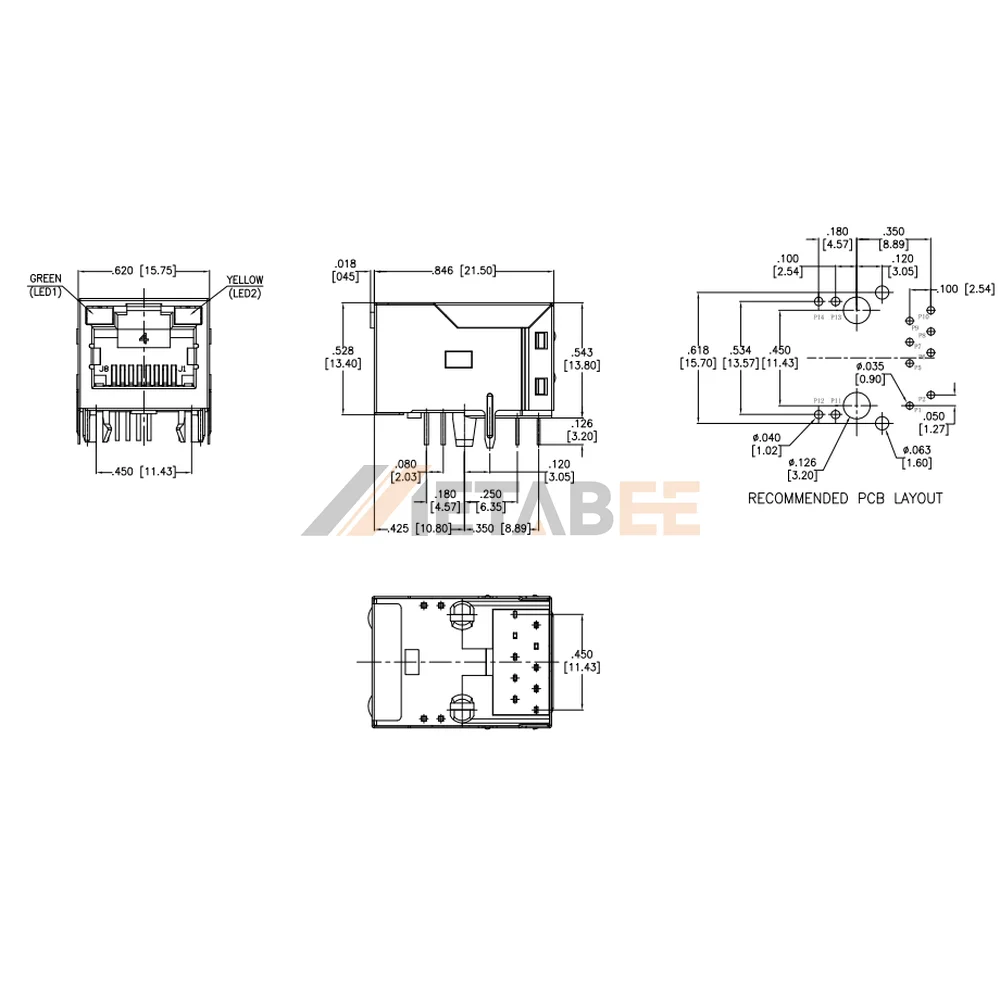

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
