Introduction:
Networking devices requiring both power and data delivery benefit from this PoE modular jack RJ45 with internal magnetics. Integrated transformers within the housing handle 10/100 Base-T signal conditioning while protecting sensitive chips from voltage spikes. Because it supports an industrial temperature range from -40°C to 85°C, this jack remains reliable in extreme outdoor or factory settings. The copper alloy shell provides full EMI shielding to prevent data errors in busy electronic environments. Designers can use the built-in green and yellow LEDs to monitor connection status instantly. Its rugged PBT construction and board guides ensure a secure, lasting mechanical bond to the circuit board.
Key Features
- PoE Integration: Handles power and data through a single port.
- Industrial Temp Range: Operates reliably from -40°C to 85°C.
- Integrated Magnetics: Filters signal noise for steady data transmission.
- Full EMI Shielding: Blocks interference using a metallic copper alloy shell.
- Status Indicator LEDs: Green and yellow lights show network activity status.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-D1LH-M81W | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 125VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ 85°C | |
| Flammability Rating: | UL 94 V-0 |

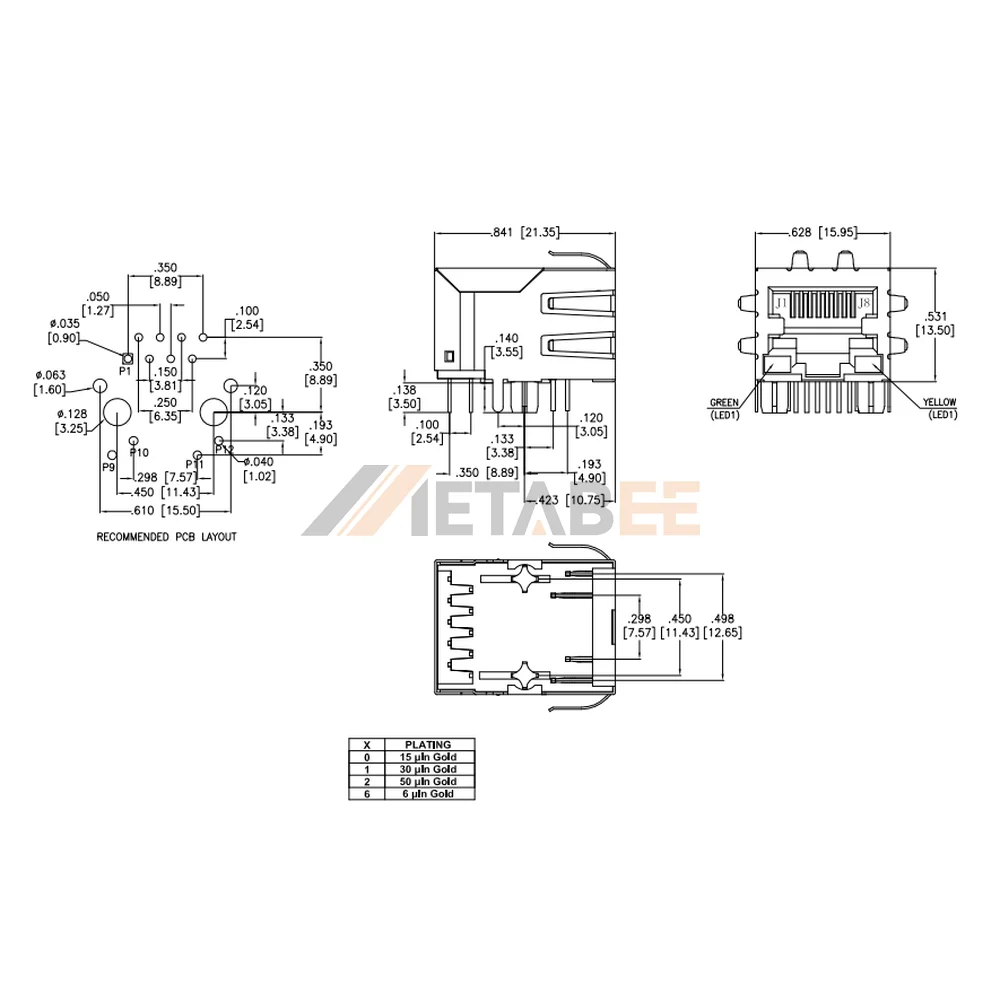

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
