Introduction:
Supporting both power and data transmission, this PoE magnetics RJ45 jack simplifies the design of networked devices. Internal magnetic components provide 10/100 Base-T filtering while handling PoE requirements in a single port. Because the insulator is made of LCP hi-temp thermoplastic, it survives rigorous industrial soldering processes without deformation. The nickel-plated brass shell serves as a full shield to block electromagnetic interference in busy data environments. Designers can achieve a clean front panel appearance by choosing this model with no LED indicators. Reliable mechanical attachment is guaranteed by the integrated board lock and right angle through hole mounting. This robust component ensures long-term electrical performance for telecommunication gear.
Key Features
- PoE Integration: Supports power and data in one single port.
- Integrated Magnetics: Provides signal filtering and isolation for networks.
- LCP Housing: Withstands high temperatures during industrial soldering processes.
- Full EMI Shielding: Blocks outside interference using a metallic brass shell.
- No LED Design: Offers a clean look for custom front panels.

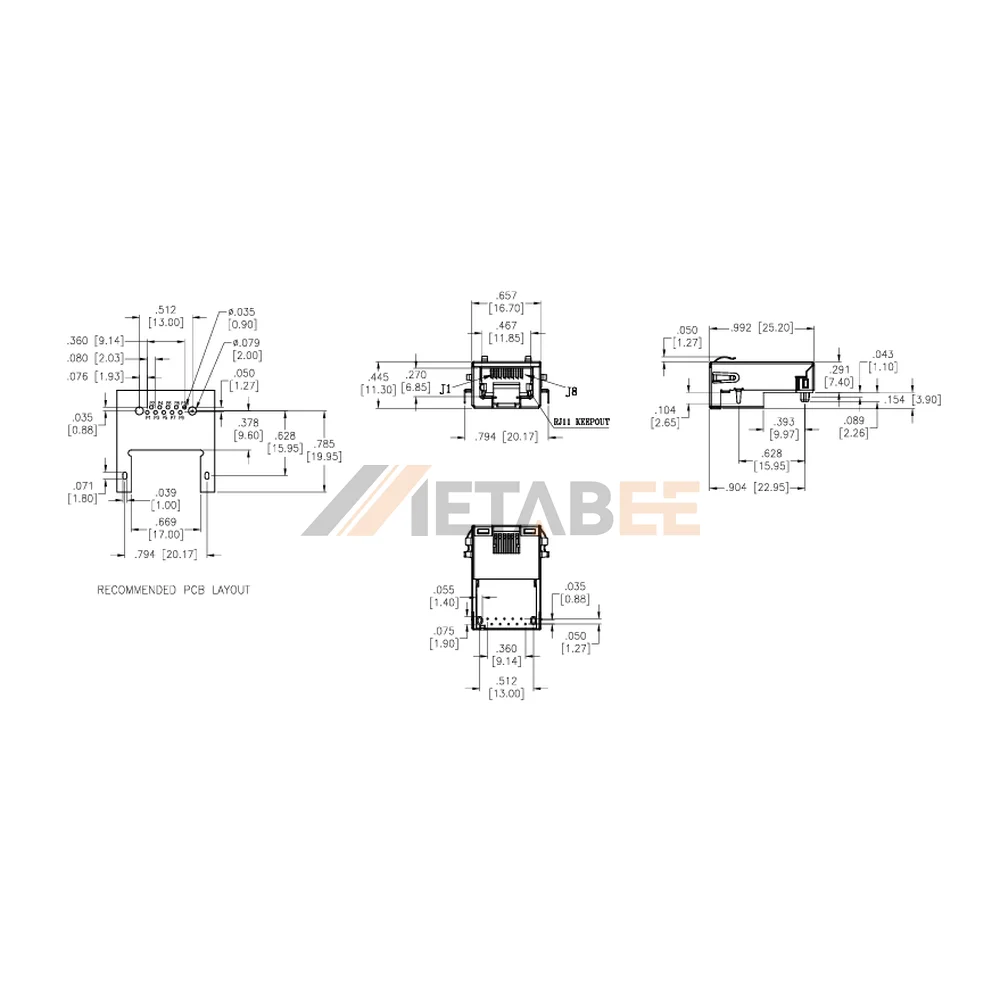

Main Specifications:
General Information:
| Product No.: | MTJ-88SDEX1-FS-PG-M389C-HT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | (LCP) Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
