Introduction:
Delivering both power and high-speed data across a single link is much simpler using this PoE ethernet jack RJ45 with magnetics. By integrating the transformers inside the housing, it saves board space and ensures reliable 10/100 Base-T signal conditioning. The metallic shell with EMI fingers provides a robust shield against electromagnetic interference in busy networking environments. Users can easily monitor connection activity through the built-in green and yellow LEDs on the front. Its right angle configuration and board guides offer a secure mechanical fit for compact through hole PCB boards. High-quality gold contacts ensure long-lasting electrical performance for various telecommunication devices.
Key Features
- Integrated Magnetics: Filters signal noise for stable 10/100 Base-T data.
- PoE Support: Delivers power and data through one single port.
- Full EMI Shielding: Blocks outside interference with a nickel-plated metallic shell.
- Dual Status LEDs: Green and yellow lights show network activity clearly.
- Board Guide System: Ensures a secure and stable mechanical PCB fit.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-D1LH-M121 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

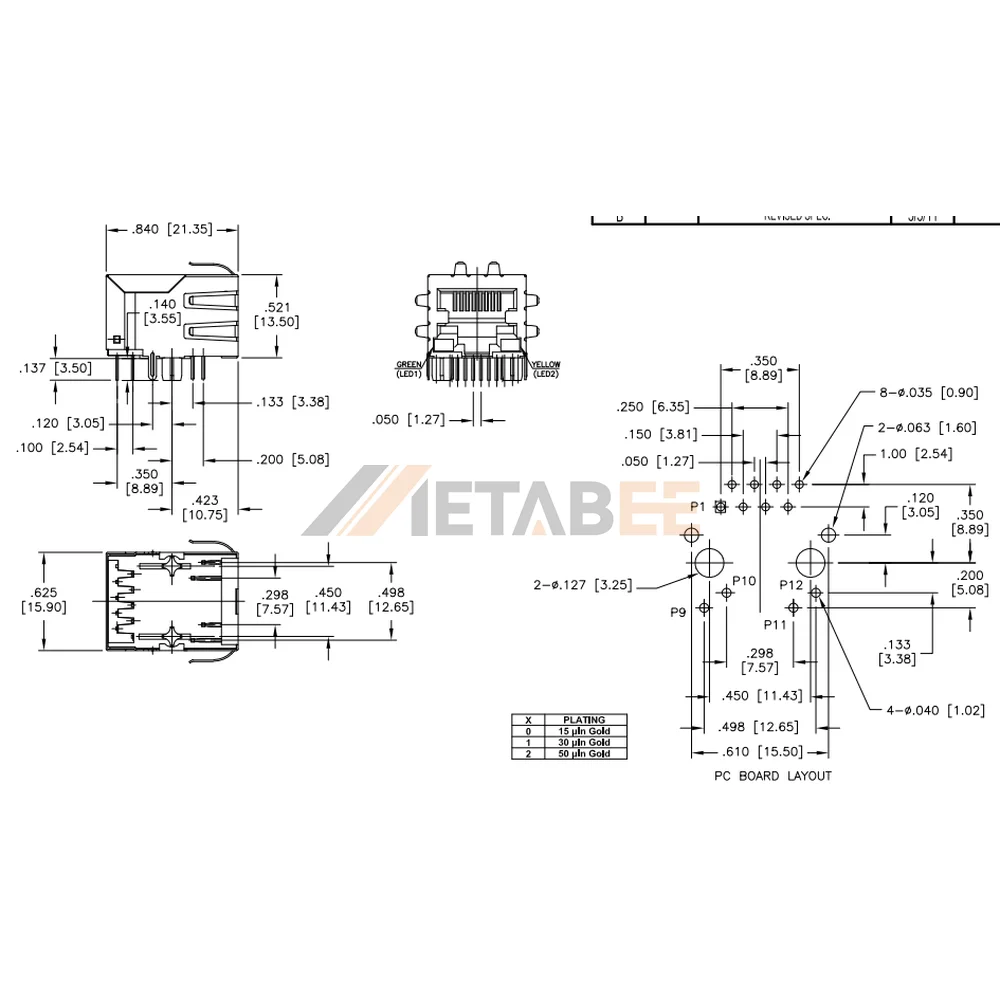

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
