PCB Mount RJ45 Female Connector, 8P8C, 1 Port, Shielded, Tab-Down, Through Hole, Right Angle
Introduction:
Providing a stable networking interface, this PCB mount RJ45 connector is engineered for high-speed modular applications. It features a single port 8P8C configuration with a right-angle orientation, making it suitable for edge-of-board installations. The full shield design protects against electromagnetic interference, ensuring reliable data transmission in various environments. Constructed from hi-temp thermoplastic, the component can withstand the intense heat associated with industrial soldering processes. The tab-down latch direction is specifically designed to accommodate specific chassis requirements and user preferences. With gold-plated phosphor bronze contacts, this through-hole modular jack maintains superior electrical conductivity and resists oxidation over time. Supporting a 1.5A current rating, it offers a secure and durable connection for modern telecommunication hardware.
Key Features
- Full Shielding: Metal housing effectively blocks external electromagnetic interference.
- Tab-Down Orientation: Bottom-latch design accommodates specific mechanical chassis requirements.
- Hi-Temp Thermoplastic: Housing withstands intense heat during industrial soldering processes.
- Gold-Plated Contacts: Phosphor bronze terminals ensure superior electrical signal conductivity.
- Right Angle Design: Horizontal entry optimizes space on compact PCB layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88CPX1-RF-FS-HT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | N/A | |
| Performance Category: | N/A | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Finish: | Gold Plating | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

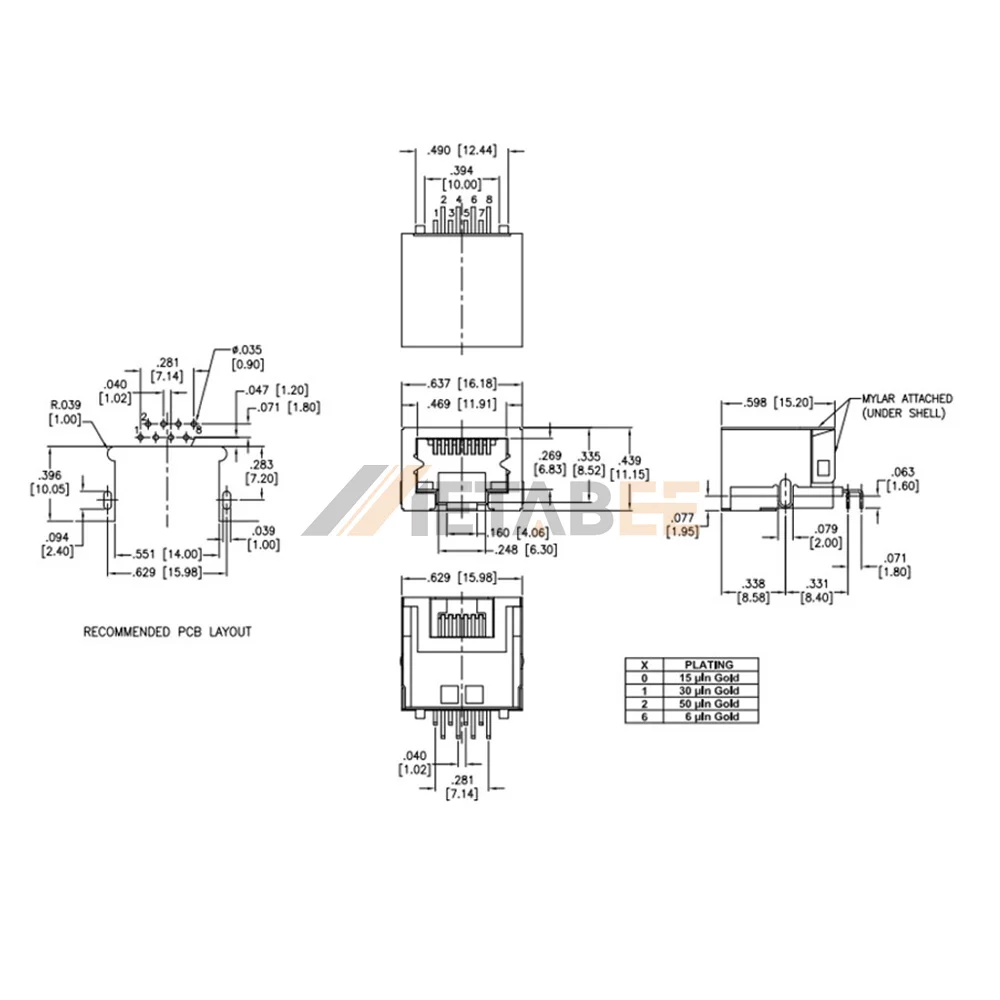

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
