PCB Mount Grounded RJ45 Socket, 8P8C, 1 Port, Unshielded, Through Hole, Vertical, Tab-Down, No LED
Introduction:
This is a single port PCB mount grounded RJ45 socket engineered for stable vertical through hole attachment to networking circuit boards. Its glass reinforced PBT housing provides superior structural integrity and exceptional heat resistance during industrial wave soldering processes. The Phosphor Bronze contacts feature a premium Gold over Nickel finish to ensure high conductivity and a consistent 1.5A current rating. Utilizing a top-entry vertical configuration, the component effectively optimizes board surface area while providing a high insulation resistance of 1000MΩ. It handles peak dielectric voltages of 1000 VDC to maintain electrical safety in demanding environments. Technicians utilize this modular interface for industrial automation gear and networking hardware requiring space-efficient board connectivity.
Key Features
- Vertical Mounting Design: Facilitates stable top-entry connectivity on PCBs.
- Glass Reinforced PBT: High-strength housing ensures long-term mechanical durability.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- High Insulation Resistance: Maintains 1000MΩ for enhanced electrical safety.
- 8P8C Unshielded Interface: Provides standard modular connectivity for networking systems.
Main Specifications:
General Information:
| Product No.: | MTJ-88AVX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

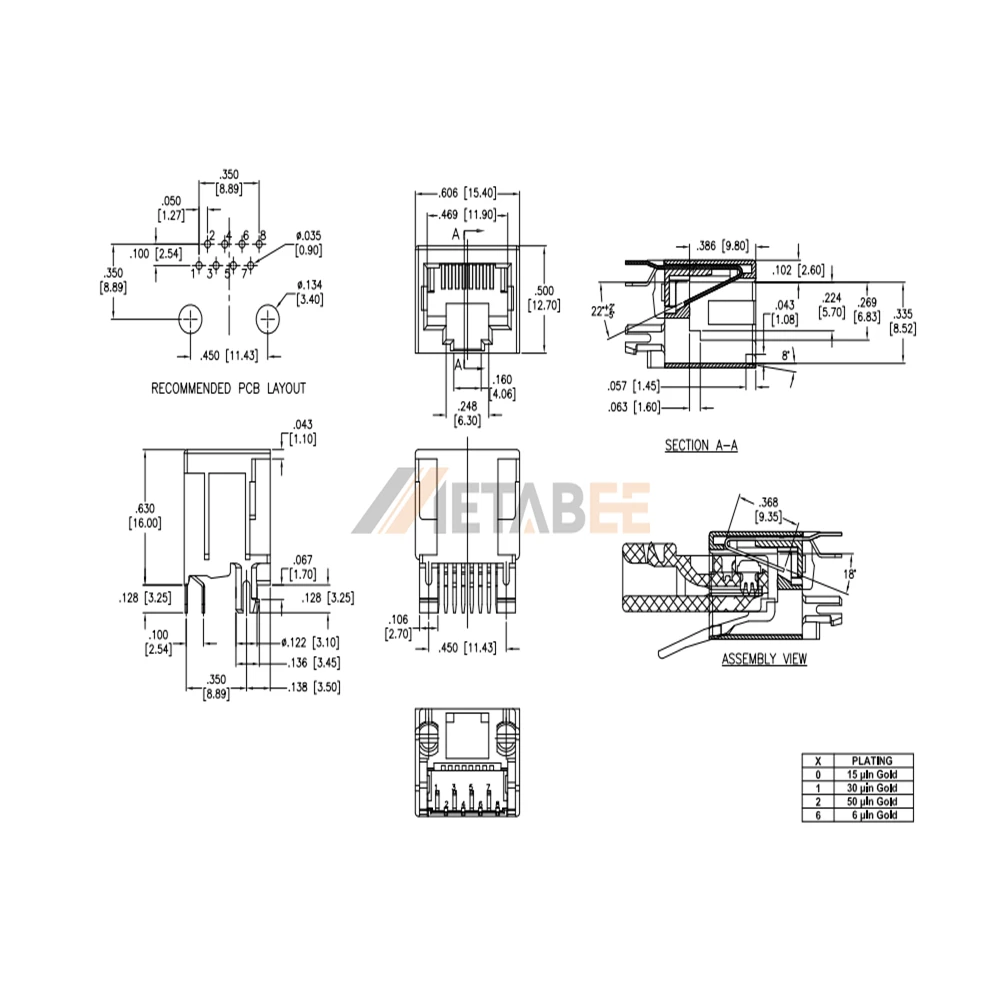

Structure of Modular Jack
