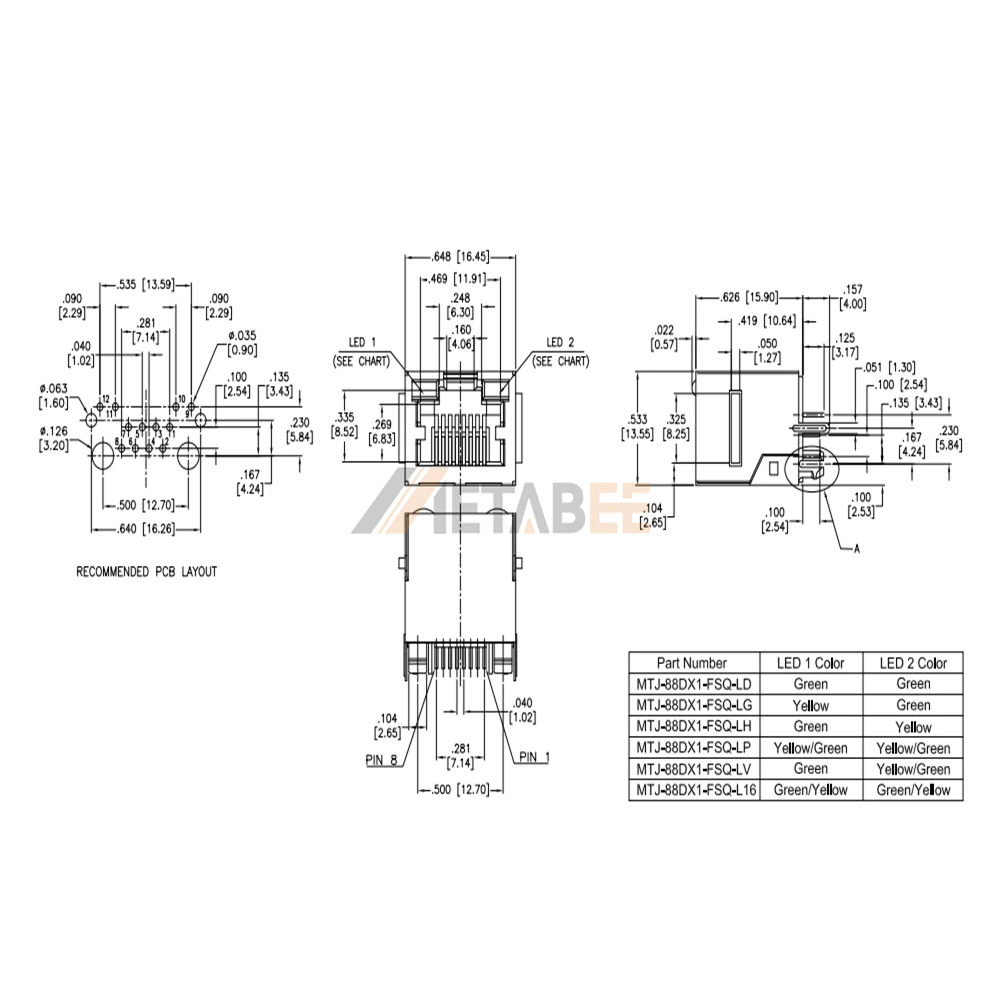

One Port 8P8C RJ45 Female Connector Socket, Unshielded, Tab-Up, Through Hole, Vertical, Green/Yellow – Green/Yellow
Introduction:
This is a single port 8p8c rj45 connector socket designed for stable top-entry through hole mounting on networking circuit boards. It features a glass-reinforced PA46 housing that provides exceptional structural strength and survives intense industrial soldering heat without warping. The Phosphor Bronze contacts include a premium Gold over Nickel finish to ensure high conductivity and a consistent 1.5A current rating. Utilizing a Tab-Up vertical configuration, this component optimizes board surface area while providing instant link diagnostics via integrated Green and Yellow LEDs. Technicians utilize this reliable interface for industrial automation systems and networking hardware requiring secure vertical board-to-cable connectivity across a wide -40°C to +85°C temperature range.
Key Features
- Vertical Mounting Design: Optimizes top-entry connectivity for compact PCB layouts.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Glass-Reinforced PA46: High-strength housing withstands intense industrial assembly heat.
- Integrated Status LEDs: Provides instant visual diagnostics for network activity.
- Wide Temperature Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88DX1-FSQ | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Green/Yellow, Right: Green/Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 VRMS for 1 minute |
Materials and Plating:
| Insulator Material: | PA46, glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
