Introduction:
Managing power and data simultaneously is efficient with this network PoE RJ45 magnetic jack port. It integrates a high-quality 10/100 BASE-T Ethernet transformer to handle signal filtering and provide essential electrical isolation. Because the port supports Power over Ethernet, it eliminates the need for separate power cables in networked devices. A nickel-plated brass shell with EMI fingers blocks interference to ensure signal clarity in noisy industrial environments. Engineers benefit from the Tab-Up configuration and board guides for precise mounting on compact circuit boards. Its rugged PA66 housing operates reliably across a wide temperature range from -40°C to 85°C.
Key Features
- PoE Integration: Handles power and 10/100 BASE-T data transmission.
- Integrated Magnetics: Built-in transformer filters noise for signal clarity.
- Industrial Temperature: Performs reliably from -40°C up to 85°C.
- Tab-Up Configuration: Optimizes mechanical fit for specific board layouts.
- EMI Finger Shielding: Blocks interference using a metallic brass shell.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-PG-VLG-M237 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ 85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack

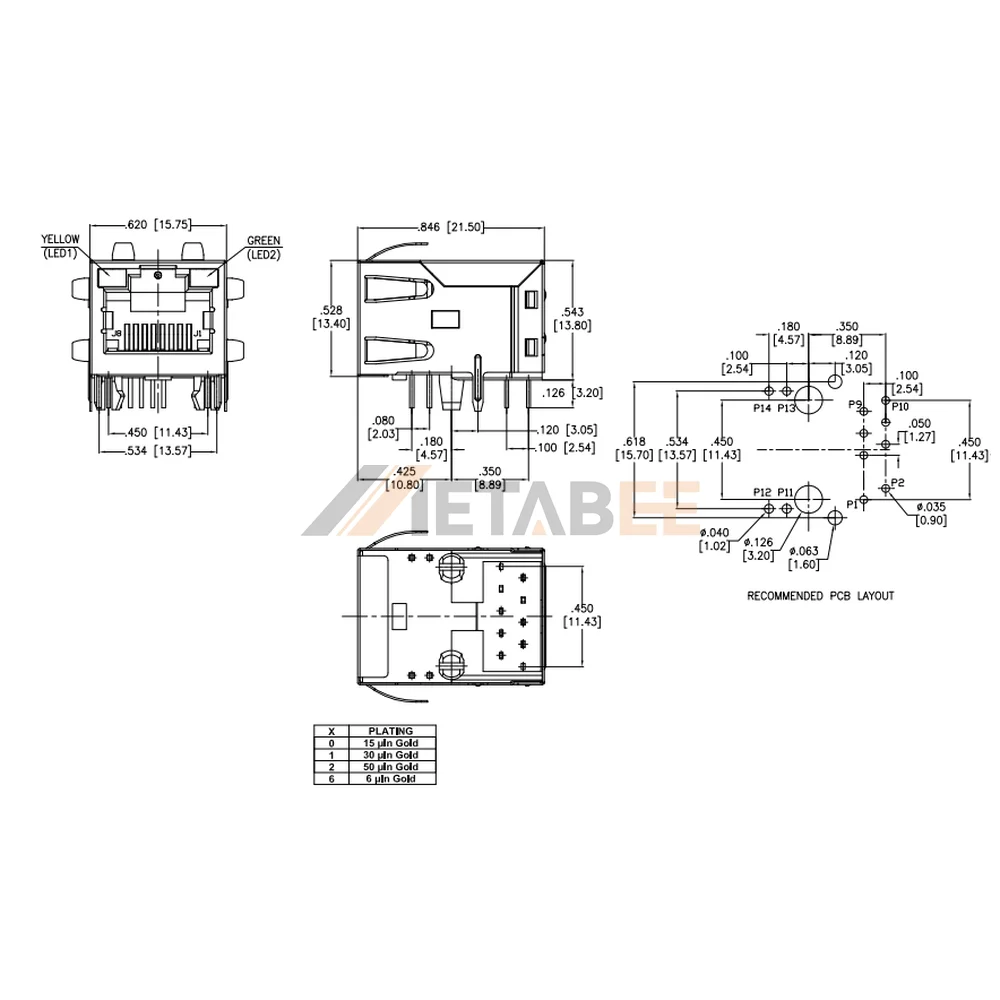

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
