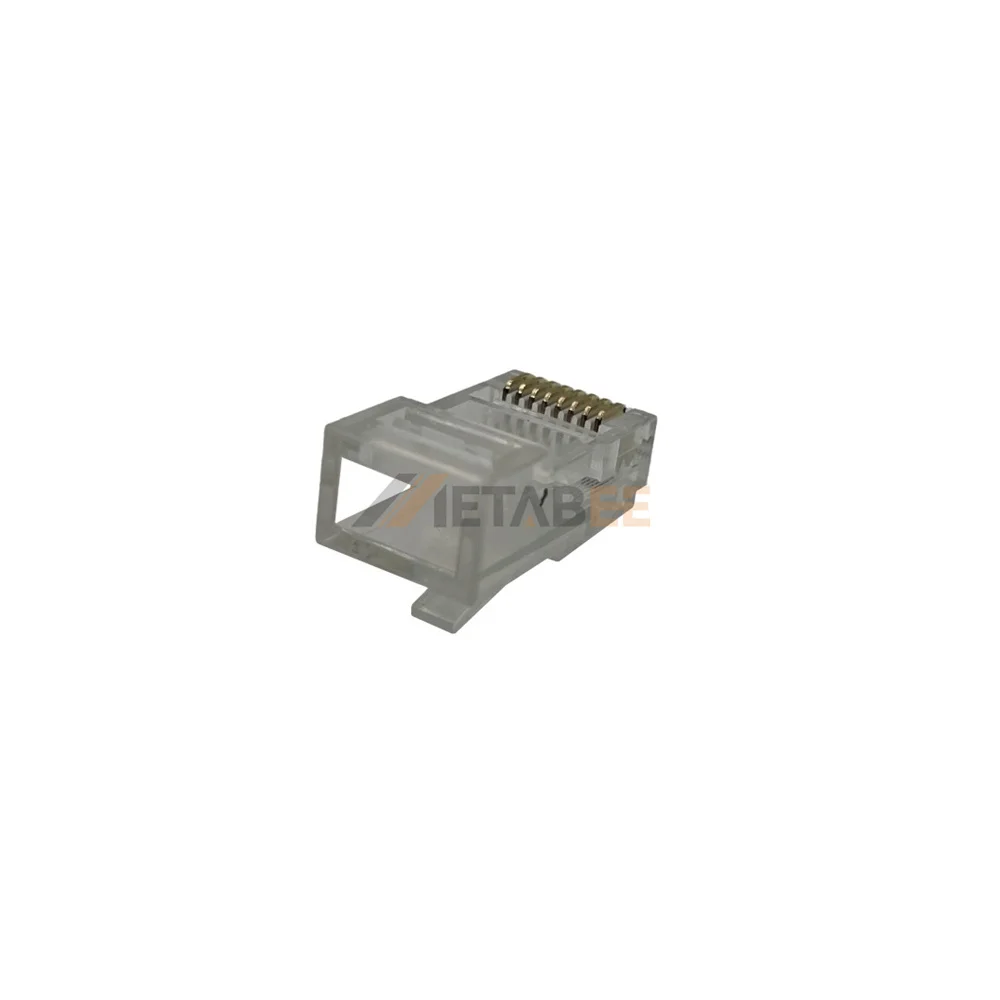

Network Plug RJ45 8P8C Modular Connector for Stranded Flat Cable, 24-26AWG, Unshielded, Cat3
Introduction:
This RJ45 network plug provides a reliable 8P8C interface for standard telecommunication systems. It is designed to terminate stranded flat cables with a wire range of 24-26 AWG effectively. The unshielded CAT3 rating supports efficient voice-grade transmission and lower-speed data networking. Its housing is made of clear polycarbonate, which allows for visual verification of the internal phosphor bronze contacts during assembly. With a current rating of 1.5 A and a dielectric withstanding voltage of 1000 VAC RMS, the connector maintains electrical stability. Technicians use this component for cable mount installations where consistent signal performance is required.
Key Features
- 8P8C RJ45 Interface: Provides standard modular connectivity for various network systems.
- Flat Stranded Support: Designed specifically for secure termination on flat cables.
- 24-26AWG Wire Range: Accommodates common copper wire sizes for versatile installations.
- Unshielded CAT3 Rating: Meets performance standards for reliable voice-grade applications.
- Phosphor Bronze Contacts: Ensures stable electrical conductivity and signal integrity.
Main Specifications:
General Information:
| Product No.: | MTP-88-X | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | Wire Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | CAT3 | |
| Wire Type: | Stranded | |
| Cable Type: | Flat | |
| Wire range: | 24-26AWG | |
| OD of the Individual Cable Core: | 0.89∼0.99 mm | |
| Body Length: | 22.44 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 VAC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VAC RMS for 1 minute |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Insulator Color: | Clear | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
