Network Ethernet Shielded RJ45 Jack with LED Lights, 8P8C, 1 Port, Tab-Down, Through Hole, R/A
Introduction:
This is a single port shielded network jack rj45 designed for secure right angle through hole mounting on printed circuit boards. It features a nickel-plated copper alloy shell equipped with EMI fingers to ensure superior panel grounding and signal protection against electromagnetic interference. The housing is crafted from glass-reinforced PBT to survive intense industrial wave soldering while maintaining high structural integrity across a temperature range of -40°C to +85°C. Integrated Green and Yellow LED lights provide immediate link diagnostics for various 1.5A networking circuits. Technicians utilize this robust socket for industrial automation systems and networking hardware requiring reliable board-level data links.
Key Features
- EMI Finger Shielding: Metallic shell with fingers ensures superior panel grounding.
- Integrated Status LEDs: Yellow and Green lights show network activity instantly.
- Glass-Reinforced PBT: High-strength housing withstands intense industrial assembly heat.
- Right Angle Layout: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88GX1-FSD-PG | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Shielded with EMI Finger | |
| LED indicator: | Multiple combinations |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

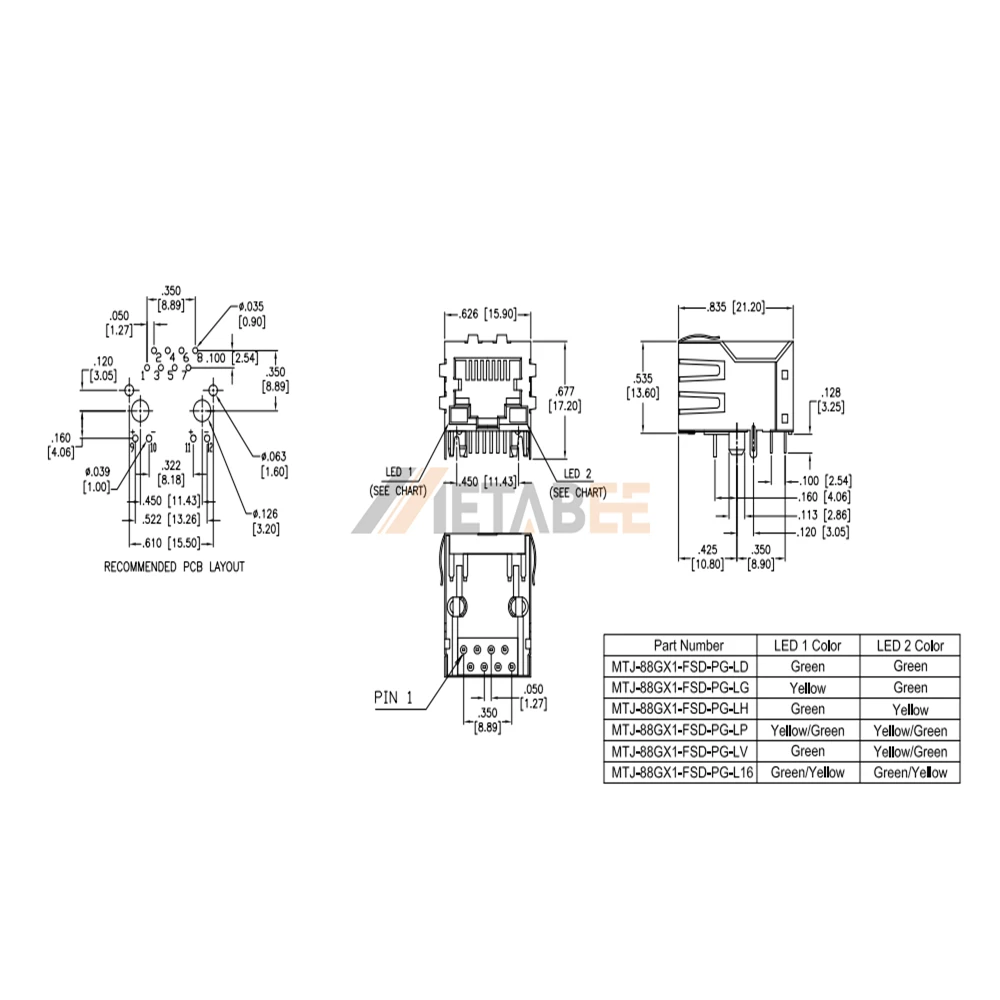

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
