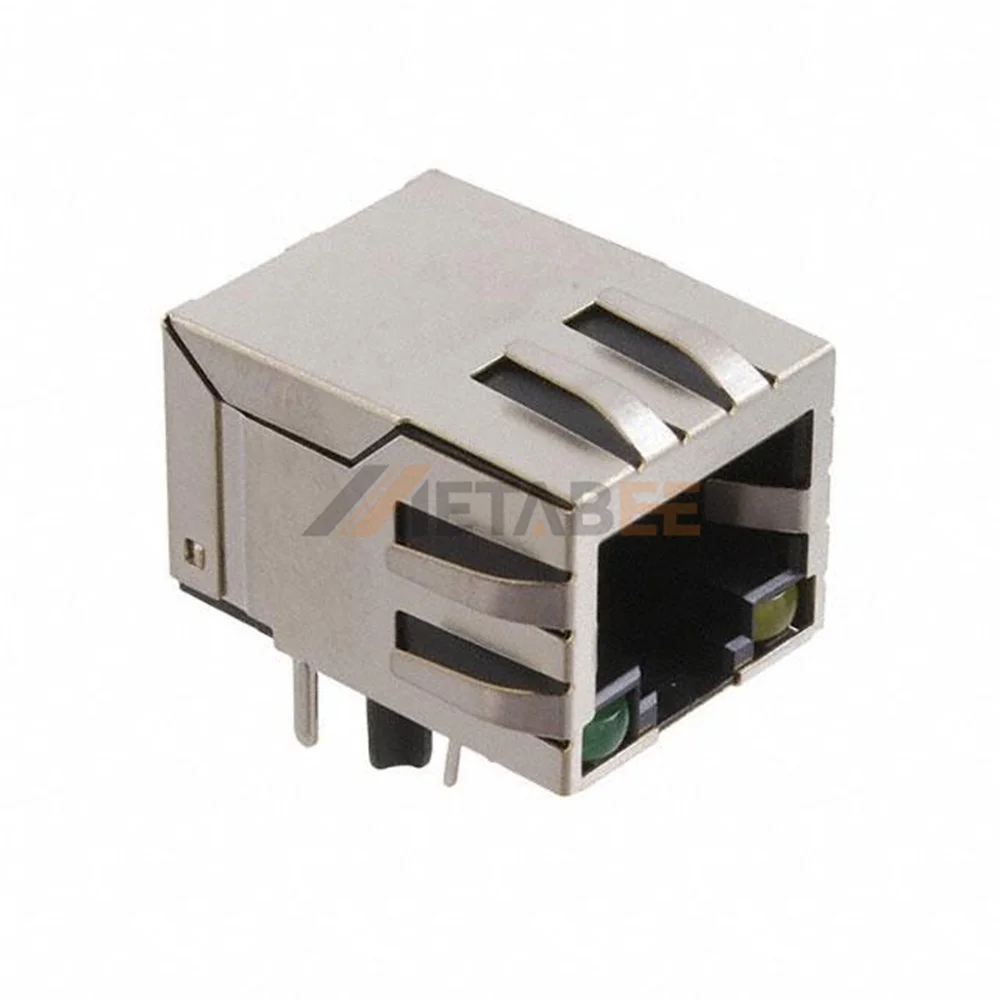

Modular RJ45 Jack ICM Ethernet Port, 10/100 Base-T, Shielded with EMI, THT, R/A, Green/Yellow LEDs
Introduction:
This professional RJ45 icm ethernet port combines a standard connector with high-quality internal magnetics to filter signal noise. By housing the 10/100 Base-T transformers inside the unit, it eliminates the need for extra discrete parts on your PCB. The nickel-plated copper alloy shell provides a strong shield against EMI to maintain data stability in busy networking environments. On the front panel, integrated green and yellow LEDs offer a quick way to monitor link status and data flow. Since it features a right angle THT design with board guides, the jack ensures a secure and lasting mechanical fit. Industrial designers value this modular solution for its space-saving profile and robust electrical isolation.
Key Features
- Integrated Magnetics: Filters signal noise for stable 10/100 Base-T data.
- Full EMI Shielding: Blocks outside interference using a rugged metallic shell.
- Status Indicator LEDs: Provides instant visual feedback for network activity.
- Right Angle Design: Optimizes board space for compact electronic devices.
- Solder Retention Features: Ensures a strong mechanical attachment to the PCB.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LH-M4 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
