Introduction:

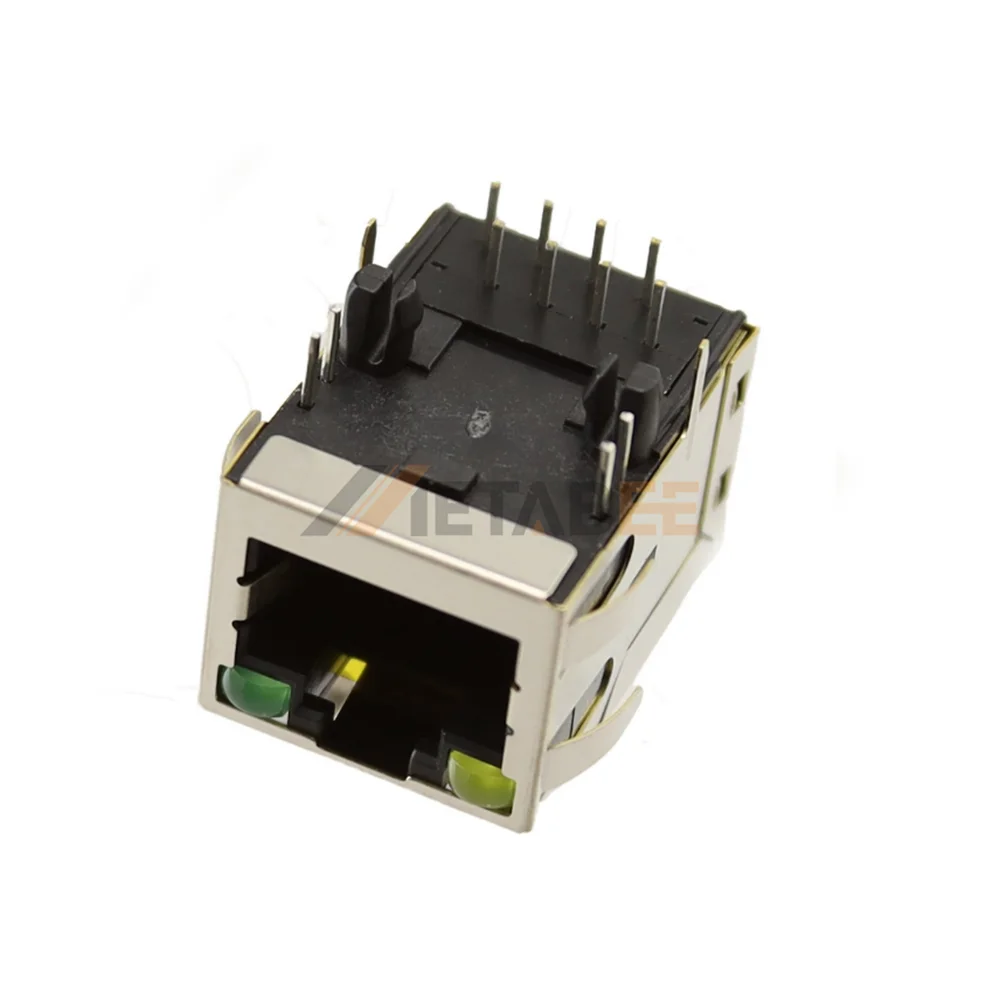

Enhancing network reliability is easier when using this modular jack RJ45 integrated magnetics to handle signal conditioning. It combines a standard physical port with internal transformers that filter out electrical noise for steady 10/100 Base-T performance. Because the unit houses the magnetic components, you save valuable board space and simplify your overall circuit design. The rugged brass shell features a nickel plating to provide a solid shield against outside interference. Dual yellow and green LEDs are positioned for clear visibility to monitor link status instantly. Its right angle profile and board lock design ensure a secure and lasting mechanical connection to the PCB.
Key Features
- Integrated Magnetics: Filters noise for stable 10/100 Base-T links.
- Full EMI Shielding: Blocks interference with a nickel-plated brass shell.
- Status Indicator LEDs: Yellow and green lights show network activity instantly.
- Secure Board Lock: Ensures a strong mechanical attachment to the PCB.
- Right Angle Profile: Saves vertical space on compact through hole boards.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-PG-VLG1-M4C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ 85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
