Introduction:
Providing a reliable solution for high-speed data transmission, this RJ45 ethernet connector features a standard 1×1 port 8P8C configuration. The housing is constructed from high-temperature Nylon 46, which ensures the component can withstand the intense heat of industrial wave soldering processes. Because it utilizes a right-angle orientation and a tab-up latch design, it optimizes space on compact PCB layouts while allowing for easy cable access. Its phosphor bronze contacts are finished with gold plating to maintain excellent electrical conductivity and prevent oxidation over time. This unshielded modular jack relies on through-hole mounting to achieve superior mechanical stability on the board. With a 1.5A current rating, it is a versatile choice for modern telecommunication systems and consumer electronic devices.
Key Features
- High-Speed Connectivity: Supports efficient 8P8C data transmission for networks.
- High-Temp Nylon 46: Housing survives intense heat during industrial soldering.
- Gold Plated Contacts: Ensures superior signal conductivity and corrosion resistance.
- Tab-Up Orientation: Top-latch design simplifies cable insertion and removal.
- Through Hole Mounting: Solder tails offer strong mechanical PCB stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88CPX1D-HT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | N/A | |
| Performance Category: | N/A | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-up | |
| Shielding: | Unshielded | |
| LED Indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 35mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Nylon46 | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

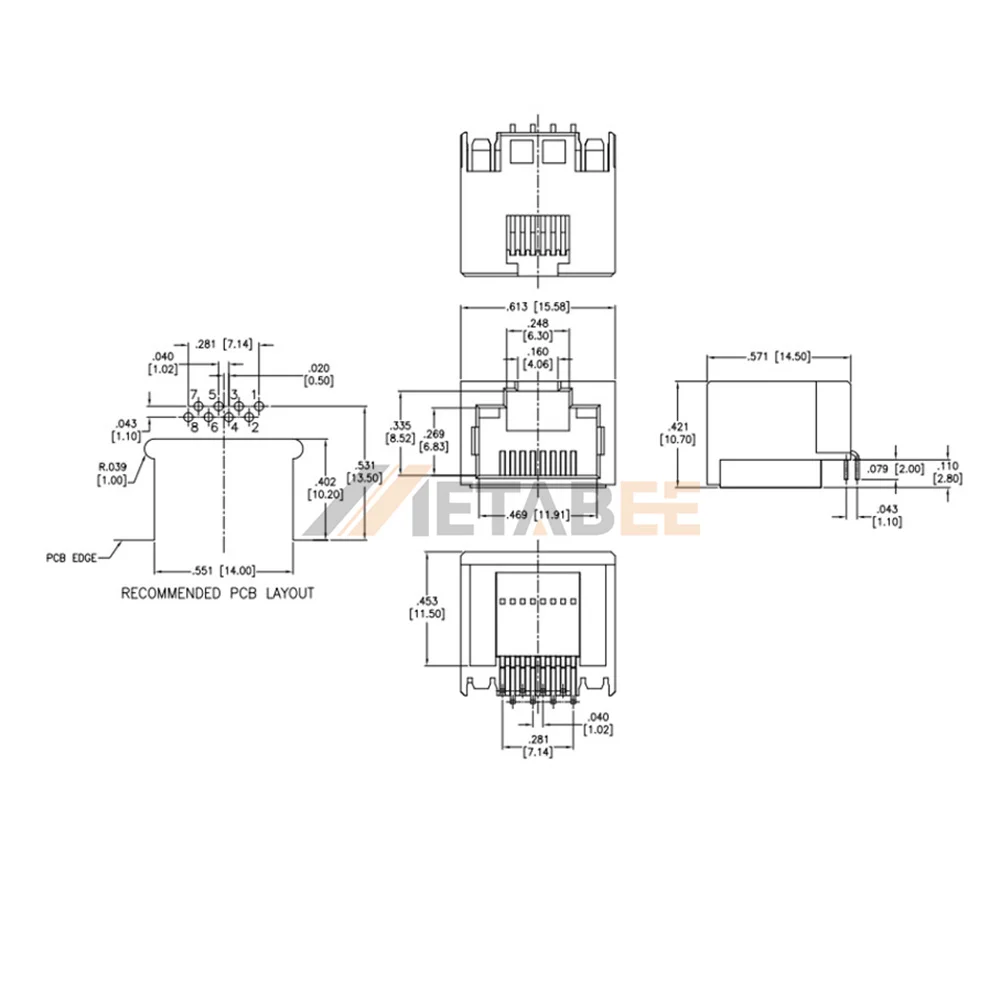

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
