Introduction:
Delivering both power and reliable data transmission, this Modular Jack PoE RJ45 with Integrated Magnetics streamlines the layout of network-ready hardware. Internal filters manage 100BASE-T signal conditioning while handling Power over Ethernet requirements in a single compact port. Because it features a Tab-Up configuration, designers can optimize board layouts where traditional connectors might interfere with nearby components. A nickel-plated brass shell with EMI fingers blocks external interference to ensure signal clarity. Monitoring network activity is effortless due to the built-in green and yellow status indicators. Thanks to the secure board lock mechanism, the right angle connector maintains a stable mechanical attachment to the PCB throughout its service life.
Key Features
- PoE Integration: Handles power and 100BASE-T data links simultaneously.
- Integrated Magnetics: Filters electrical noise for stable network performance.
- Full EMI Shielding: Blocks outside interference using a rugged brass shell.
- Tab-Up Design: Optimizes fit for specific compact board layouts.
- Secure Board Lock: Ensures strong mechanical attachment to the PCB.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-PG-VLH-M262C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

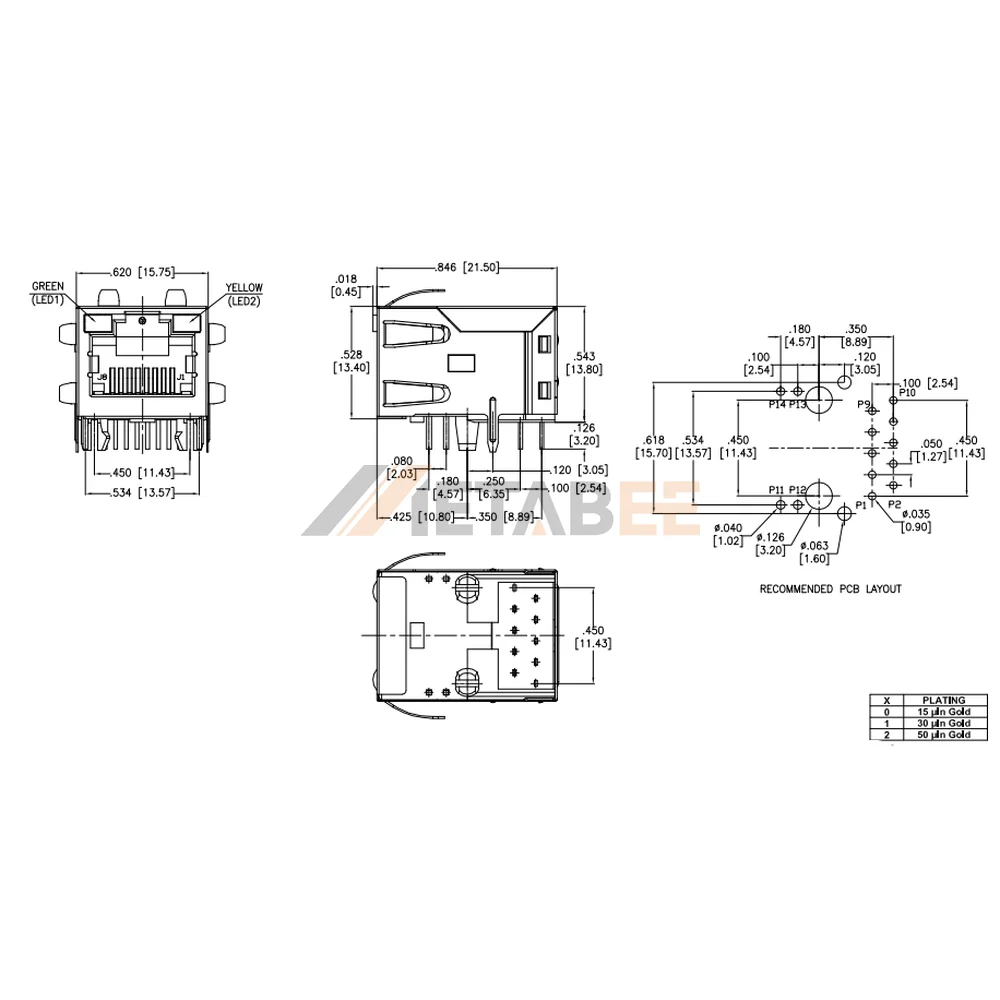

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
