Introduction:

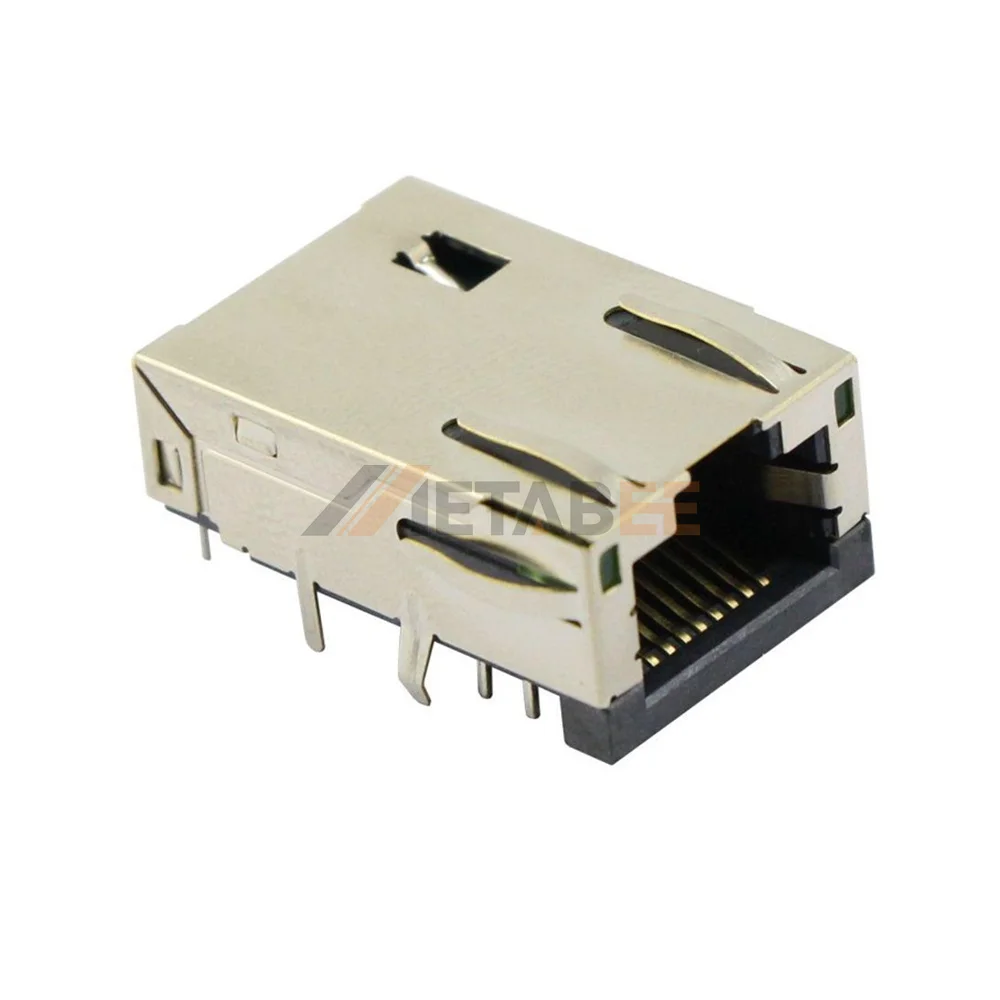

This high-quality RJ45 magjack is a single port female connector designed for reliable PCB mounting. It features a right-angle orientation that simplifies integration into standard networking equipment and space-constrained devices. The 8P8C interface is complemented by integrated yellow and green LEDs to provide immediate visual feedback on link status. With its robust shielded housing, the connector effectively prevents electromagnetic interference to maintain signal integrity. The through-hole design ensures a secure mechanical bond to the board for long-term durability. It is an ideal choice for telecommunication devices and routers requiring a stable modular connection.
Key Features
- Status Indicators: Integrated yellow and green LEDs show network activity.
- EMI Protection: Metal shielded housing prevents signal interference effectively.
- Right Angle Design: 90-degree orientation fits standard PCB edge layouts.
- Secure Mounting: Through hole PCB mount ensures strong mechanical stability.
- Standard Interface: Reliable 1 port 8P8C female modular connector configuration.
Main Specifications:
General Information:
| Product No.: | MTJ-88AGX1-FS-VLG-M374C-WOT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Performance Category: | CAT6 | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-up | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 500 VDC for 1 minute |
Materials and Plating:
| Housing Material: | PA66 | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
