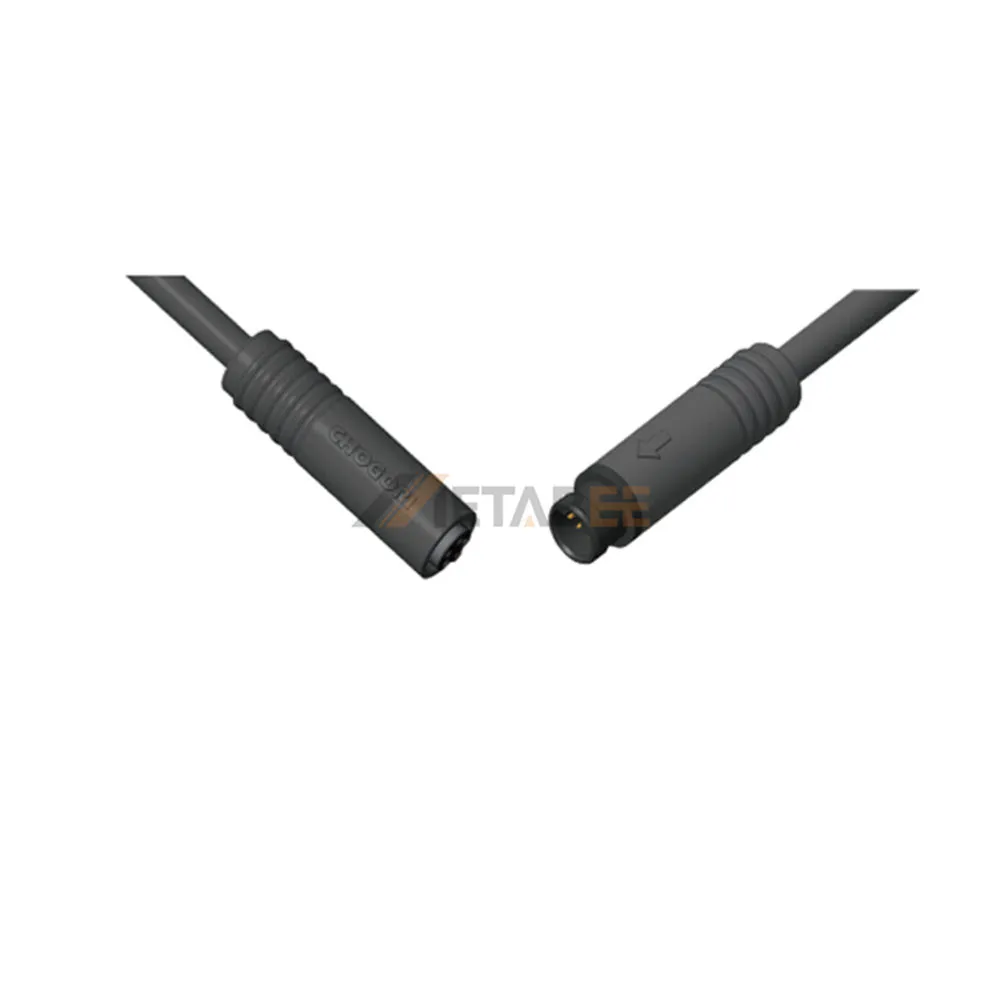

Mini LEV Signal Connector, Quick-lock, 2+3 Pin, IP66
Introduction
Mini LEV signal connector, quick-lock, 2+3 pin. This compact connector features a 2+3 pin layout with a quick-lock mechanism for fast, secure mating in light electric vehicle signal applications. The UL94V-0 flame-retardant housing and IP66 rating provide strong protection against dust and powerful water jets. Operating from -40°C to 105°C, it ensures stable signal integrity across extreme conditions.
Key Features:
- 2+3 pin compact signal layout
- Quick-lock mechanism for fast mating
- IP66 dust-tight and water-jet protection
- UL94V-0 flame-retardant housing
- Wide -40°C to 105°C operating range
- Reliable signal integrity for LEV systems
Main Specifications:
General Information:
| Part No.: | YC-E1001-0044 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+3 Pin | |
| Wire Gauge: | 22AWG/0.32mm²+24AWG/0.2mm² | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 48V AC/60V DC | |
| Rated Current: | 3.5A+2A | |
| Insulation Resistance: | 20MΩ at 500V DC | |
| Withstanding Voltage: | 500V AC | |
| Durability (Mating): | 200 Cycles |
Environmental Performance:
| IP Rating: | IP66 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
