Introduction:
Operating at 10/100 Base-T speeds, this single-port RJ45 socket integrates magnetics for efficient network connectivity. The component utilizes a nickel-plated copper alloy shield to block electromagnetic interference effectively. Designed for through-hole mounting, the right-angle form factor includes a board lock to secure the connector firmly to the PCB. Visual monitoring of port status is simplified by built-in yellow and green LEDs within the tab-up housing. Gold-plated phosphor bronze contacts maintain low resistance, ensuring consistent signal quality across the 0°C to 70°C temperature range.
Key Features
- 10/100 Base-T Performance: Supports standard Fast Ethernet data transmission rates.
- Full Metal Shielding: Reduces EMI with nickel-plated copper alloy housing.
- Integrated Status LEDs: Yellow and green indicators display link activity.
- Mechanical Board Lock: Enhances PCB retention for stable through-hole mounting.
- Durable Contact Finish: Gold plating over nickel ensures reliable conductivity.
Main Specifications:
General Information:
| Product No.: | MTJ-88SX1-FSP-PG-LG-M4D | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Polyester | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

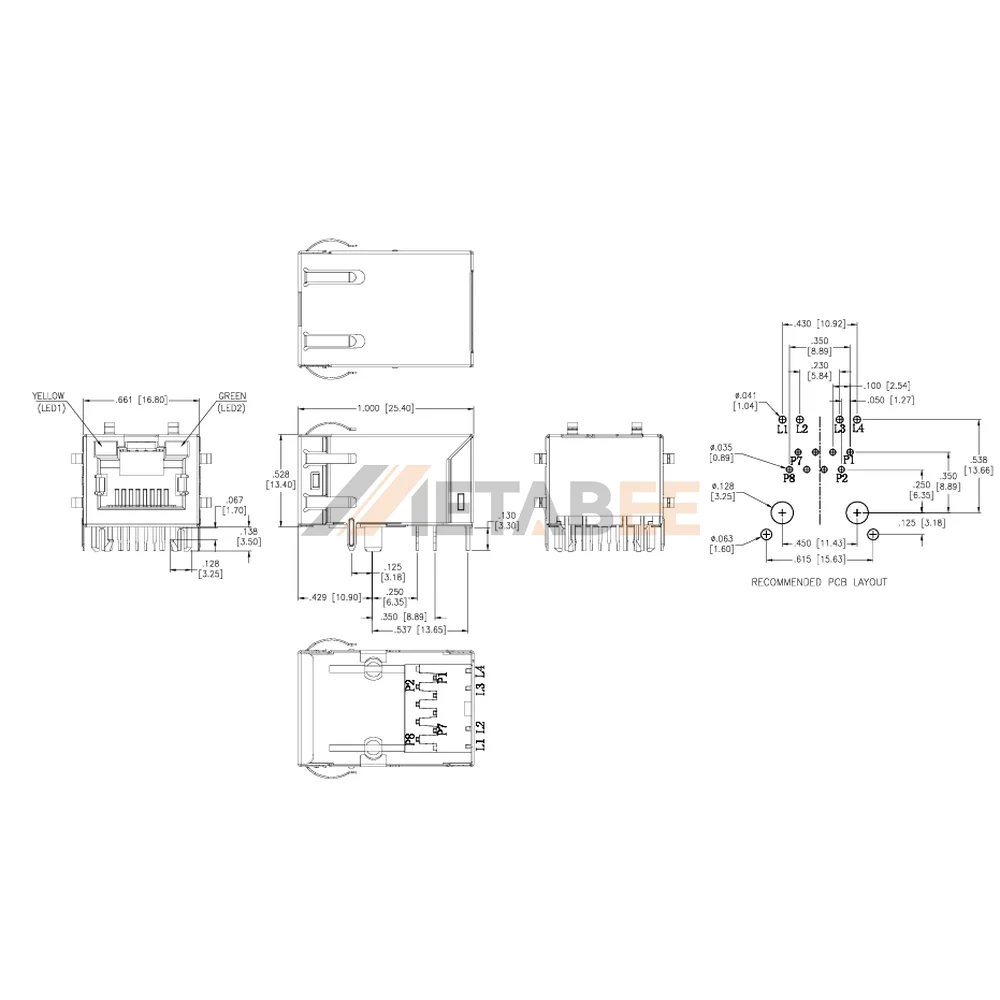

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
