Introduction:
High-speed Gigabit networks demand reliable components, making the 1000Base RJ45 modular jack an ideal solution for 1000Base-T applications. A premium nickel-plated copper alloy shield completely encapsulates the component to prevent electromagnetic interference during heavy data traffic. Space-conscious printed circuit board designs benefit immensely from the streamlined tab-down profile that operates cleanly without visual LED indicators. To guarantee precise and highly stable right-angle through-hole mounting, the black thermoplastic housing incorporates a practical board guide alongside solder retention features. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20mΩ to secure flawless data transmission across standard commercial operating temperatures.
Key Features
- 1000 Base-T Speed: Handles high-speed Gigabit Ethernet data transmission seamlessly.
- Copper Alloy Shielding: Full metal housing blocks electromagnetic interference effectively.
- Streamlined Tab-Down Design: Compact profile operates cleanly without LED indicators.
- Enhanced PCB Mounting: Board guide and solder retention ensure physical stability.
- Low Resistance Contacts: Gold plating securely maintains <20mΩ electrical resistance.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-M286 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

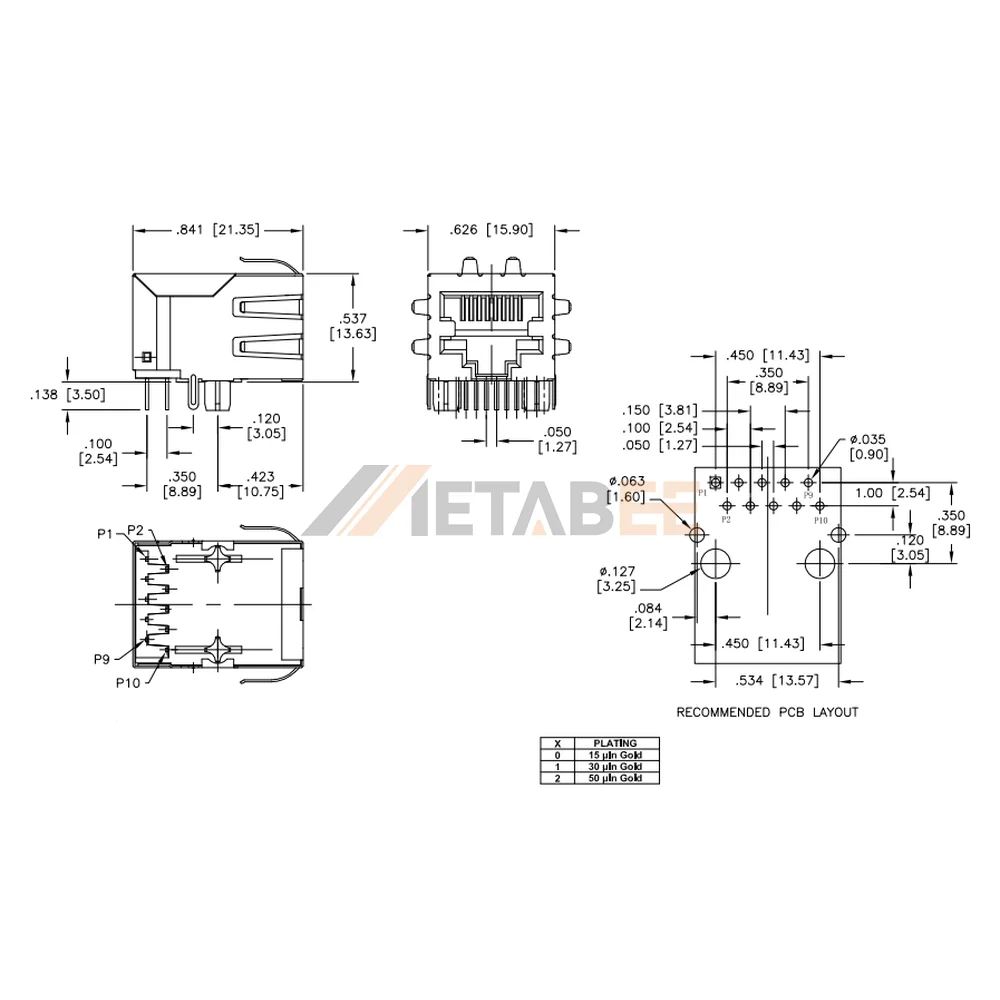

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
