Introduction:
Integrating a magnetic transformer on an RJ45 connector helps streamline networking hardware by combining signal filtering into a single interface. Internal transformers manage 100Base-T signal conditioning while protecting sensitive chips from high-voltage surges. Because it features a Tab-Up configuration, the connector fits easily into specific PCB layouts where traditional orientations might conflict with nearby parts. A nickel-plated brass shell with EMI fingers blocks external interference to maintain steady data transmission in noisy environments. Technicians rely on its rugged thermoplastic housing and wide -40°C to 85°C range for durable industrial use. The built-in board lock ensures the right angle jack stays firmly attached during assembly and daily operation.
Key Features
- Integrated Magnetics: Filters signal noise and provides electrical isolation.
- Full EMI Shielding: Blocks external interference using a nickel-plated shell.
- Industrial Temperature: Performs reliably from -40°C up to 85°C.
- Tab-Up Configuration: Fits specialized PCB layouts to optimize board space.
- Secure Board Lock: Ensures strong mechanical attachment on networking boards.

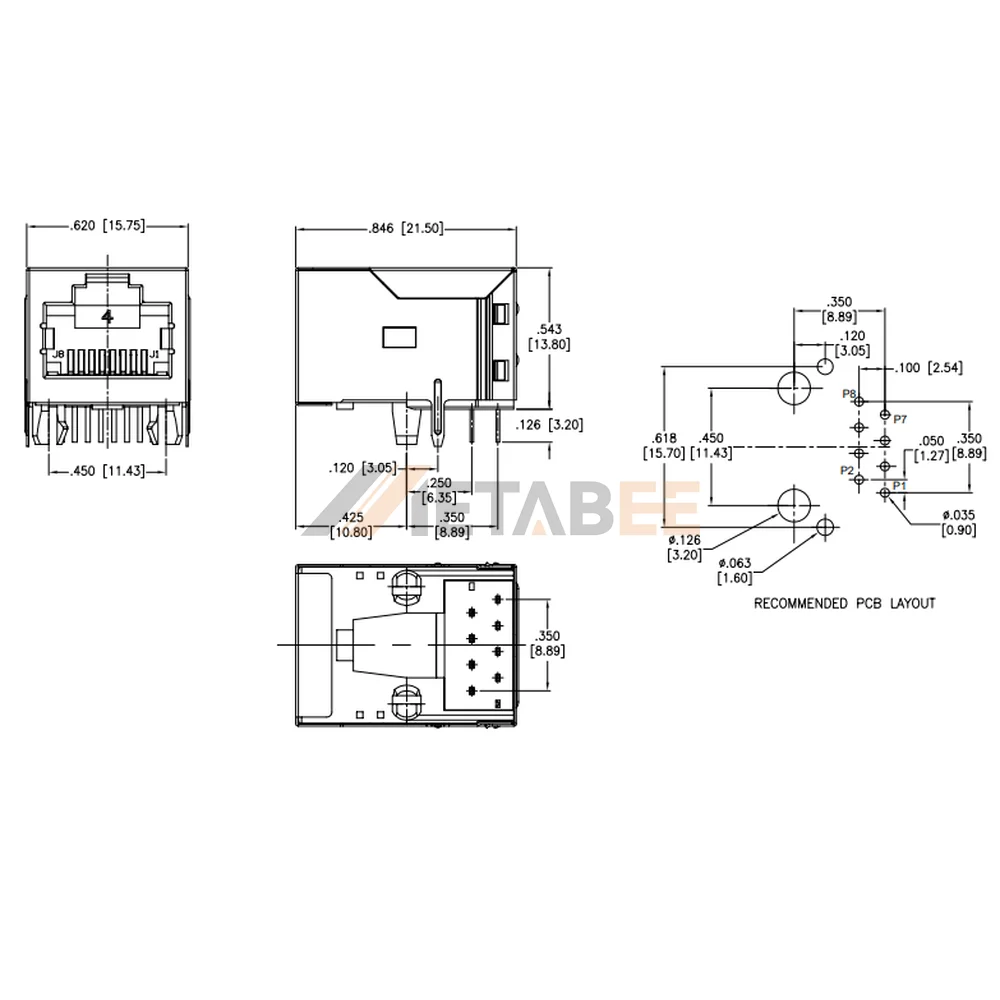

Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-M162C-A | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ 85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
