Magnetic RJ45 Modular Jack, 1 Port, 10/100 Base-T, Shielded with EMI, THT, R/A, Yellow/Green LEDs
Introduction:
Adding high-speed network support to your hardware becomes simpler when using this magnetic rj45 modular jack to handle signal filtering. Integrated transformers inside the shell provide critical electrical isolation while maintaining steady 10/100 Base-T data flow. By blocking electromagnetic interference with EMI fingers and a full brass shield, the port ensures clear communication in noisy environments. The right angle THT design includes board guides and solder retention features to keep the connector firmly attached during the assembly process. You can monitor link status instantly through the bright yellow and green LEDs located on the front panel. Thermoplastic housing and gold-plated phosphor bronze contacts ensure the jack withstands long-term use in standard operating temperatures.
Key Features
- Integrated Magnetics: Provides 10/100 Base-T signal filtering and isolation.
- Full EMI Shielding: Blocks interference to protect high-speed data links.
- Yellow/Green LEDs: Offers instant visual monitoring of network activity.
- Right Angle Mounting: Optimizes space on through hole PCB boards.
- Solder Retention: Board guides ensure a stable mechanical attachment.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSE-PG-LG-M5Y | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

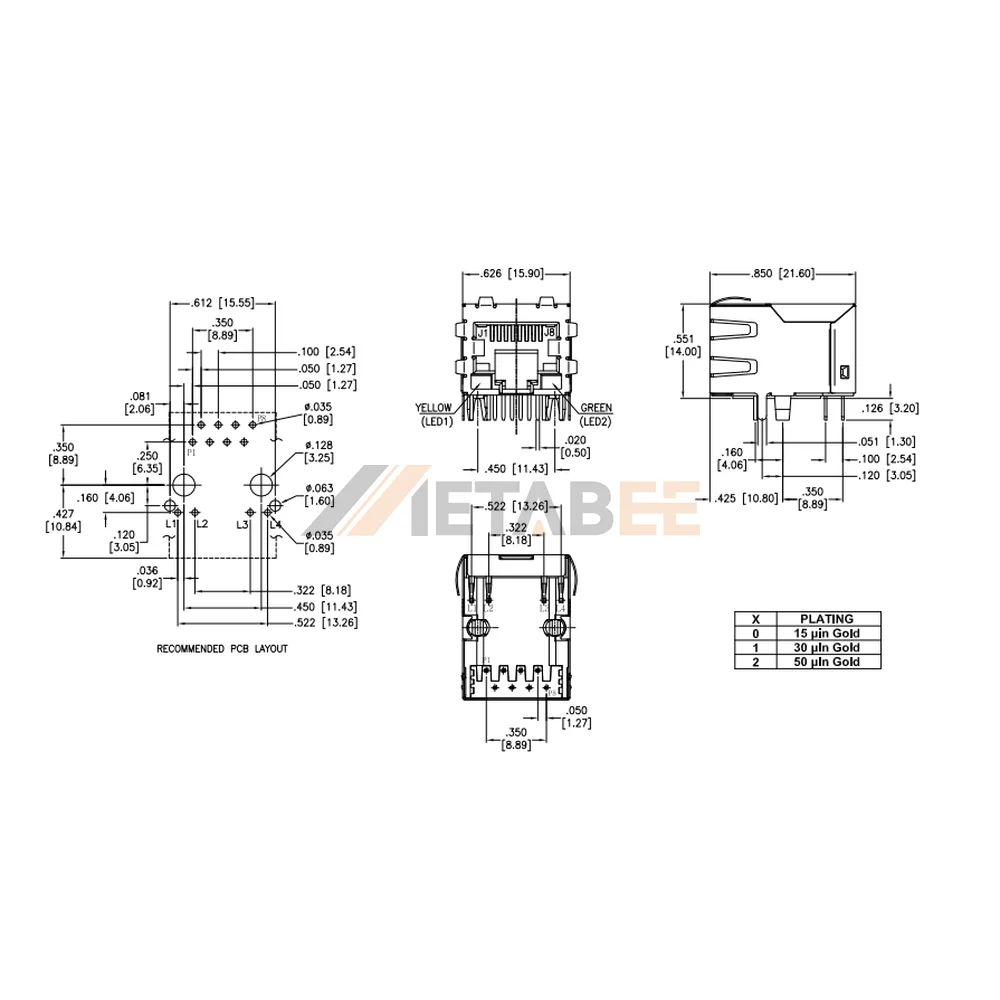

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
