Magnetic RJ45 Jack with LEDs, 10/100 Base-T, Shielded with EMI, THT, R/A, Green/Yellow LEDs
Introduction:
Incorporating signal filtering directly into the connector, this magnetic rj45 jack ensures clear 10/100 Base-T data transmission for various networking applications. High-quality transformers inside the unit isolate sensitive circuits from electrical surges while reducing board complexity by replacing discrete components. The stainless steel shell features EMI fingers to block unwanted interference in crowded electronic environments. Because it uses hi-temp thermoplastic and phosphor bronze contacts, the port maintains stable conductivity through thousands of connection cycles. Dual green and yellow LEDs provide instant diagnostic feedback on link activity at a glance. Integrated board guides and solder retention features make the through hole mounting process both fast and mechanically secure.
Key Features
-
Integrated Magnetics: Provides 10/100 Base-T signal filtering and isolation.
-
Stainless Steel Shielding: Blocks EMI to protect data integrity and speed.
-
Status Indicator LEDs: Green and yellow lights show network activity instantly.
-
High-Temp Insulator: Withstands industrial soldering processes and frequent use.
-
Board Guide System: Ensures a stable and secure mechanical PCB fit.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LH-M41 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | N/A | |
| Rated Voltage: | N/A | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

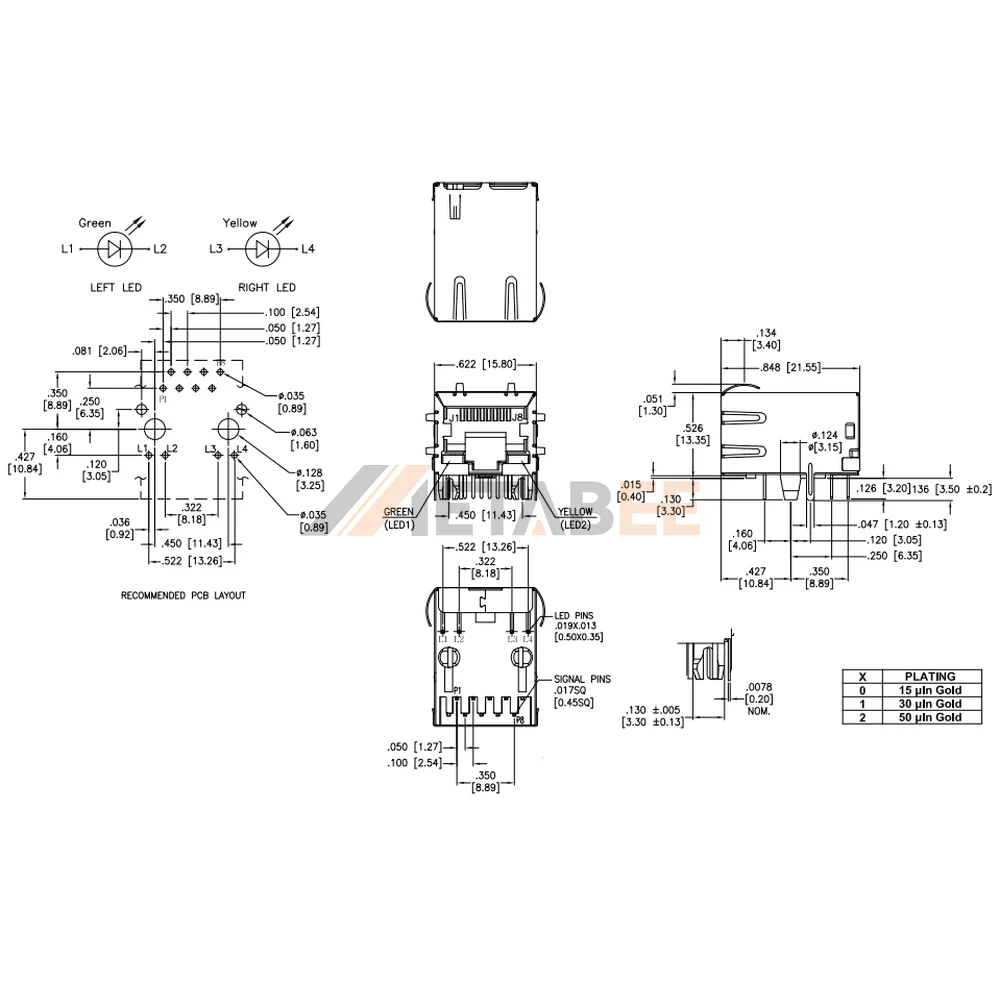

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
