Introduction:
This magnetic pogo pin connector is a 2 pin female terminal designed for precise electrical docking. It features a rounded rectangular housing with a standard 2.54mm pitch for seamless device integration. The assembly utilizes an N48 nickel plated magnet to provide strong attraction for automatic self-alignment during the charging cycle. Supporting a 1A current rating at 12VDC, it uses brass contacts with 10u” gold plating to ensure stable electrical conductivity. This component acts as a reliable quick-release interface for smart wearables and modular hardware requiring secure physical alignment and low-profile connectivity.
Key Features
- Magnetic Alignment: N48 magnet ensures automatic self-aligning secure docking.
- Precise Pitch: Standard 2.54mm pitch facilitates easy circuit integration.
- Stable Power: Supports 1A current and 12VDC for charging.
- Thick Plating: 10u” Gold plating prevents oxidation and corrosion.
- High Stability: Hi-Temp Thermoplastic ensures durable performance in devices.
Main Specifications:
General Information:
| Product No.: | PH1-3F-02-FVMP-6910 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 2 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rounded Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.54mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 1A | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50 mohms max |
Materials and Plating:
| Insulator Material: | Hi-Temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 10u” Gold plated over Nickel | |
| Spring Material: | N/A | |
| Magnet: | N48, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +150°C | |
| Flammability Rating: | UL 94 V-0 |

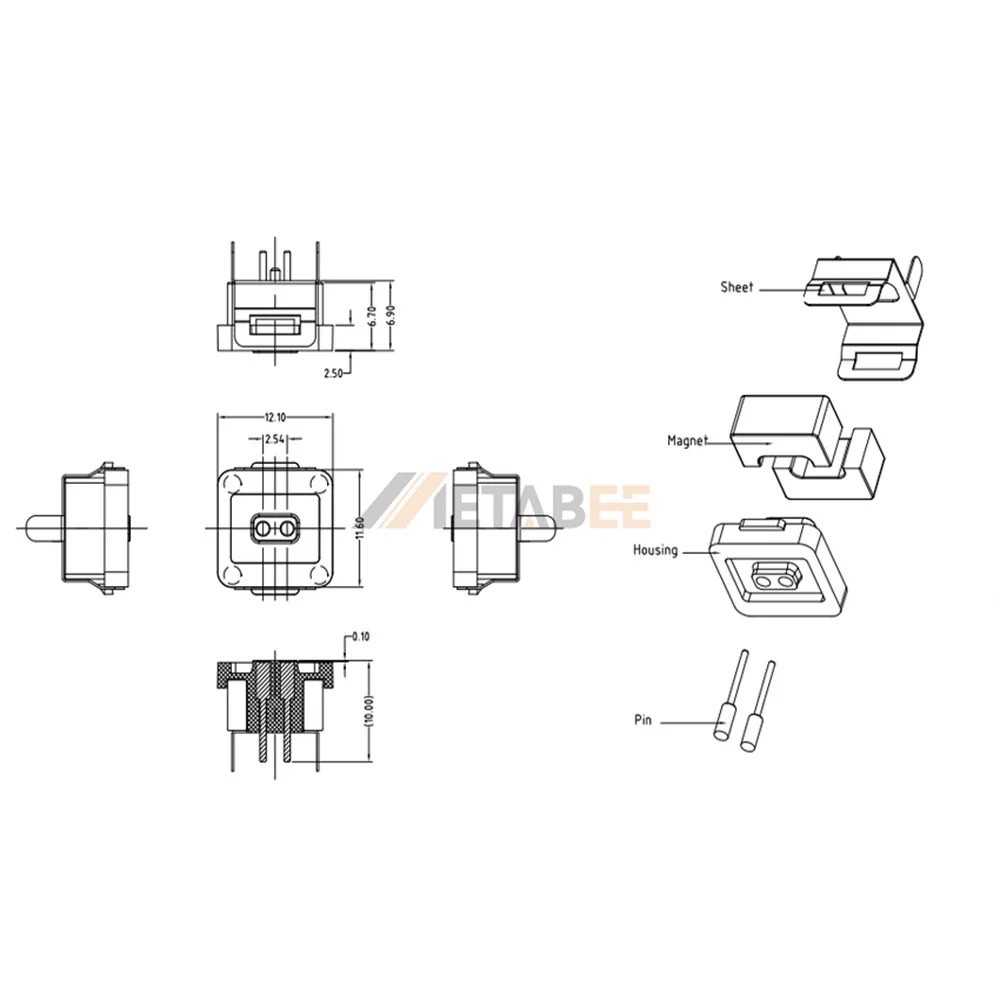

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
