Introduction:
Industrial networks require resilient components, and the magnetic Ethernet connector RJ45 jack delivers reliable 10/100 Base-T connectivity across a harsh -40°C to 85°C temperature range. A full nickel-plated copper alloy shield equips the module against severe electromagnetic interference during daily operations. To ensure secure printed circuit board integration, the right-angle architecture utilizes a strong board lock alongside durable black PBT insulation. For instant visual feedback, yellow and green LEDs are neatly housed within the tab-up configuration. Furthermore, gold-plated phosphor bronze contacts maintain electrical resistance strictly below 50mΩ to guarantee long-term signal integrity.
Key Features
- Extreme Temperature Resistance: Operates reliably from -40°C to 85°C.
- 10/100 Base-T Networking: Facilitates standard Fast Ethernet data transmission.
- Copper Alloy Shielding: Full metal housing minimizes electromagnetic interference.
- Durable PBT Insulation: Black thermoplastic withstands severe environmental stress.
- Status Indicator LEDs: Yellow and green lights show network activity.
Main Specifications:
General Information:
| Product No.: | MTJ-88SX1-FSD-LG-M13 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 50mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

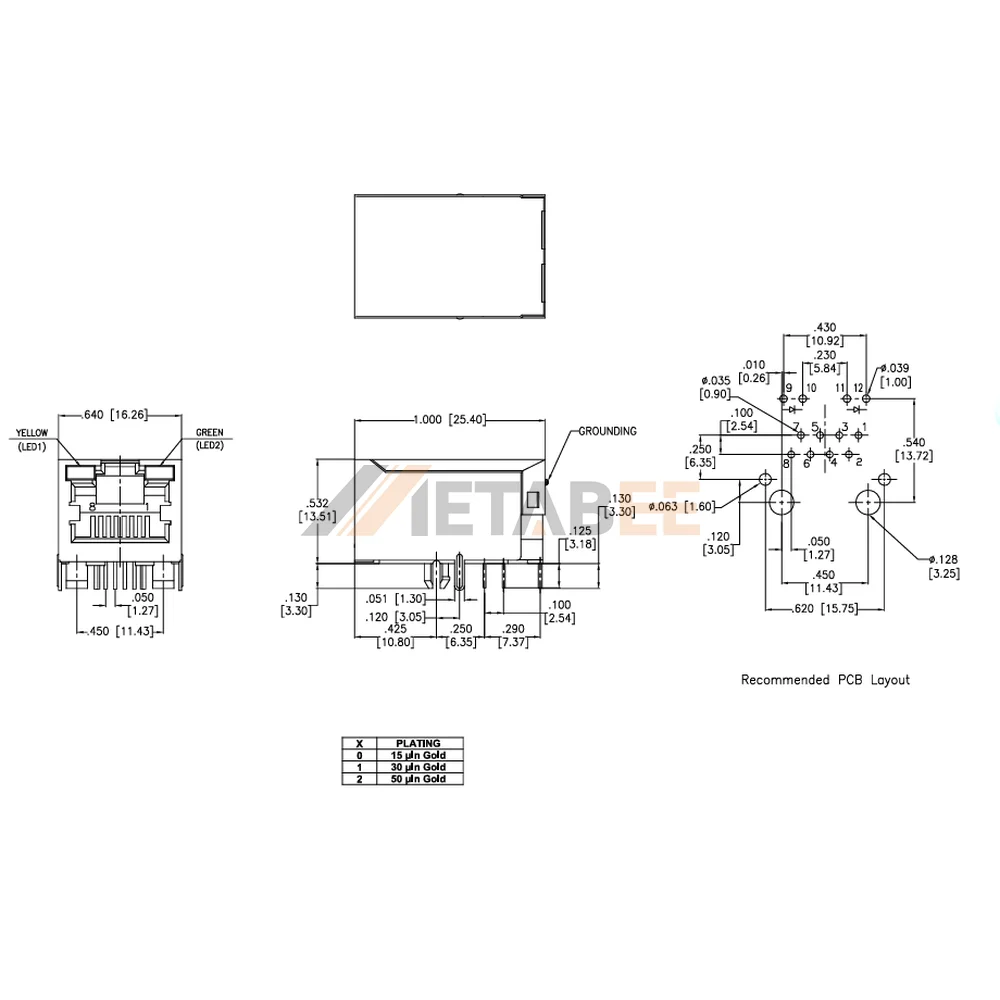

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
