Magjack RJ45 with Integrated Magnetics and Leds, 1 Port, 10/100 Base-T, Shielded, THT, R/A, Yellow/Green
Introduction:
By combining essential filtering parts inside a single shell, this magjack RJ45 with integrated magnetics and LEDs helps simplify your networking hardware. Integrated transformers effectively separate high-voltage noise from sensitive chips while supporting steady 10/100 Base-T data speeds. The metallic copper alloy housing acts as a protective shield against electromagnetic interference in crowded electronic environments. Users can instantly track connection status by observing the yellow and green lights on the front of the port. Its right angle through hole design ensures the jack stays firmly attached to the circuit board without taking up too much vertical space. Gold over nickel plating on the contacts provides a long-lasting electrical link that resists oxidation over time.
Key Features
- Integrated Magnetics: Built-in filters ensure steady 10/100 Base-T data flow.
- Full Metal Shielding: Copper alloy shell blocks outside signal interference.
- Status Indicator LEDs: Built-in yellow and green lights show network activity.
- Right Angle Mount: Compact shape optimizes space on networking circuit boards.
- Gold Plated Contacts: Delivers superior conductivity for long-term electrical links.

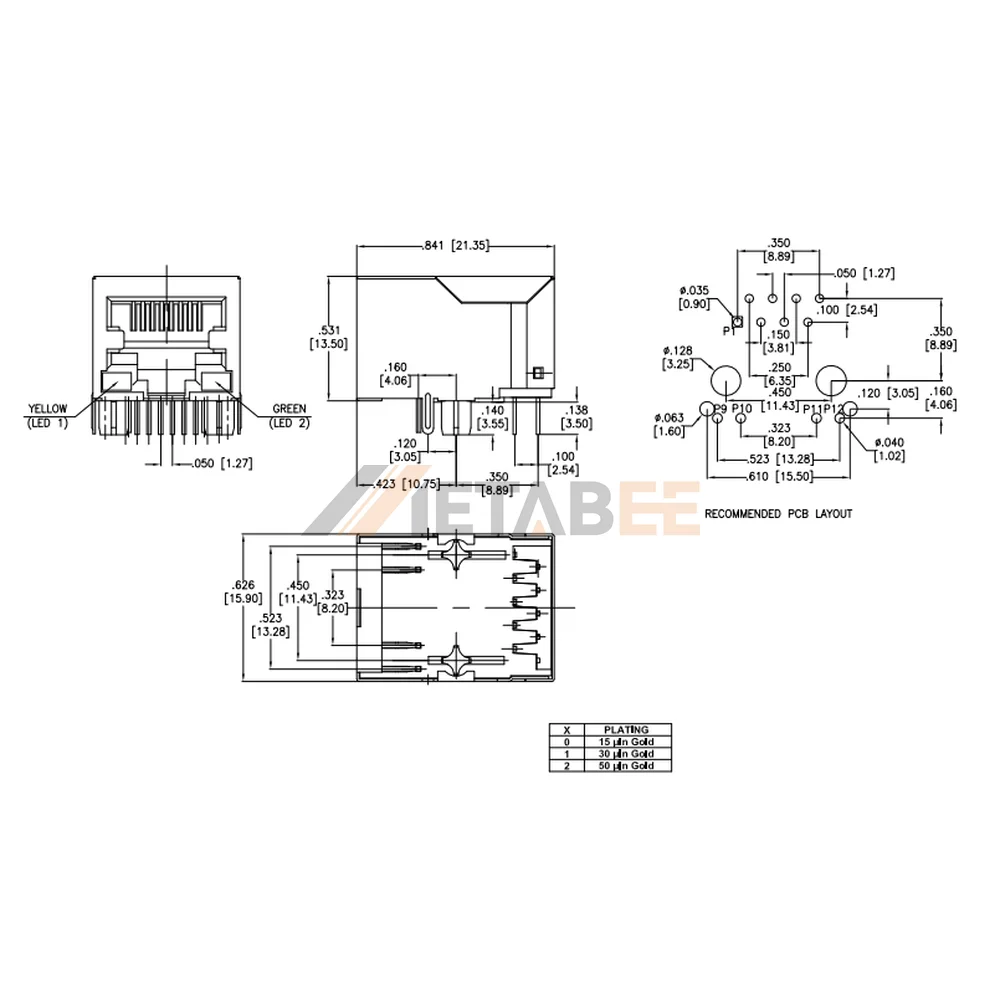

Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSP-LG-M5 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
