Simplifying network hardware designs is easy with this magjack RJ45 connector ethernet jack without leds. By housing essential 10/100 BASE-T magnetics and PoE support in a single shell, it eliminates the need for separate filters and power components on the circuit board. Its Tab-Up configuration allows it to fit into layouts where bottom clearances are limited or specific mechanical orientations are required. Because the port uses a nickel-plated brass shell with EMI fingers, it blocks unwanted signal noise in busy electronic environments. Technicians rely on its rugged PA66 housing for reliable operation across extreme industrial temperatures from -40°C to 85°C. Gold over nickel contacts ensure long-lasting conductivity for all your telecommunication needs.
Key Features
- PoE Integration: Delivers power and 10/100 BASE-T data simultaneously.
- Integrated Magnetics: Built-in transformers filter noise and provide isolation.
- Industrial Temperature: Operates reliably between -40°C and 85°C.
- Full EMI Shielding: Blocks interference with a rugged metallic shell.
- Tab-Up Design: Optimizes mechanical fit for specific PCB layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-M378C-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ 85°C | |
| Flammability Rating: | UL 94 V-0 |

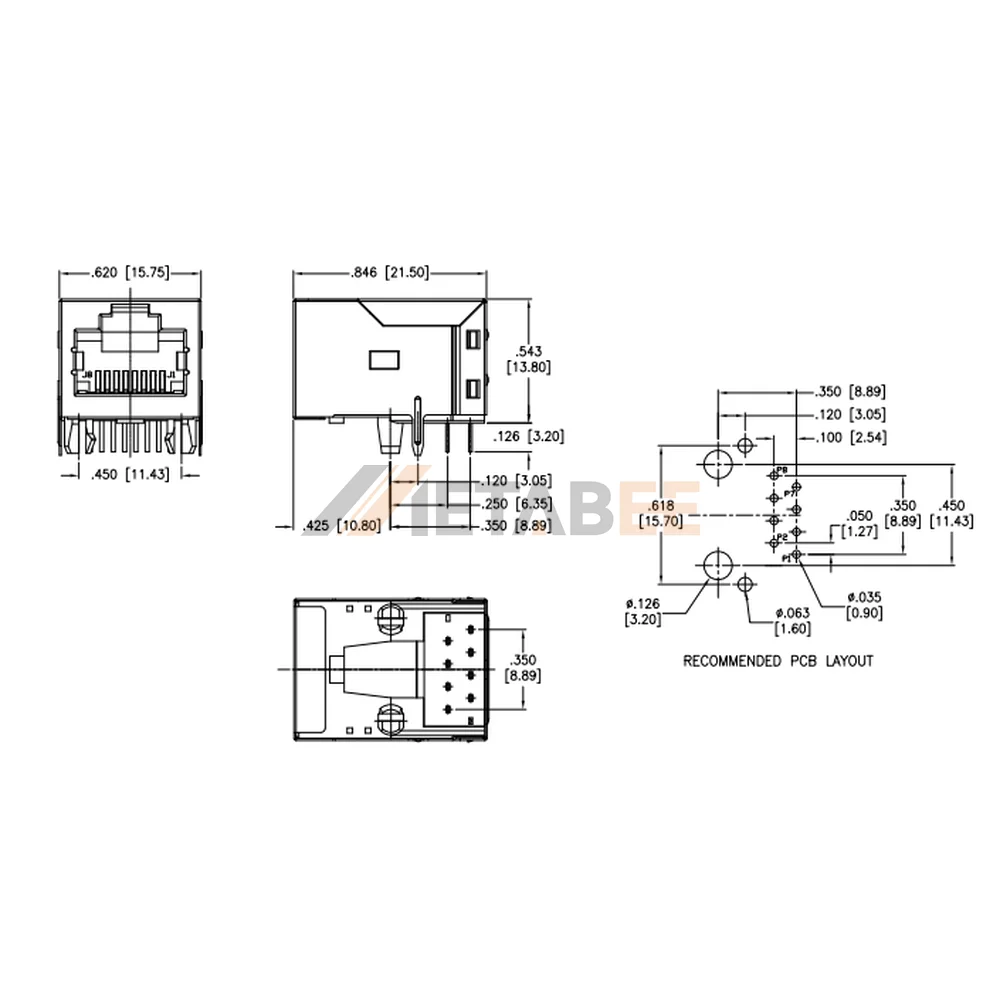

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
