Introduction:

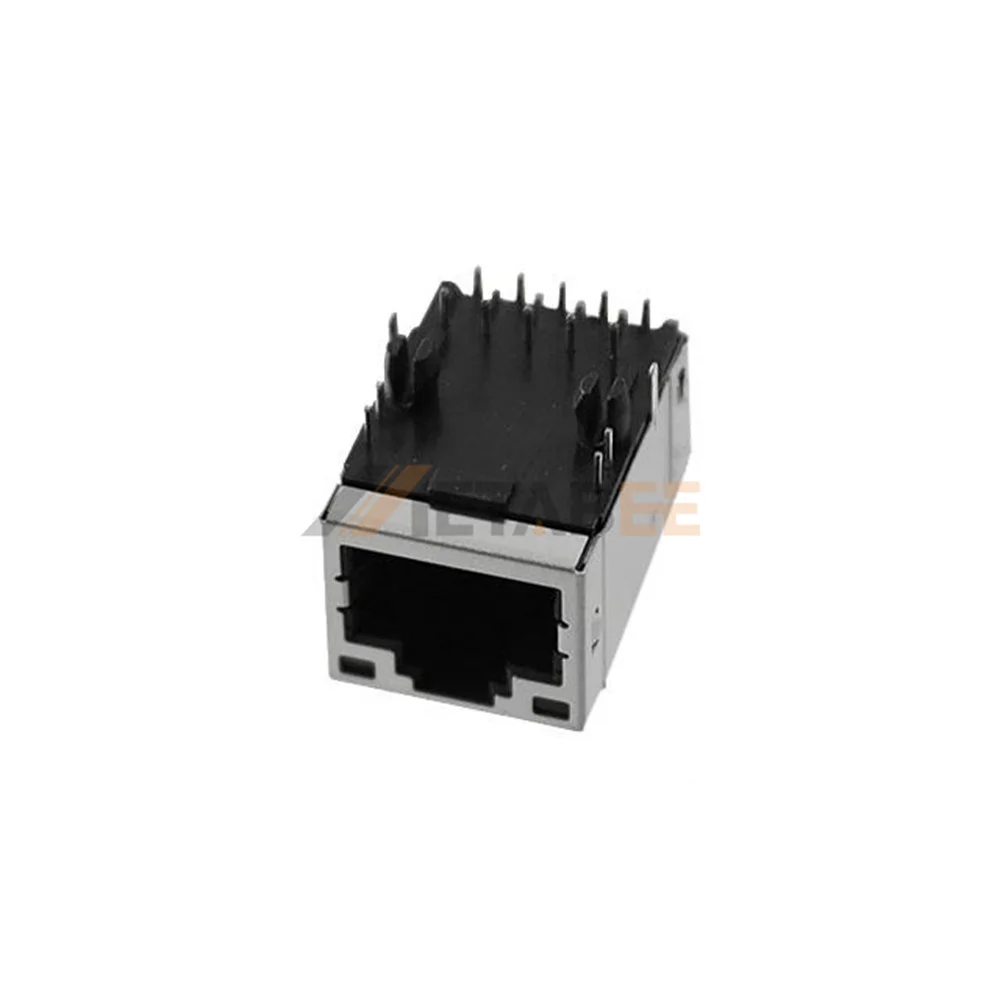

Flawless Gigabit data transfer depends on high-quality hardware, and the shielded Magjack Ethernet connector expertly handles standard 1G Base-T network traffic. A robust stainless steel shield with a pre-soldering design completely encases the black hi-temp thermoplastic insulator to block severe electromagnetic interference. Strict mechanical stability on the printed circuit board relies on the practical board lock and solder retention features integrated into the right-angle architecture. Precise visual activity monitoring is effortlessly achieved through dual green and orange LEDs positioned neatly within the tab-down profile. Furthermore, gold-plated phosphor bronze contacts maintain excellent electrical conductivity to secure long-term signal clarity across standard 0°C to 70°C commercial environments.
Key Features
- 1G Base-T Speed: Delivers reliable Gigabit Ethernet data transmission seamlessly.
- Stainless Steel Shield: Pre-soldered metal housing blocks electromagnetic interference completely.
- Hi-Temp Thermoplastic: Durable black insulation withstands standard soldering heat securely.
- Enhanced PCB Mounting: Board lock and solder retention guarantee strict physical stability.
- Dual-Color Status LEDs: Green and orange lights track exact network activity.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-VL5-M236Y-HT-TR | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Orange |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
