Introduction:
Vertical mounting on the PCB allows for significant space savings when using the low profile RJ45 with magnetics. Integrated Power over Ethernet (PoE) functionality supports 10/100 Base-T network speeds effortlessly for various commercial applications. A nickel-plated brass shield provides full protection to mitigate electromagnetic interference effectively during operation. Precise alignment depends on the integrated board guide to ensure secure through-hole soldering. Black thermoplastic insulation and gold-plated copper alloy contacts strictly maintain resistance below 20mΩ for long-term signal clarity. This tab-up configuration operates without LEDs to suit streamlined board designs across a 0°C to 70°C temperature range.
Key Features
- PoE Networking: Supports 10/100 Base-T data and power delivery.
- Vertical THT Mounting: Optimizes space on high-density circuit boards.
- Full Brass Shielding: Blocks severe electromagnetic interference effectively.
- Board Guide Stability: Ensures precise mechanical alignment during soldering.
- Gold-Plated Contacts: Maintain electrical resistance below 20mΩ securely.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-STP-M63C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

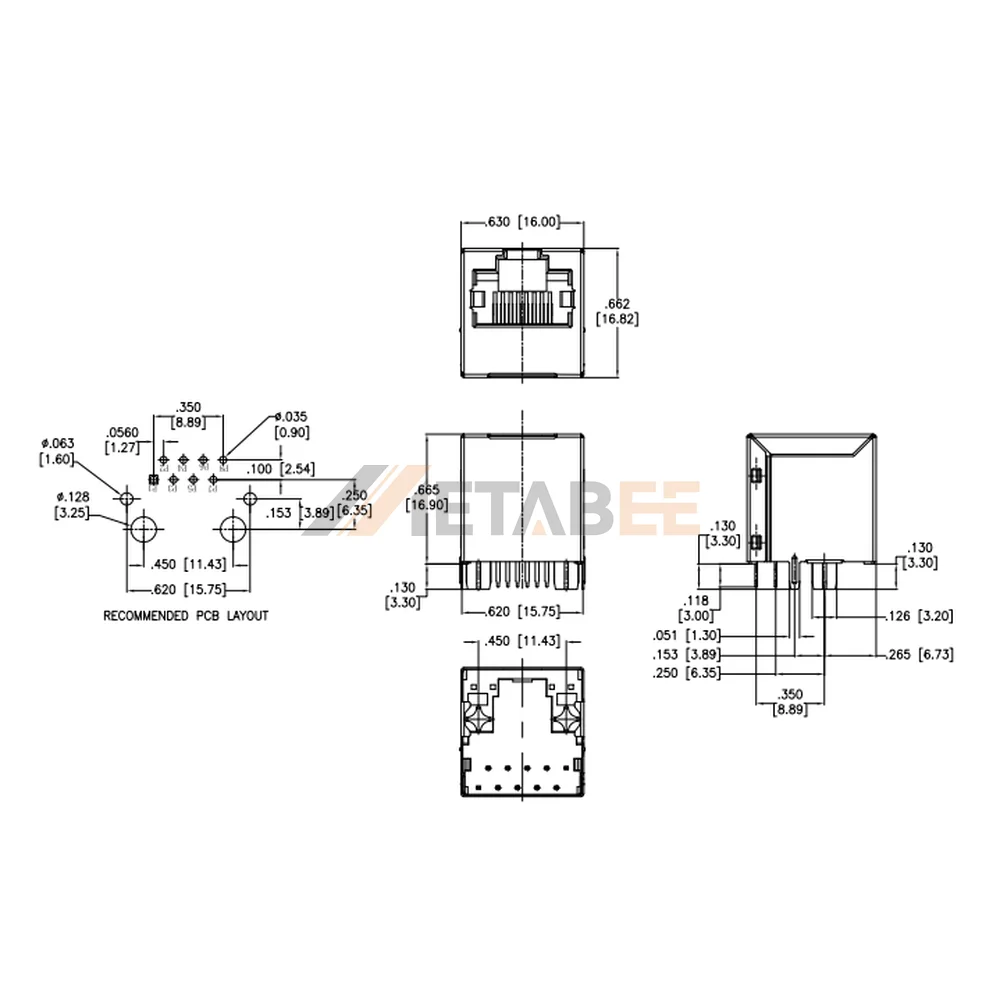

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
