Introduction:
Adding this low-profile RJ45 with magnetics jack to your design reduces board clutter while ensuring stable network links. Integrated transformers within the unit manage 100Base-T filtering and provide essential electrical isolation for internal chips. Because the housing is crafted from hi-temp LCP thermoplastic, the connector survives intense industrial soldering processes without any deformation. The nickel-plated stainless steel shell acts as a rugged shield to block electromagnetic interference in busy data environments. Designers value the Tab-Up configuration for its ability to fit into tight spaces without physical conflicts. Since this model has no built-in LEDs, it offers a clean appearance for custom front-panel interfaces. Solder tails and board guides ensure a secure mechanical bond to the through hole PCB.
Key Features
- 100 Base-T Performance: Integrated magnetics ensure stable high-speed data transmission.
- Space-Saving Profile: Low profile design optimizes vertical board clearance.
- Full EMI Shielding: Metallic shell blocks interference for clear networking.
- Hi-Temp LCP Housing: Robust material withstands demanding industrial soldering processes.
- Tab-Up Configuration: Specifically oriented to fit specialized board layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-PG-M13D-HT-TR | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp LCP Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 75°C | |
| Flammability Rating: | UL 94 V-0 |

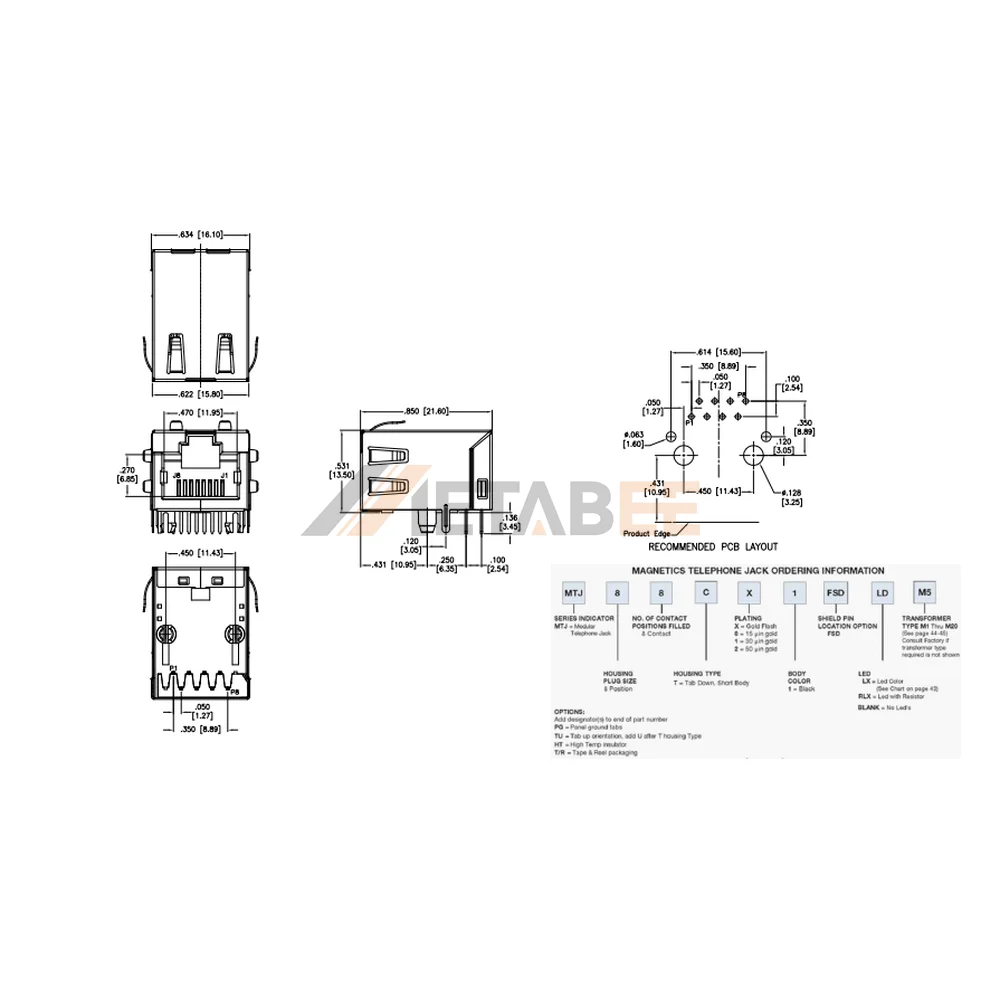

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
