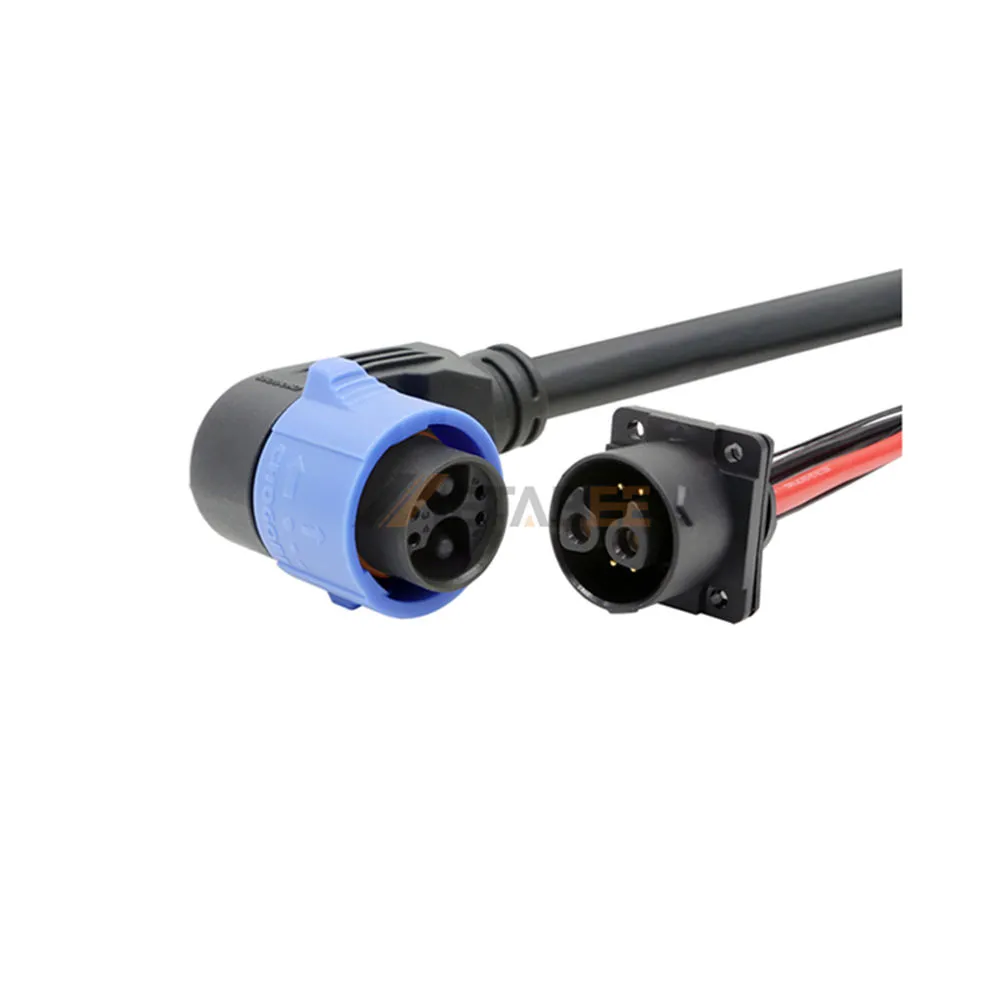

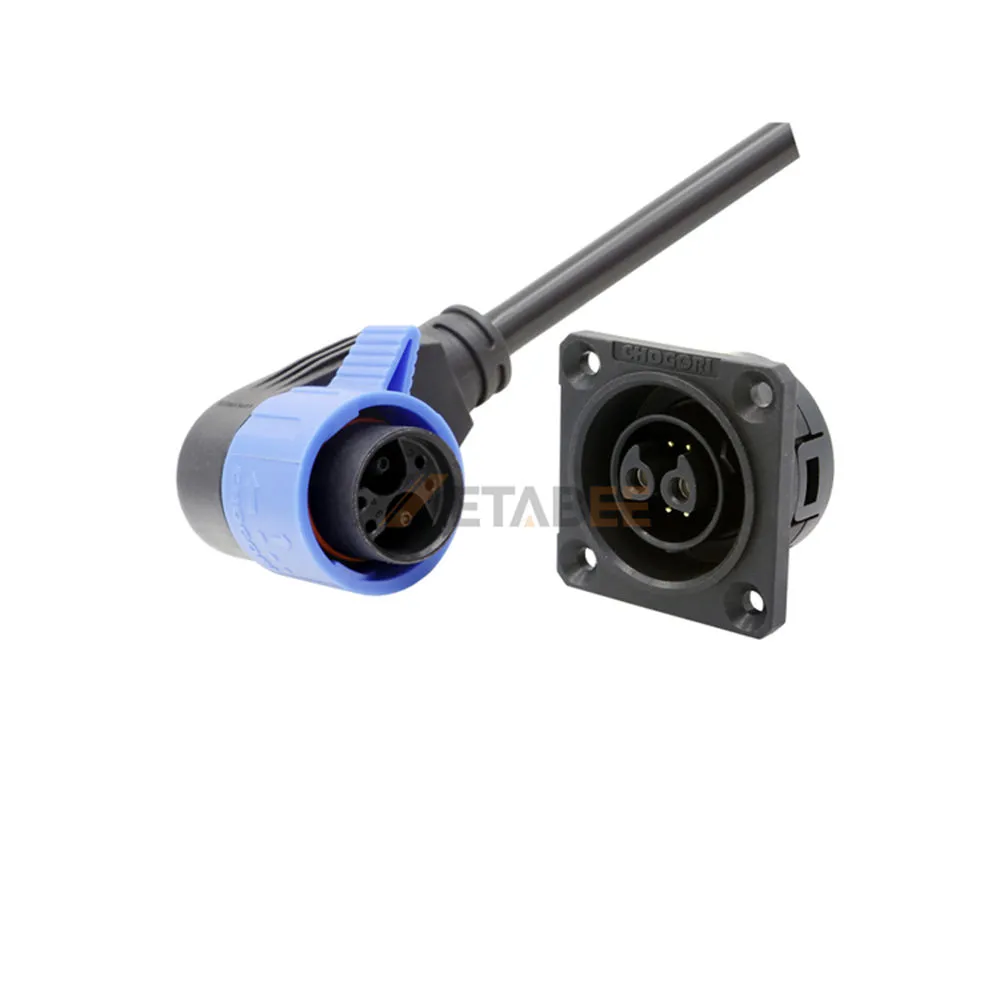

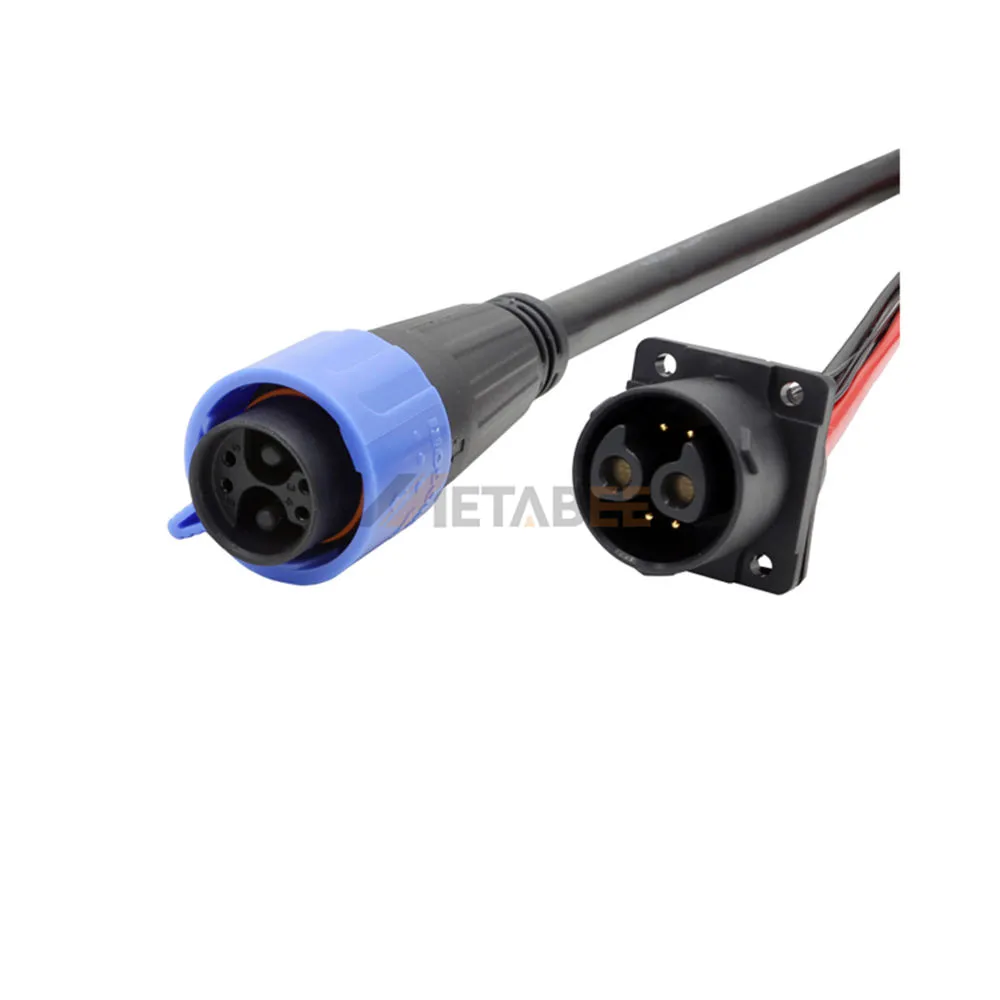

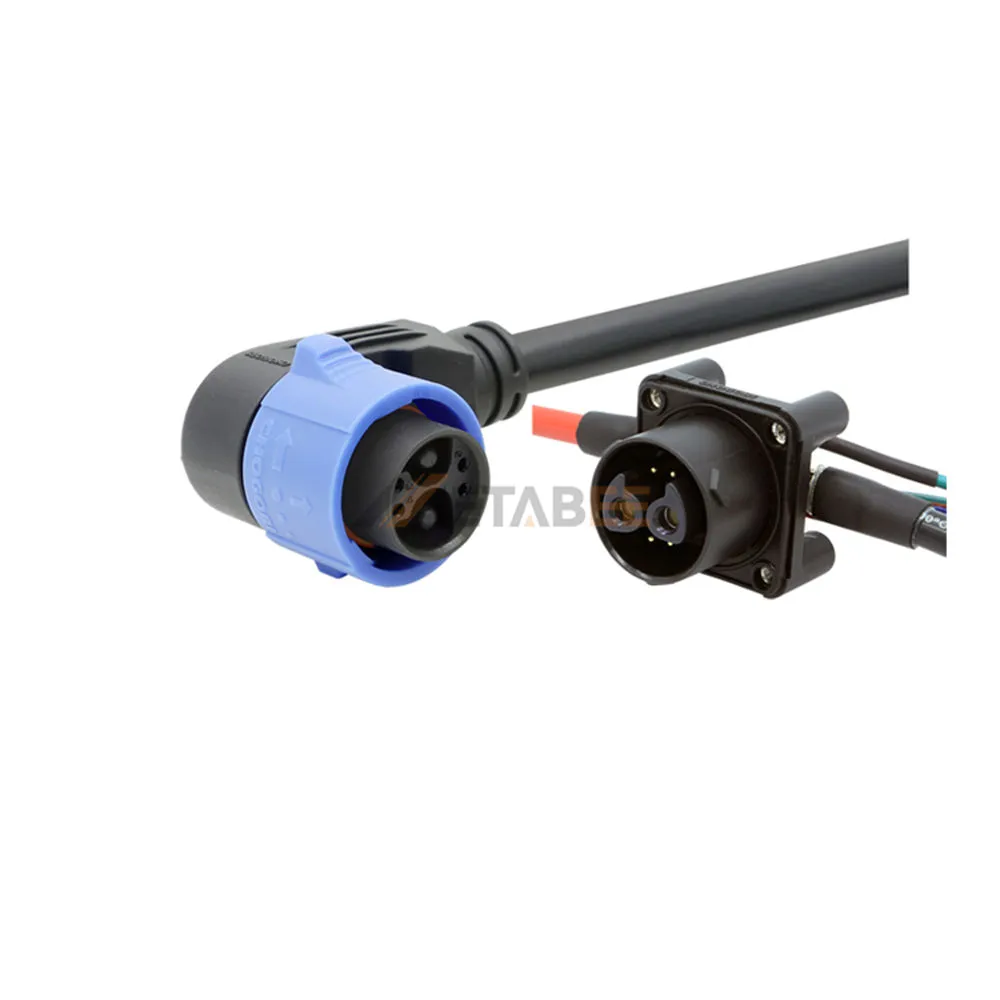

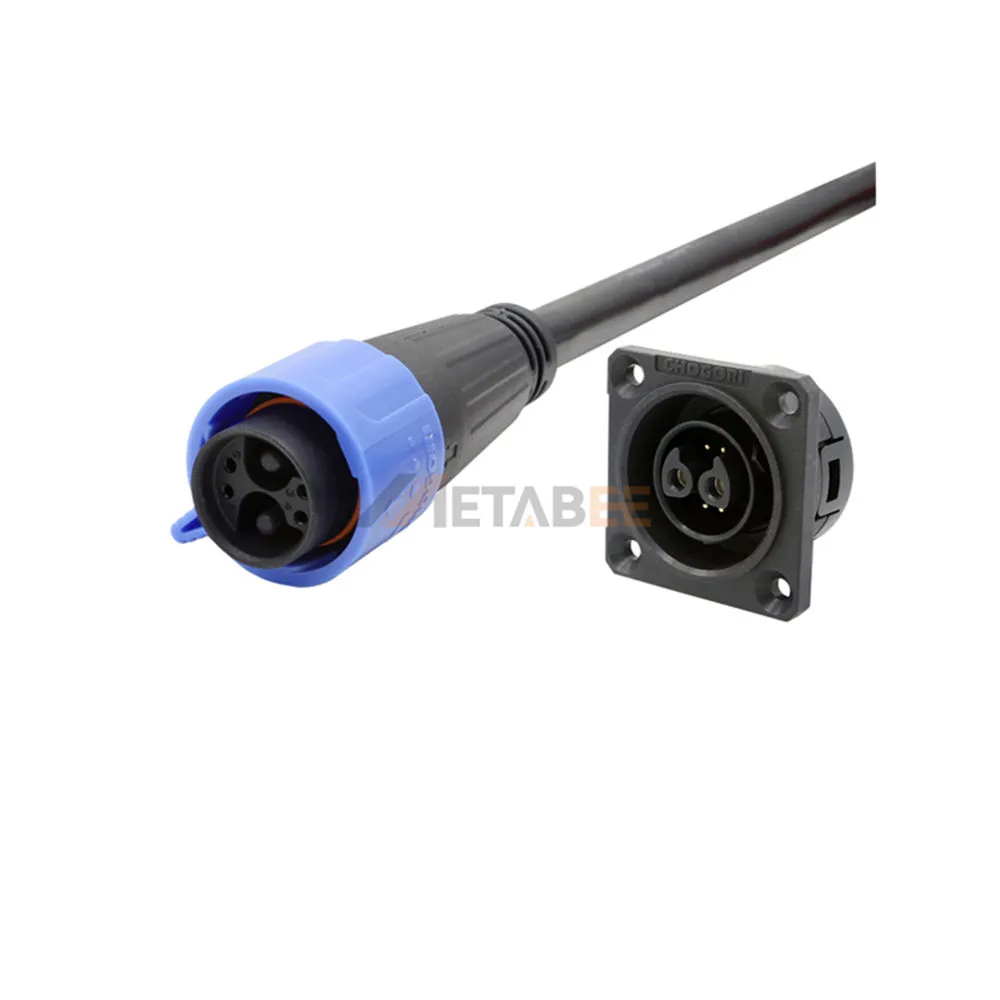

Lithium Battery Electric Motorcycle Hybrid Charger, 2+4 Pin, IP67
Introduction
This lithium battery electric motorcycle hybrid charger connector provides secure power and signal transmission for light electric vehicles. Engineered with a compact 2+4 pin layout, it combines high-current delivery with reliable data connectivity.
Built for harsh riding environments, it features robust weather sealing and industrial-grade materials to prevent power failure and moisture intrusion across extreme operating conditions.
Key Features:
- 2+4 pin hybrid design for power and signal
- Ip67 waterproof and dustproof protection
- Wide operating temperature from -40°c to 105°c
- Ul94v-0 certified flame-retardant housing
- Stable high-conductivity contacts
- Rugged build for electric motorcycles
Main Specifications:
General Information:
| Part No.: | YC-E1001-0010 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+4 Pin | |
| Wire Gauge: | Power 8AWG/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 125V DC (Power), 80V DC (Signal) | |
| Rated Current: | 60A+5A | |
| Insulation Resistance: | >100MΩ | |
| Withstanding Voltage: | 1,500V AC | |
| Durability (Mating): | ≥5000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
